Lockdown Plans Walkthrough

Topics included in this article:

• Lockdown Plans Overview
• Firmware Requirement
• Lockdown Plans
  • Creating a Plan
  • Aux Relay Setup (Optional)
    • Hardware
    • Console
  • Adding Rules (Optional)
• Activating or Deactivating a Lockdown

  • Rhombus Console
    • Locations Page
    • Dashboard
  • Rhombus Key App
• Helpful Links
• Contact Support or Sales

Lockdown Plans Overview

The Lockdown feature allows you to set unique door access conditions in emergency situations. A Lockdown Plan manages who can enter or exit, which doors will be locked or unlocked, and triggers hardware connected to the auxiliary relays.

Firmware Requirement

Make sure your DC20 firmware starts with 2024_0514.. or above, and contact support if you require assistance.

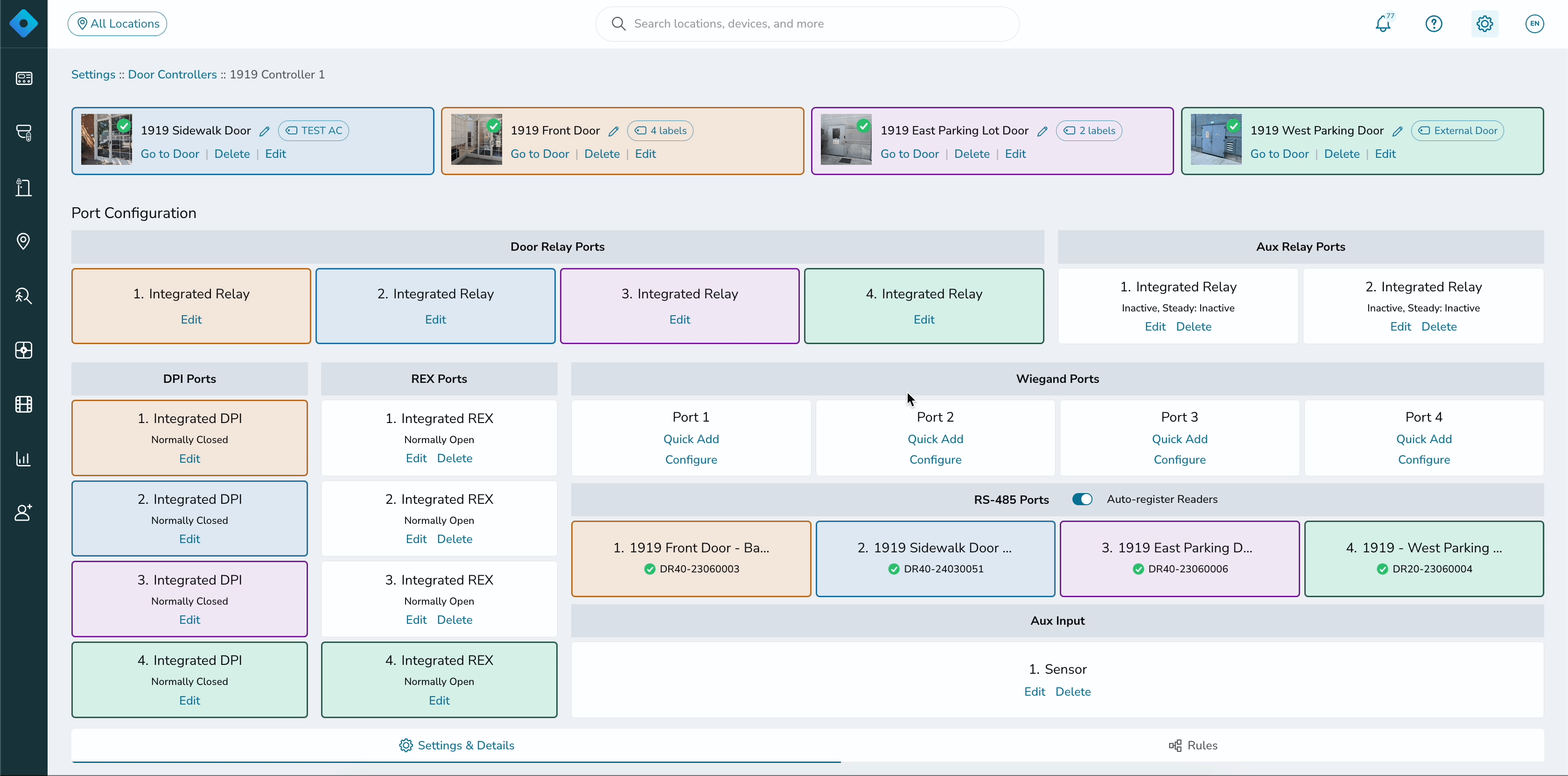

1. Select "Devices" in the Rhombus console.

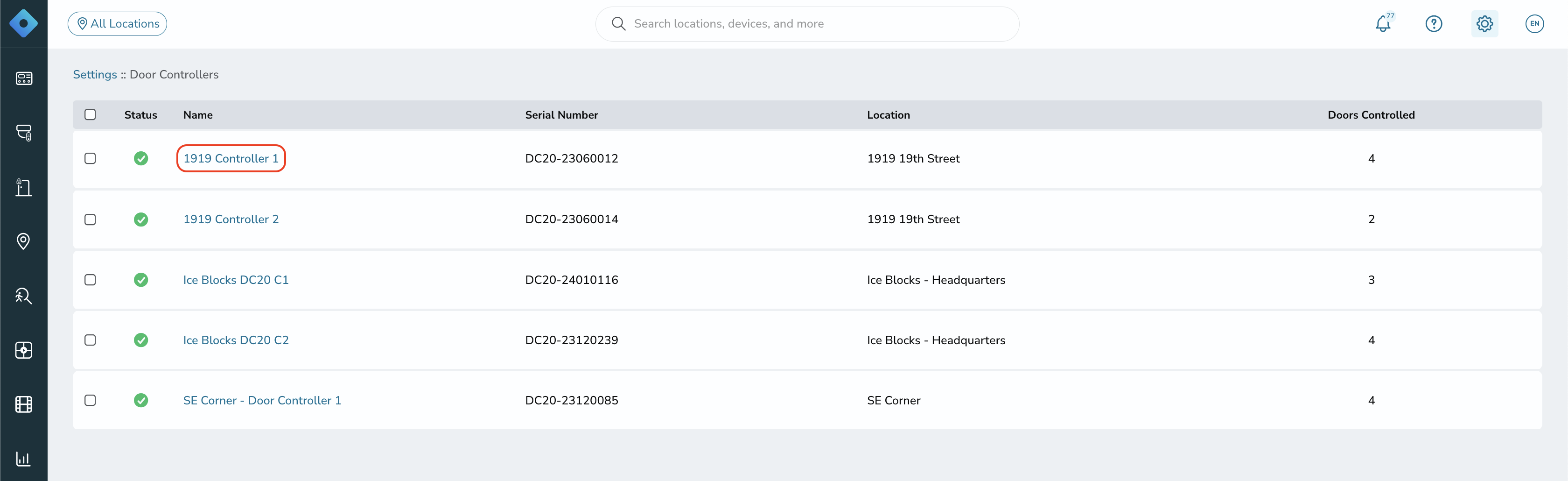

2. Click on the "Doors" tab and click on the name of the door controller associated with the door.

3. On the door controller configuration page, scroll to the bottom and click "More Details." The firmware version will be displayed here.

Optional Navigation: Click on "Settings," select "Door Controllers," and select the desired door controller.



Lockdown Plans

Lockdown Plans configure what happens in an emergency situation. They allow you to set what doors will be locked/unlocked, who will still have access to unlock a door, and who has permission to activate a lockdown in the Rhombus Key App.

To activate a lockdown, you must have specific permissions granted.

• For console activation, you must have permission to manage Access Control peripherals for the location the lockdown plan is associated with. Please review the Role Creation and Management article for more information on roles and permissions.
• For activation within the Rhombus Key app, you must be included as a Rhombus Key user who can activate a lockdown plan when the plan is created.

Creating a Plan

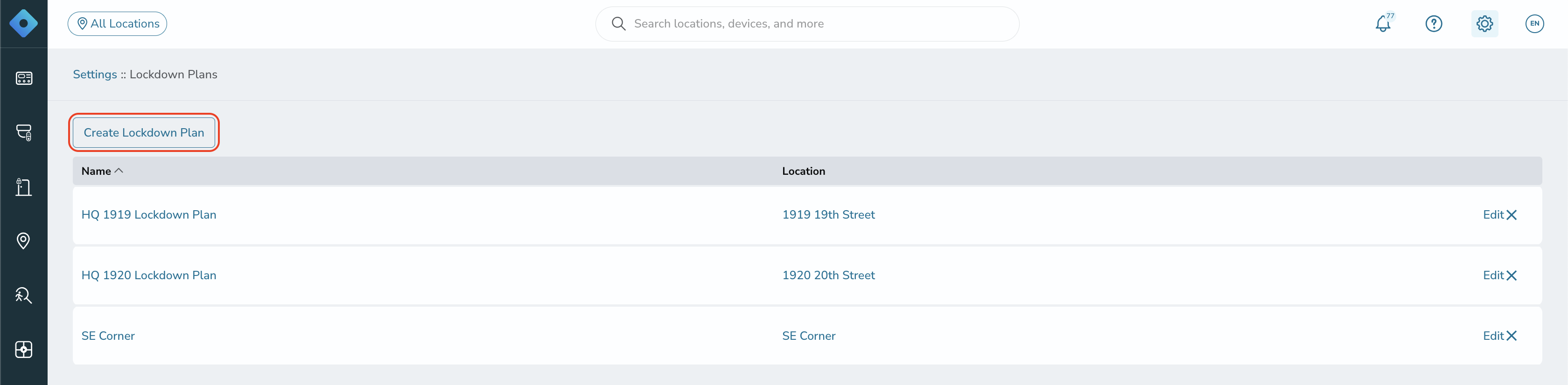

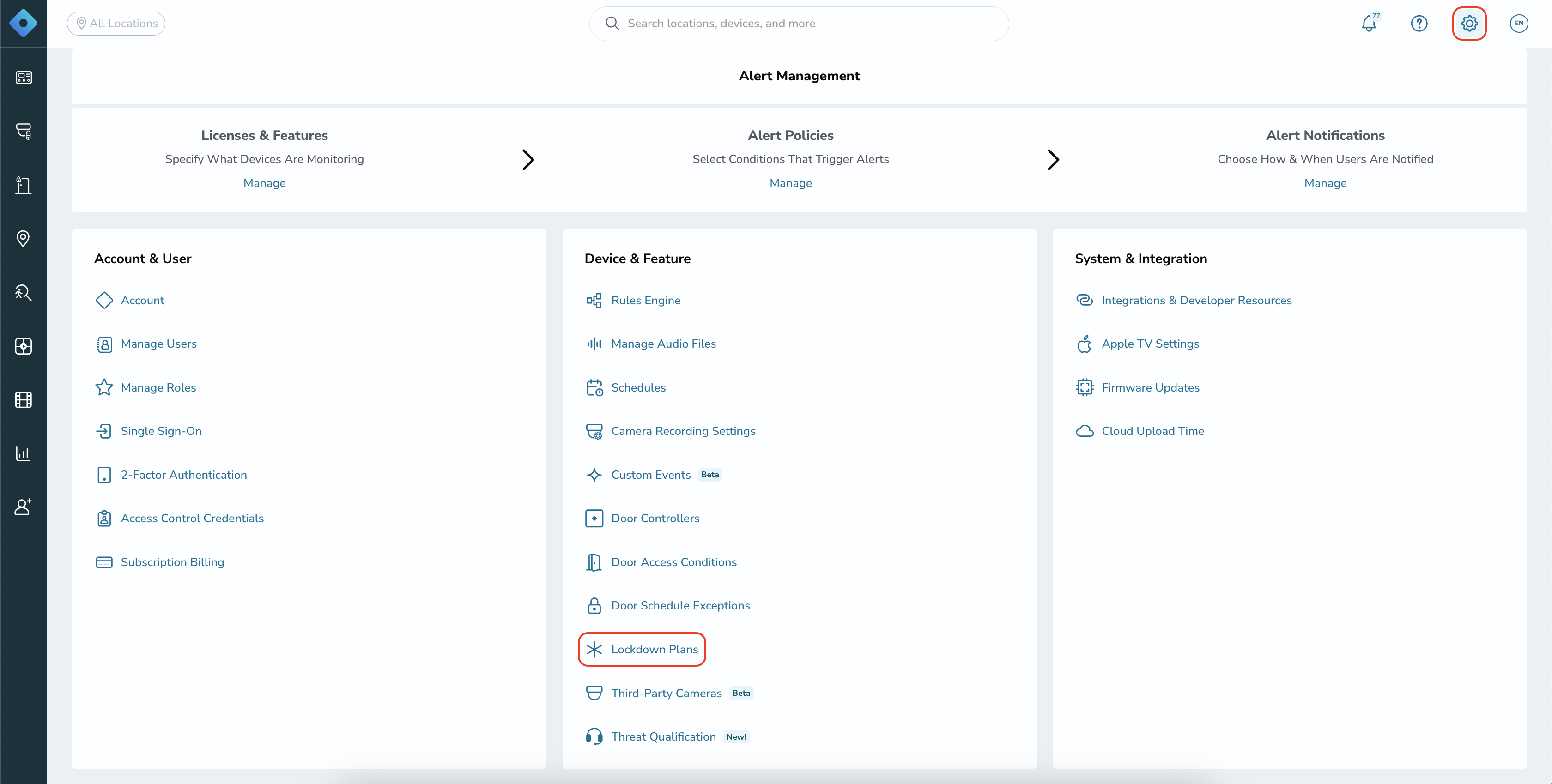

1. Navigate to "Settings" and click "Lockdown Plans."

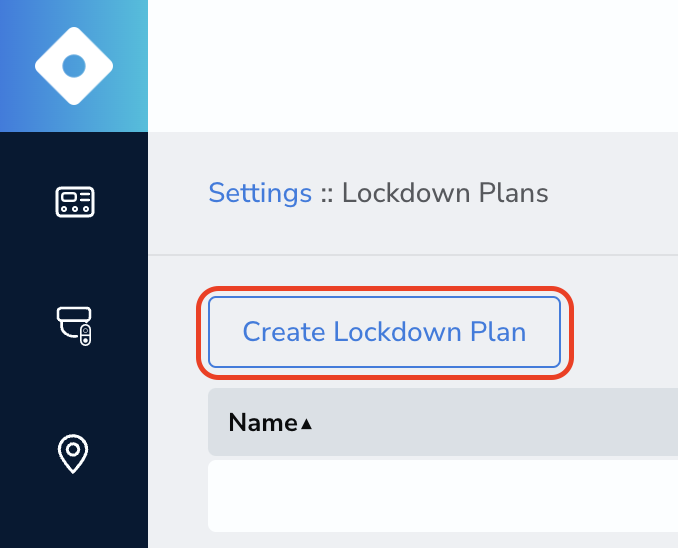

2. Click "Create Lockdown Plan."

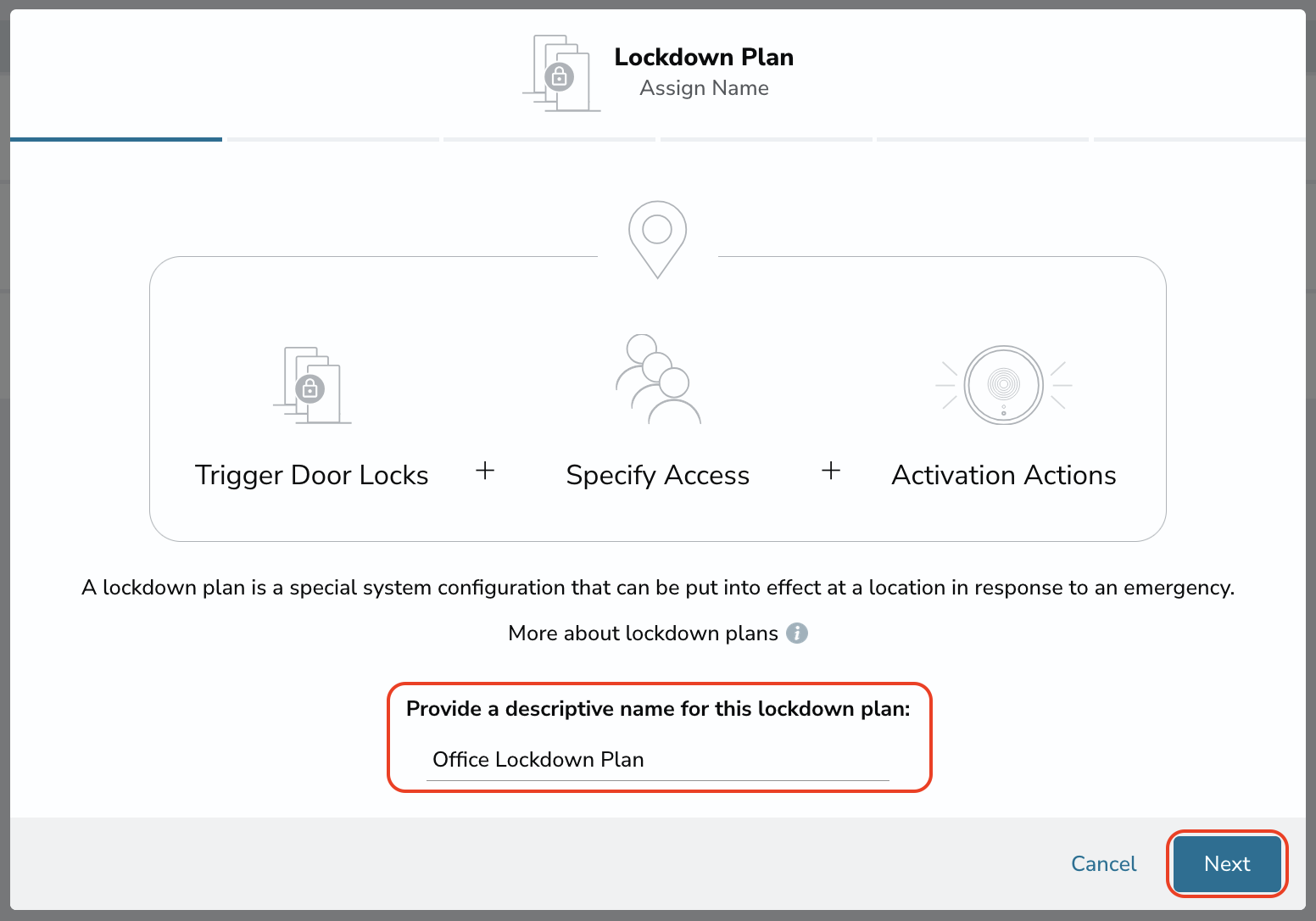

3. Name the lockdown plan and click "Next."

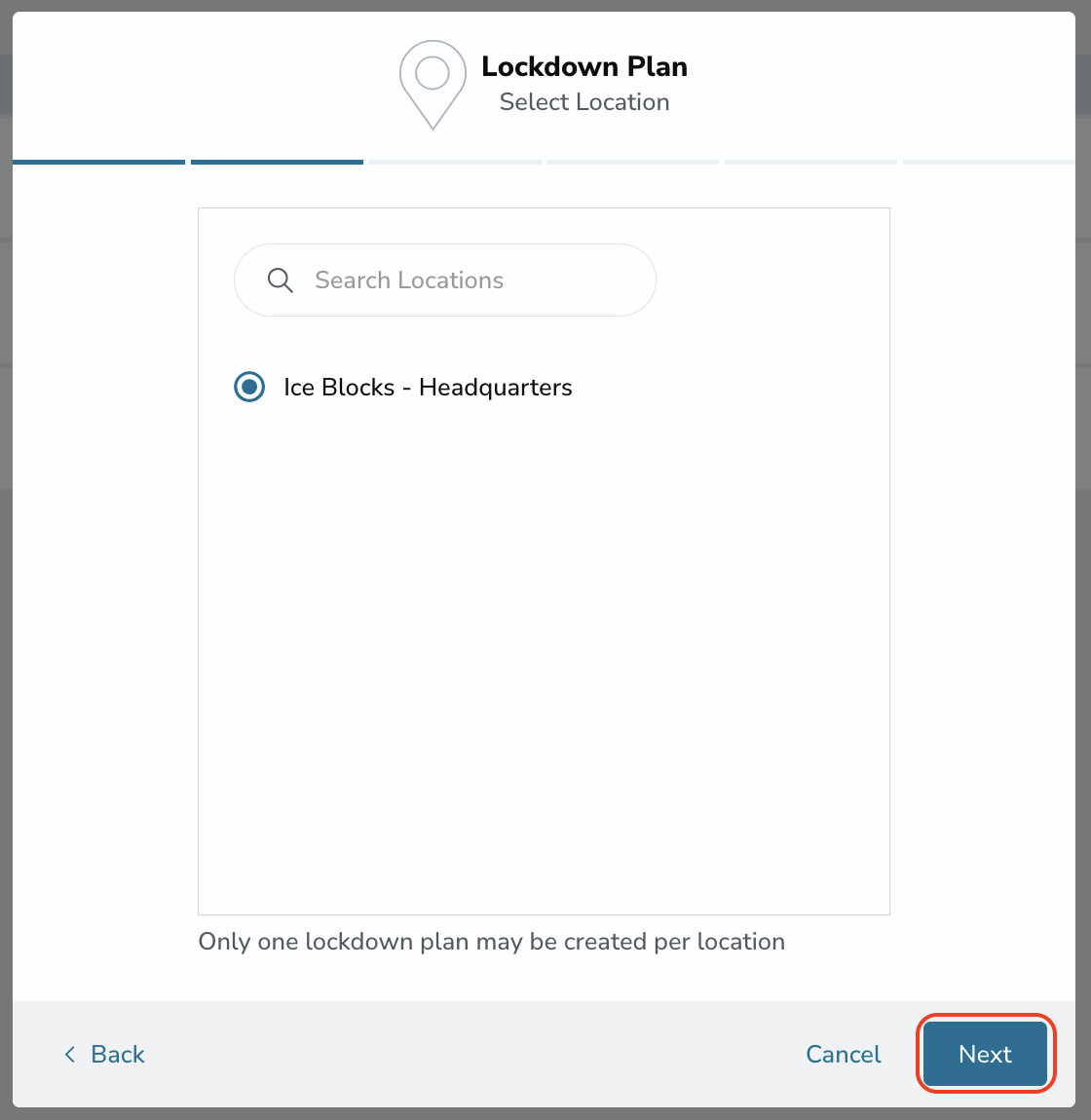

4. Select the location for the plan and click "Next." If you have not set up a location, follow the instructions provided in this article. Note: Only one lockdown plan can be created per location.

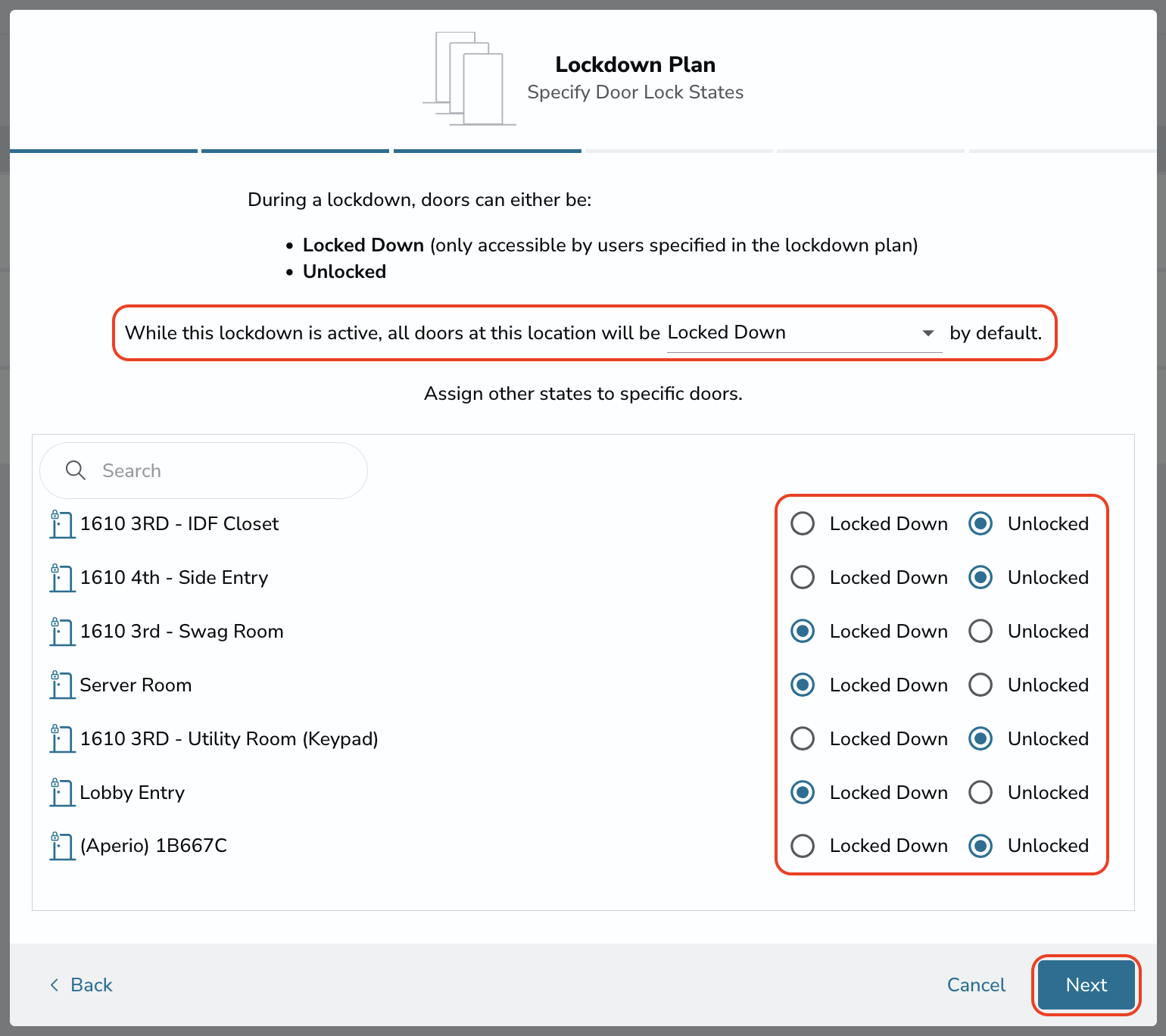

5. Use the dropdown menu to choose the default door state during a lockdown (Locked Down or Unlocked). Assign specific states to doors as needed.

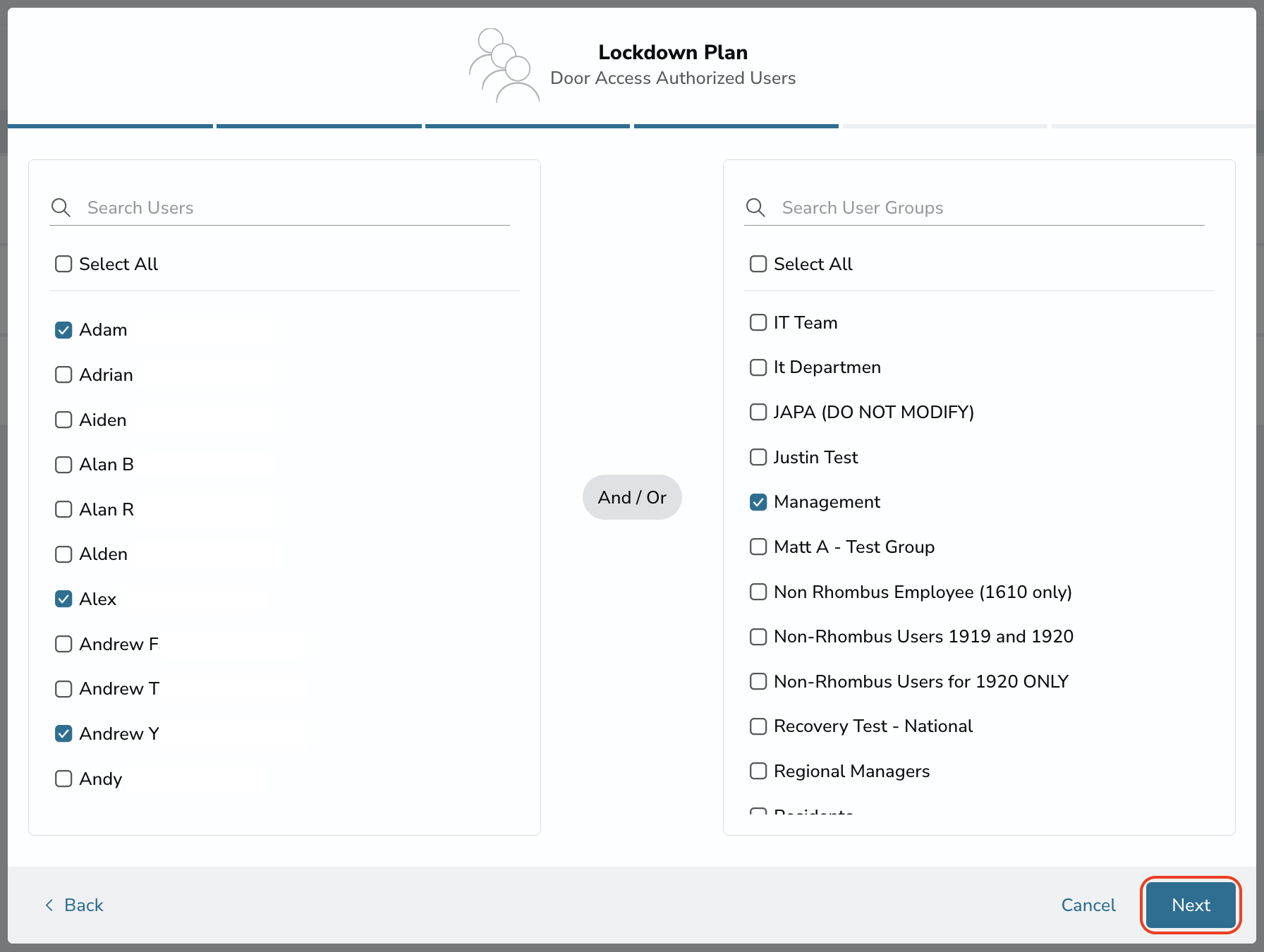

6. Select individuals or groups of users who will still have access to a locked door when the lockdown plan has been activated.

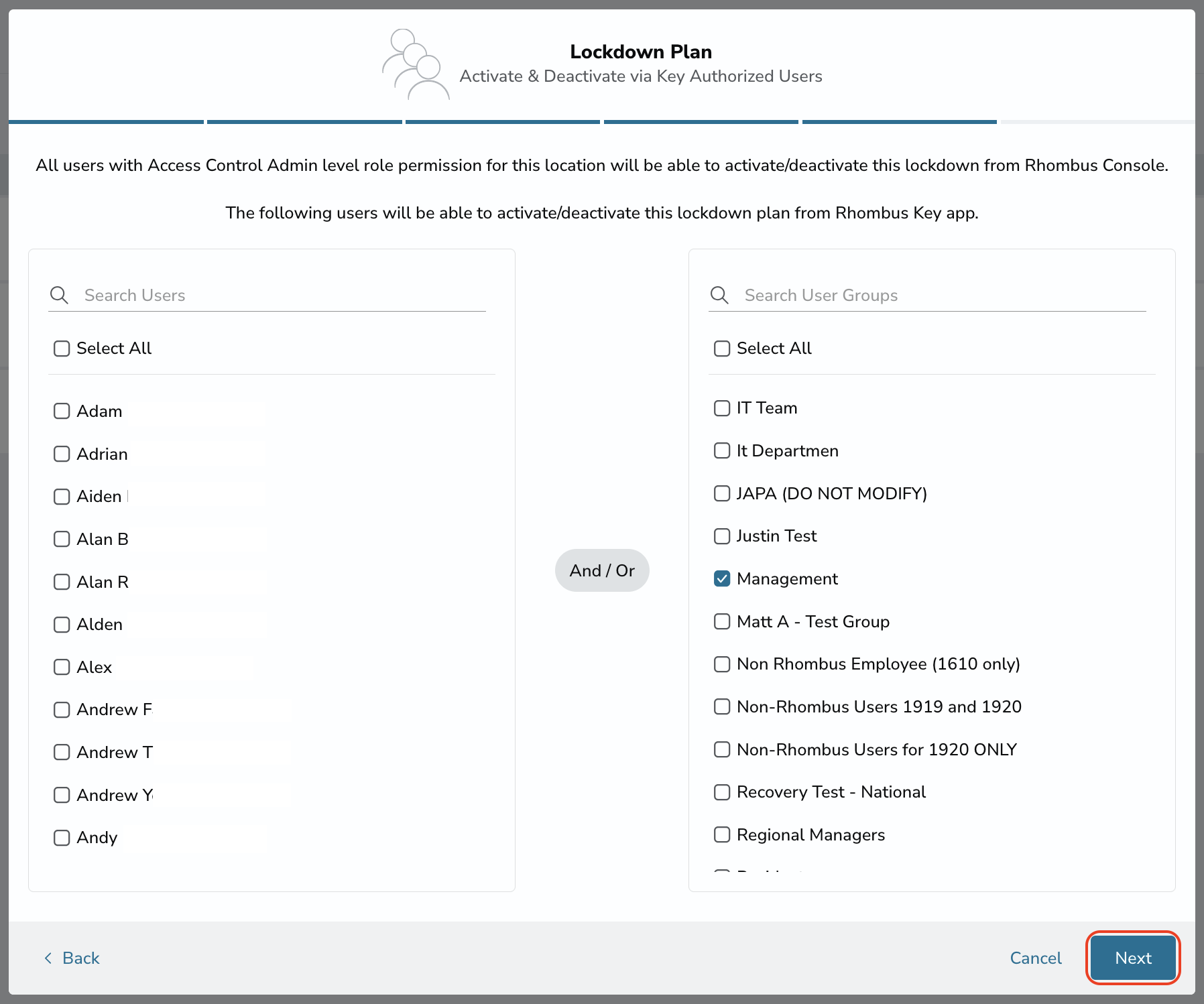

7. Specify which users or groups can activate or deactivate a lockdown through the Rhombus Key app. This step is optional, you do not have to enable this permission.

8. Review your plan summary and click "Save" if all details are correct.



Aux Relay Setup (Optional)

In the event of a lockdown, it is common practice to include strobe lights and/or sirens to trigger and alert those in the building that a lockdown is occurring.

Hardware

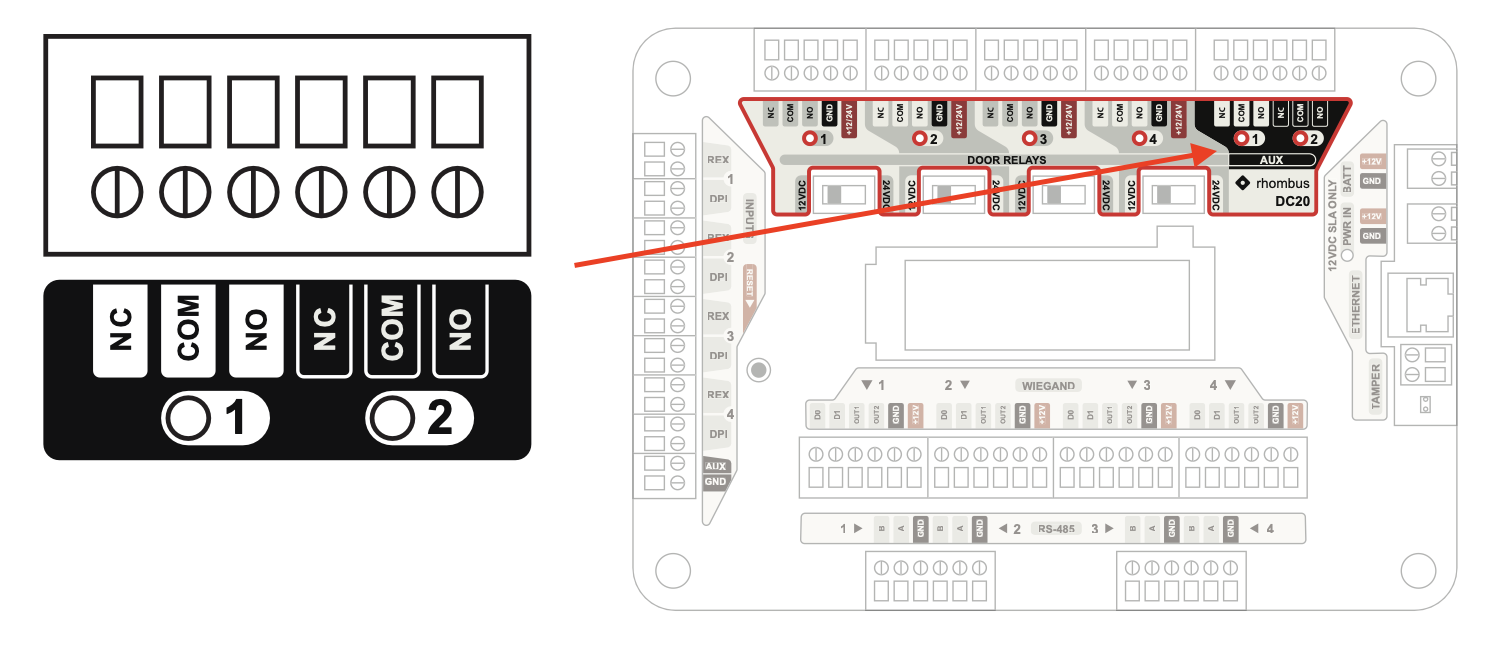

Locate your DC20 device and connect the auxiliary device using the NC/NO and COM ports. Refer to the wiring diagram provided for correct connections. For more information, please review the DC20 manual provided in the DC20 Install article.

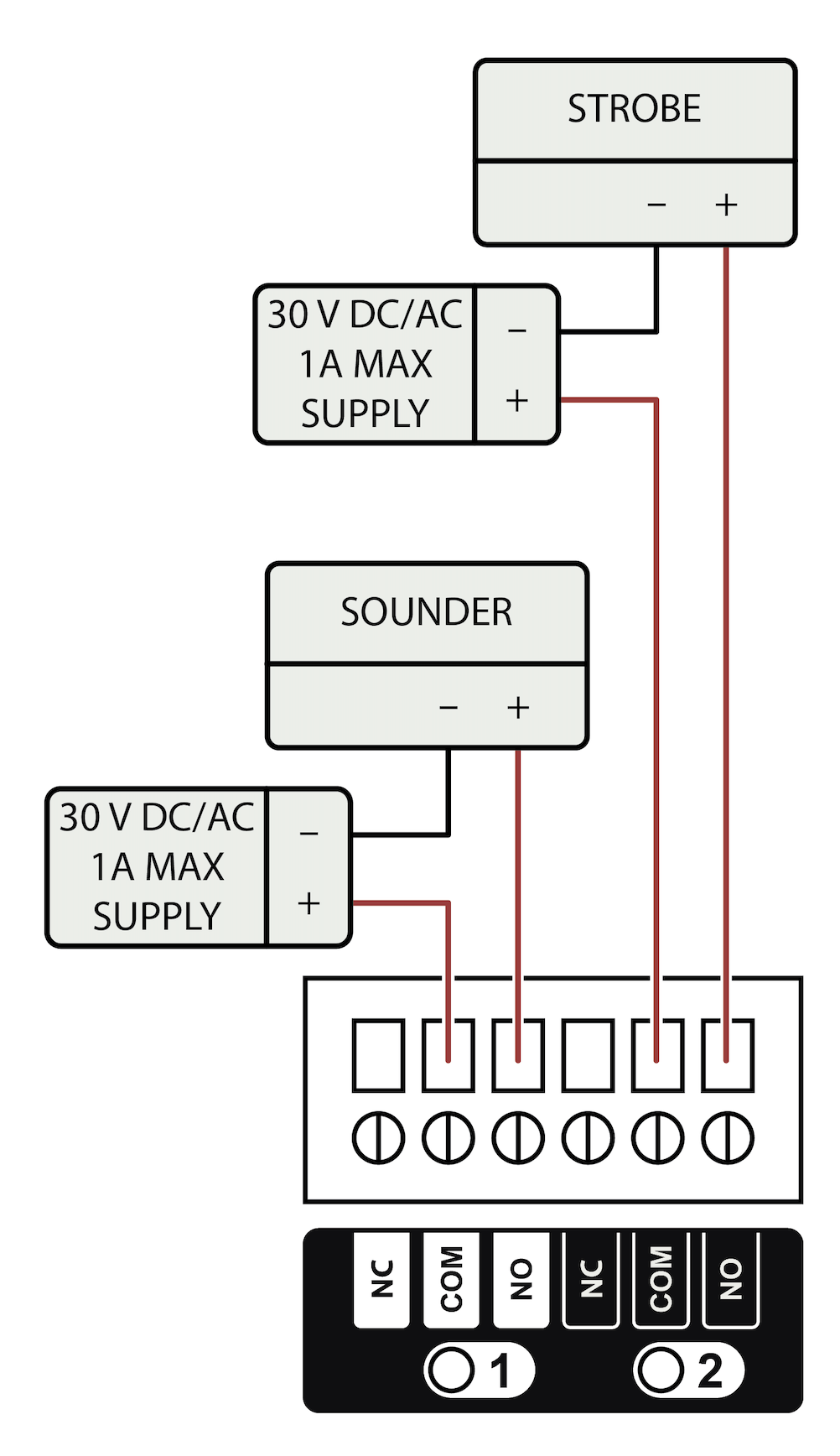

Example wiring diagram:



Console

Once you have appropriately wired in your device, we need to return to our Rhombus Console and set it up.

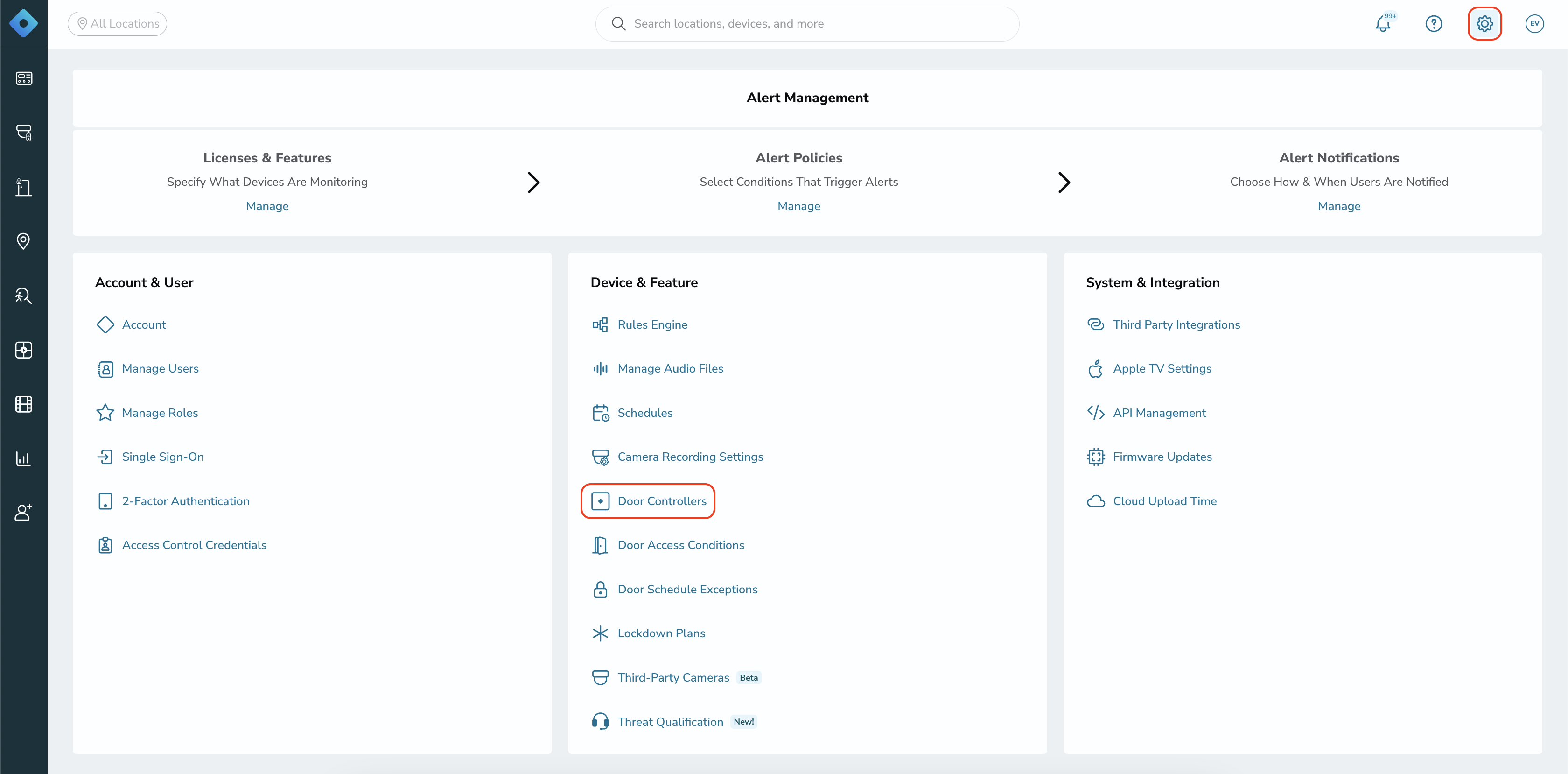

1. Navigate to "Settings" and select "Door Controllers."



2. Click on the corresponding door controller you wired the device to.

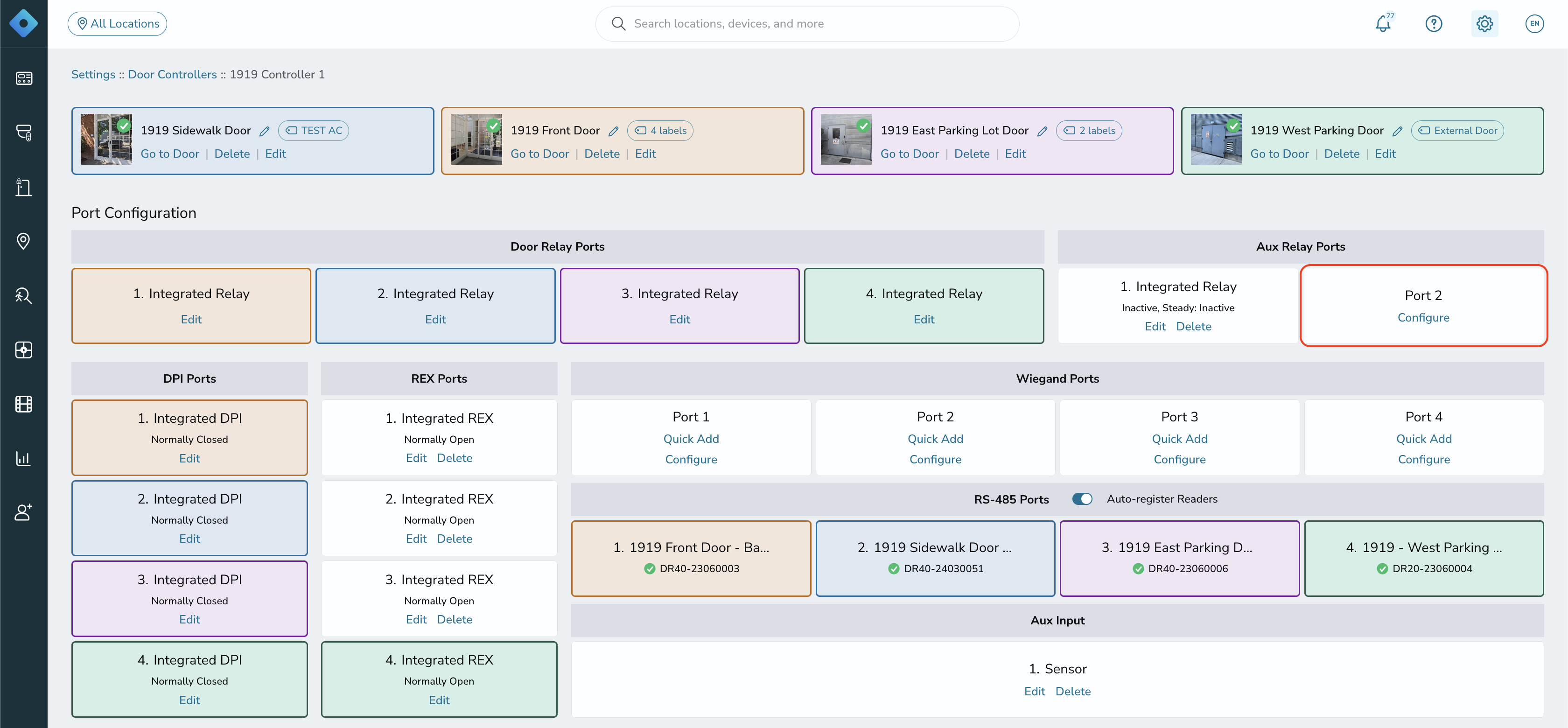

3. Click "Configure" next to the corresponding Aux Port.

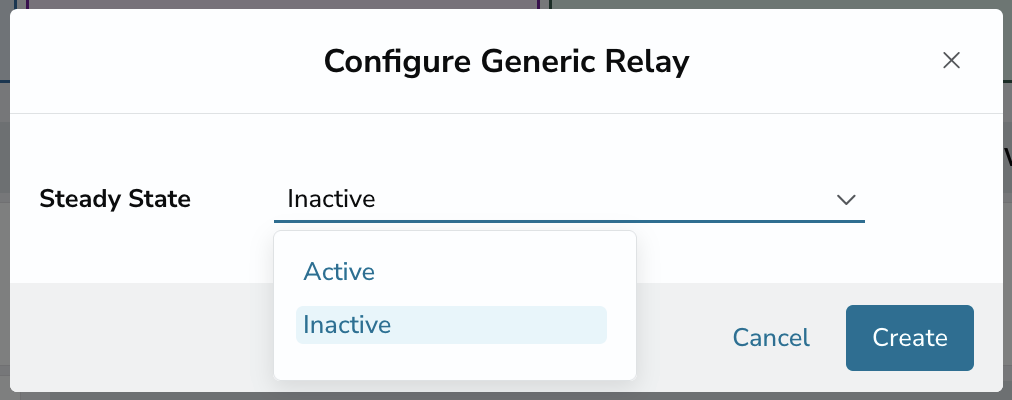

4. Set the steady state for the device and click "Save."

• Active: The device is set up in a normally energized state.
• Inactive: The device is set up in a normally non-energized state.



5. Your device will now appear in the Aux Relay Port section, and you can Edit or Delete as needed. You can now select this device within the Rules Engine and Lockdown Plans.



Adding Rules (Optional)

Once the lockdown plan has been created, you can add additional rules.

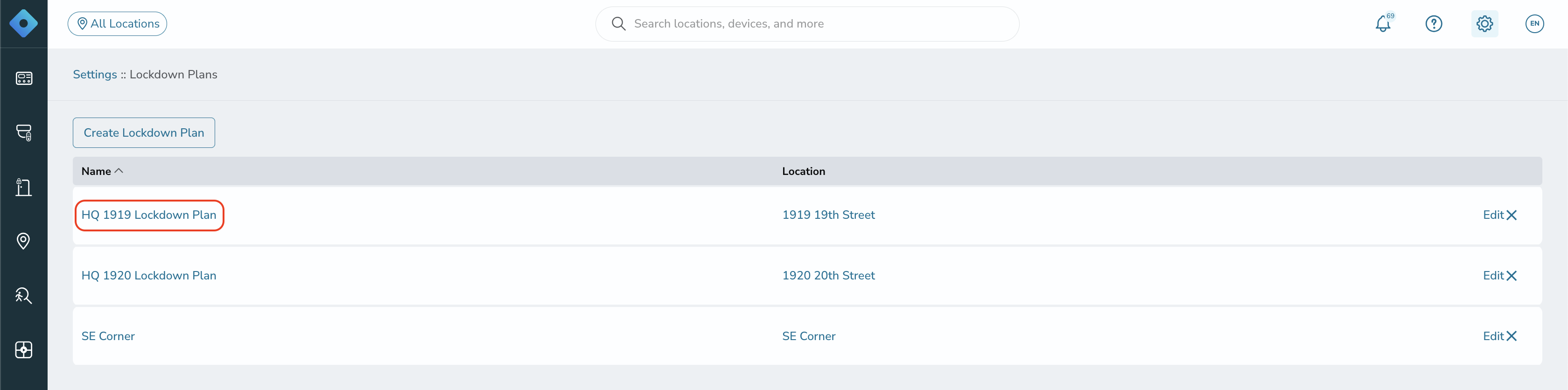

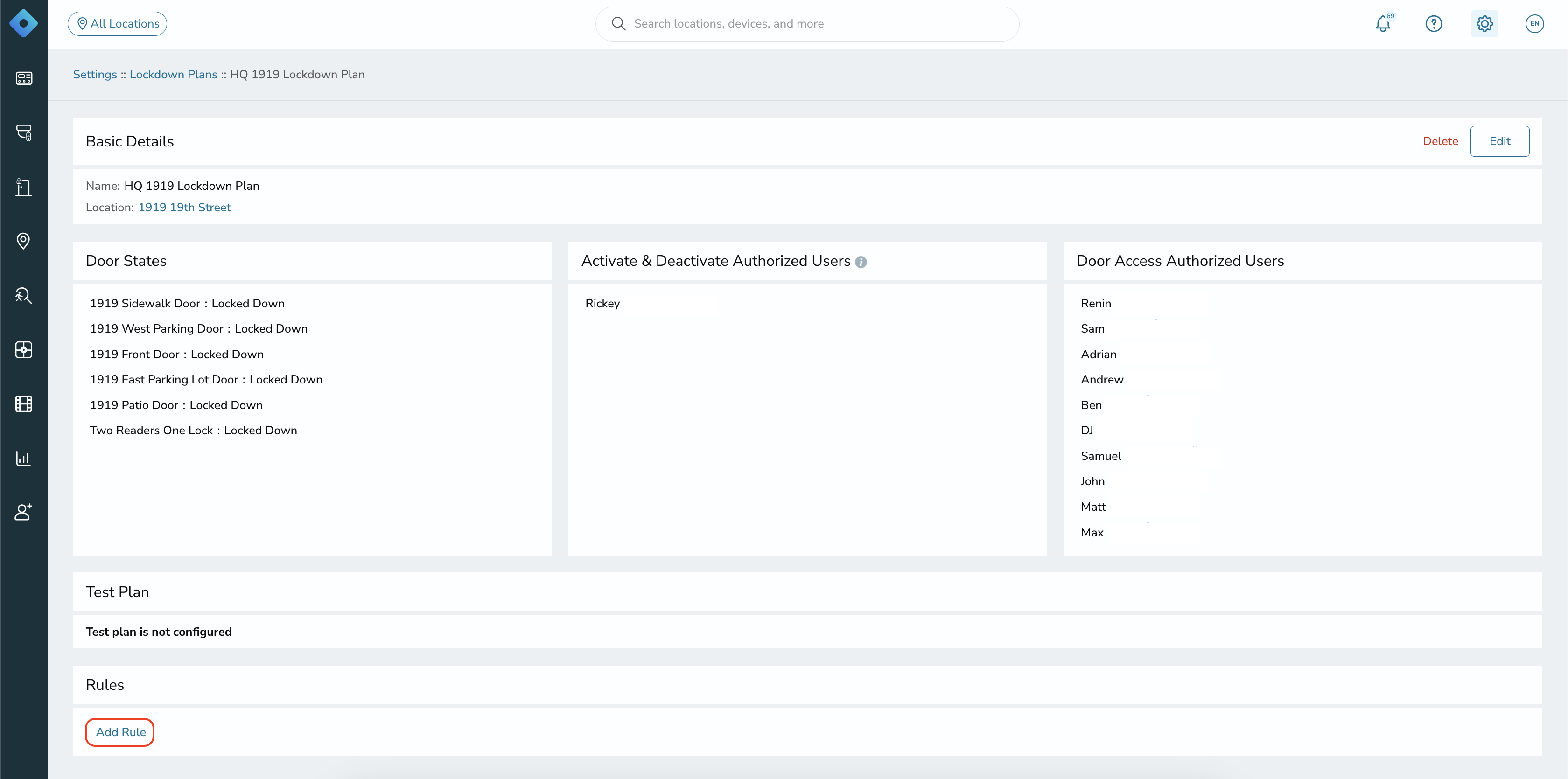

1. Select the name of the created Lockdown Plan.



2. Click "Add Rule."

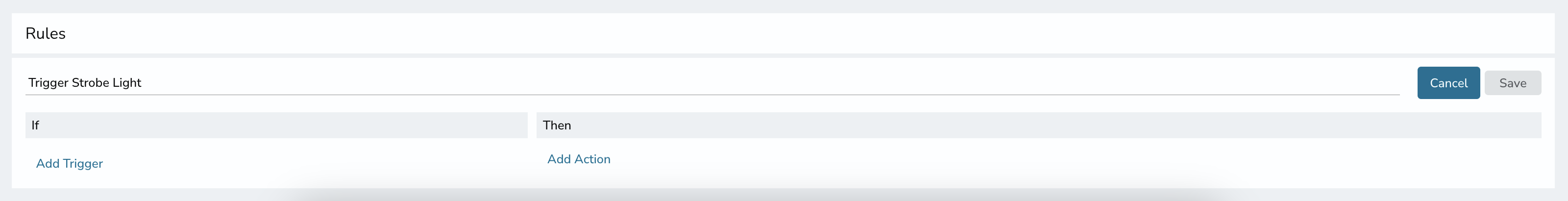

3. Name the rule. For this example, we will trigger the strobe light we set up from this step.

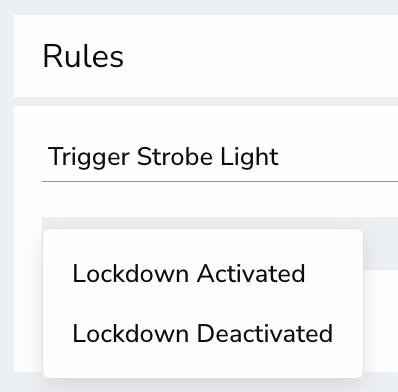

4. Under "If," click "Add Trigger" to choose between activating or deactivating the lockdown.

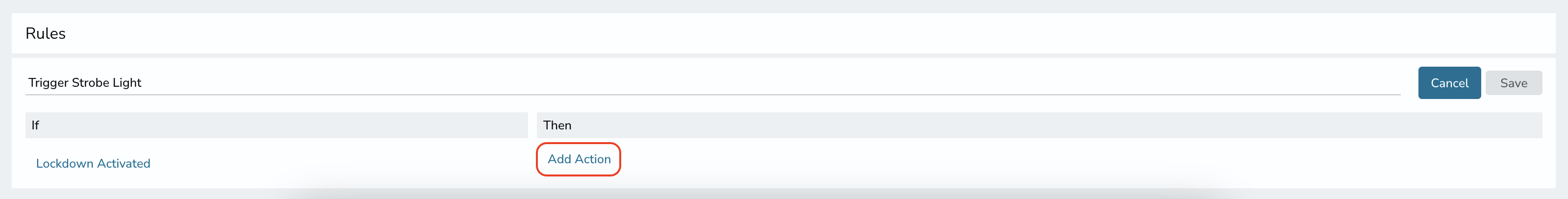

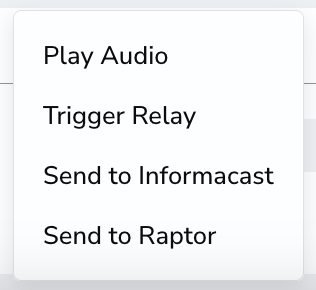

5. Under "Then," click "Add Action" to select between playing audio or triggering a relay.

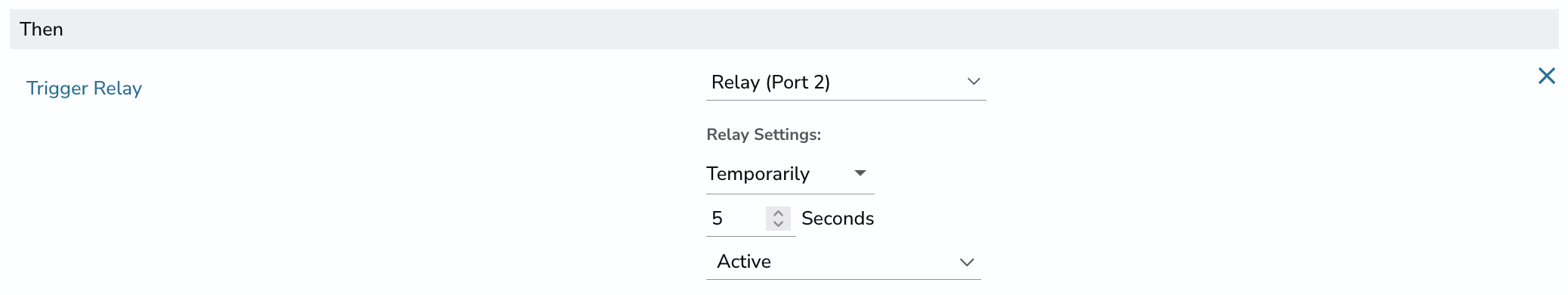

• If choosing "Trigger Relay," select the appropriate port and configure the relay’s behavior.
  • Temporarily/Permanently: How you want the relay to perform
  • Seconds: Frequency in seconds of triggering the relay
  • Active/Inactive: How you want the relay to behave when triggered

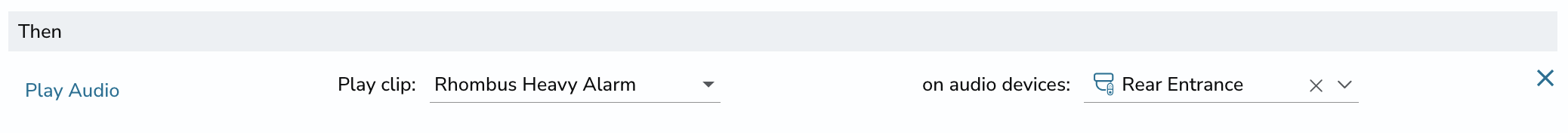

• For "Play Audio," choose the audio clip and devices from which it will play. Please take a look at this article on setting up audio clips.



6. You can add additional actions to the rule by clicking "Add Action" again.

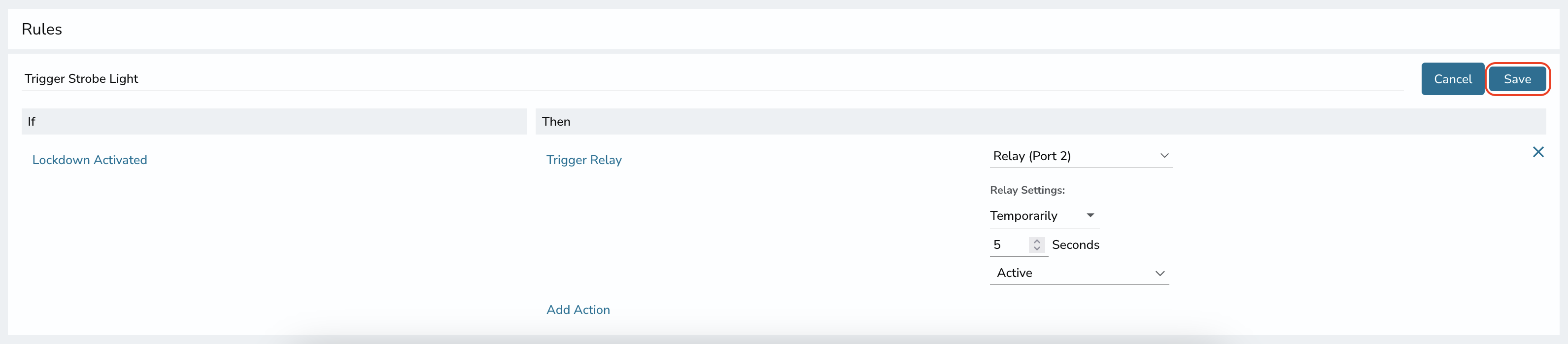

7. Click "Save" to finalize the rule.



Activating or Deactivating a Lockdown

Rhombus Console

To activate or deactivate a lockdown plan in the console, a user must have permission to manage Access Control peripherals for the location where they wish to activate a lockdown.

Locations Page

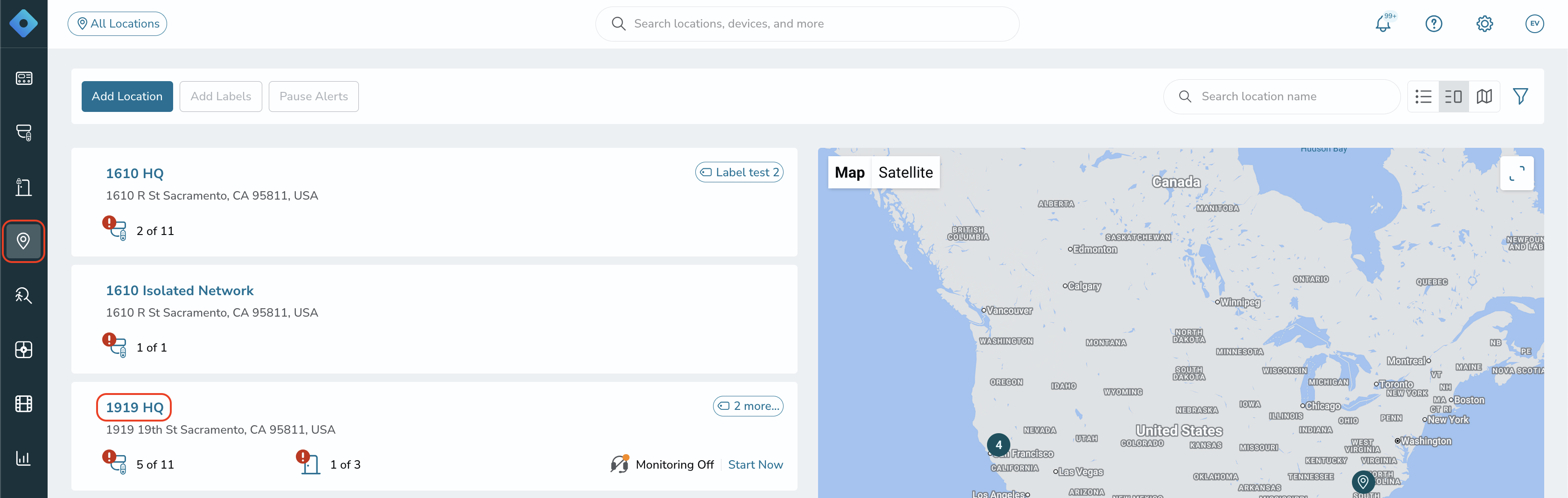

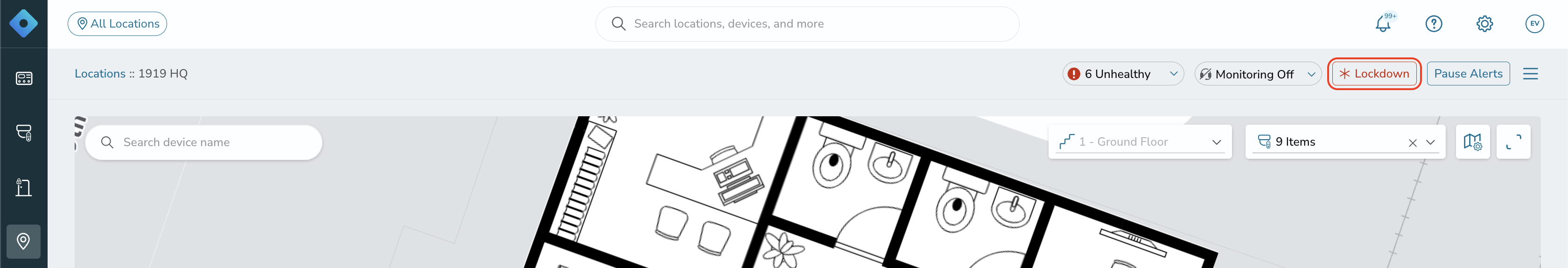

1. Navigate to the "Locations" tab and select the relevant location.



2. Click "Activate Lockdown" to initiate a lockdown.

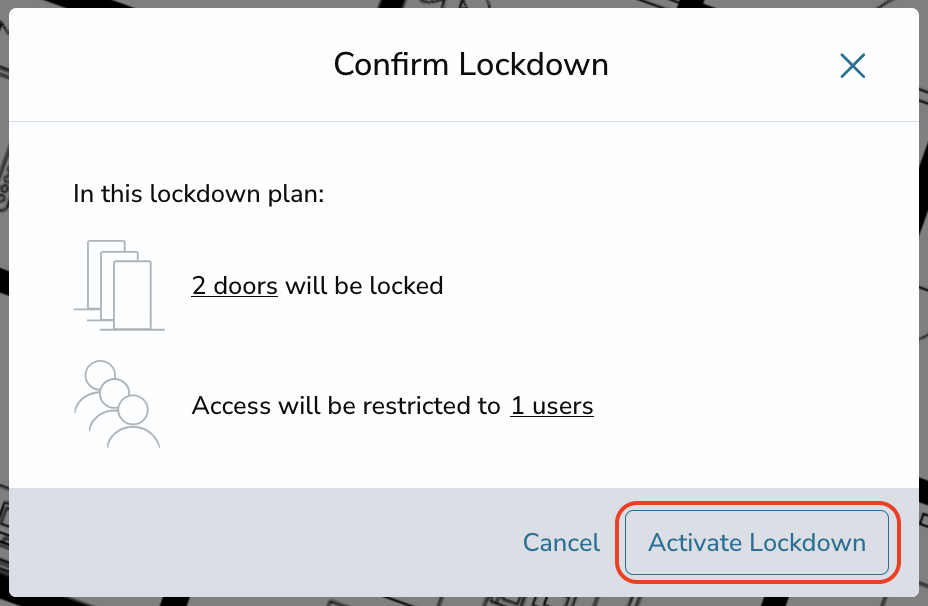

3. The pop-up window will outline the terms of the lockdown plan. Click "Activate Lockdown" to confirm.

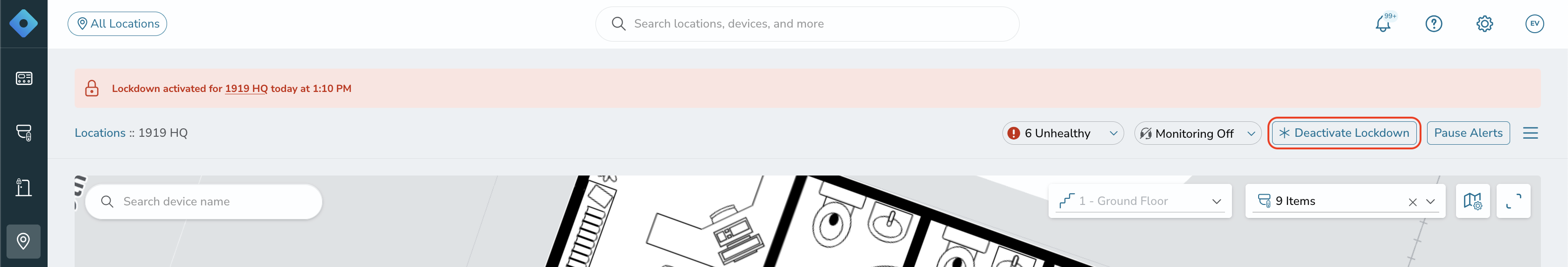

4. Deactivate the lockdown by clicking on the "Deactivate Lockdown" button.



Dashboard

1. On the console dashboard, select the location from the dropdown menu. Click "Activate Lockdown" for the selected location.



2. The pop-up window will outline the terms of the lockdown plan. Click "Activate Lockdown" to confirm.

3. Deactivate the lockdown by clicking on the "Deactivate Lockdown" button.



Rhombus Key App

To activate and deactivate a lockdown in the Rhombus Key App, you must be set up as an authorized user within the lockdown plan.

1. Inside the Rhombus Key app, you will see a red star at the top right.



2. Clicking on this star brings up the initiation page. Select the location and tap "Initiate."



3. To deactivate the lockdown, click "End Lockdown."



Aux Input Button (Optional)

The DC20 supports wiring a button to the Aux Input. This button can then trigger a lockdown.

Note: The DC20 to which the button is wired MUST be registered to the same location as the desired lockdown plan.

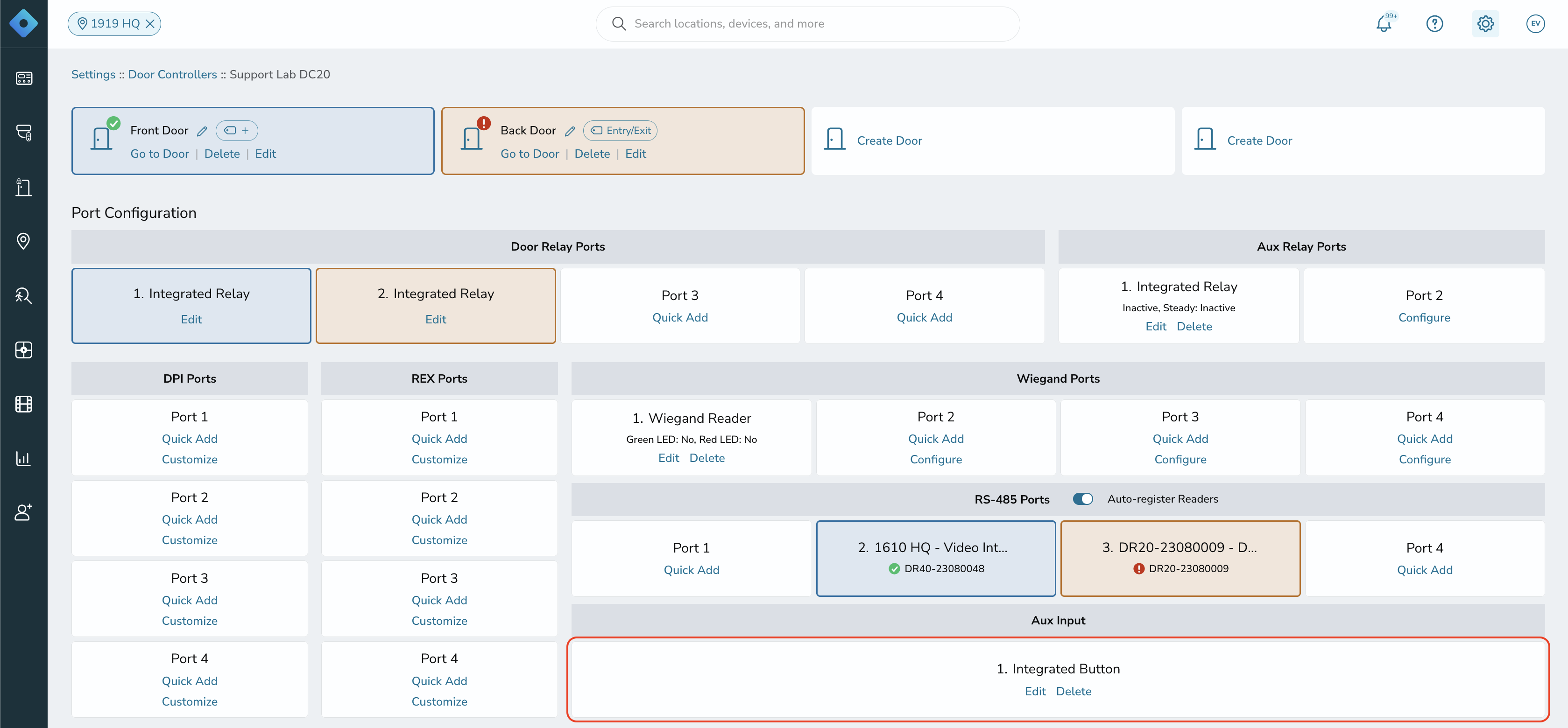

1. In "Settings," navigate to the "Door Controllers" page and select the DC20 that is at the same location as the lockdown plan and has the button wired to the Aux Input.

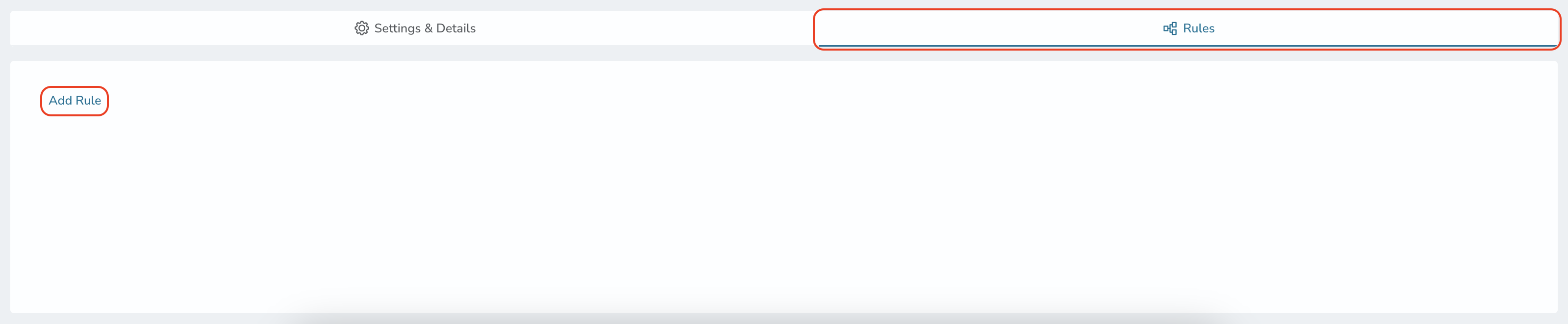

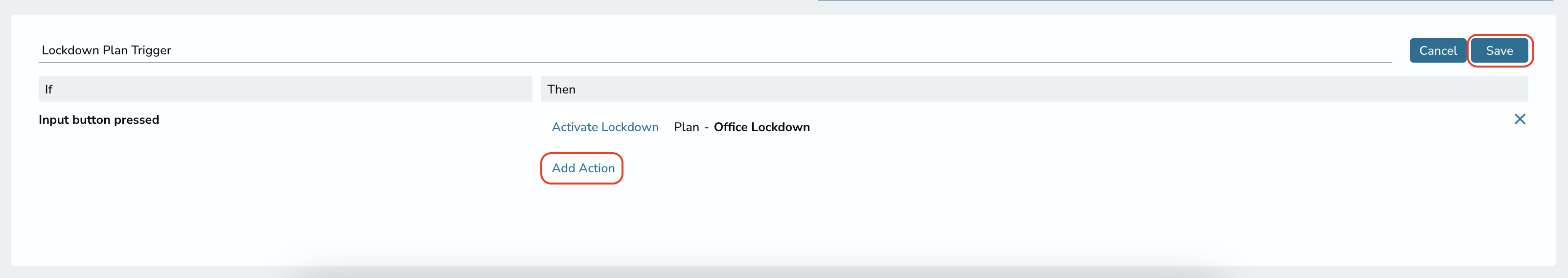

2. Scroll down, select the "Rules" tab, and click "Add Rule."

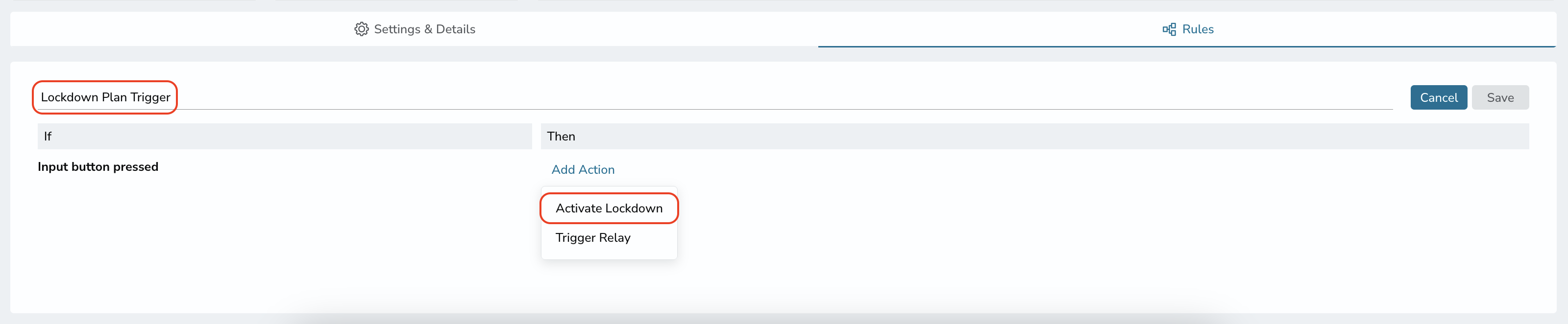

3. Name the rule. Select "Add Action" and click "Activate Lockdown."

4. Add another action, if desired, such as triggering a relay. Click "Save" when finished.
