Topics included in this article:
- Camera Features
- Audio AI Analytics Features
- Bandwidth Consumption
- Enabling Enterprise Licenses
- Enabling Features
- Professional vs Enterprise Licenses
- Helpful Links
- Contact Support or Sales
Camera Features

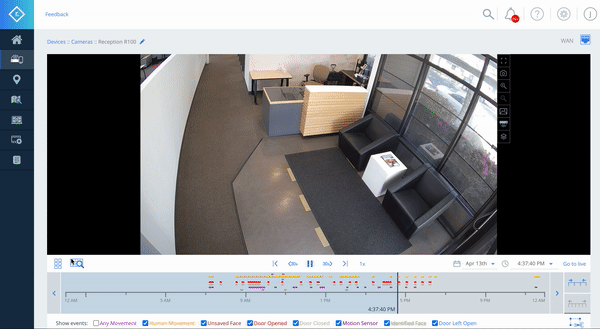

Color Search
Color Search allows users to search historical footage for specific clothing and vehicle colors, making it easier to pinpoint specific people or vehicles without scrubbing through hours of footage.
To see how to enable this feature, see the Enabling Features section below.
Face Recognition
This feature allows the camera to detect faces that pass by its field of view. The success of this feature is heavily dependent on camera positioning and how much detail can be seen of a person. A general rule of thumb is that "if a face cannot be easily identified by a human, then it will not be recognized by the camera." Our facial recognition works by first identifying a human, taking a screenshot of the person, then searching the cropped image for a face. To learn more about managing this feature, visit Managing Facial Recognition.
License Plate Recognition (LPR)
This feature enables cameras to recognize license plates as they pass through their field of view and log the plate into the console. Similar to Facial Recognition, License Plate Recognition heavily depends on the camera used and its mounting positioning. The general rule of thumb is that "if the vehicle cannot be easily distinguished by a human, then it will not be recognized by the camera." LPR works similarly to Facial Recognition: the camera first identifies a vehicle, takes a screenshot of the vehicle, and then searches the cropped image for a license plate. To learn more about LPR, check out our other article, Managing License Plate Recognition (LPR).
People Counting
This feature monitors how many people pass by a camera's field of view. To learn more about the different types of people counting, check out our article on People and Vehicle Counting.
PPE Detection
Lack of Personal Protection Equipment (i.e. masks and helmets), can be detected using Rhombus cameras as well. Like Facial Recognition and LPR, the success of this feature is heavily reliant on camera model and placement. To learn more about PPE detection check out our article on Personal Protective Equipment Detection.
Vehicle Counting
The vehicle counting feature is useful for monitoring vehicle traffic. Like most other features, the success of this feature is dependent on camera model and placement. For example, the GIF in the LPR section above is an R500 aimed at our HQ south entry, so that the camera can easily pick up vehicle movement.
Above is an example of our Vehicle Counting chart. At the bottom of this chart are buttons that show or hide vehicle counting data pertaining to cameras with this feature enabled.
Visual Tamper Detection
This feature is useful for detecting when the camera has been visually tampered with, like when someone covers the dome with spray paint. Tamper detection works by using the full field of view as a reference and when it becomes "covered" the system will flag and mark the detection time.
Included Cloud Archiving
This feature comes with enterprise licensing and allows you to automatically back up 30 days of footage to the cloud.
Additional Cloud Archiving
This feature allows you to back up a certain number of days (30, 60, 90, 180, and beyond) and can be purchased independently from an enterprise license. To enable enterprise licenses, click the blue manage button, which is located at the top of the "License and Features" page. Once clicked, you will be able to assign the licenses to devices in your console.
For more information on Cloud Archiving and retention, please visit the Cloud Archiving KBA.
Timelapse
This feature allows you to start creating a timelapse from a camera's recording. The timelapse feature must be enabled prior to creating one. Click here for more details.
Audio AI Analytic Features
The A100 currently has 4 different audio capturing analytics, listed below.
Note: Visit our Audio Gateway Walkthrough for more details.
Loud Sound Detection
The A100 can create alerts based on whether a loud sound is heard or not. We use LUFS for this measurement and you can control how loud of a sound you are aiming to track with the slide bar.
Tamper Detection
A built-in accelerometer in the A100 can help notify you when it is being tampered with. Contact Rhombus Support if you need help tuning the sensitivity of this sensor.
Glass Break Detection
The A100 is equipped to detect if glass is broken near it. If the sensor is placed 6-20 feet from windows, it can alert you if they are ever broken.
Smoke Alarm Detection
The A100 can detect the same frequency emitted by smoke alarms, alerting you when they go off. Place the A100 within a 6-20 foot distance for this detection.
Carbon Monoxide Alarm Detection
Like smoke alarms, the A100 can detect the same frequency emitted by carbon monoxide alarms. This allows you to notify the correct personnel when the alarm goes off. Place the A100 within a 6-20 foot distance for this detection.
Bandwidth Consumption
| Low | Medium | High |
Low: Minimal bandwidth is being consumed for these features.
Medium: The amount of bandwidth consumed is more noticeable than low features but less expensive than computationally intensive features.
High: The feature is computationally expensive and requires a lot of bandwidth to complete.
Below is a chart displaying Feature and Storage bandwidth usage:
These symbols are set based on how much bandwidth a feature uses under normal circumstances. The amount of bandwidth used is variable and is dependent on the setup (camera placement, max bitrate, resolution, etc.). If a camera has facial recognition enabled and is placed in a low-traffic area, the amount of bandwidth that consumes will be low rather than medium, as noted in the above table. However, taking the same example, if you wanted to be alerted when an unknown face is captured, then a clip would be uploaded, and you would be notified every time an unidentified face was seen. This would increase the bandwidth used by facial recognition. To learn more about bandwidth consumption, check out our article on Camera Bandwidth.
Disclaimer
Bandwidth consumption may be exceeded when multiple high-bandwidth features are enabled in conjunction with cloud archiving. This section of our Camera Bandwidth article shows approximately how much bandwidth is used during streaming. If you are streaming 3 cameras with color search enabled and only have a 5 Mbps upload, that could eat up most of your bandwidth.
Enabling Enterprise Licenses
1. To enable Enterprise Licenses on multiple cameras simultaneously, navigate to License & Features and click on the blue "Manage" button.
2. When this popup appears, you can apply the selected license type by clicking the bubbles on the right side. Click "Assign" when finished.
Enabling Features
1. To enable features, navigate to "Settings," and click "Manage" below "Licenses & Features."
This will show a list of all the license types and how many are available to assign. To get to a license of a different device type, select the toggle across the top. Currently, "cameras" are selected.
When you click "Manage," you will then see a popup where you can enable features (pictured below).
2. To enable a feature, click the toggle button on the right, under the "Enabled" header, and hit "Save" at the bottom of the window.
3. From this view, you can also enable features in batches. To do this, select cameras with the same license assigned to them (Enterprise or Professional) via the checkboxes on the left side (below).
Once you do this you will see the "Batch Assign" button light up blue (below).
4. Click this button, and a popup modal will appear where you can choose to enable or disable features in a batch way:
Additionally, you can add features by going to Devices -> Camera of Interest -> Manage Features (bottom of camera feed page).
Here is an example of how to add color search to a camera:
Professional vs Enterprise Licenses
All cameras automatically have a Professional License applied to them upon purchase. Some features, however, are only accessible through the additional purchase of an Enterprise License.
For a full comparison of what's included with a Professional License vs an Enterprise License, please visit the Rhombus Website's Camera License Comparison chart.
If you have any questions about pricing or included features, please reach out to Rhombus Support or Sales.
Helpful Links
- Managing Facial Recognition
- Optics and Object Distances for Analytics
- Managing License Plate Recognition (LPR)
- Camera Bandwidth
- People and Vehicle Counting
- Personal Protective Equipment Detection
- Cloud Archiving
Contact Support or Sales
Have more questions? Contact Rhombus Support at +1 (877) 746-6797 option 2 or support@rhombus.com.
Interested in learning more? Contact Rhombus Sales at +1 (877) 746-6797 option 1 or sales@rhombus.com.
