Optics and Object Distances for Analytics – Rhombus Systems

Different Rhombus cameras can identify objects (like people, faces, license plates) at varying distances.

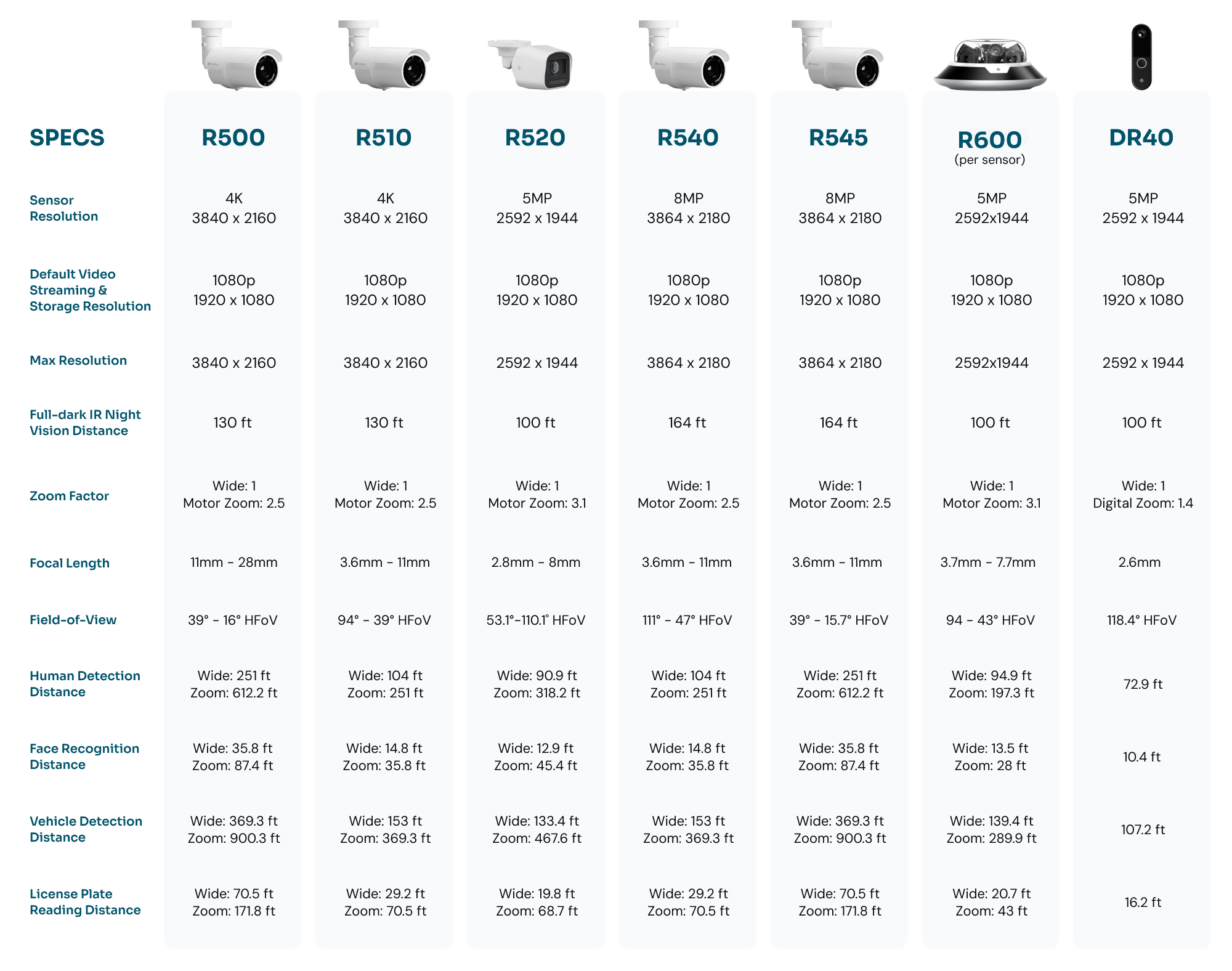

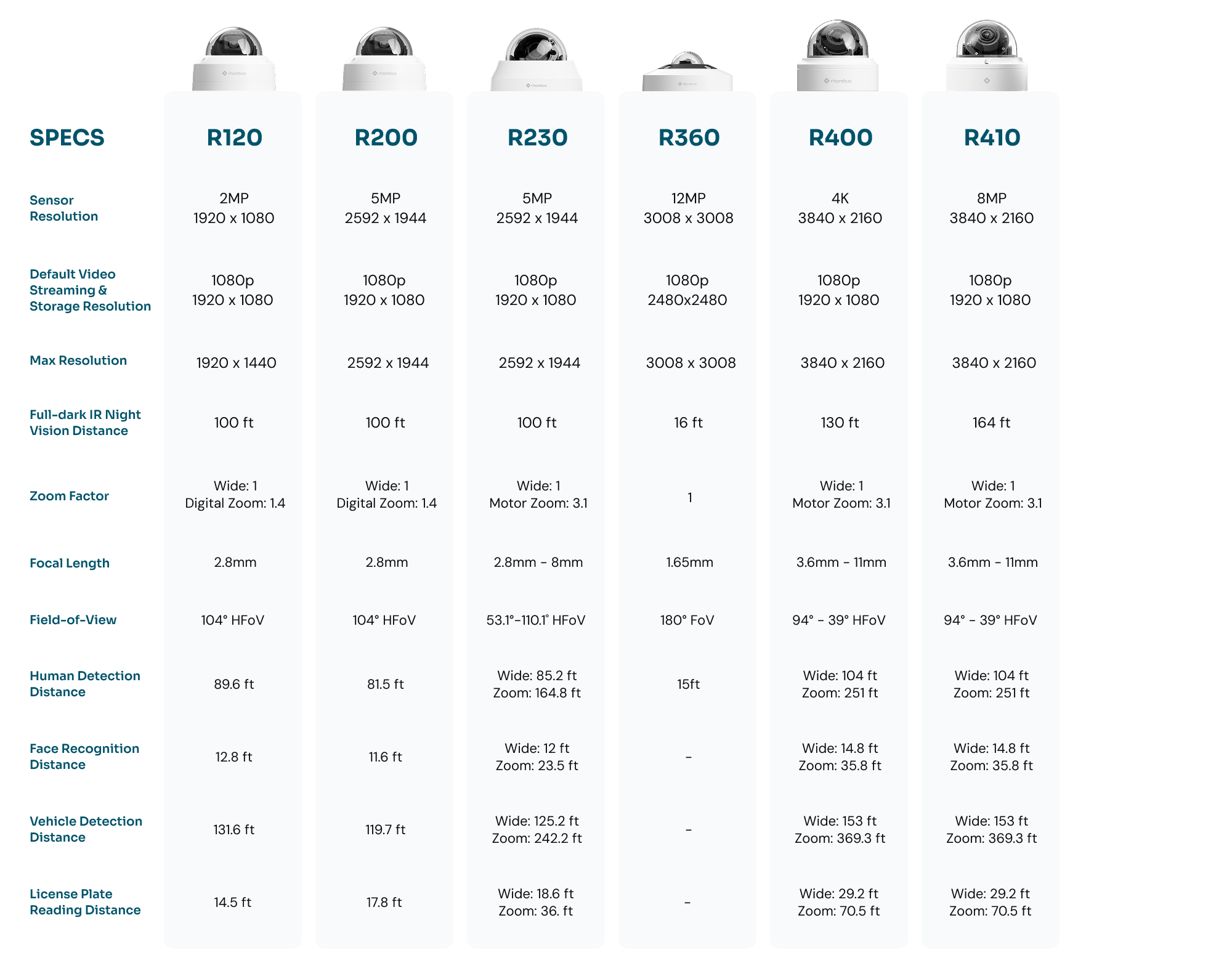

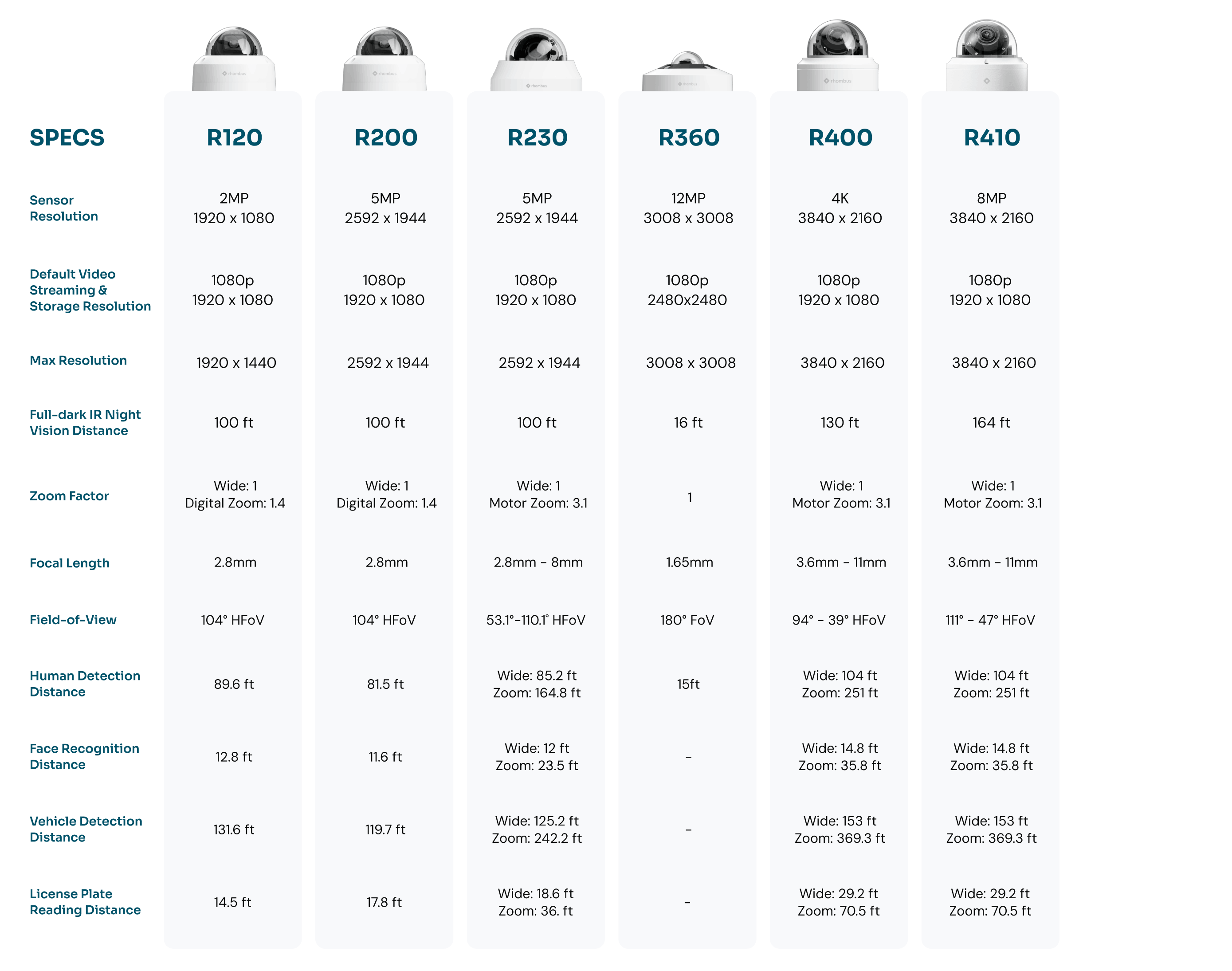

Below is a table that summarizes the distances (in feet) that our various cameras can detect these objects at. The facial and license plate recognition row is meant to highlight the max distance the particular camera model can perform our automatic license plate and facial recognition. A human looking at the video will likely be able to identify these items at distances a little further.

For Current Models

	R100		R2		R2-180	R360	R400
Sensor resolution	2MP (1920x1080)		5MP (2704x2104)		5MP (2704x2104)	12MP	4K (3840x2160)
Default Video streaming & storage resolution	1080p (1920x1080)		1080p (1920x1080)		1080p (1920x1080)	9MP	8MP
Max Resolution	1920 x 1440		2592 x 1944		1920 x 1080	3008 x 3008	3840 x 2160
Full-dark IR night vision distance (ft)	100		16		16	16	132

	Wide	Zoom	Wide	Zoom	180-degrees	360-degrees	Wide	Zoomed
Zoom factor	1	1.4	1	1.4	1	1	1	3.1
Field-of-view	96	77	112	96	180	180	102	44

Human detection distance (ft)	57	68	57	68	33	N/A	126	308
Face detection distance (ft)	24	29	24	29	14	N/A	54	132
Face recognition distance (ft)	16	19	16	19	9	N/A	36	88
PPE recognition distance (ft)	16	19	16	19	9	N/A	36	88
Vehicle detection distance (ft)	97	116	97	116	56	N/A	217	527
License plate reading distance (ft)	26	31	26	31	15	N/A	58	141

For Older Models

	R1		R2-L
Sensor resolution	4MP (2688x1520)		5MP (2704x2104)
Default Video streaming & storage resolution	720p (1280x720)		1080p (1920x1080)
Max resolution	720p (1280x720)		1080p (2592x1944)
Full-dark IR night vision distance (ft)	5		15

	Wide	Zoom	Wide	Zoom
Zoom factor	1	2	1	1.35
Field-of-view	135	98	32	24

Human detection distance (ft)	44	62	211	283
Face detection distance (ft)	N/A		91	121
Face recognition distance (ft)	N/A		60	81
Vehicle detection distance (ft)	52	75	363	485
License plate distance (ft)	N/A		97	129
