Brivo Integration

In this article we will discuss how to integrate the Brivo access control system within the Rhombus console. This article assumes you have properly installed the Brivo access control system, and have full access to Brivo OnAir to set up integrations.

• What Brivo Information do you need?
• Activate the Integration in Rhombus
• Setting up the integration
• Helpful Links

What Brivo Information do you need?

To set up the Brivo integration in the Rhombus console you will need the four items below:

1. Username - This is your Brivo user name that is tied to your account
2. Password - This is the password tied to your account
3. Client ID - This is created after creating a new application.
4. Client Secret - This is created after creating a new application.

Activate the Integration in Rhombus

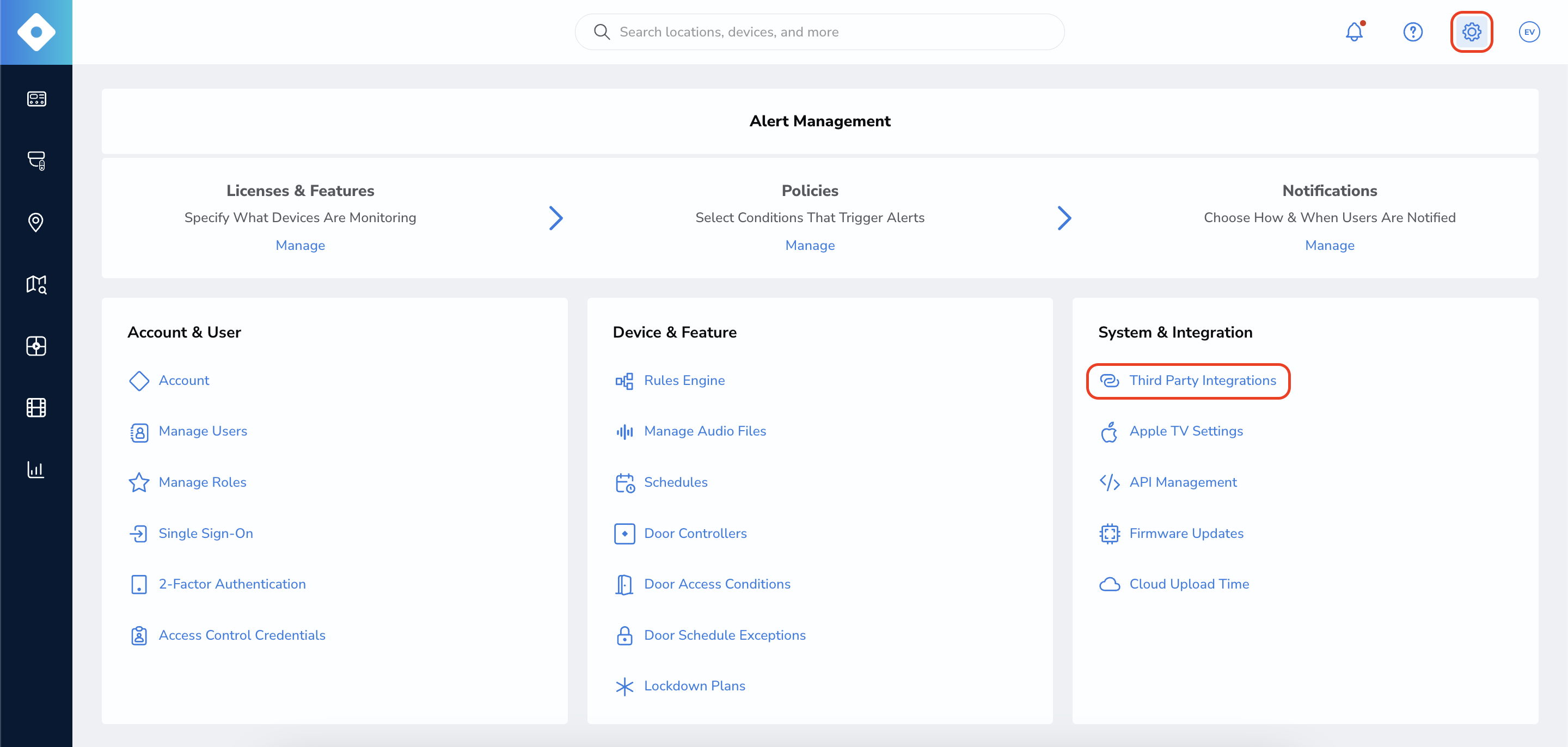

In the Rhombus Console, you'll navigate to the path below to turn on the integration:

Settings > Third Party Integrations > Badge Systems > Brivo

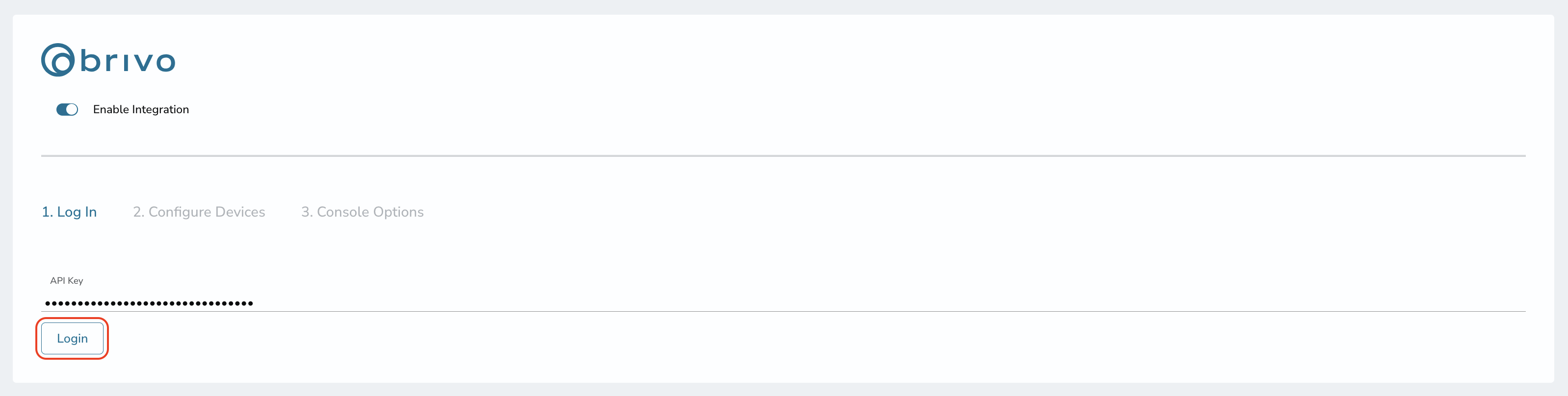

You'll be asked for your username, password, client ID, and client secret as seen below:

Activate the Integration in Brivo

To get a client ID and client secret, you'll need to create a new application under the application management section. You should name this new application "Rhombus" and insert a description of your choice. Make sure to choose "password" as your Authentication Type as seen below:

After you create a new application, your client ID and client secret can be found under the information bubble. You'll find your username under the bottom left tab. Note: Do not use your email address as your username for the integration. Your password is the same password you use to login to the Brivo OnAir Console.

Setting up the Integration

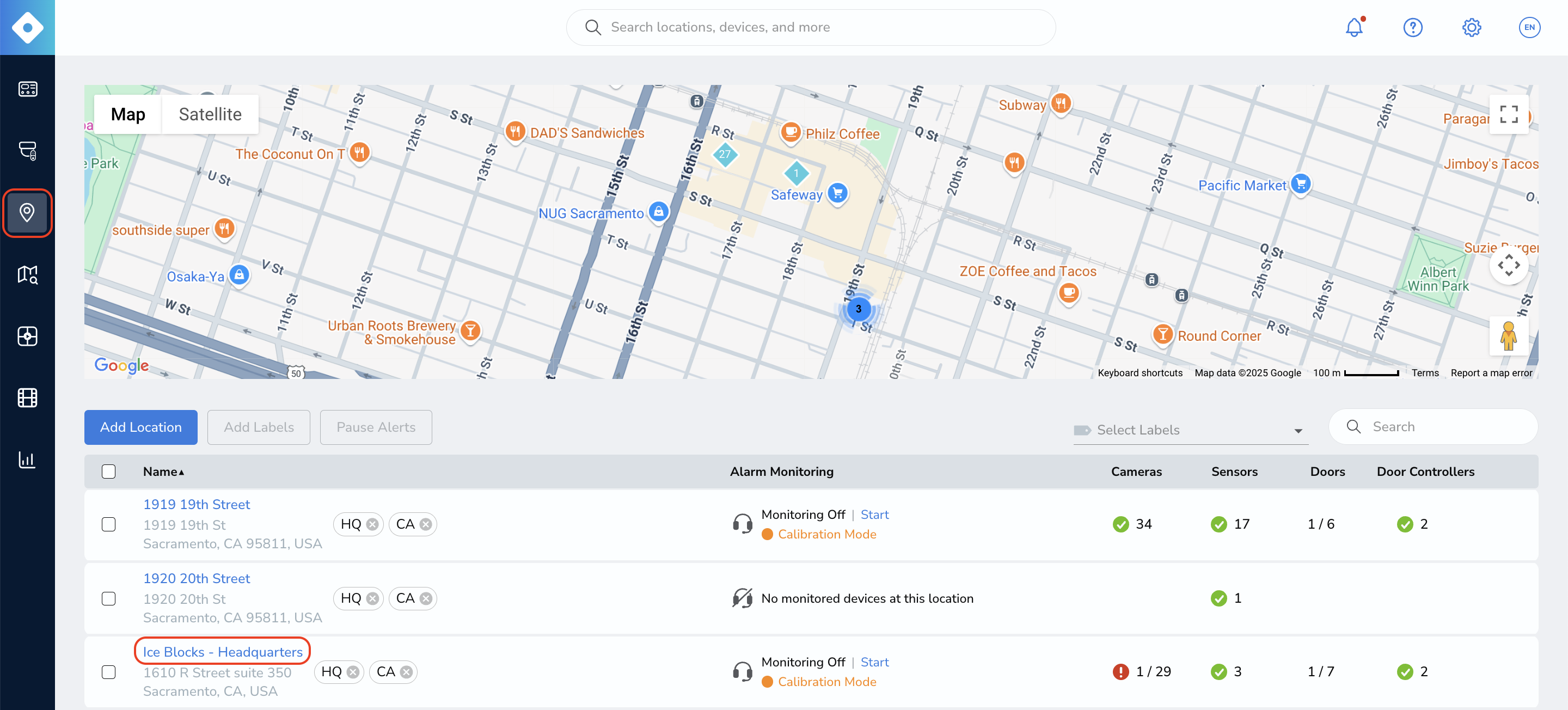

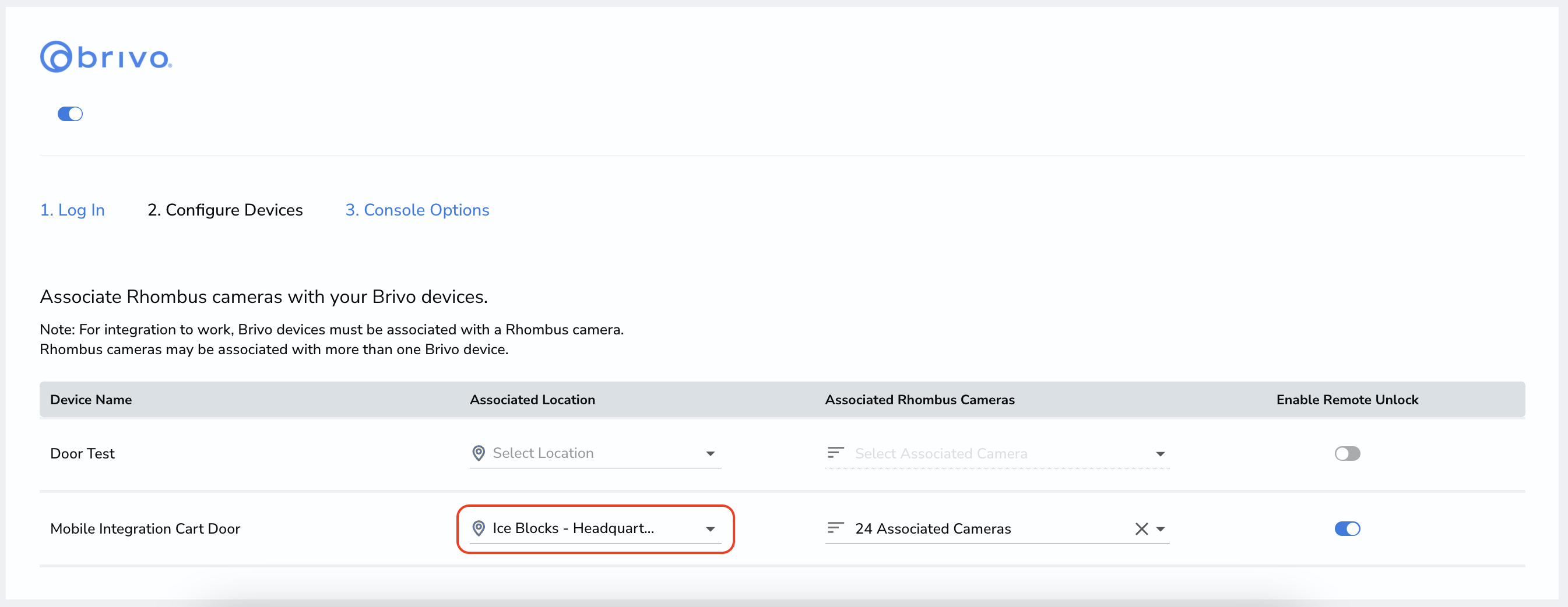

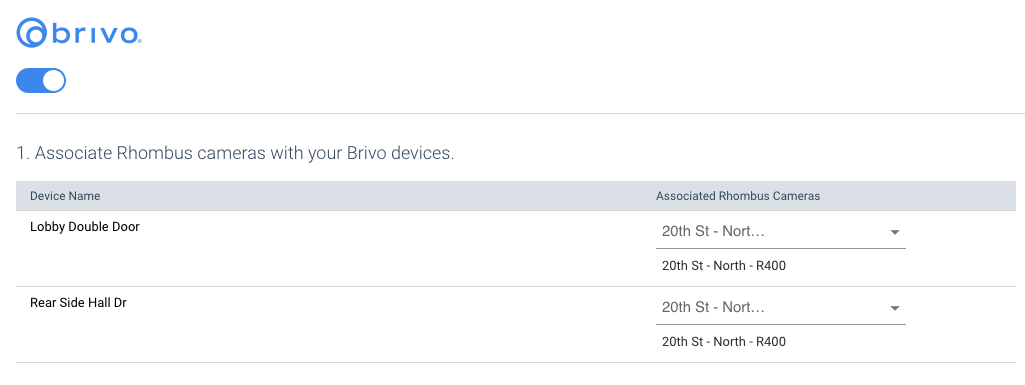

Next, your Brivo access points will appear within the Rhombus console under the Device Name column. From here you can select which cameras you want to associate to which access points.

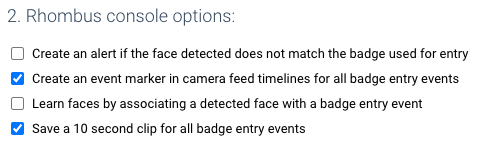

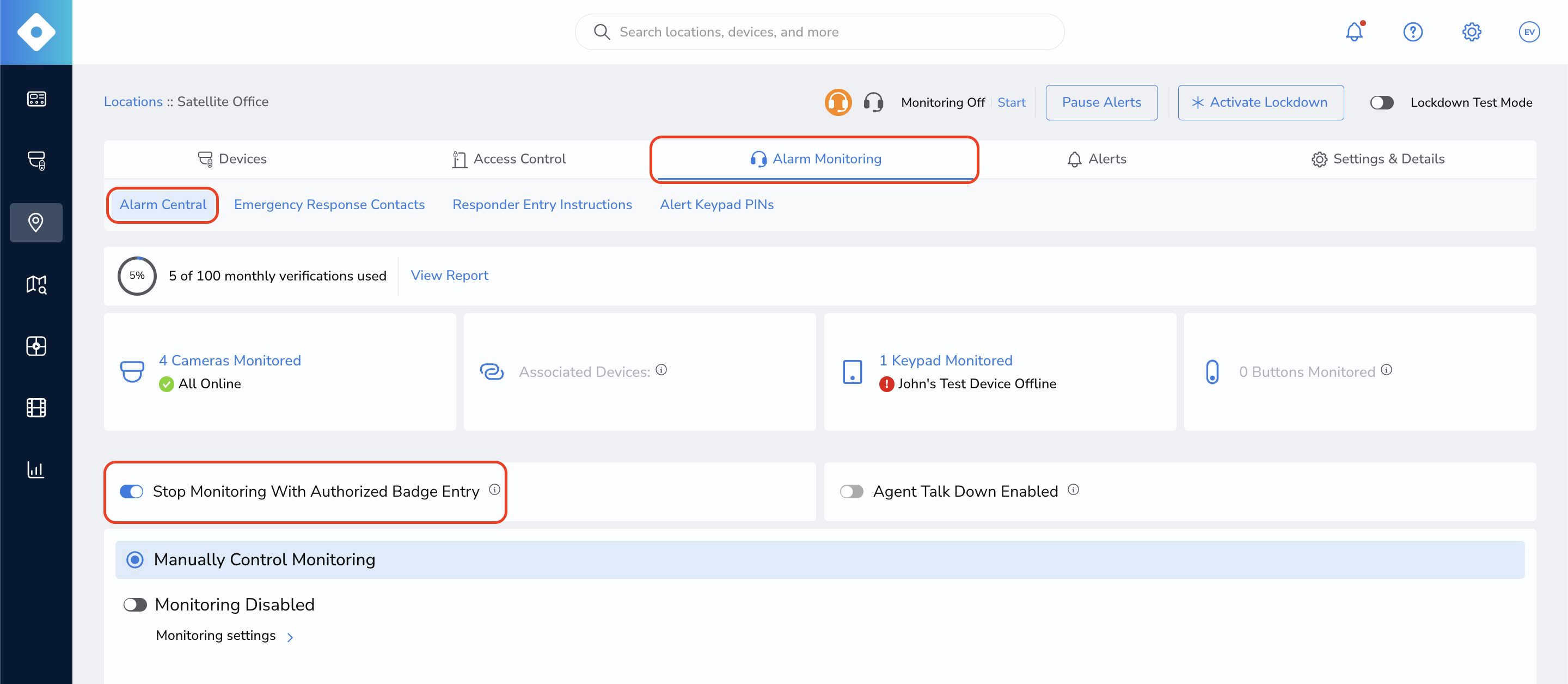

Enable additional integration options

Enjoy! You have completed the integration and now will start seeing badging events on the timeline views of the associated cameras (below)
