ButterflyMX Integration

Topics included in this article:

• Setup
• Features
• Stop Alarm Monitoring With Badge Entry
  • Console Setup
• Helpful Links
• Contact Support or Sales

Setup

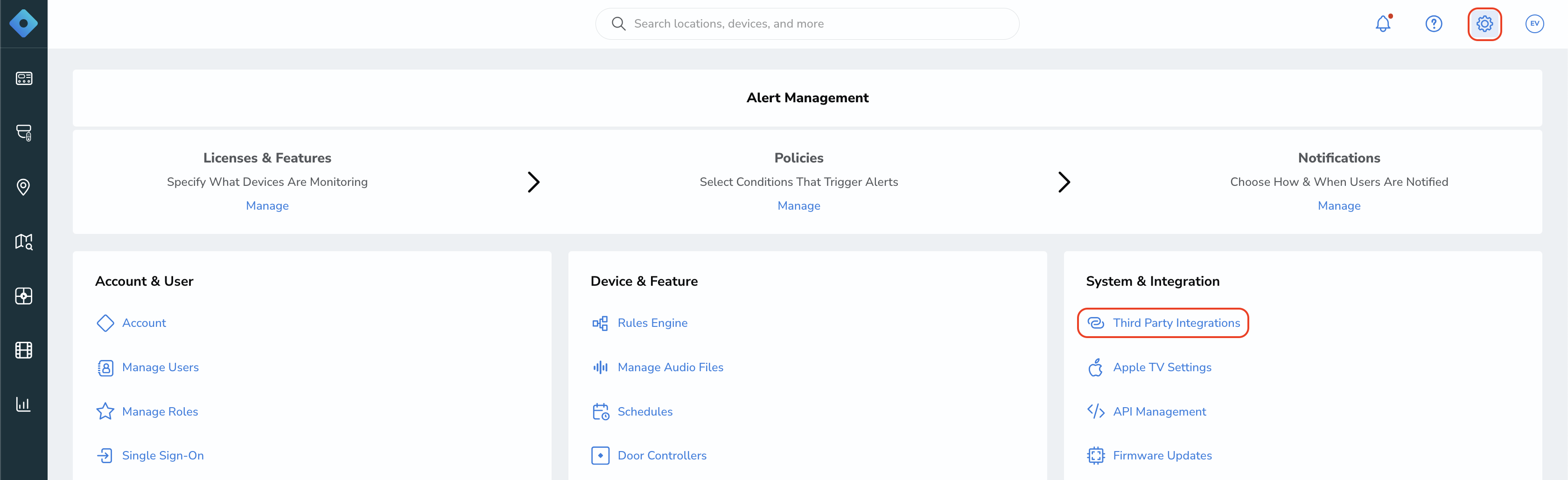

1. Log in to the Rhombus Console, navigate to "Settings," and click "Third Party Integrations."

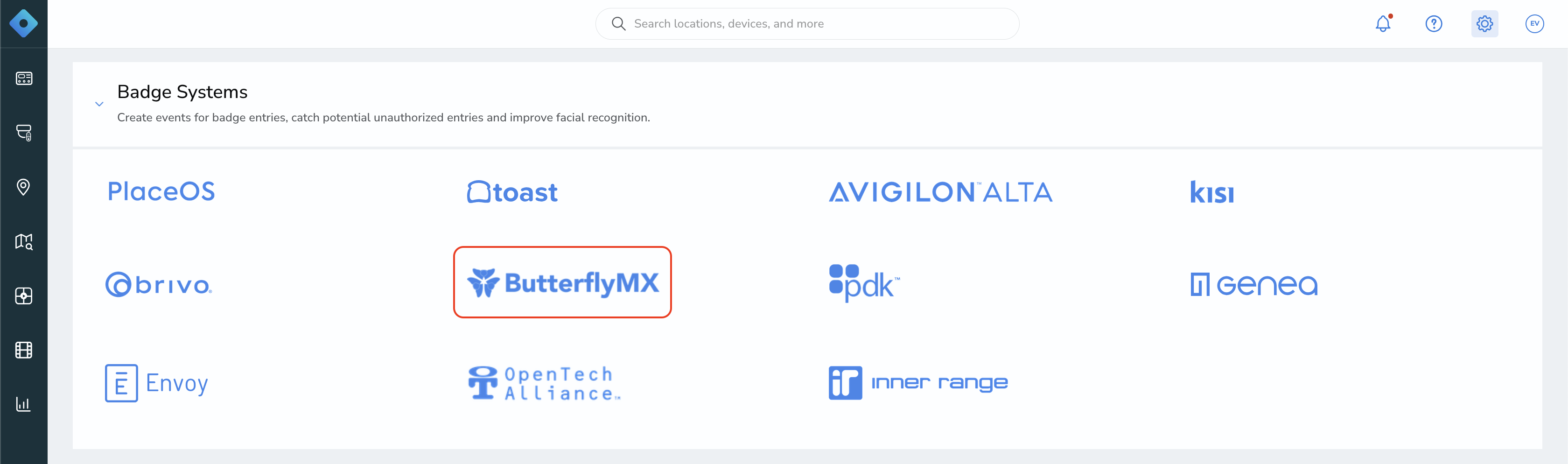

2. Click the "Badge Systems" dropdown menu, and select "ButterflyMX."

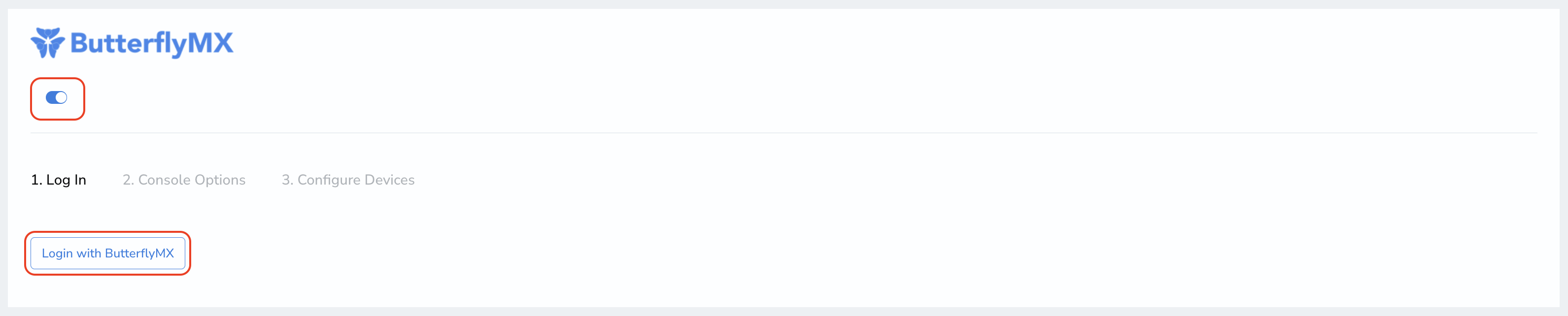

3. Click the toggle to enable the integration, then click "Login with ButterflyMX." The login button will redirect you to the ButterflyMX website.

4. Enter your ButterflyMX credentials and log in.

5. Once logged in, click the checkboxes beside the ButterflyMX features you wish to enable in the Rhombus Console.

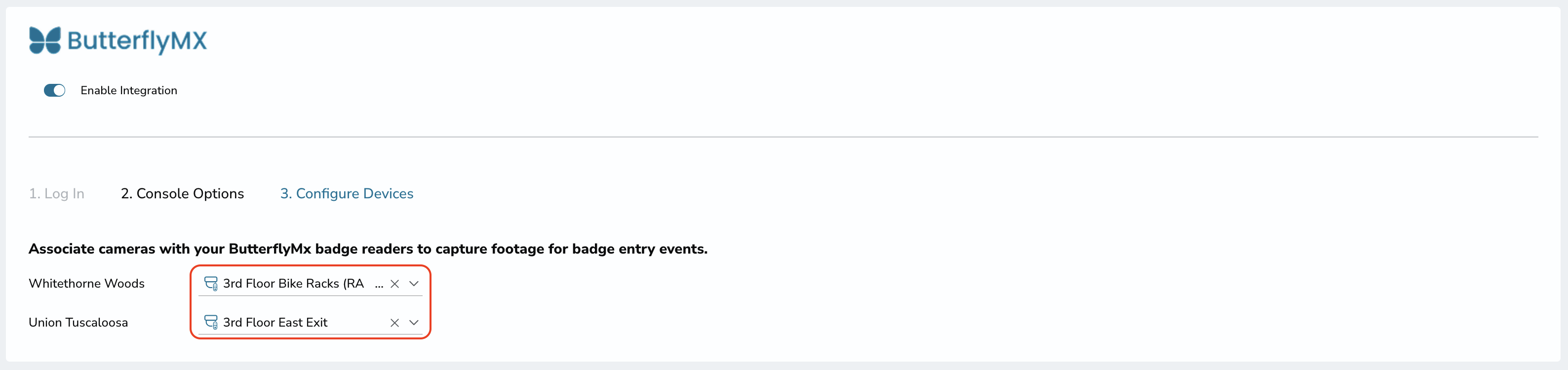

6. If desired, click "Configure Devices" and use the dropdown menus to associate your Rhombus cameras with your ButterflyMX readers.

Features

Descriptions of the available ButterflyMX features in the Rhombus Console can be found below.

Note: Some of these features are reliant on having Rhombus cameras associated with your ButterflyMX readers. See the above section for more details.

• Create an event marker in camera feed timelines for all badge entry events
  • This feature creates event markers on the timeline, such as "Visitor Arrived" and "Visitor Departed."
• Match this face across cameras to track an individual across locations
  • The face name in the Rhombus Console will tie to the name in the ButterflyMX user account associated with badge access. To learn more about facial recognition in the Rhombus Console, see our article on Managing Facial Recognition.
• Save a 10-second clip for all badge entry events
  • This feature saves a clip for any badge events from the associated Rhombus camera. To learn more about saved clips, see our Save, Share, and Delete Video Clips article.

Stop Alarm Monitoring With Badge Entry

Rhombus supports disabling Alarm Monitoring with an authorized badge entry when using the ButterflyMX Integration.

Note: With this feature enabled, remote unlocks will not disable alarm monitoring when using the ButterflyMX Integration.

Console Setup

If alarm monitoring is in manual mode, this feature will stop monitoring until it is manually re-enabled.

If alarm monitoring is on a set schedule, this feature will stop monitoring until it is manually re-enabled or at the next scheduled start time.

1. Navigate to "Settings" and select "Third-Party Integrations."

2. Under the "Badge Systems" dropdown, select "ButterflyMX."

3. Under "Configure Devices," ensure the associated Rhombus cameras match the location where your ButterflyMX device is located.

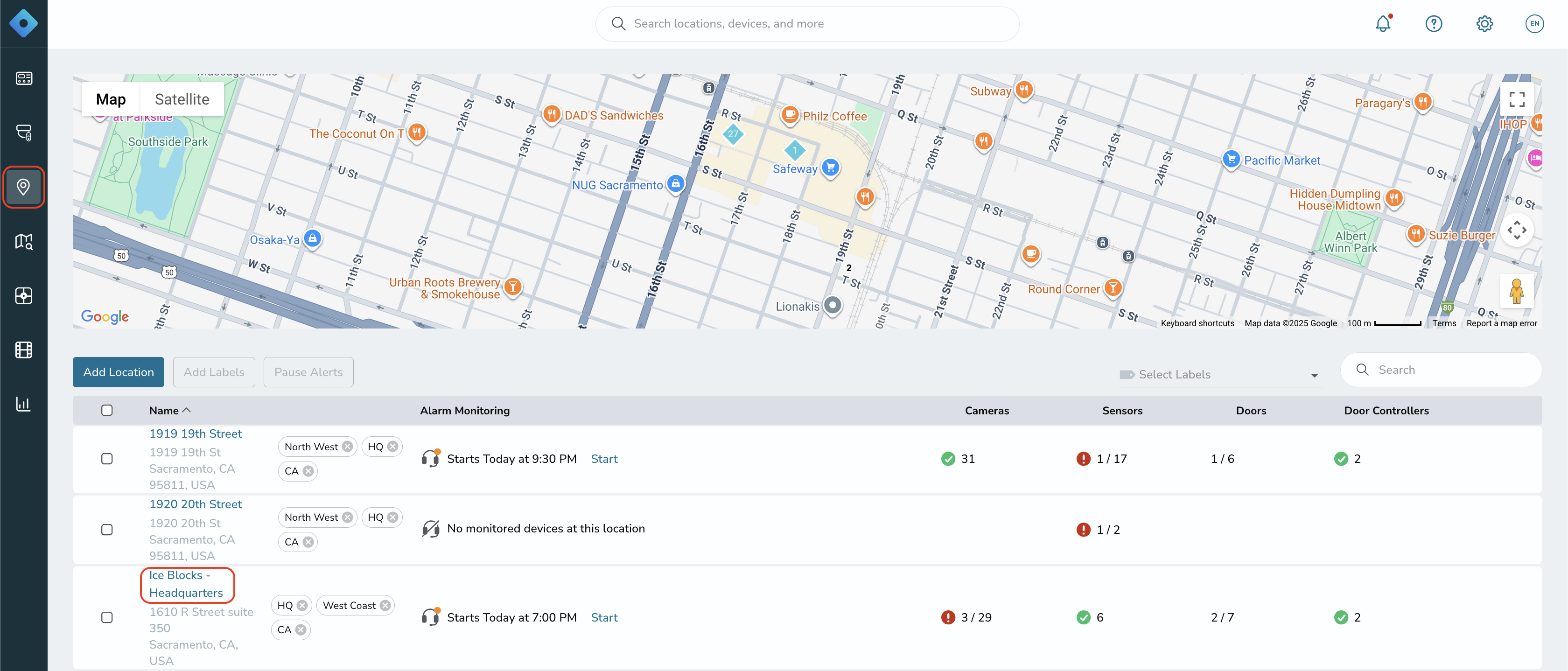

4. Navigate to "Locations," and select the corresponding location.

5. Select the "Alarm Monitoring" tab. Under the "Alarm Central" section, toggle the "Stop Monitoring with Authorized Badge Entry" button.  Note: When enabled, any authorized badge entry will disable alarm monitoring. If monitoring is on a set schedule, it will resume at the next scheduled start time. Monitoring can be manually enabled at any time.
