In this article, we will go over the registration process for the R400.
- Wiring the Camera
- Mounting Guide
- Registration Methods
- Notes about Wi-Fi Registration
Before you can register a rhombus camera you will need the following:
- Rhombus Console Account
- Mobile Phone
- Camera connected to network and power
Wiring the Camera
The camera needs power and a network connection in order to be registered. The easiest method to achieve this is to use a Power over Ethernet device, but for remote deployments, a solar + cellular setup is also possible. Please see this article for specifics.
When attaching an ethernet cord to the R400 you will need to take off the dome. Please go here to find a guide on how to screw off the dome. After taking off the dome find the POE port next to the conduit holes. Please see the photo below for reference.

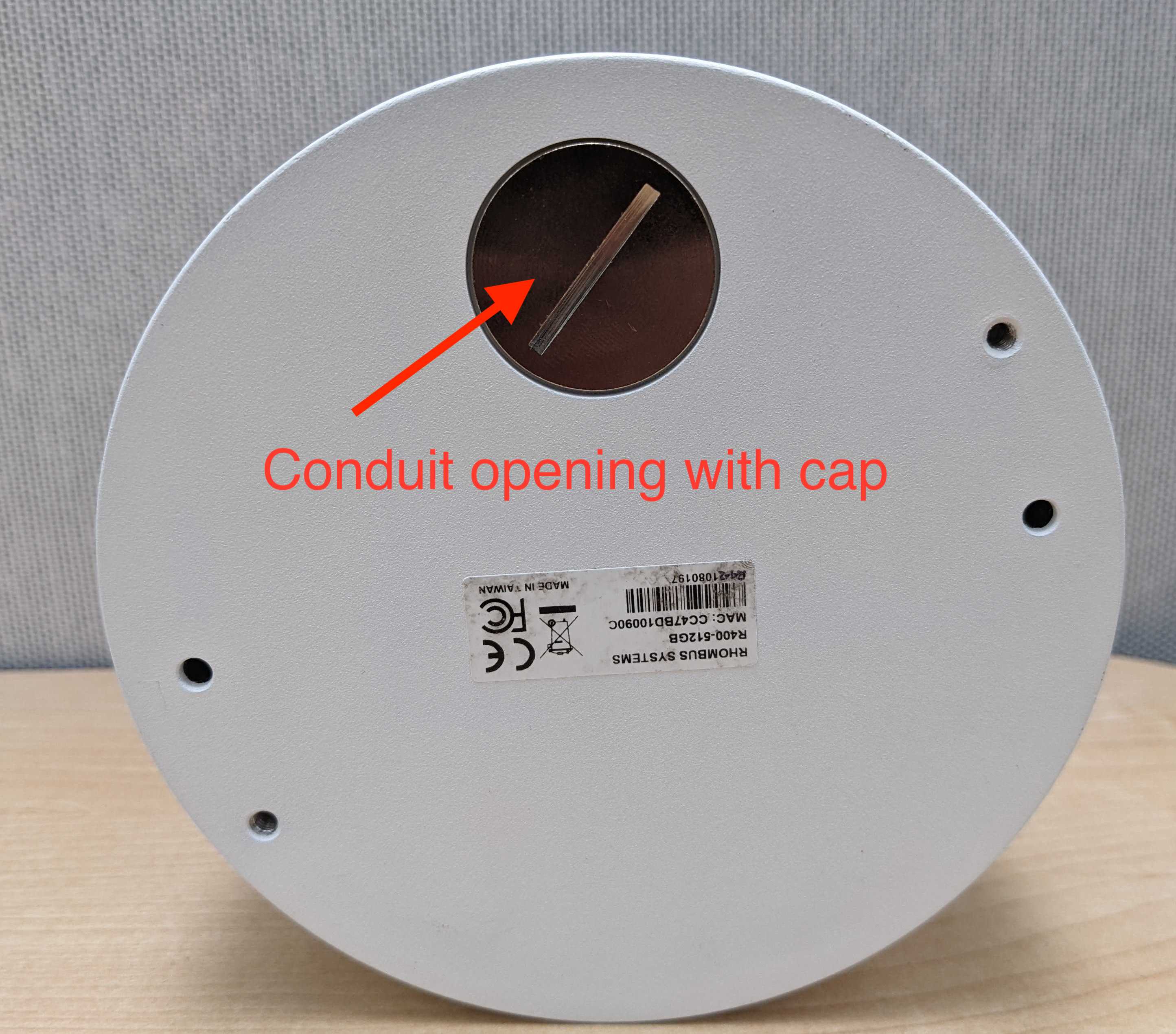

The R400 camera comes with two conduit holes, a conduit plug for one of the openings not used, and a waterproof adapter that can attach to either of the openings. Below are pictures of the placement of the conduit holes and the waterproof adapter attached. For the R400 we offer some accessories for mounting the camera in such areas as a corner, pole, or even have the ability to extend out the camera from the wall with the extension rod. Here is a link to a list of our accessories for the R400 Below are some pictures along with some insight on the types of accessories.
Side and bottom view of R400:
Waterproof adapter attached:
Below is an image of the corner bracket lined up with the Arm Mount aligned to the appropriate holes.

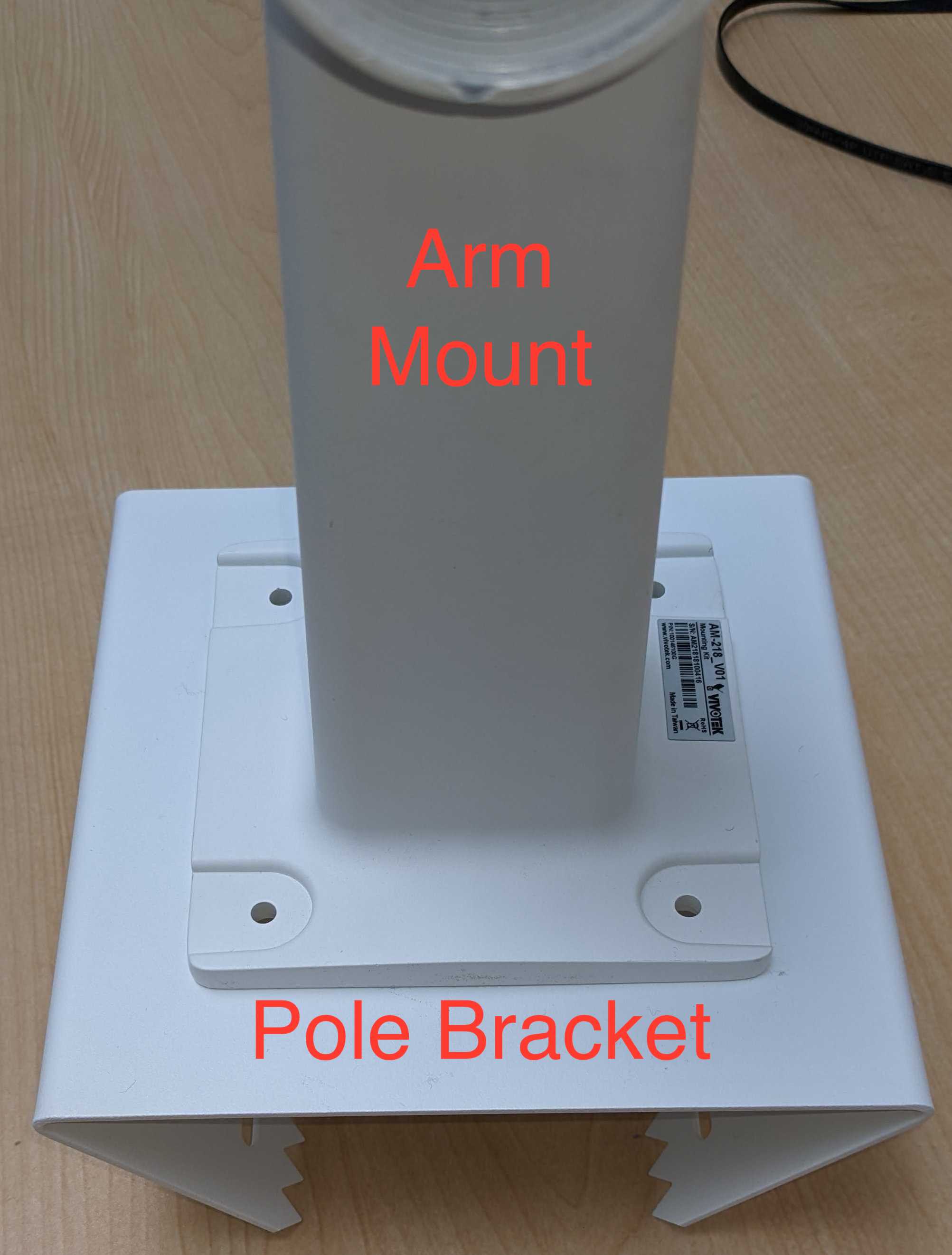

Below is an image of the pole bracket with the Arm Mount aligned to the appropriate holes.

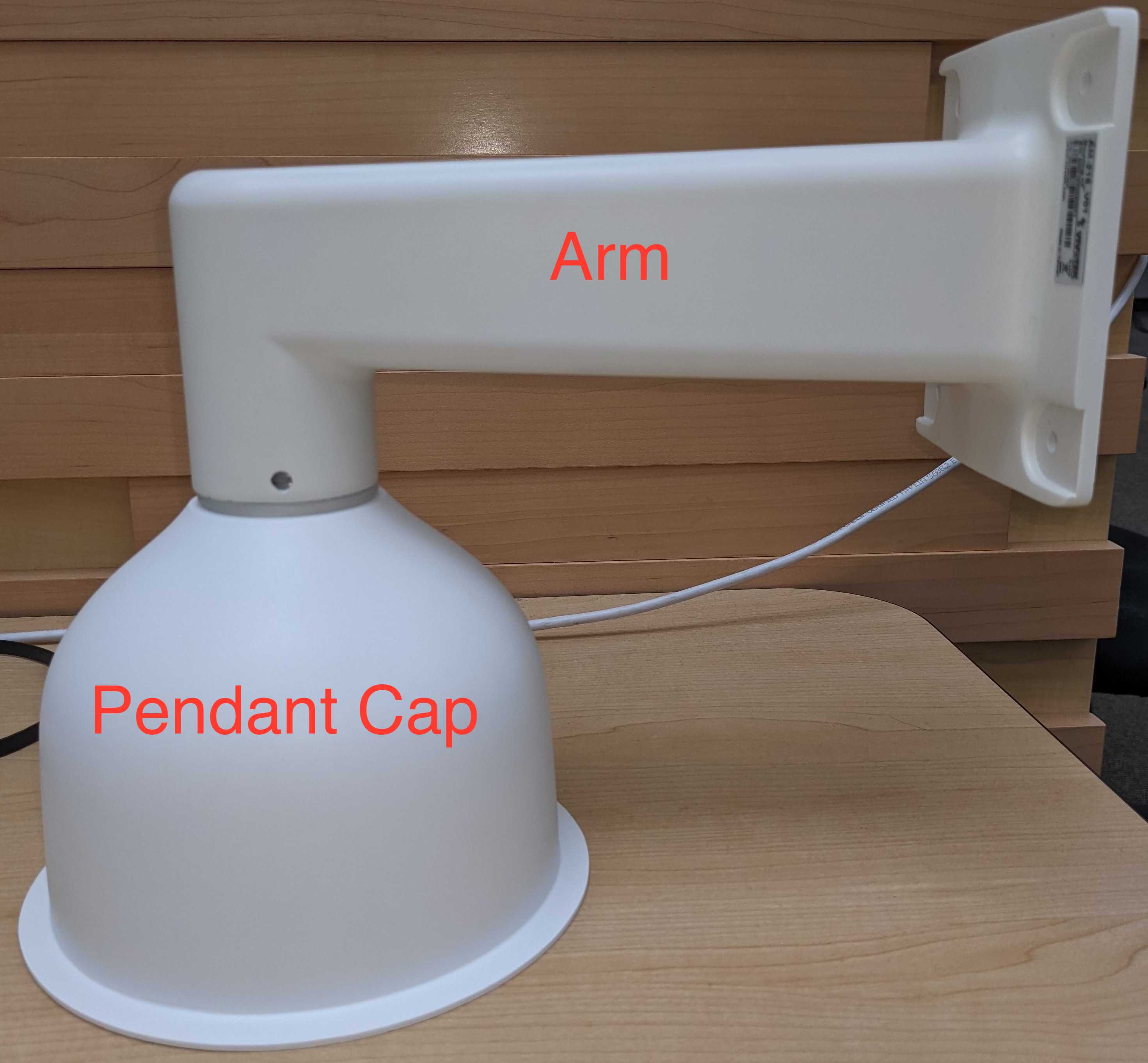

Below is a photo of the arm mount screwed to the Pendant Cap. The Arm can also have an Extension Rod attached to it.
Below is a picture of the Ceiling Mount screwed to the Pendant Cap. The Ceiling Mount can also have an Extension Rod attached to it.
Below is a picture of the Extension Rod screwed to the Ceiling Mount and the Pendant Cap. The Extension Rod can also be used with the Arm Mount.
Below is a picture of the Pendant cap with and without the R400 to show the mounting holes. The pendant cap has an inside adapter that needs to be taken out. Below is a picture of the Pendant cap with the inside adapter followed by the Pendant cap with the inside adapter removed uncovering the holes for the R400.
Once you have powered up your camera (instructions to wire a camera), registering a new camera is fast and simple. Make sure that the camera has the correct LED status that indicates it's ready to be registered. A full explanation of all LED statuses can be found here.
You can register a camera either from a mobile app (download links below) or via the web.
1. Log in to the app and click "Register Devices" from the home screen. That will launch the registration wizard which will guide you step by step through the registration process.
2. Select the registration method labeled "Register via QR Code"
3. Add the location you want to assign the R400 to. If you haven't already, you'll need to add a location first either during this wizard, or you can go to the Locations tab and choose "Add Location".
Note: If you don't see the location you are looking for, filter the results by clicking the 'filter' button a the top right. You can read more about Managing Locations here.
4. Select the appropriate role access for the R400 so that the correct users have access to it.
For more information on how to configure this, click here. Roles can be configured after registration if changes are desired.
5. Select the camera connection type: Ethernet or Wi-Fi.
Note: The R400 does not have built-in wifi antennas, so a Wi-Fi connection must use an adapter. For more connection information, please click here. If a wifi connection is desired, please ensure the network name and password match both case and spelling, or the camera will not connect.
6. The last screen will display a QR code which you can then show to one or more cameras. Display the QR code to the camera (a few inches from the lens is good). When you hear an audible click and the red IR LED's flash, you'll know the camera has accepted the QR code.
Note: If you do not hear a click, try moving the phone toward and away the camera.
After the camera powers up, you can show the QR code to the camera when the LED is flashing blue. At this point, show the QR code on the phone to the camera (generally a few inches away is fine).
You'll know when the camera has accepted the QR code when you hear a "click" sound and then the LED will change from flashing blue to flashing green. Once complete with registering, the camera will have a solid blue LED. This generally takes 1-2 minutes.
If for some reason it doesn't get to solid blue, then it could be there is a network issue. Try unplugging the camera and going through the above steps again. If for some reason it still doesn't work and you're using WiFi, ensure your WiFi network supports the following requirements which are listed at the bottom of this article. If you're using Ethernet, try plugging a laptop into the Ethernet to ensure it can connect to the internet.
A full explanation of all LED statuses can be found here.
To register a camera from the web, go to the Camera tab and select "Register Cameras".
If this is the first camera you are registering, you'll need to add a location first either during this wizard or you can go to the Locations tab and choose "Add Location".
Notes about Wi-Fi Registration
If you are using the Rhombus WiFi adapter for internet connectivity, there are a couple of network prerequisites.
- The network must have 2.4GHz enabled
- 802.11 b/g
- The cameras do not support the 5GHz band
- The network must support one of the following authentication protocols
- WPA2 Personal
- WPA2-PSK (AES)
- WPA2-PSK (TKIP)
- WPA2 Personal
- Please contact support if you are using an unsupported authentication protocol as new ones are in development including RADIUS authentication
- The network does not use a captive portal
