Topics included in this article:
Overview
Occupancy Counting enables you to track human traffic in key business areas. This feature helps optimize business operations, maintain a secure environment, and identify traffic trends.
Occupancy Counting works by detecting people within the camera's field of view (FoV). When the number of detected people meets or exceeds the configured occupancy threshold, the camera generates an alert. For example, if the threshold is set to 10 people, an alert is triggered only when 10 or more people are visible within the same frame at the same time.
Note: For a more active estimate on occupancy counting, see our Rhombus Insights article.
Setup
Any camera equipped to detect human movement can be utilized for Occupancy Counting.

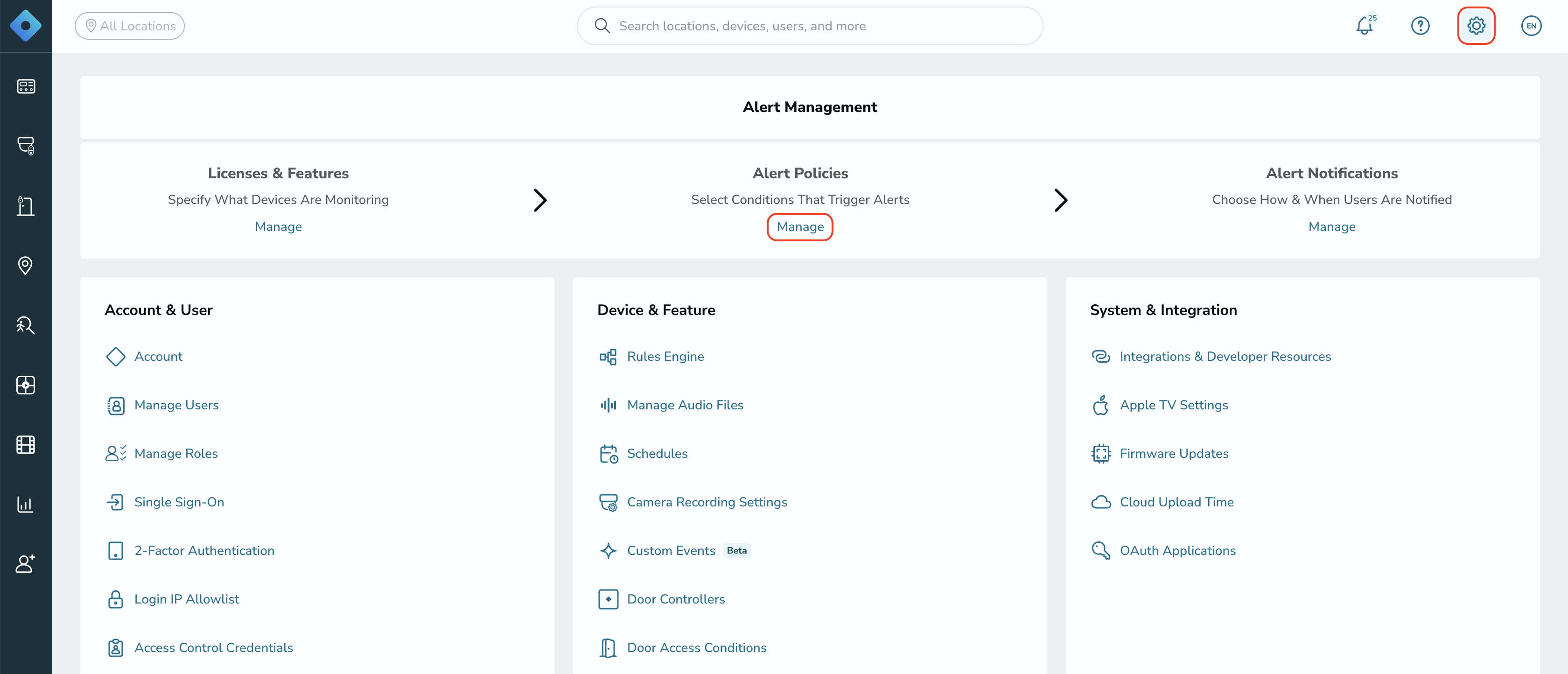

| 1. Navigate to "Settings," then click "Manage" below "Alert Policies." |
|
|

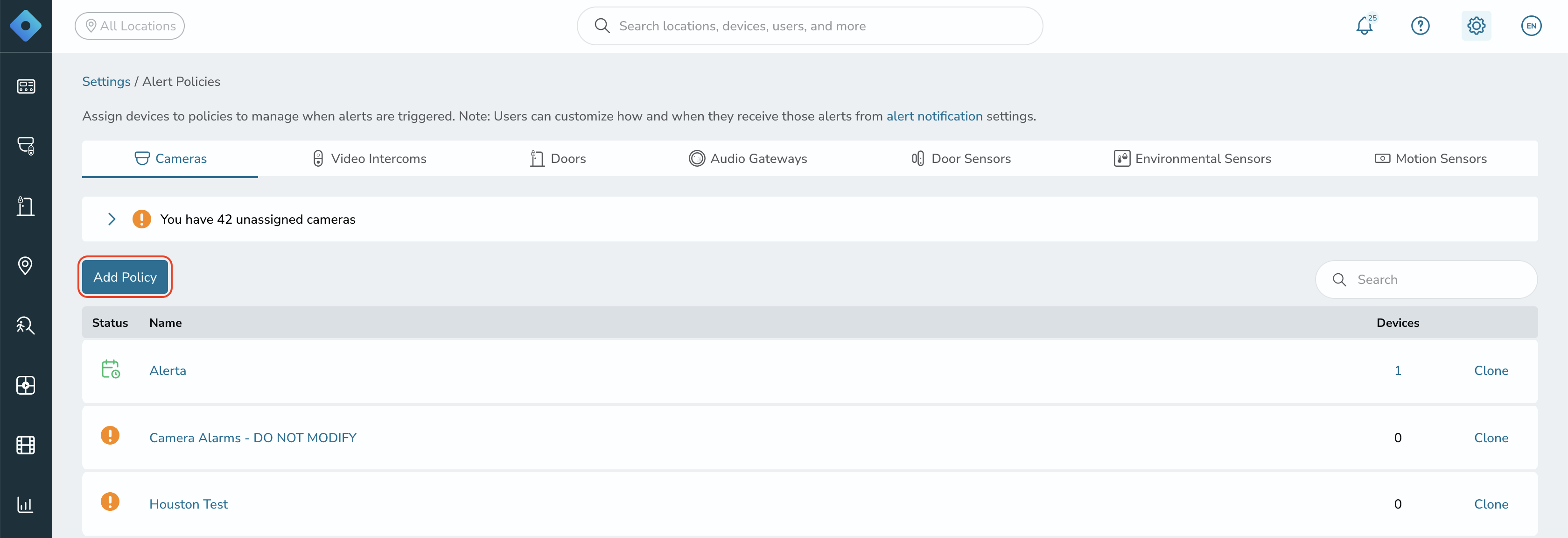

| 2. Select an existing alert policy, or click "Add Policy" to create a new one. |
|
|
|

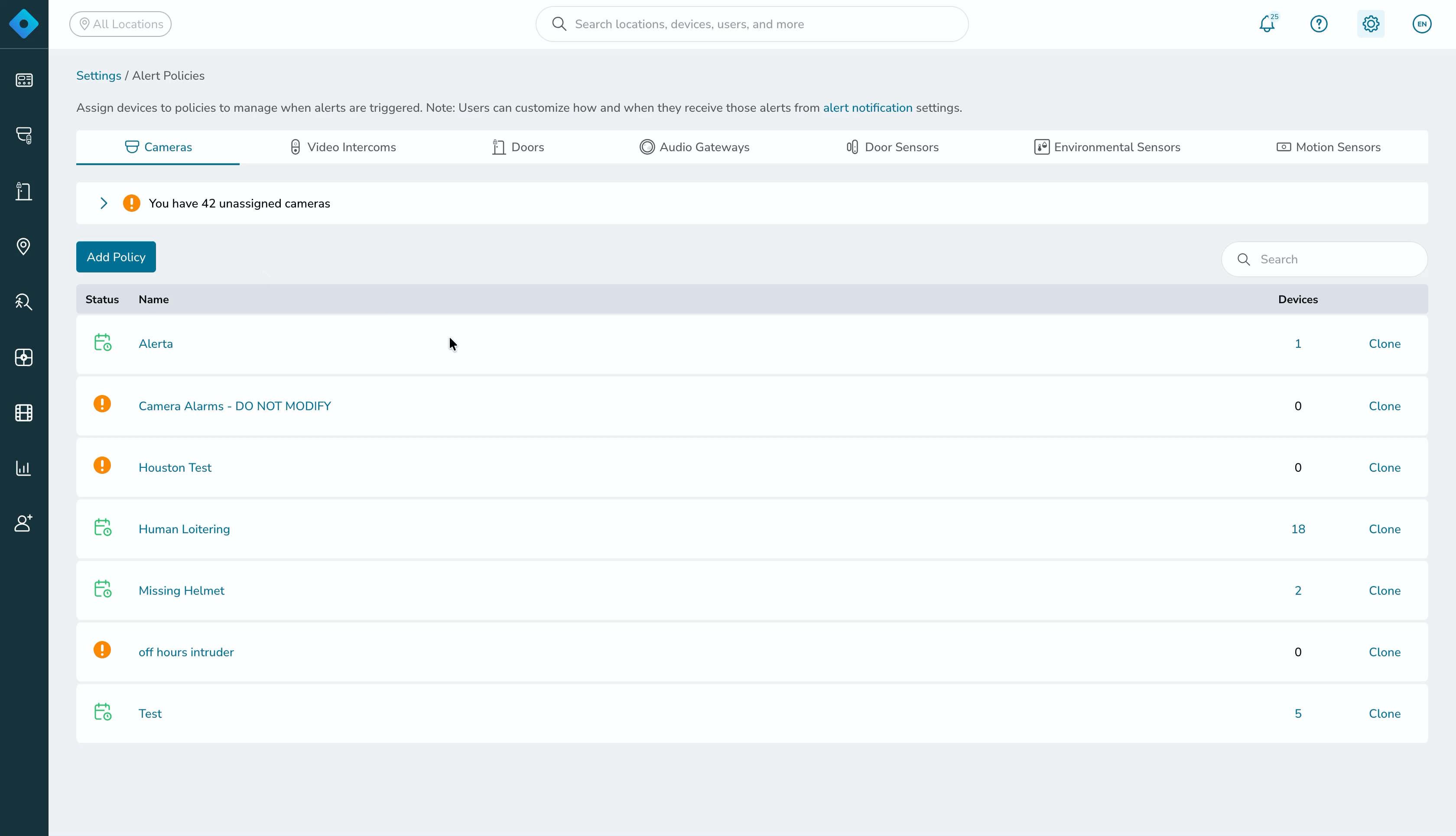

3. Click "Occupancy Count High," select the schedule during which the policy will be active. Click "Save" in the upper-right corner, then open the "Assigned Cameras" tab and select the cameras to which you want to assign the policy. Note: Once the alert policy is assigned, a "High Occupancy Threshold" must be configured for each device assigned to the policy. |
|
|
|
4. Click a device from the "Assigned" tab on the alert policy, hover over the "More controls" menu in the upper-right corner of the video player, click the "Region Setup" tab, click "Analytics," then click "Occupancy. Define a region on the camera for occupancy to be monitored, enable the "High occupancy threshold" toggle, then set the number which will trigger an alert if there are equal to or more than that number of people in the defined region. Note: The Enterprise feature "Occupancy Counting" must be enabled on a camera before the "High Occupancy Threshold" and "Occupancy Region" settings can be configured. For more information, see the Occupancy and Vehicle Counting article. |
Helpful Links
- Occupancy and Vehicle Counting
- Creating and Assigning Alert Policies
- Console Features & Licensing
- User-Based Alert Notifications
