Maglocks Overview
Magnetic locks, or Maglocks, are locking mechanisms consisting of an electromagnet and an armature plate. When powered up, a magnetic field is created, which attracts the armature plate and electromagnet to each other, holding the lock in place.
The electromagnet is typically secured to the door frame, whereas the armature plate is typically secured to the door leaf.
Installation for Maglocks
When powering locking hardware via the DC20’s integrated power supply, ensure the maximum allowable current per relay output is less than the rating listed in the manual (830 mA/415 mA at 12/24VDC).
See the DC20 Manual for more info.
Note: We recommend installing a REX to be wired inline with the lock power at the door. This permits additional free egress independent from the DC20 controller. This is also a code requirement in most regions, and we recommend you consult the appropriate federal, state, and local authorities for any relevant regulations at the time of installation.
Typical wiring configuration for an electromagnetic lock using a "Wet" contact (DC20 as the power source): |

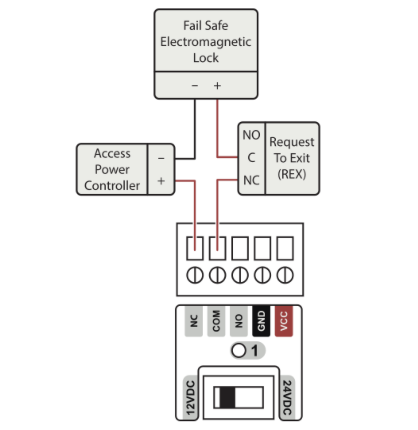

Typical wiring configuration for an electromagnetic lock using a "Dry" contact (external power source): |
