HD vs SD Streaming

In this article we will discuss the performance differences between HD and SD streaming.

• HD and SD
• Performance Differences
• Best Practices

HD and SD

• HD - High Definition streaming is streaming the direct output of the camera (i.e. If the camera is set to output 4K then you will be viewing 4K)


• SD - Standard Definition is streaming that is set to a resolution that is less then HD (1080p and above)

Performance Differences

Here's the differences between the two modes that Rhombus provides, keeping in mind that the R360s resolution is different than that of other cameras we offer (see below):

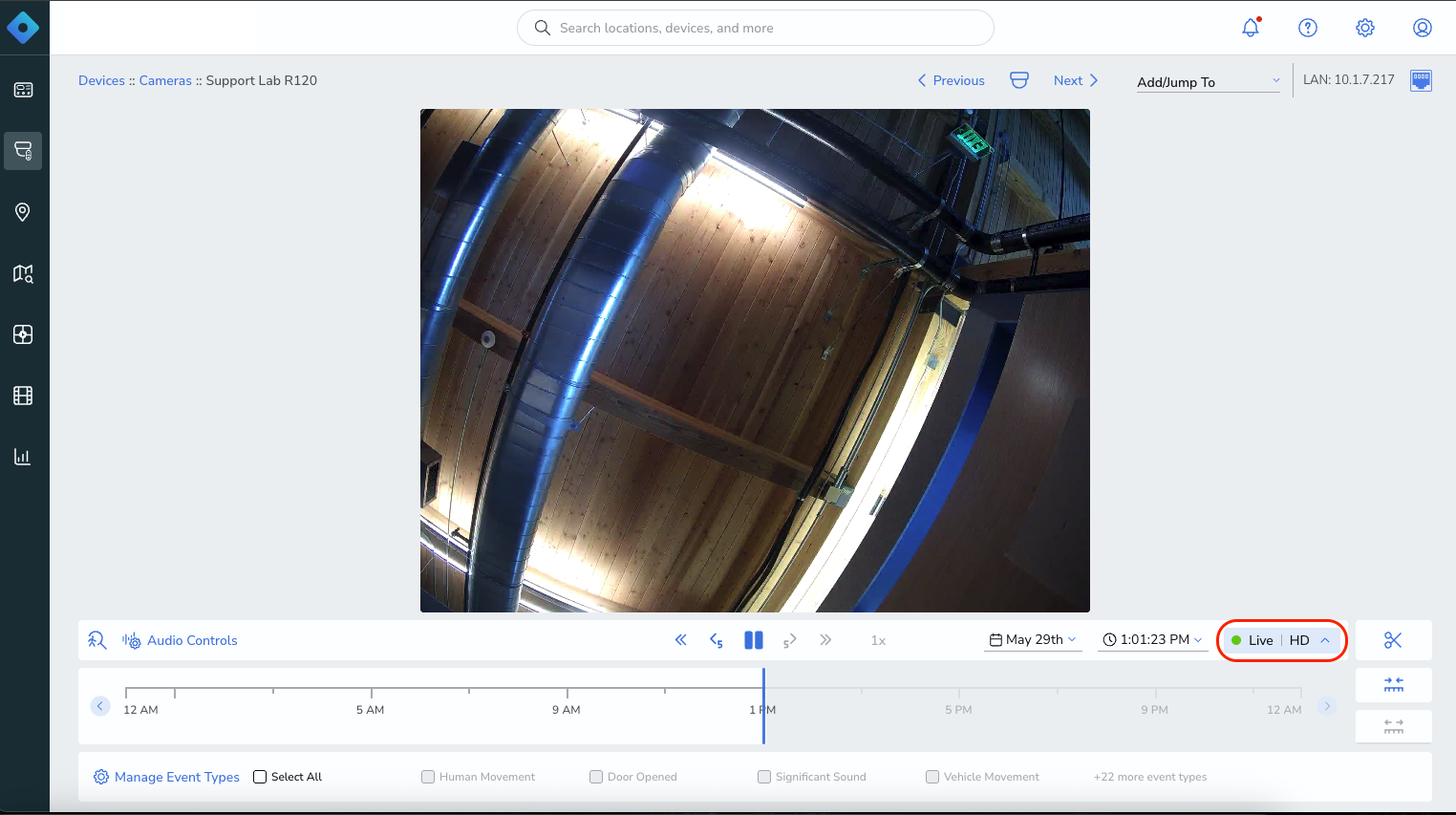

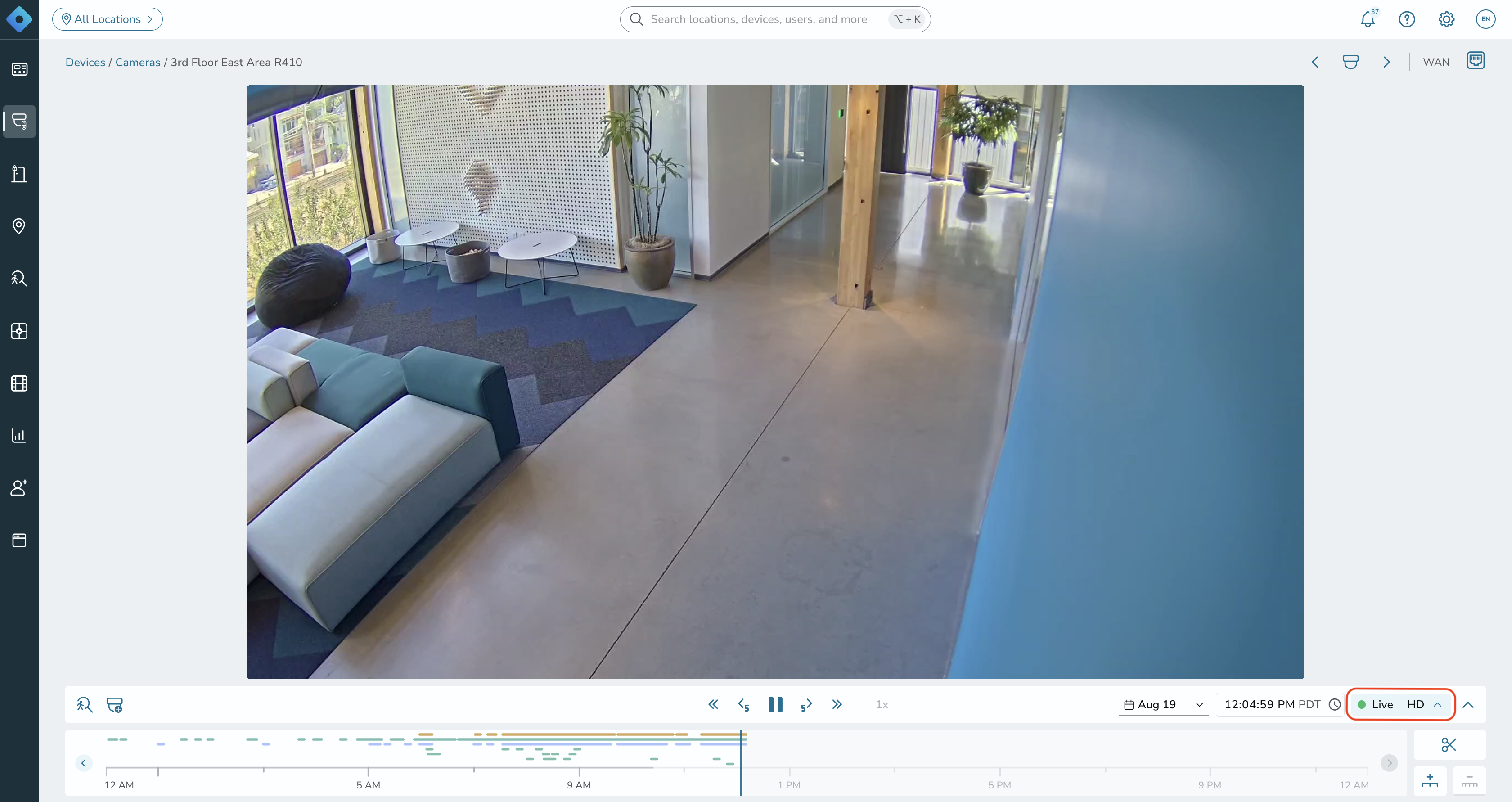

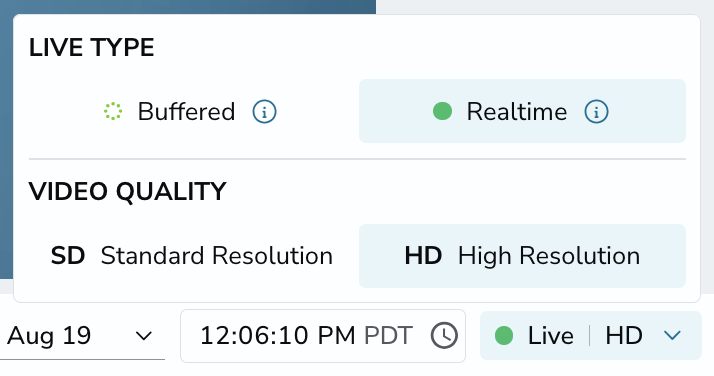

• HD - Better quality at a higher performance demand
  • Uses resolution set on camera being displayed
  • Higher bandwidth consumption
  • Higher quality video for all cameras EXCEPT the R360:
    • Non realtime resolution: user-configured resolution
    • Realtime resolution: 1080p max
  • Higher quality video for the R360 ONLY:
    • Non realtime resolution: user-configured resolution
    • Realtime resolution: 1440x1440
  • More demanding on your machine

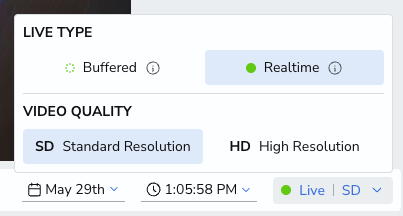

• SD - Standard quality at a optimal performance demand
  • Uses resolution set on camera being displayed
  • Lower bandwidth consumption
  • Lower quality video for all cameras EXCEPT the R360:
    • Non realtime resolution: 360p
    • Realtime resolution: 360p
  • Lower quality video for the R360 ONLY:
    • Non realtime resolution: 640x640
    • Realtime resolution: 640x640
  • Less demanding on your machine
  • Only applies to cameras connected over WAN or in real time mode

Best Practices

When viewing video walls it is important to keep in mind that the SD video option leads to better performance at the sacrifice of video quality. If bandwidth or network performance aren't a concern than the HD option preferred.

If you have any further questions please reach out to our Rhombus Support at help@rhombus.com. If you would like to talk to a Rhombus Sales Representative please reach out to sales@rhombus.com.
