Halo Smart Sensor

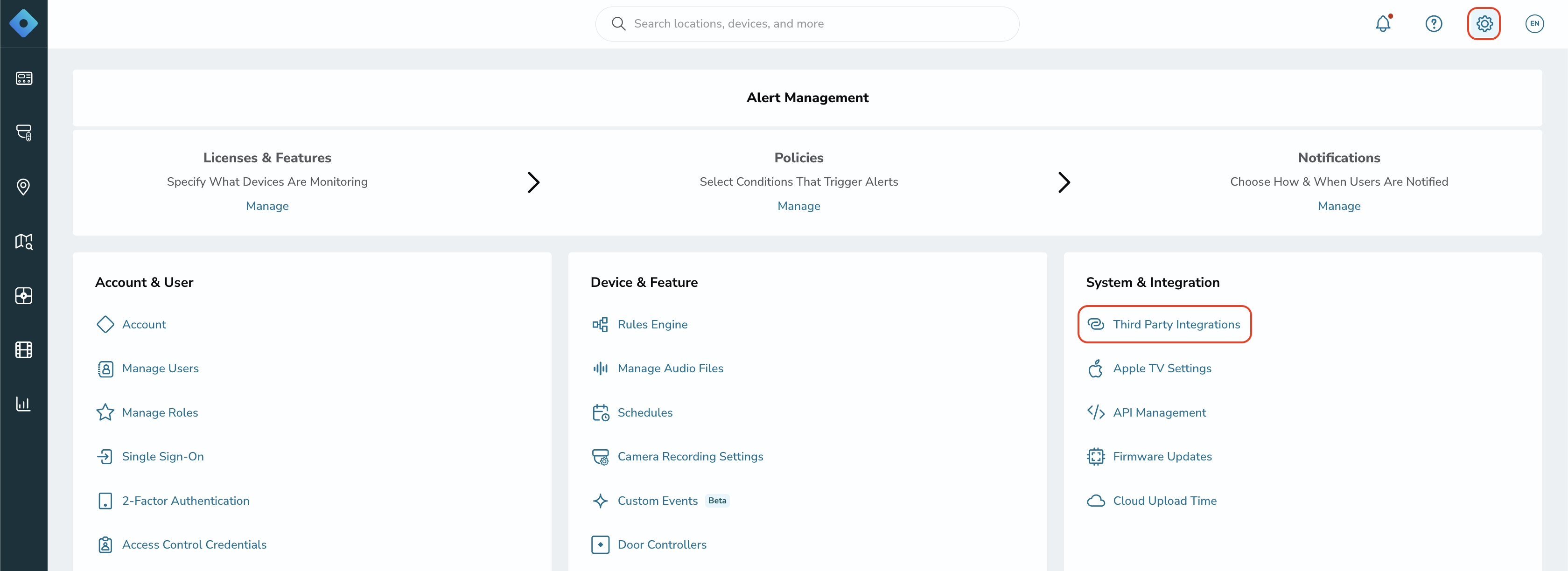

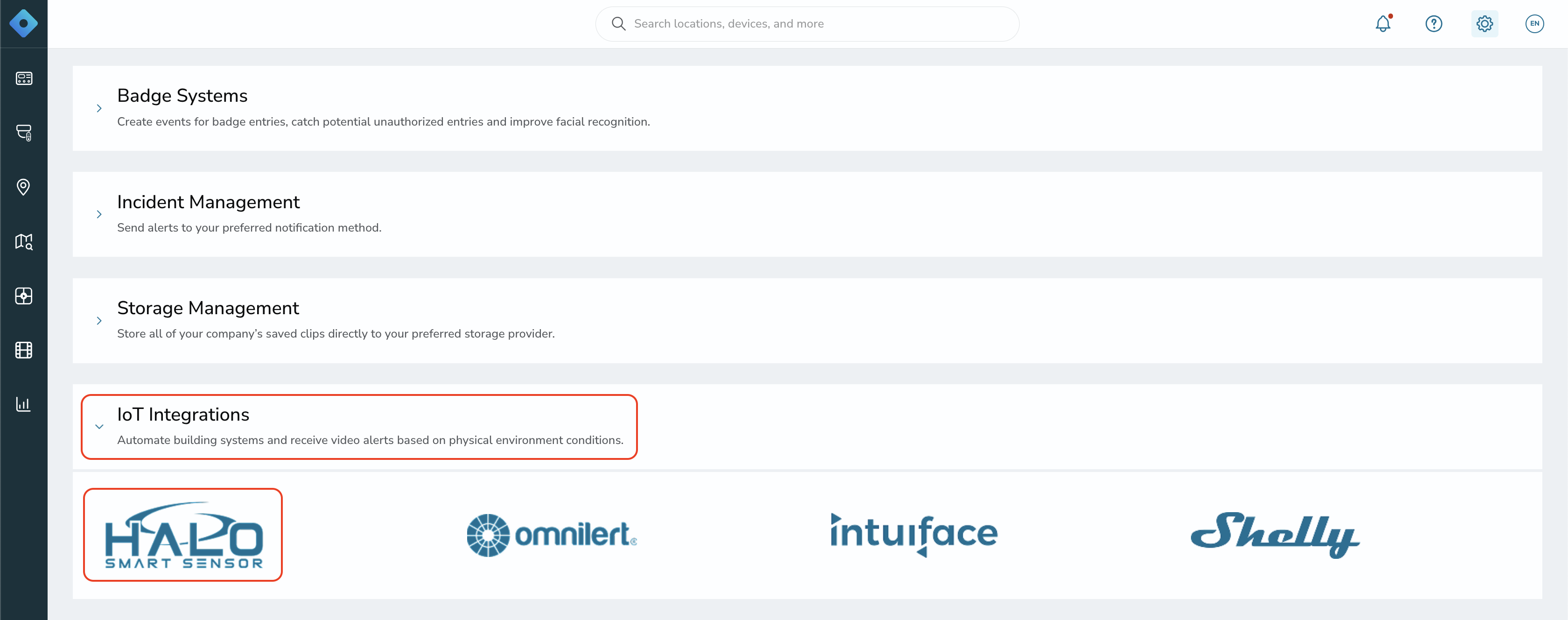

1. In the web console, navigate to Settings -> Third-Party Integrations -> Halo Smart Sensor.

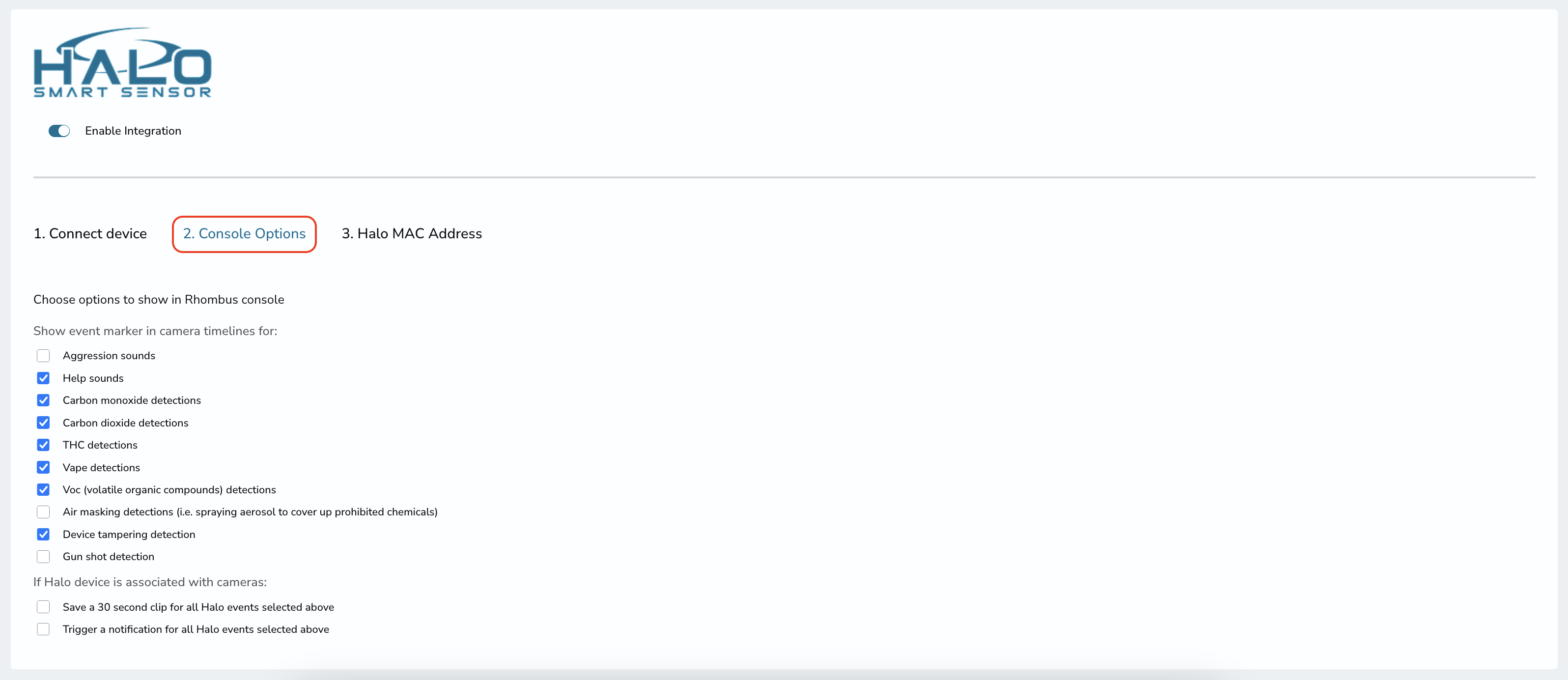

2. Ignore the URL field as this will populate automatically when we are done. From here, choose appropriate options under "Rhombus Console Options" and click "Save". This should now generate a URL in the URL field that you can copy/paste into the appropriate field in the Halo interface.

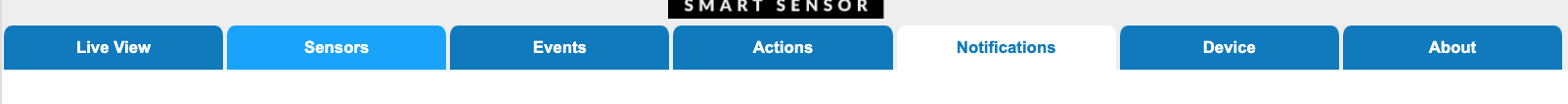

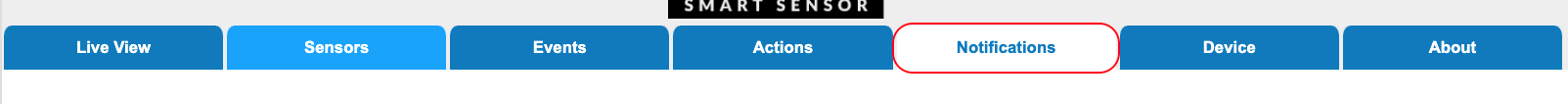

3. Next, navigate to your Halo Smart Sensor console and select the "Notifications" tab.

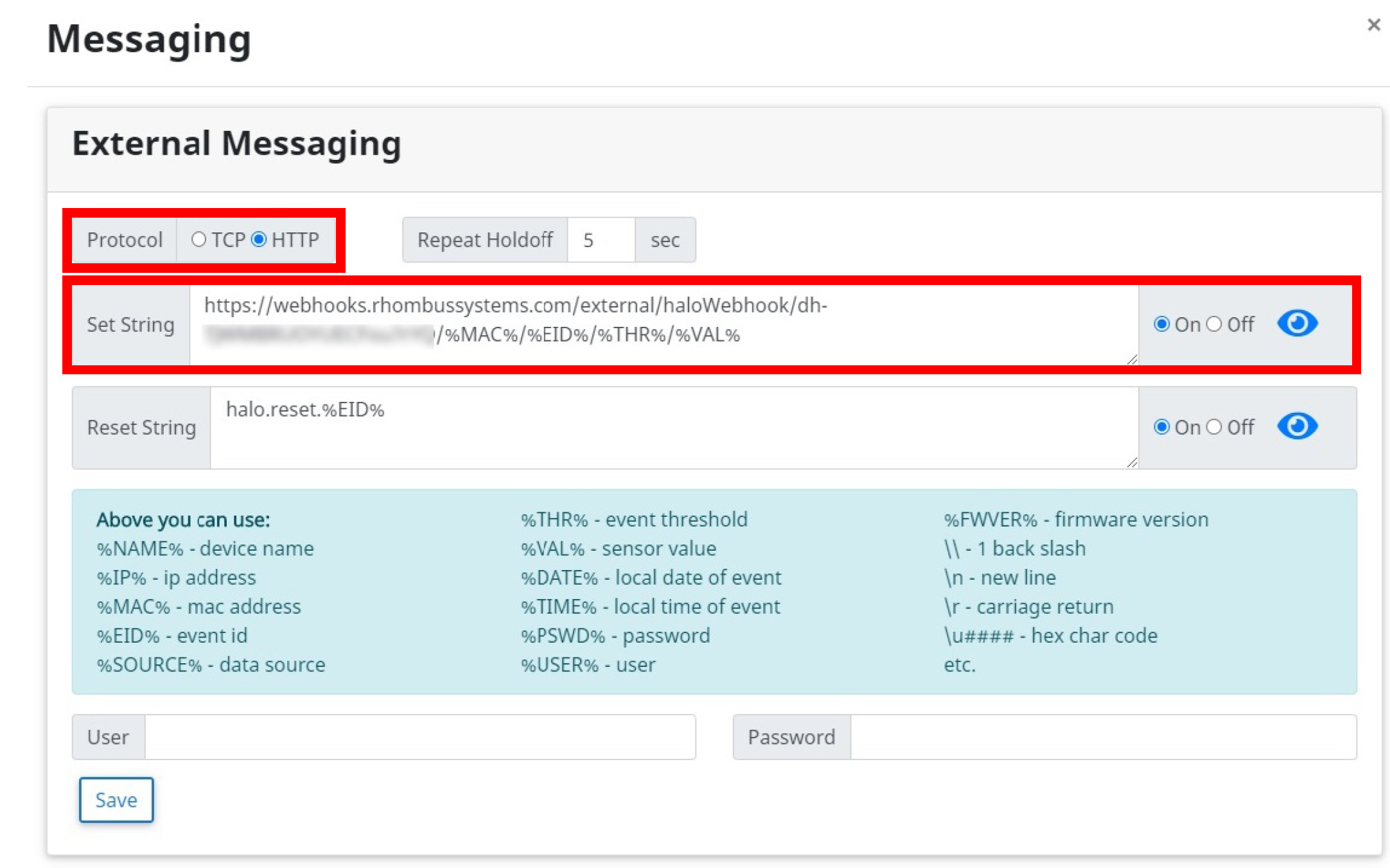

4. Scroll down to External Messaging. For the "Protocol" field, select HTTP. Then, paste the URL from step 1 into the "Set String" input box, and check the "On" button.

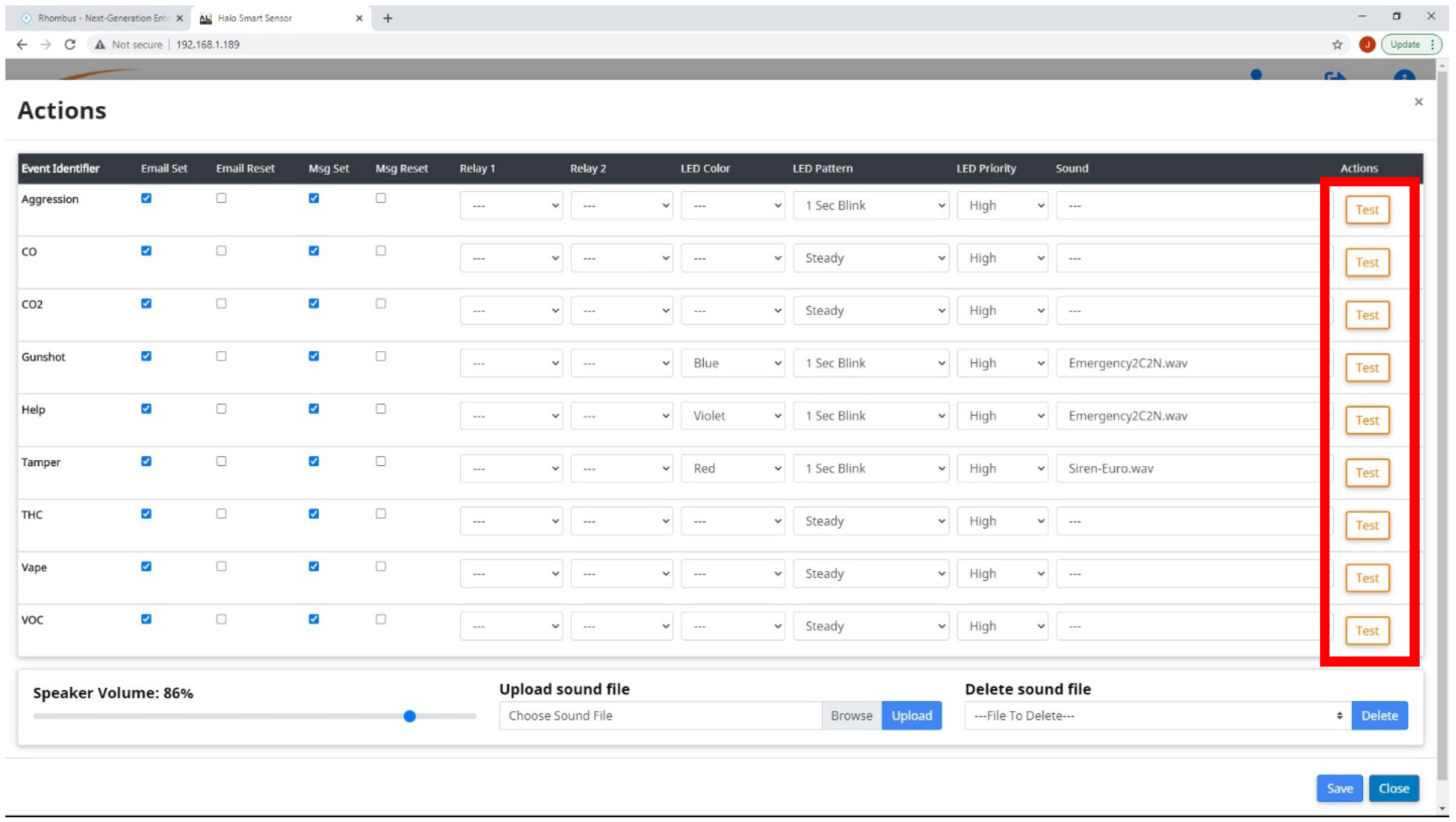

5. Then, navigate to the "Actions" tab in the Halo console and check the "Messaging Set" box for any events you want to record.

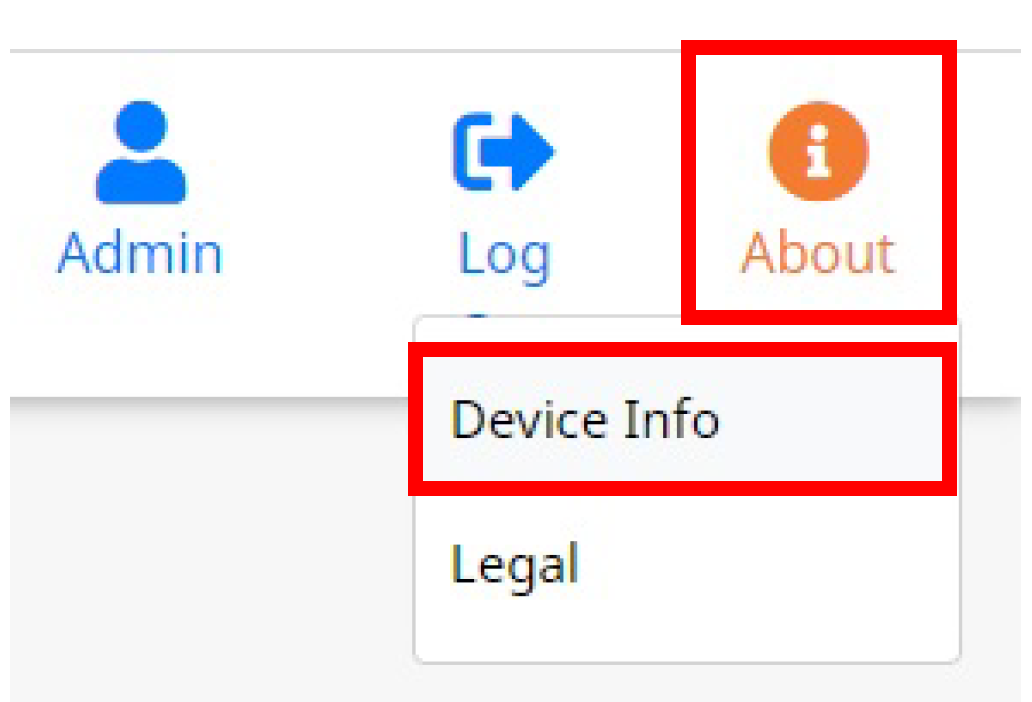

6. Next, navigate to the "About" tab in the Halo web console and copy the MAC address value.

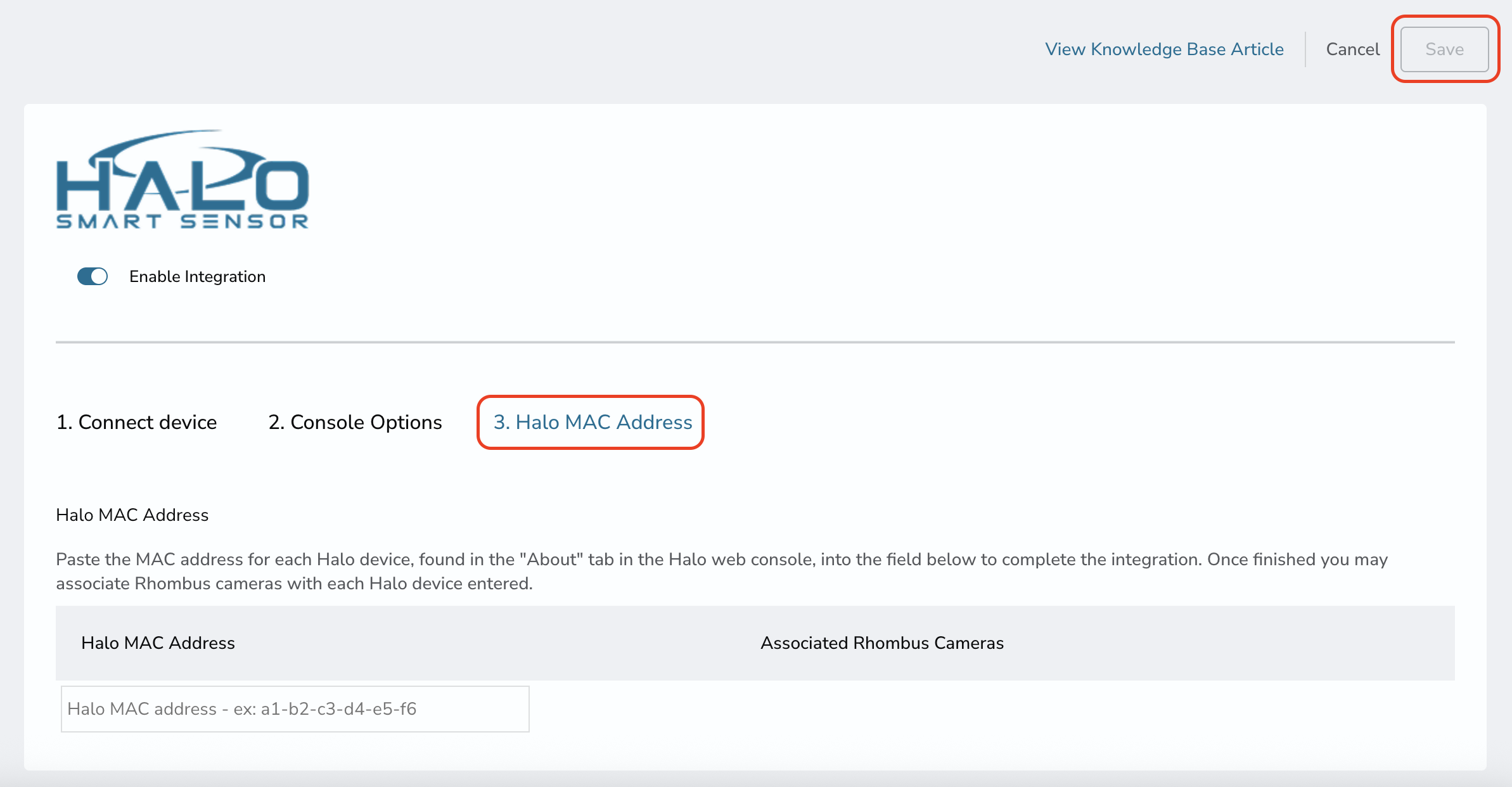

7. Navigate back to the Rhombus web console to Settings -> Third-Party Integrations -> Halo Smart Sensor. Paste the MAC Address into the bottom section and choose which cameras you want this sensor associated with. The cameras you choose will save a recording of any configured events.

To configure additional sensors, click the "Add another sensor" button and paste any additional sensor MAC addresses into the corresponding fields.

If you have any further questions please reach out to our Rhombus Support at help@rhombus.com. If you would like to talk to a Rhombus Sales Representative please reach out to sales@rhombus.com.
