Shelly Device Integration

Topics included in this article:

• Shelly Devices
• Integration Setup
• Console Configuration and Monitoring
  • Notification Setup
  • Monitoring
• Helpful Links
• Contact Support or Sales

Shelly Devices

Shelly devices are a range of smart home products designed for automating and remotely controlling electrical appliances and systems. They typically include smart switches, relays, plugs, and sensors that can be integrated into existing electrical setups.

A Shelly device can be used to integrate non-Rhombus devices into the Rhombus Console for monitoring.

Note: Currently, the Rhombus Console integration can be used to determine if the non-Rhombus device is connected or disconnected and can be configured to alert for these events.

Integration Setup

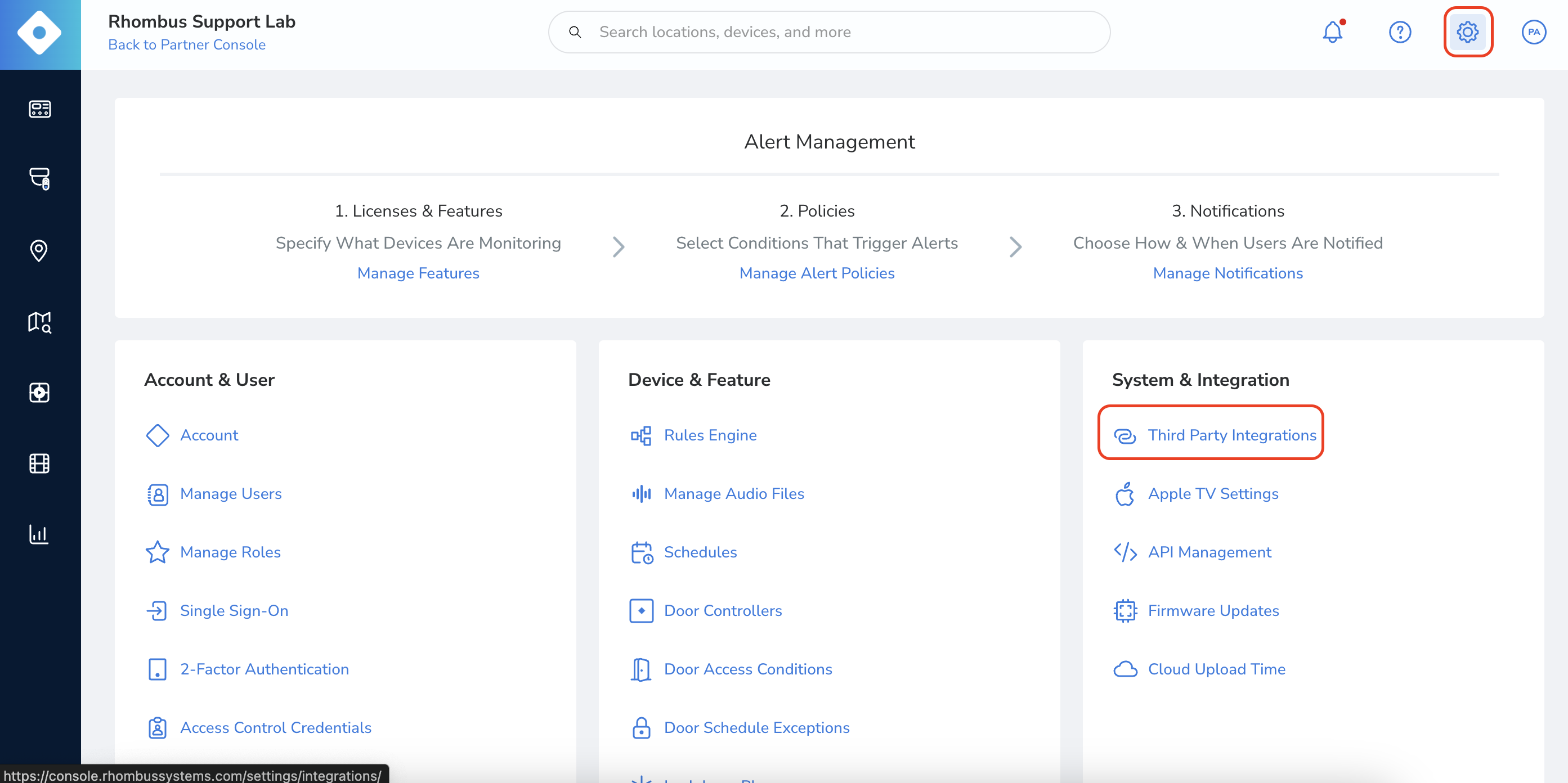

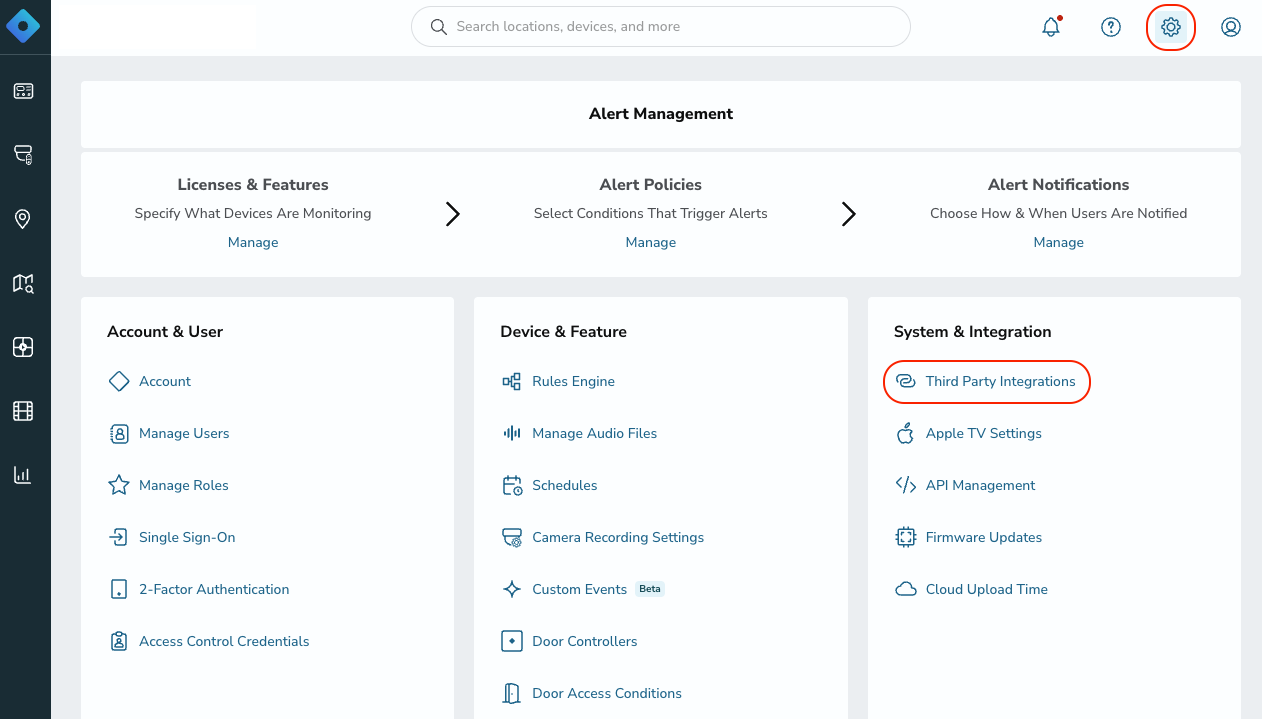

1. Navigate to "Settings," and select "Third Party Integrations."

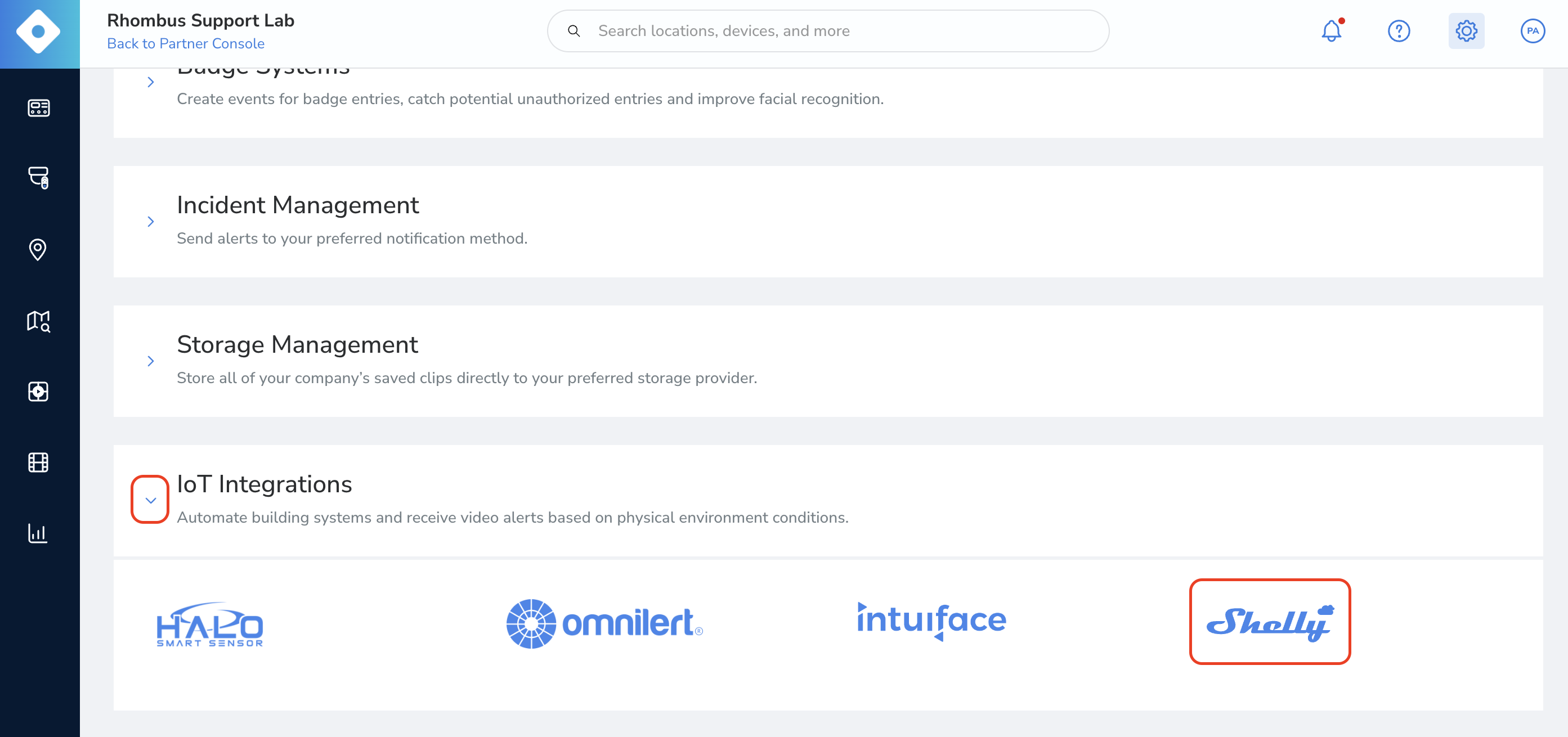

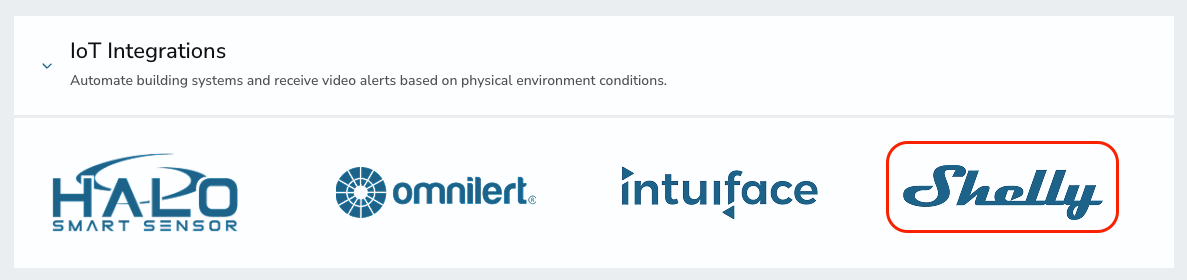

2. Select the "IoT Integrations" dropdown menu, and click "Shelly."  Note: Please contact support if the Shelly integration does not show.

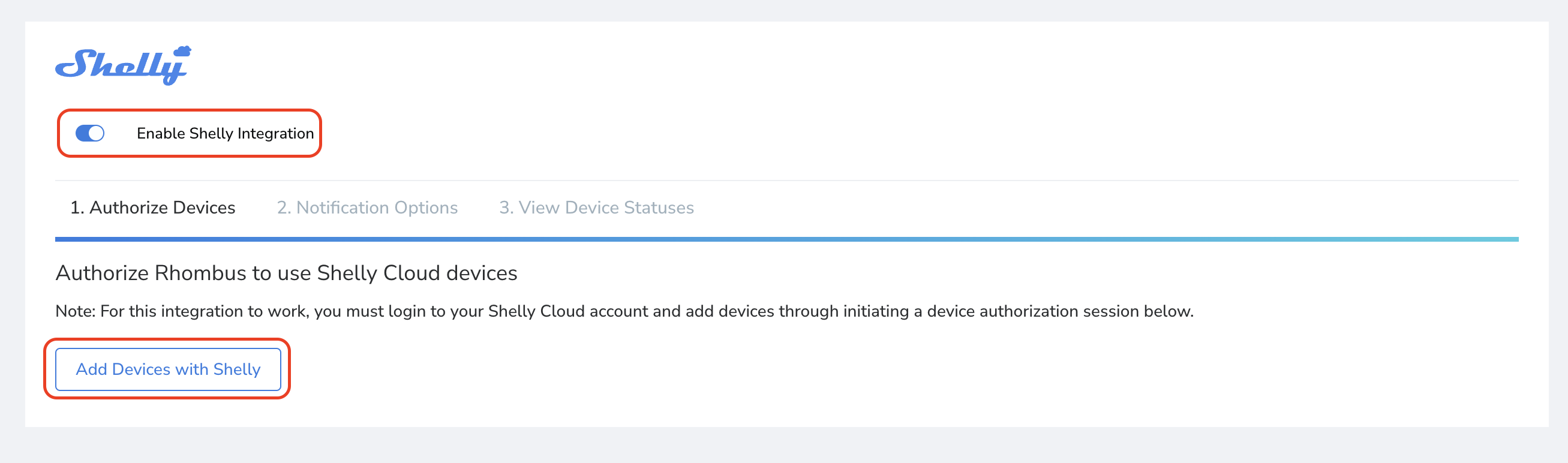

3. Enable the integration, and click "Add Devices with Shelly."

4. You will be redirected and prompted to log in to your Shelly account.

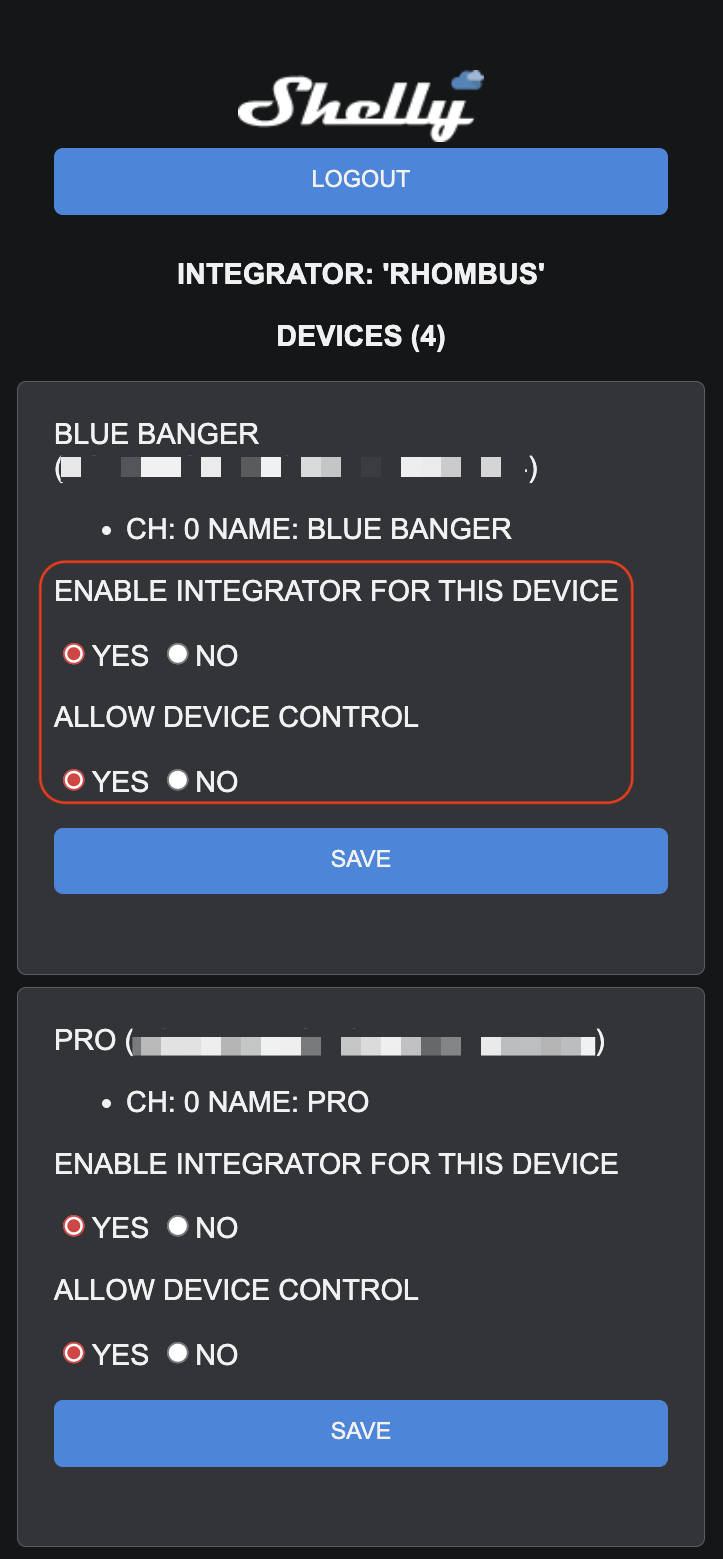

5. Once logged in, select any of the associated devices you wish to add to the integration by selecting "Yes" for both the "Enable Integrator for this Device" and "Allow Device Control" prompts and click "Save." Ensure you click "Save" in the Rhombus Console once all setup is complete.

Console Configuration and Monitoring

Once the Shelly devices have been added, they will be available for additional setup and monitoring within the Shelly Integration page in the Rhombus Console.

Notification Setup

1. Navigate to "Settings," and select "Third Party Integrations."

2. Select the "IoT Integrations" dropdown menu, and click "Shelly."

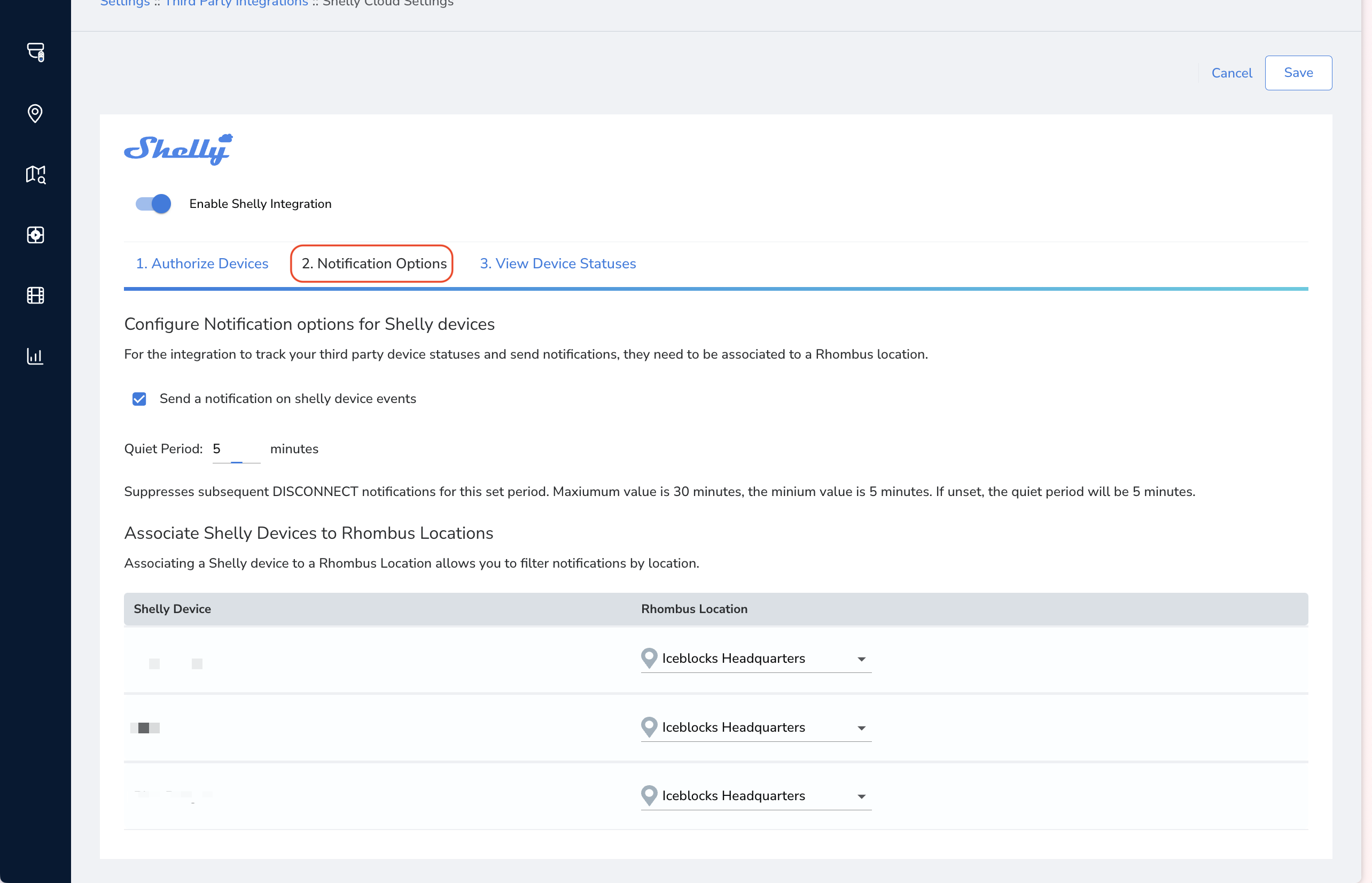

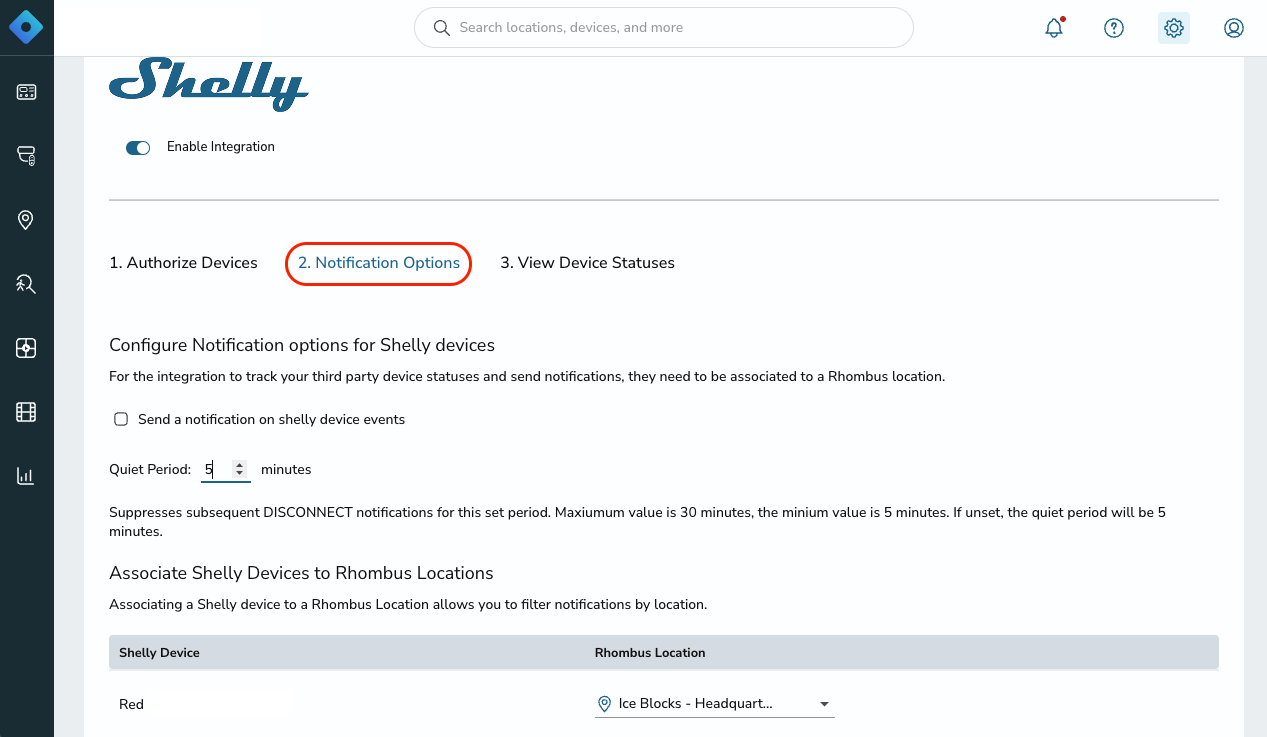

3. Select the heading "Notification Options." Complete the following steps: Click the checkbox to "Send a notification on Shelly device events." Set the desired "Quiet Period." The default and minimum amount of time is 5 minutes. This period indicates the length of the pauses between pinging the Shelly devices to check for connection status. Select the location that the Shelly devices will be associated with. Click "Save" in the top right corner.

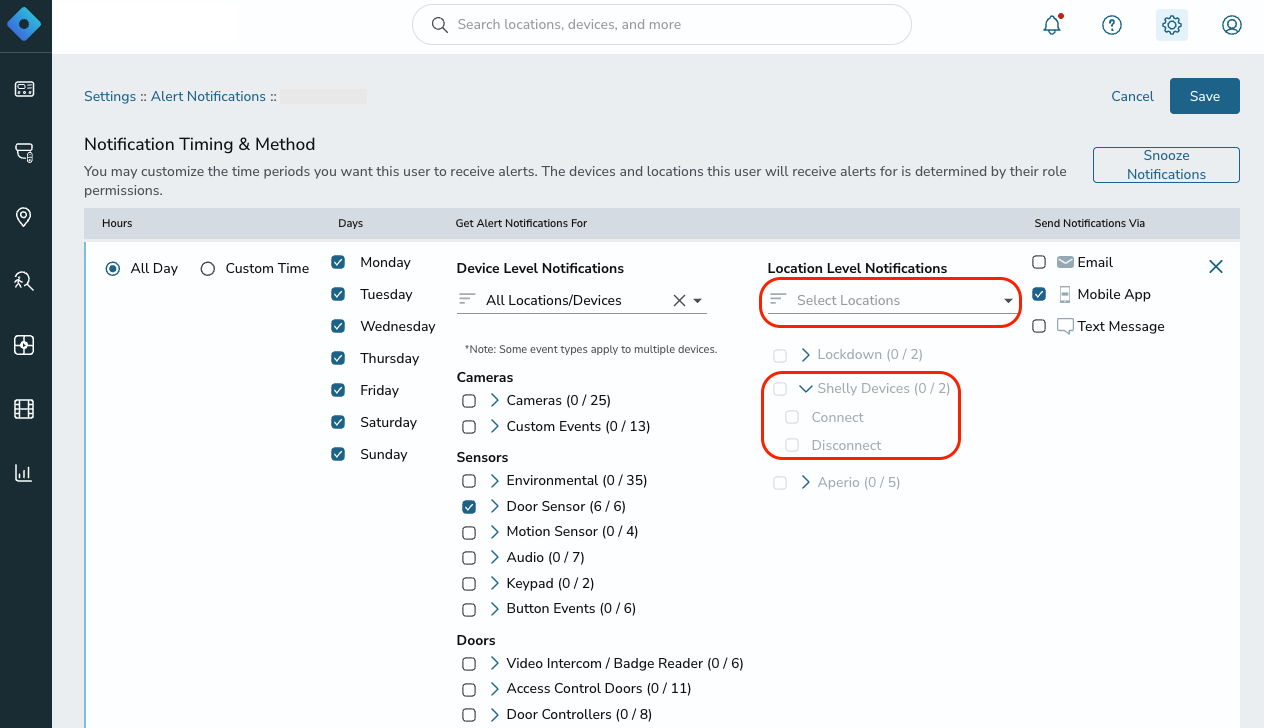

4. Navigate to "Settings," and click "Manage" beneath "Alert Notifications." Select a user to configure their Shelly notifications.

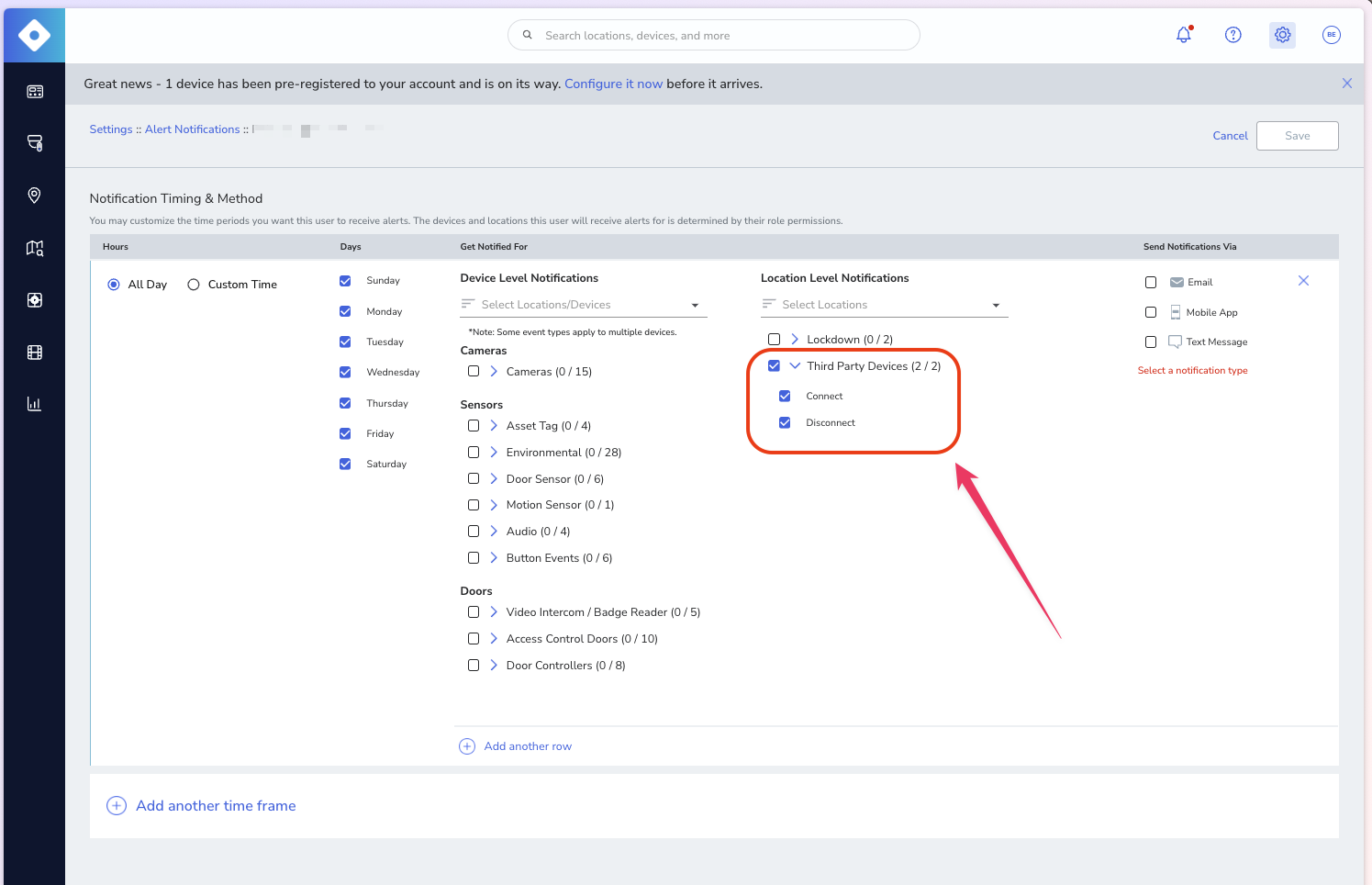

5. Select a location in the "Location Level Notifications" dropdown, and select your preferred notification events: Connect, Disconnect, or both under the "Shelly Devices" dropdown.

Monitoring

1. Navigate to "Settings," and select "Third Party Integrations."

2. Select the "IoT Integrations" dropdown menu, and click on the "Shelly" integration.

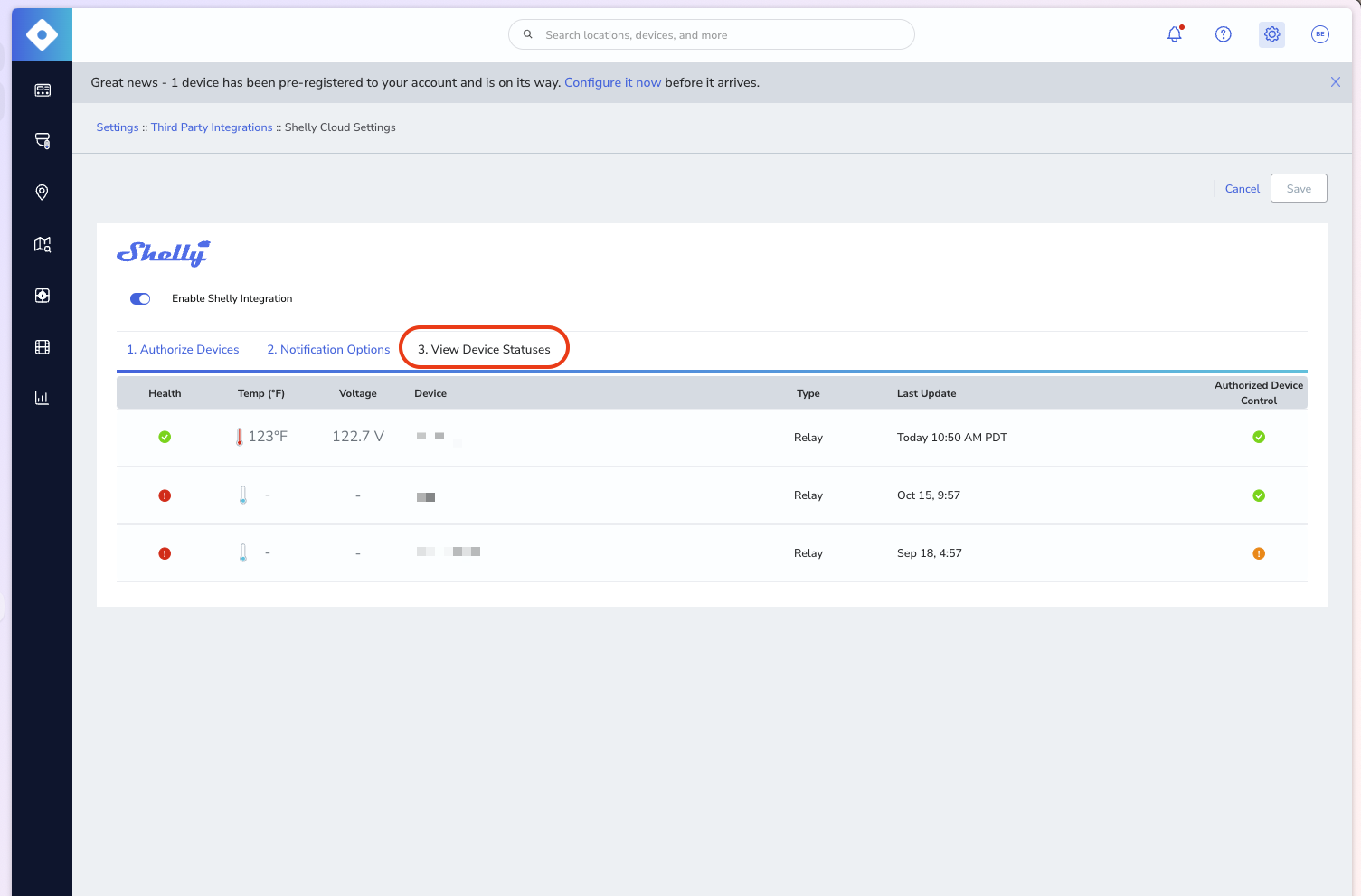

3. Select the heading "View Device Statuses." In this section you can view real-time information for the connected Shelly Devices.
