View Modes of the R360

Topics included in this article:

• Overview
• Immersive View
• Fisheye View
• 180° View
• Tile View
  • Tile View Configuration
• Adjust Default View
• Set Mount Orientation
• Helpful Links
• Contact Support or Sales

Overview

The Rhombus R360 camera offers multiple viewing modes that let you visualize 360° footage in the way that best fits your environment and monitoring needs. Depending on the camera's mounting orientation and your preferred viewing experience, you can switch between Immersive, Fisheye, 180°, and Tile views, as well as configure custom tile layouts and default viewing preferences. This article explains each available viewing mode and shows how to customize the R360 viewing experience in the Rhombus Web Console.

Immersive View

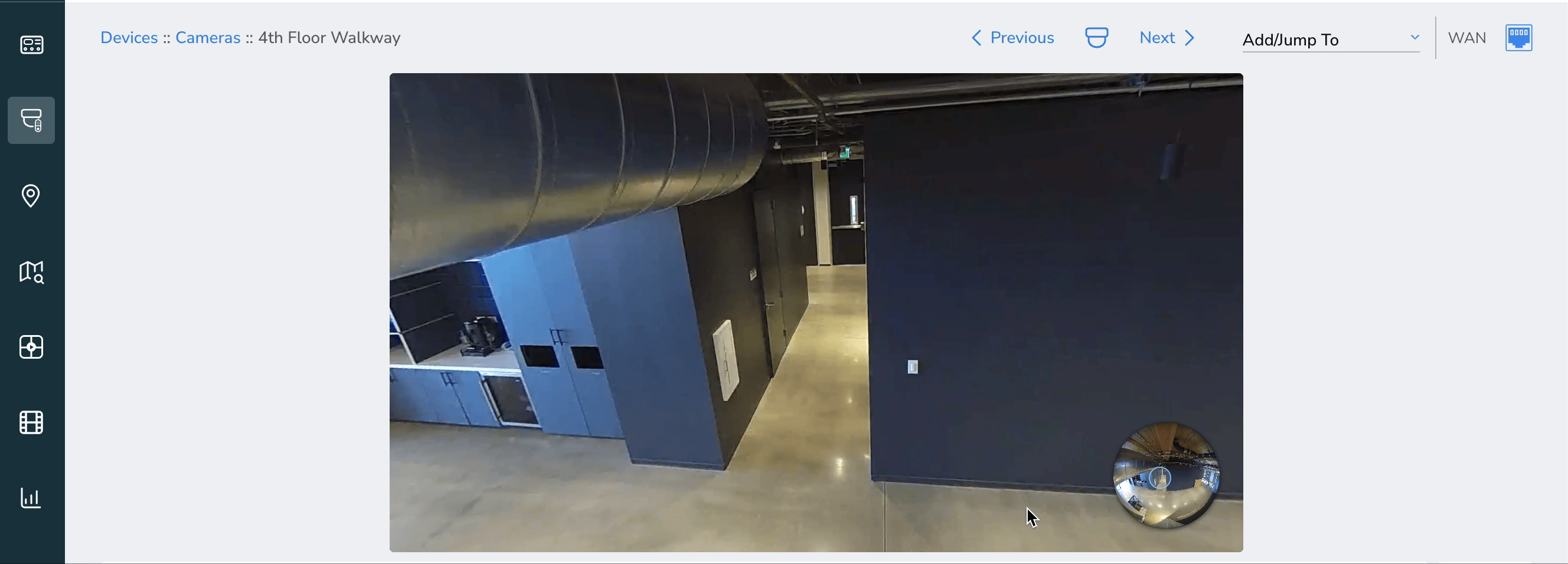

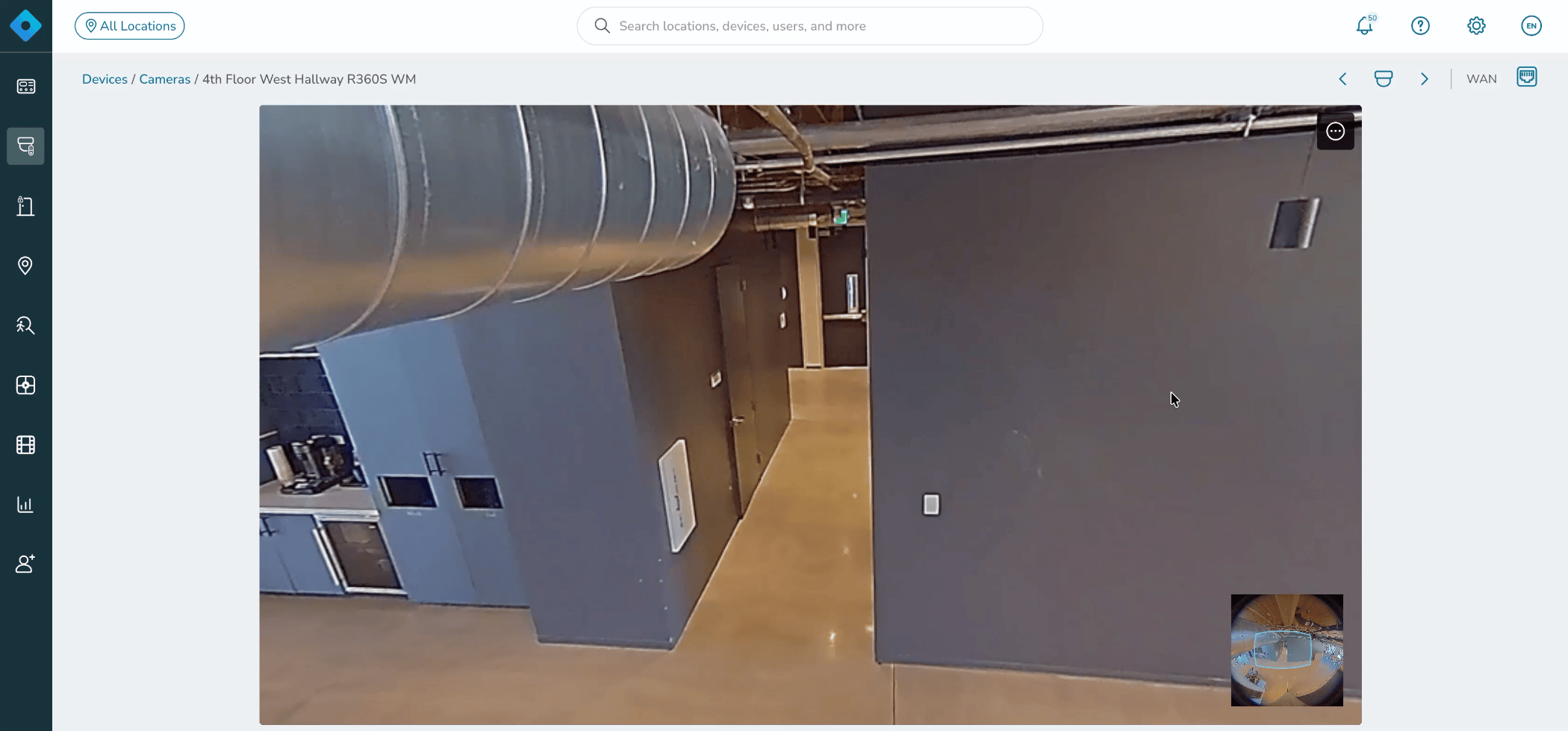

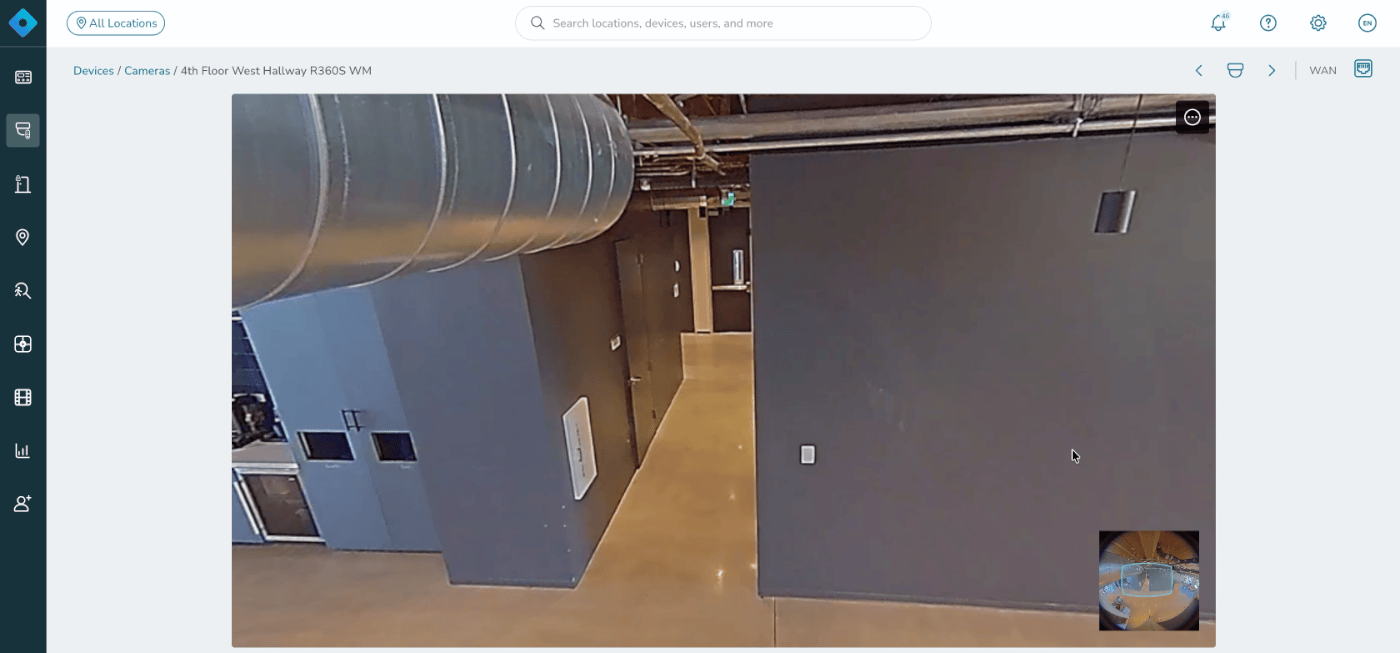

The Immersive view allows users to pan and zoom within the camera's entire field of view (FoV). Click and drag to change the viewing angle.

Fisheye View

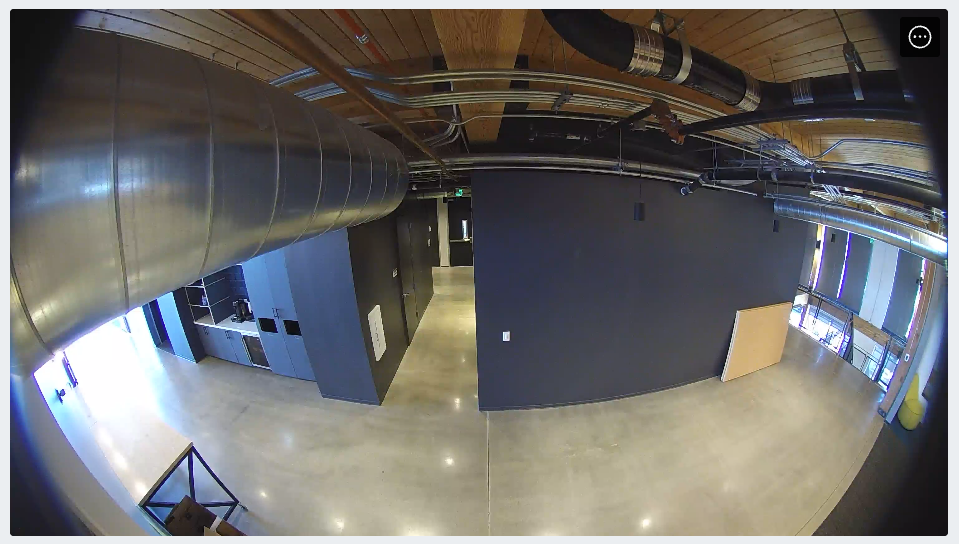

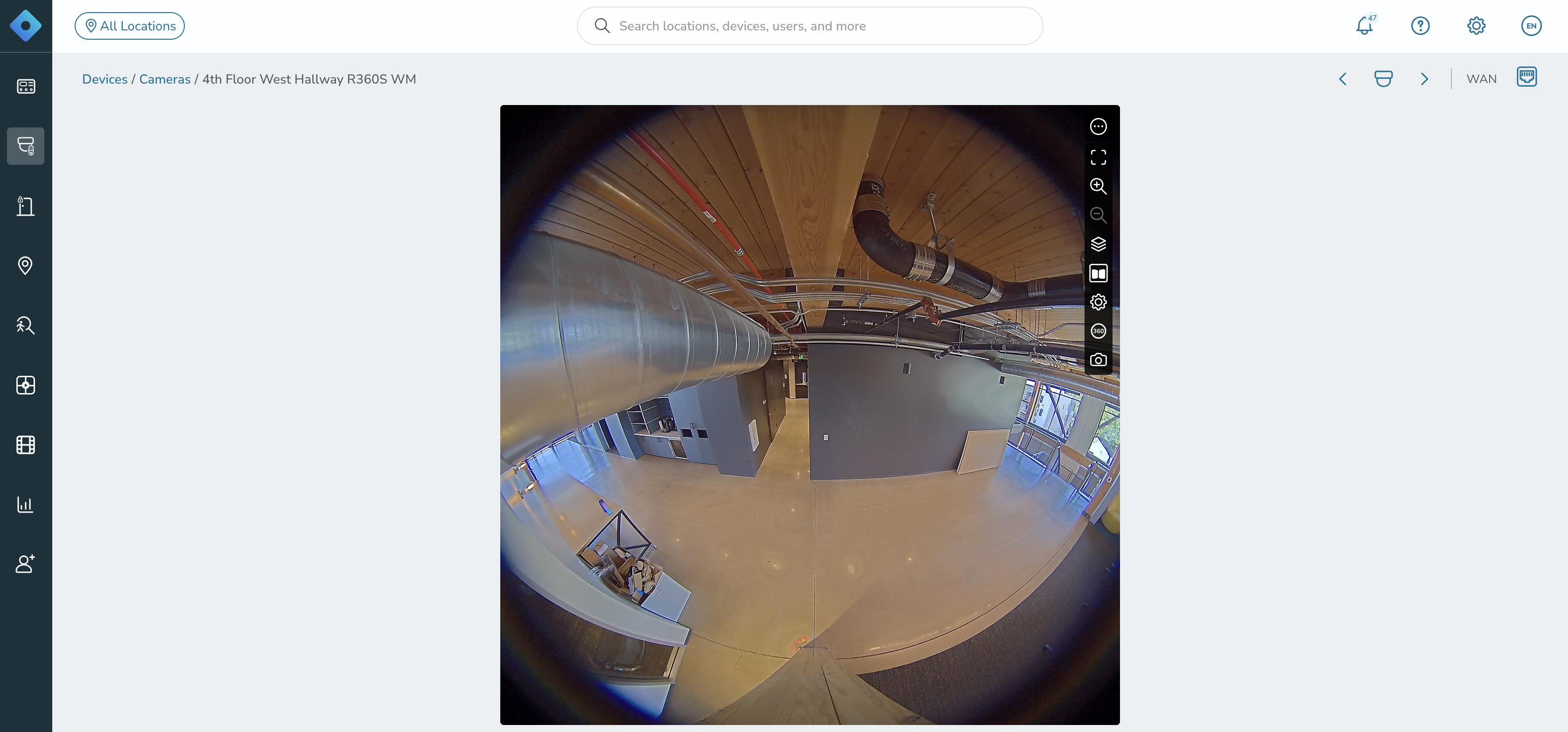

The Fisheye view allows users to see the R360's full 360° field of view (FoV) on a single screen.

180° View

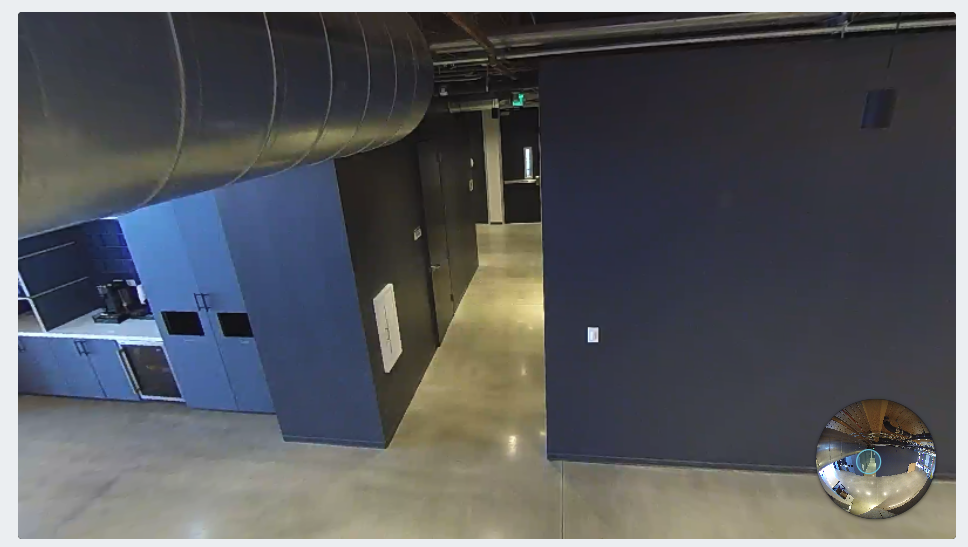

The 180° view provides a better viewing experience when the R360 is mounted sideways on a wall.

Note: This mode is only available when the "Sideways/Wall" mount orientation is selected. Once the correct mount orientation is selected, you can activate the 180° view.

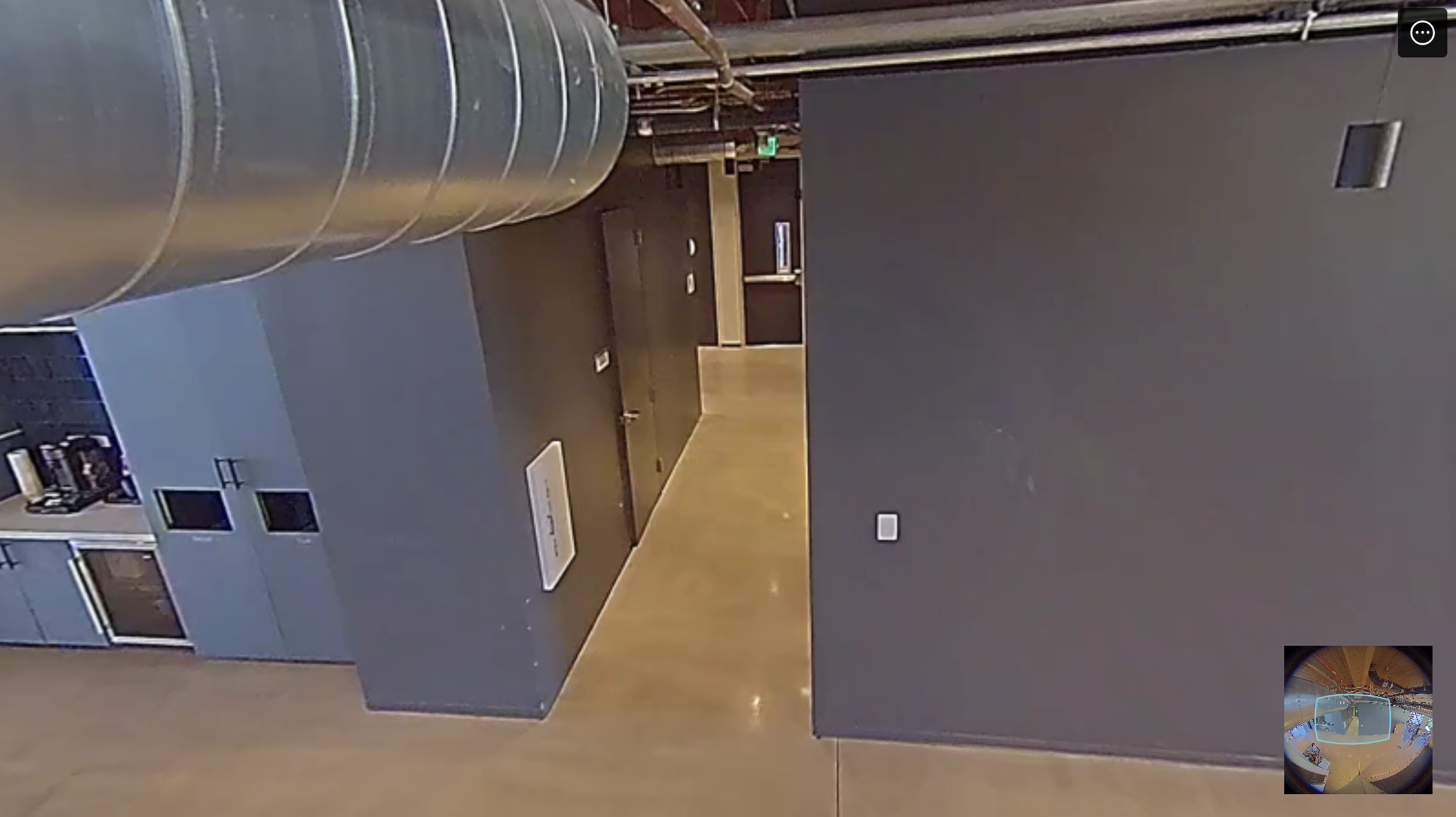

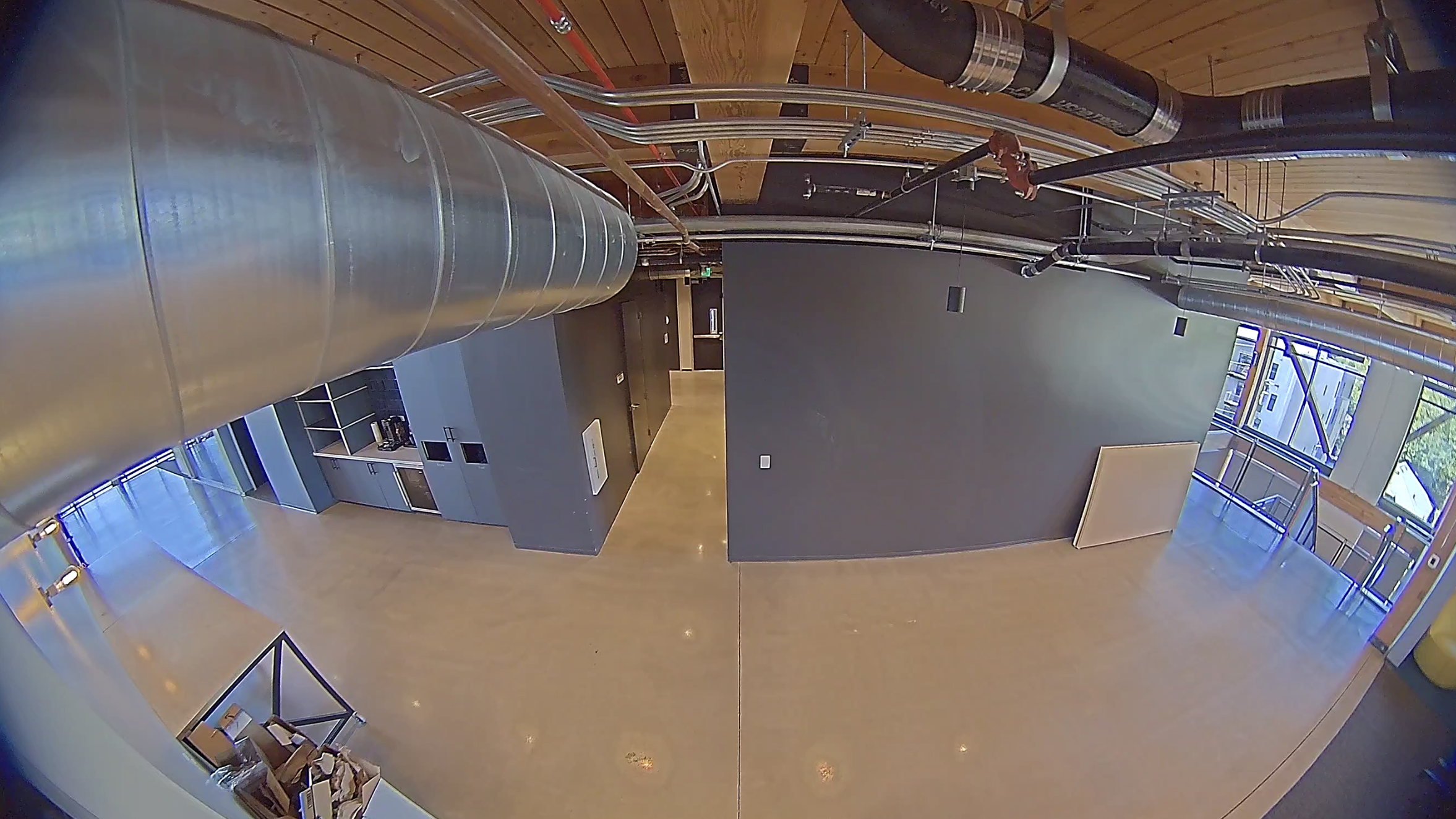

Immersive View	180° View

Tile View

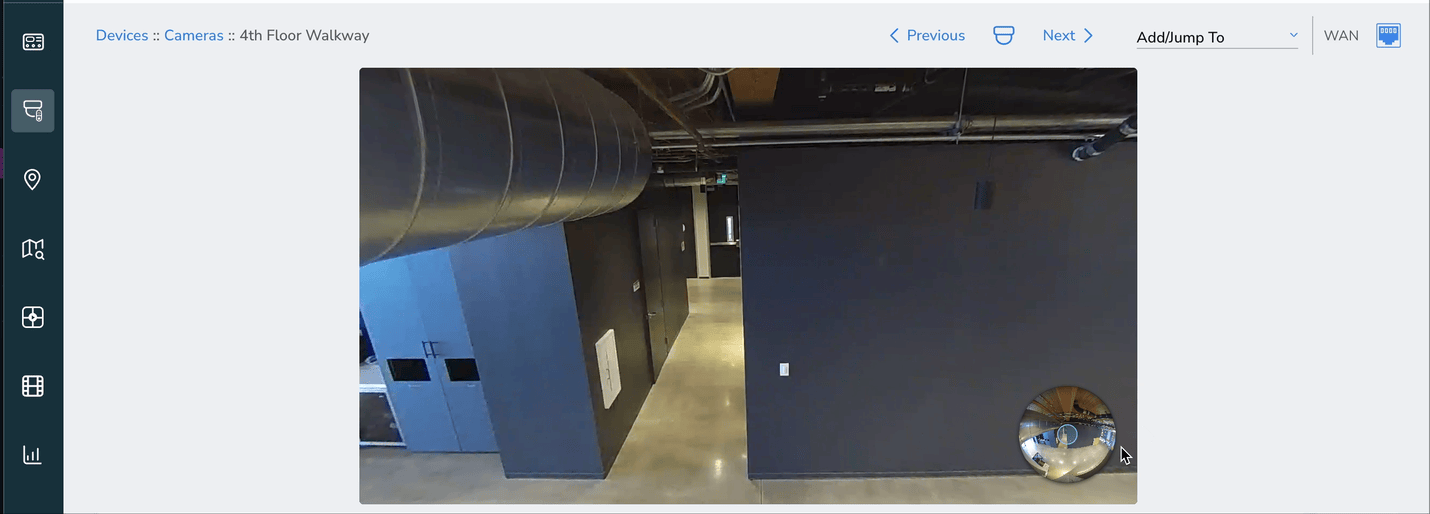

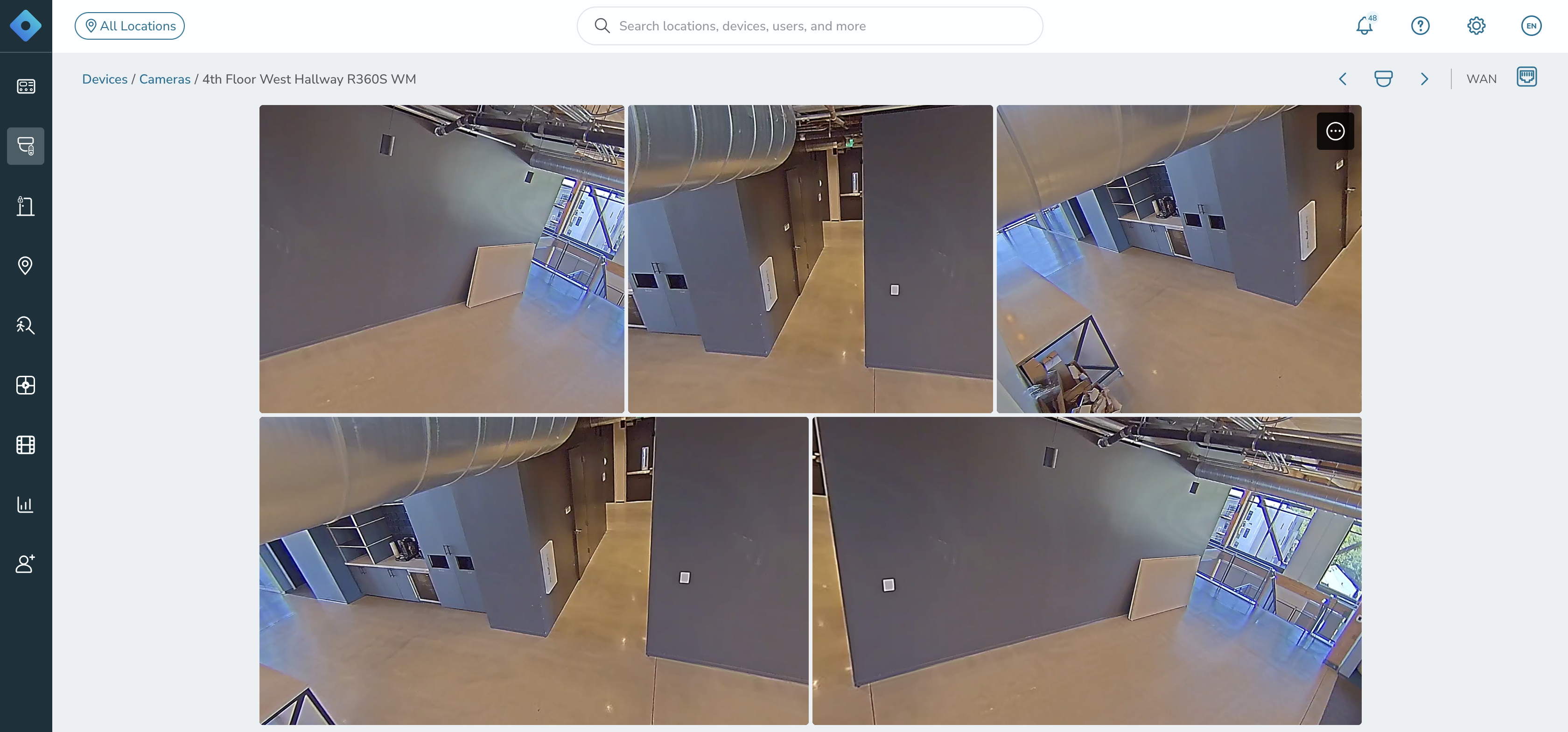

Tile view allows users to display multiple views simultaneously, referred to as tiles. You can display up to six tiles at a time in this mode.

Tile View Configuration

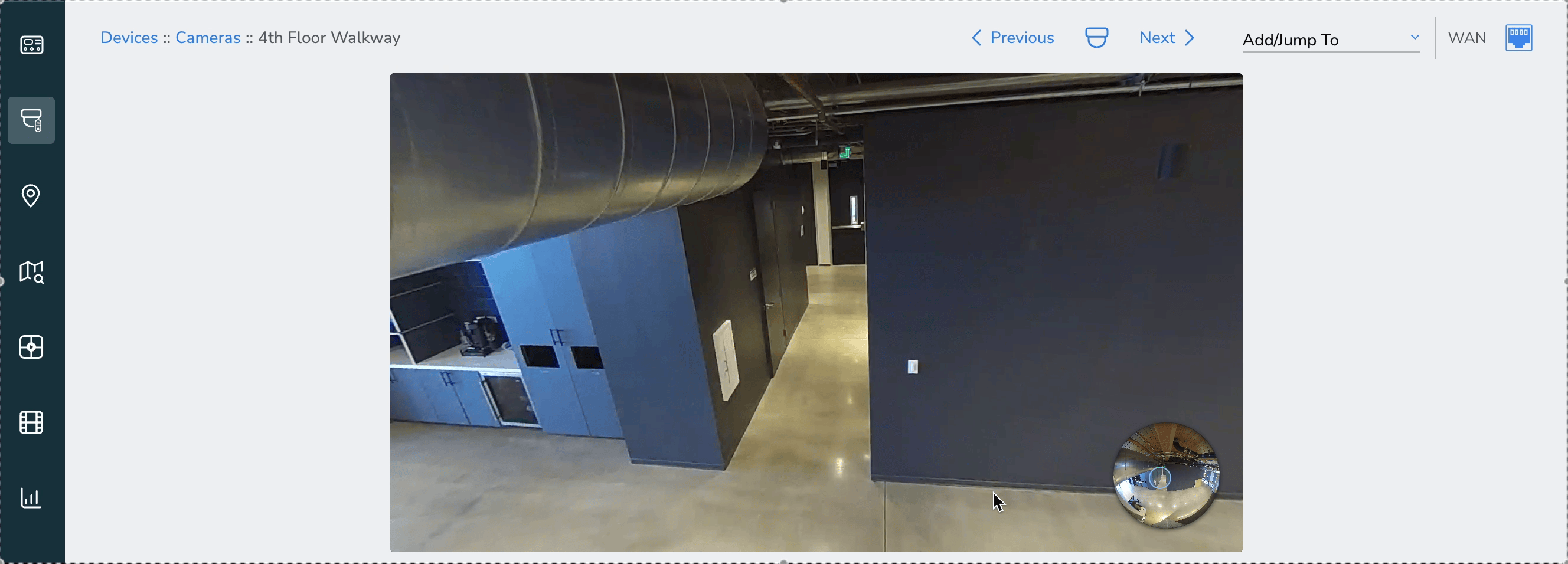

1. Hover over the ellipsis button on the video player, click the button, and then click "Manage Tile View."

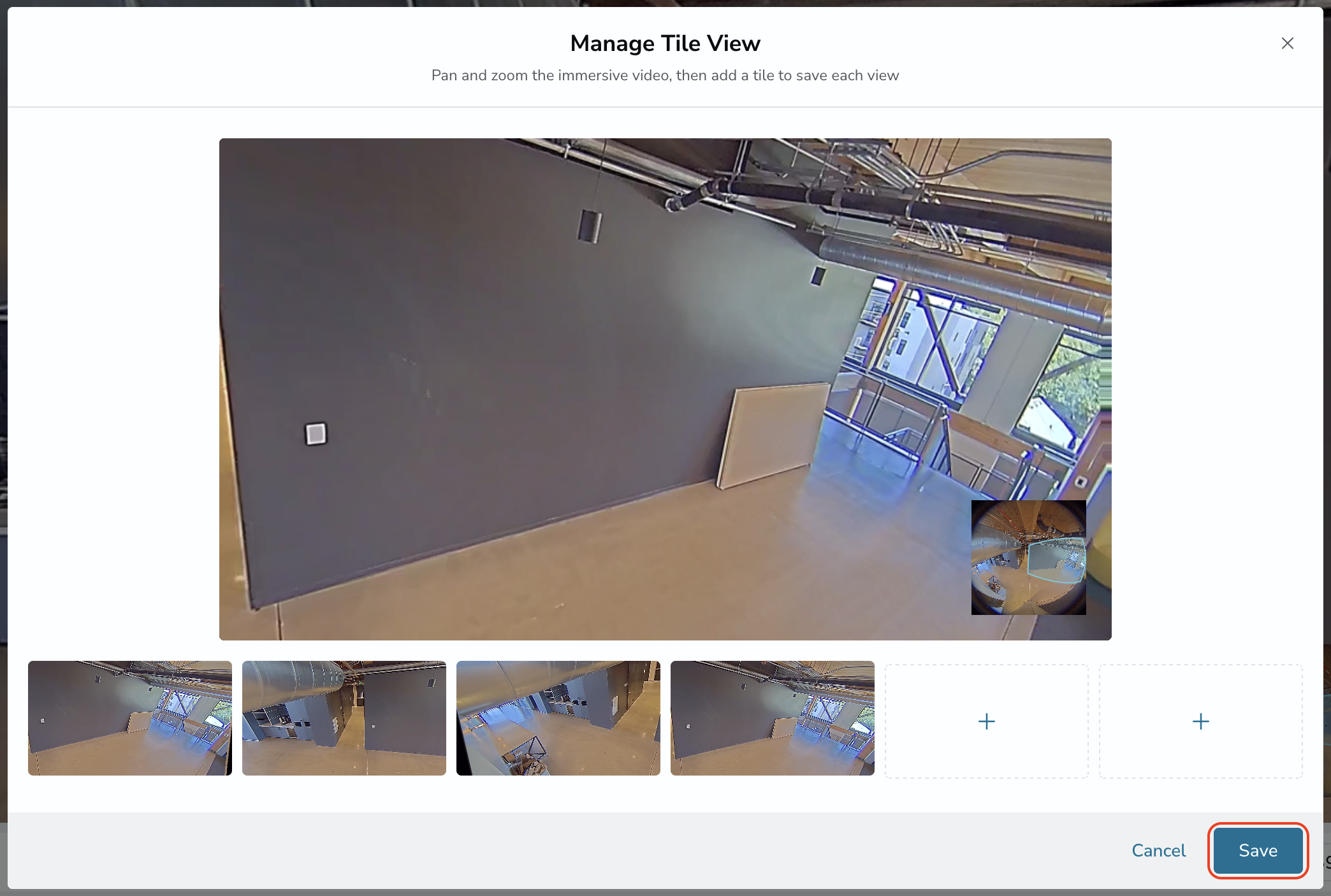

2. A pop-up appears, displaying the Immersive view and the current tiles below it. Click and drag to adjust the new tile view, then click + to add new tile. When finished, click "Save." Note: To remove a tile, click the X in its upper-right corner.

Adjust Default View

1. Hover over the ellipsis button on the camera viewer, then click .

2. Click "Set Default View."

3. From the dropdown menu, select the view you want to set as the default, then click "Save."

Set Mount Orientation

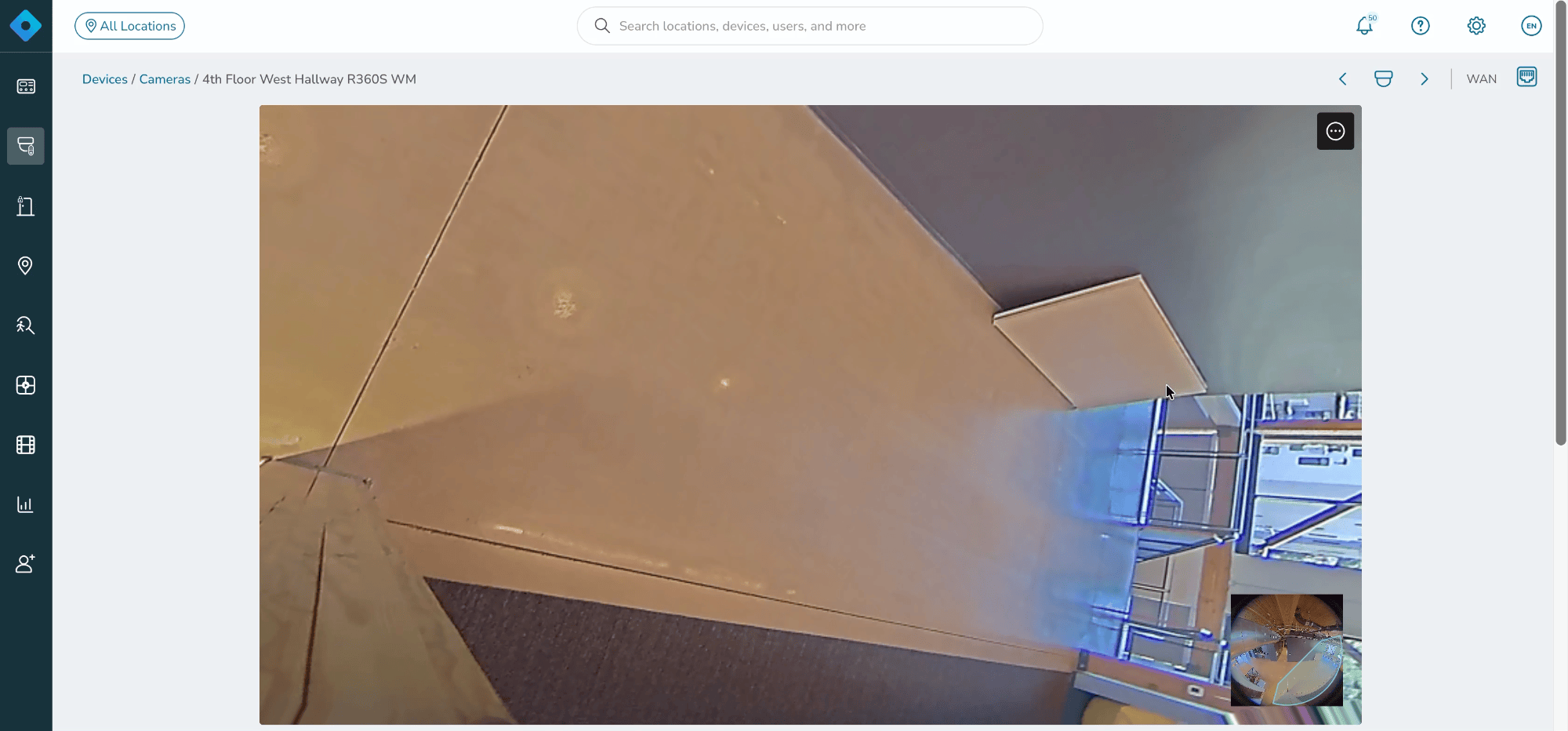

1. Hover over the ellipsis button on the camera viewer, then click .

2. Click "Set Mount Orientation."

3. From the dropdown menu, select how the R360 is mounted, then click "Save."
