Using Floor Plans

Topics in this article include:

• Floor Plans
• Upload a Floor Plan
• Repositioning Rhombus Devices
• Helpful Links
• Contact Sales or Support

Floor Plans

Floor plans are located in the Locations tab of the Rhombus Console. After you have registered all your Rhombus devices, you can upload a floor plan to help you visualize where all your devices are physically located.

This step is also critical if you are using T1 asset tags as they rely on the placement of the cameras on the map to calculate their position.

There are no size restrictions and the supported formats for uploads are: bmp, jpg, png, and gif.

Upload a Floor Plan

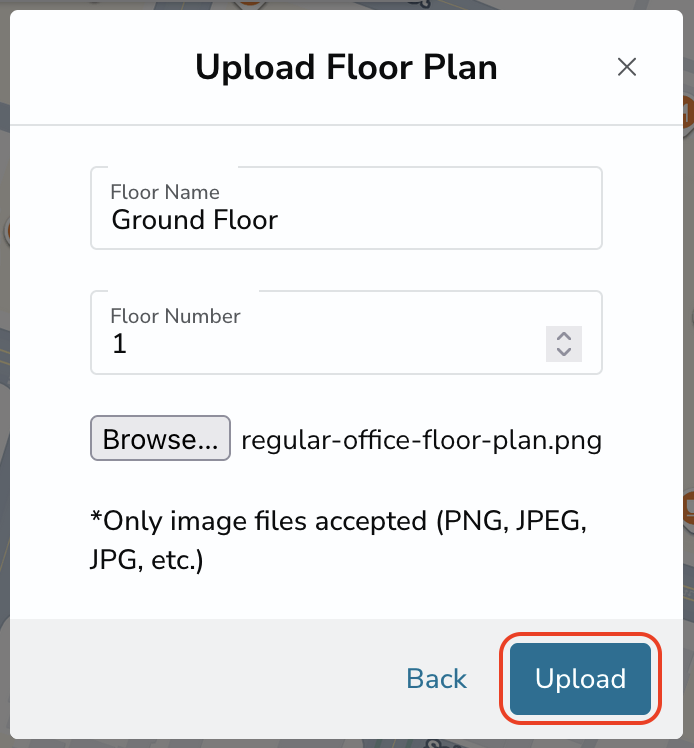

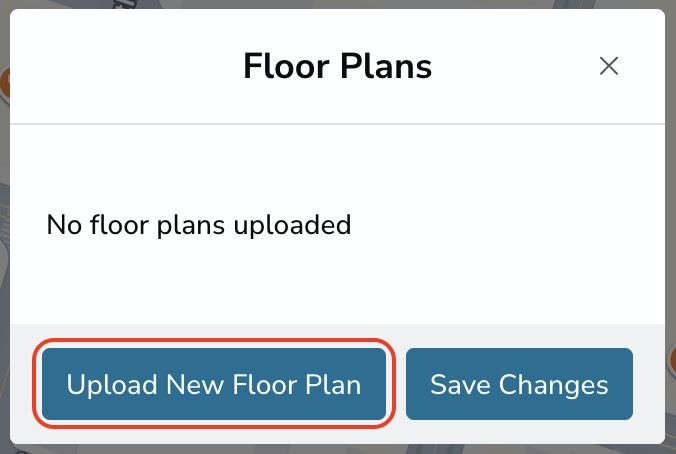

In the Location of your choice, you will see an 'Upload Floor plan' button. This will bring up a modal that will prompt you to upload your own floor plan.

Once you've selected your floor plan, it will upload to the map.

Repositioning Rhombus Devices

In the Location of your choice, you will see an 'Reposition Devices' button. This will bring up a modal that will have your floor plan with your devices. At this step, the devices become selectable and you can move drag and drop then where you want them to be.

During this step, you can also change the cameras direction by simply clicking on the directionality beam and rotating it around the camera.
