Sharing a Camera Livestream

Jeremy Gulley
Updated

Topics included in this article:

Share Livestream via Console

Many customers want to share a camera feed on their website with customers or someone else without giving access to their account. A camera livestream can be shared as a link for those who do not have a console account. This Shared Stream is created on the timeline of the device's page, similar to Creating a Saved Clip.

There are two methods you can use to create this link:

Single Camera Shared Stream

Create a New Stream in the Timeline

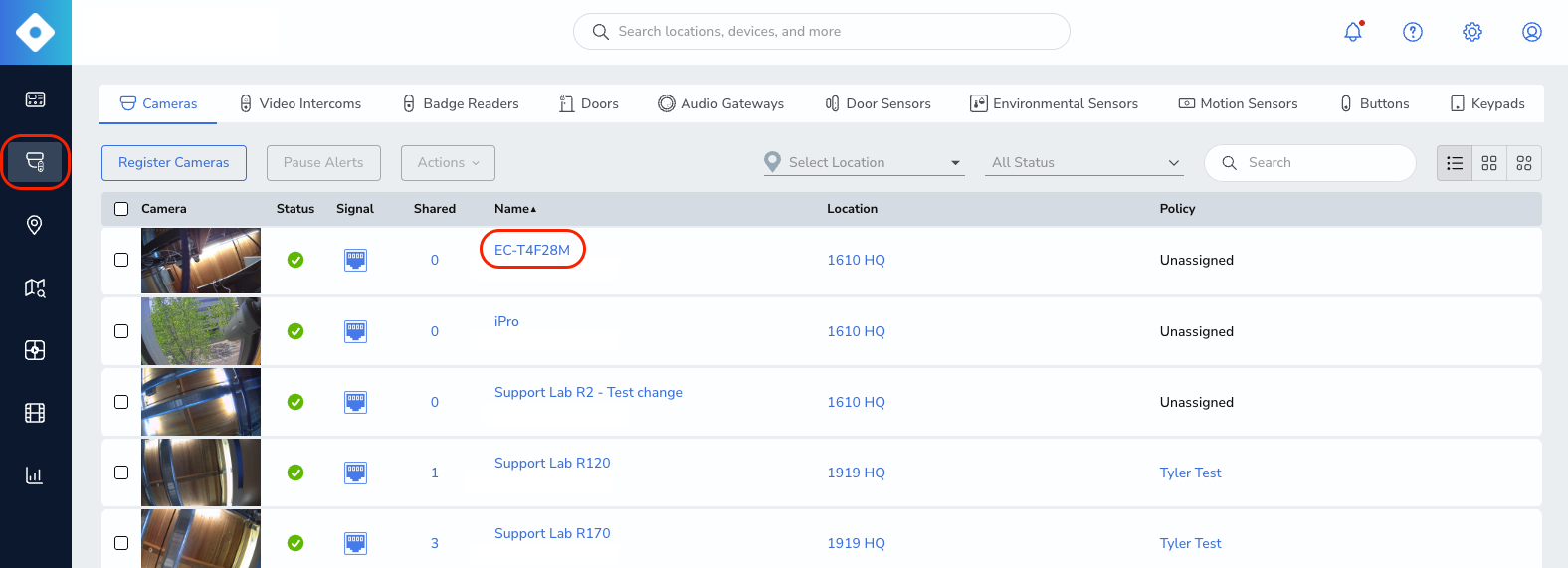

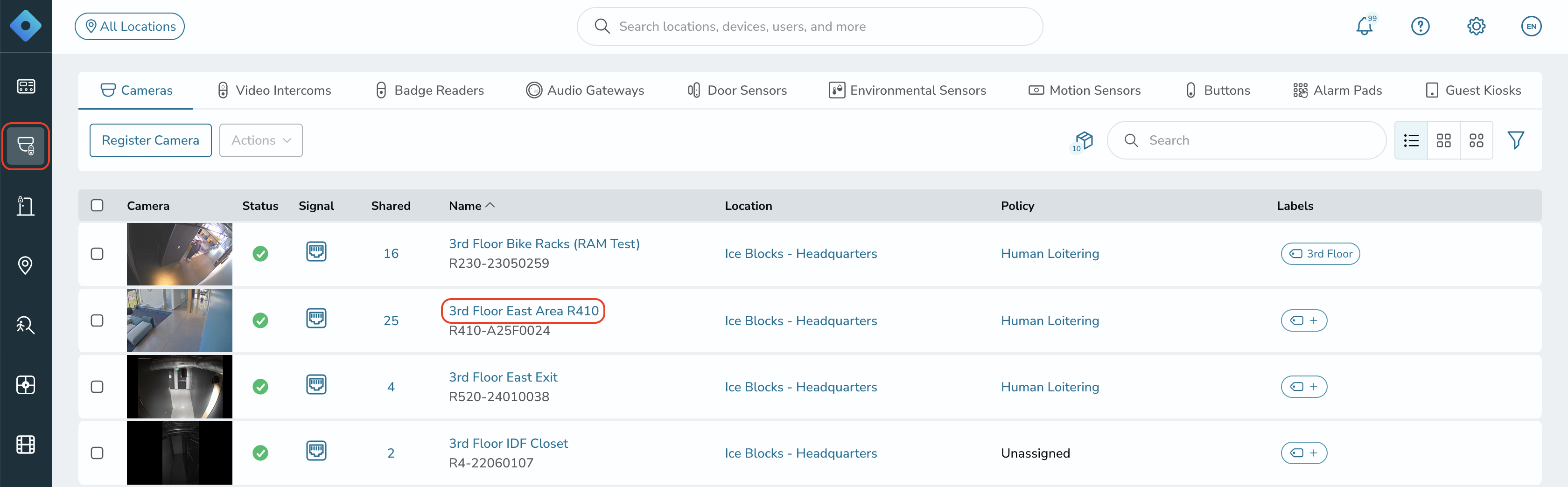

1. Navigate to the "Devices Page" and select the camera you wish to share a stream for.

Screenshot 2024-12-06 at 2.37.06 PM.png

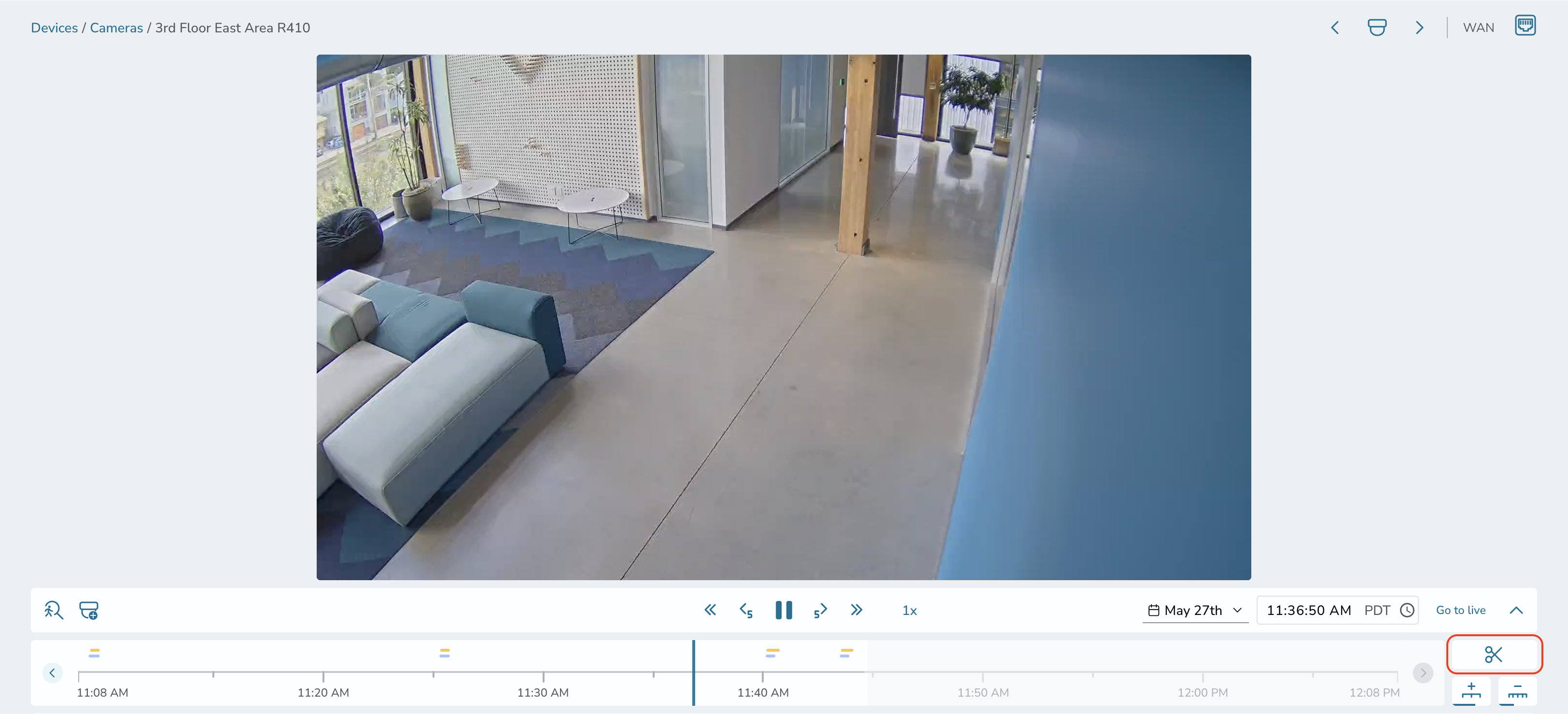

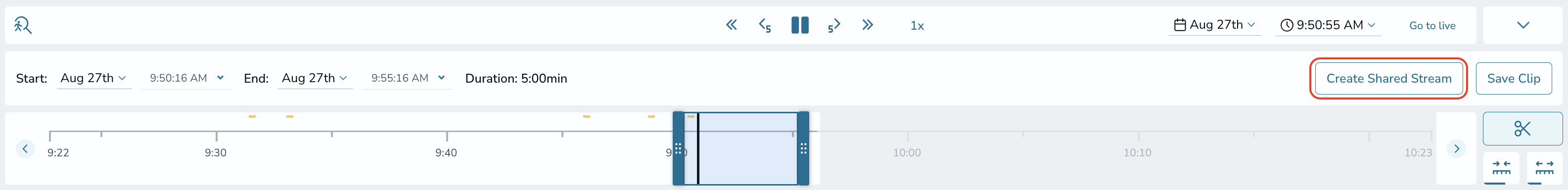

2. Click the Scissor Box icon underneath the timeline.

Screenshot 2024-12-09 at 12.11.31 PM.png


3. Click the "Shared Stream" option.

Screenshot 2024-12-09 at 12.14.13 PM.png

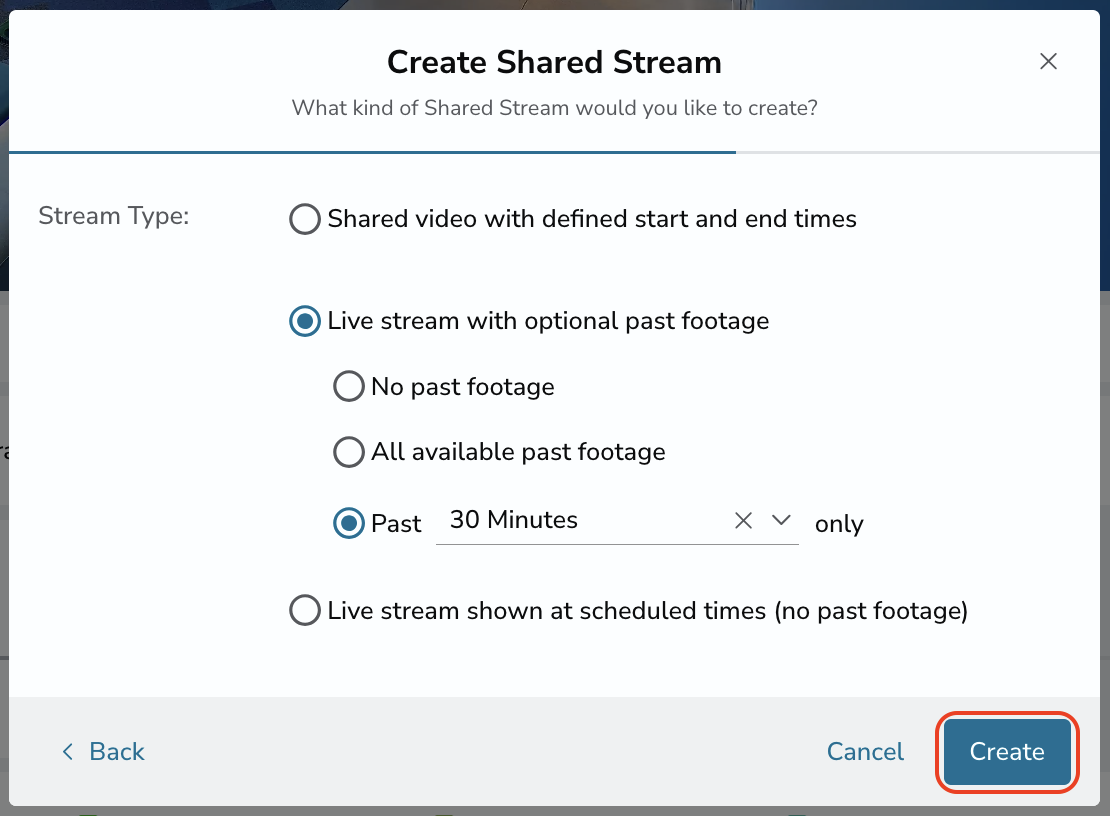

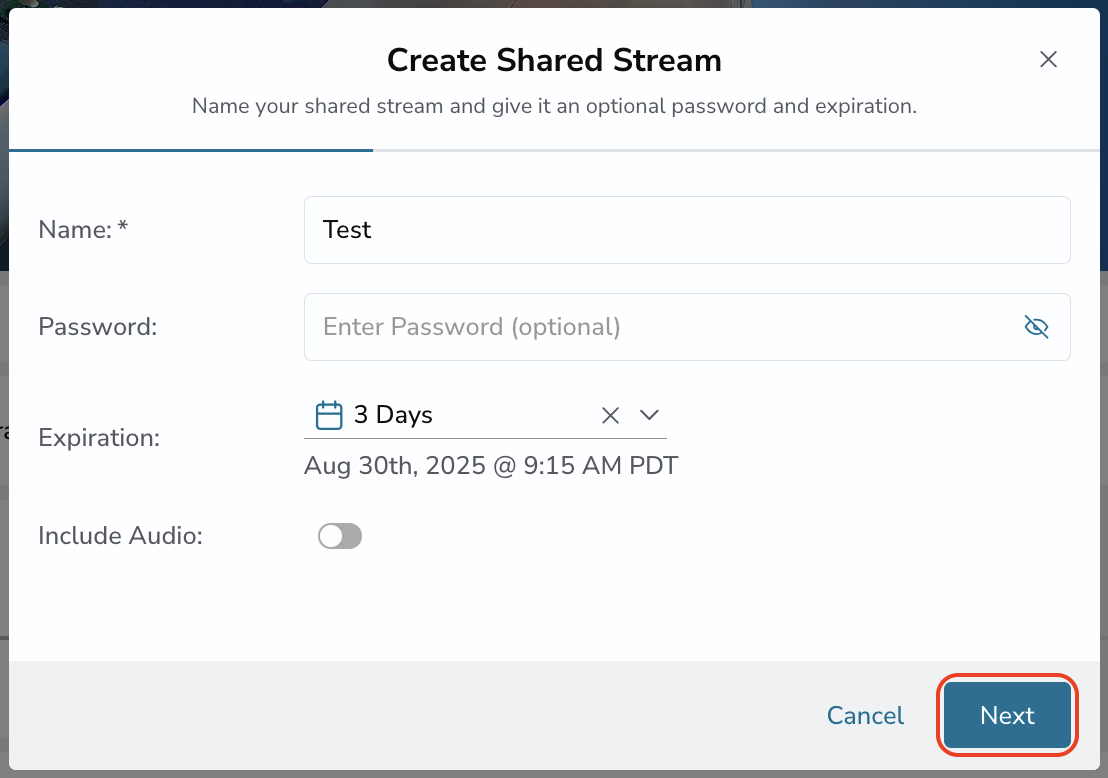

4. Fill in the desired options provided.

  • Name the stream.
  • Type of stream:
    • Live Stream with optional past footage - This option allows you to share all past footage, some past footage until a certain time, or no past footage at all.
    • Live Stream shown at scheduled times, (no past footage.)
    • Shared video where you define the Start and End of the stream.
  • Include Audio - This option will allow for shared audio of an A100 associated with the camera.
  • Password - This will allow for the use of a defined password for the shared stream. We recommend putting passwords on all shared streams.
  • Expiration - The shared stream can have an expiration tied to a specific date and time.
Screenshot 2024-12-09 at 12.15.52 PM.png





5. Click "Create."

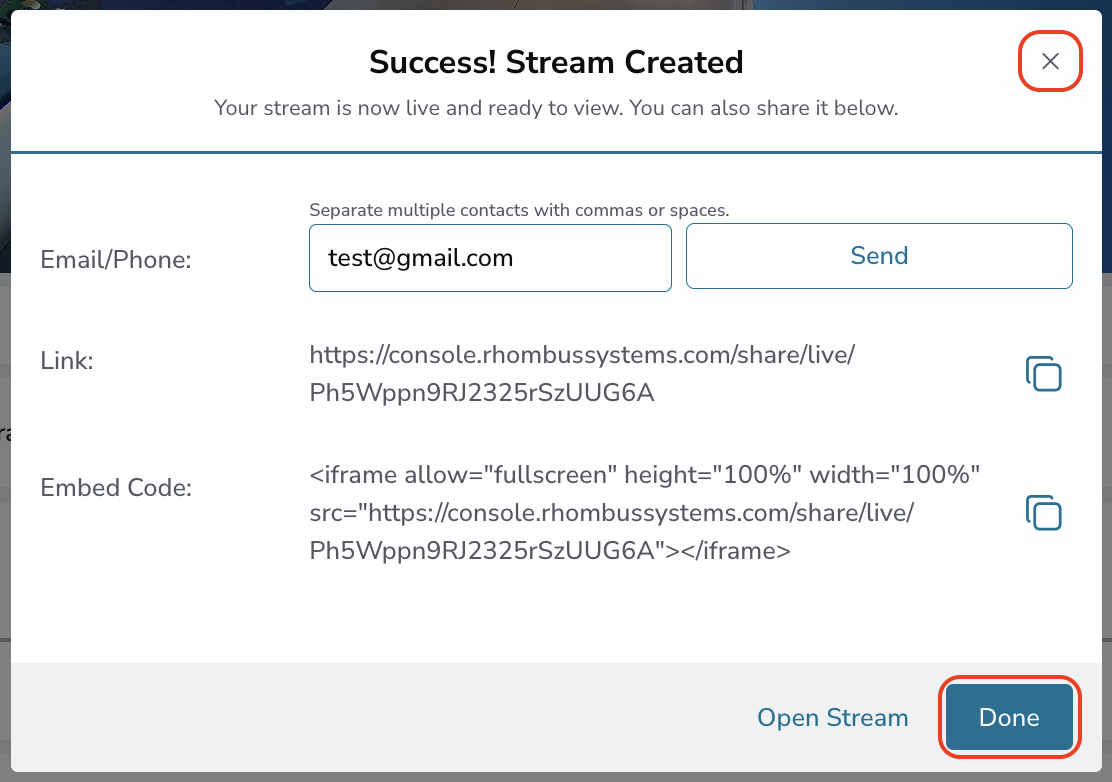

6. Perform one of the provided actions and then close out of the form. The stream will be saved for future use, even after you "X" out of the page. Jump to the Create or Use a Stream in the Camera Settings section to learn how to pull up previously created Shared Streams.
Screenshot 2024-12-16 at 4.04.00 PM.png



7. If you want to create a different Shared Stream for the same device, click "Create" again.
Screenshot 2024-12-09 at 12.20.16 PM.png
8. To revoke access to a stream at any time, click "Delete Stream."



Create or Use a Stream in the Camera Settings

Once a Shared Stream has been created, this method can be used to pull up previously created Streams or create a new Shared Stream.

1. Navigate to the "Devices Page" and select the camera you wish to share a stream for.

Screenshot 2024-12-06 at 2.37.06 PM.png

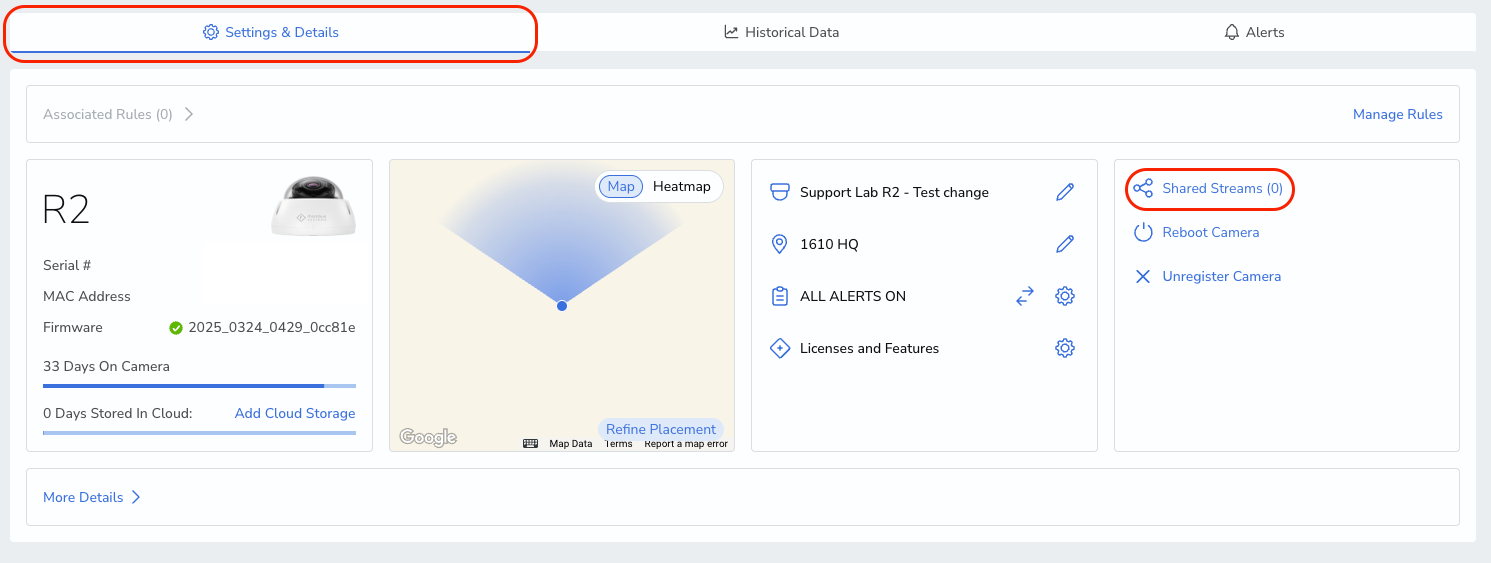

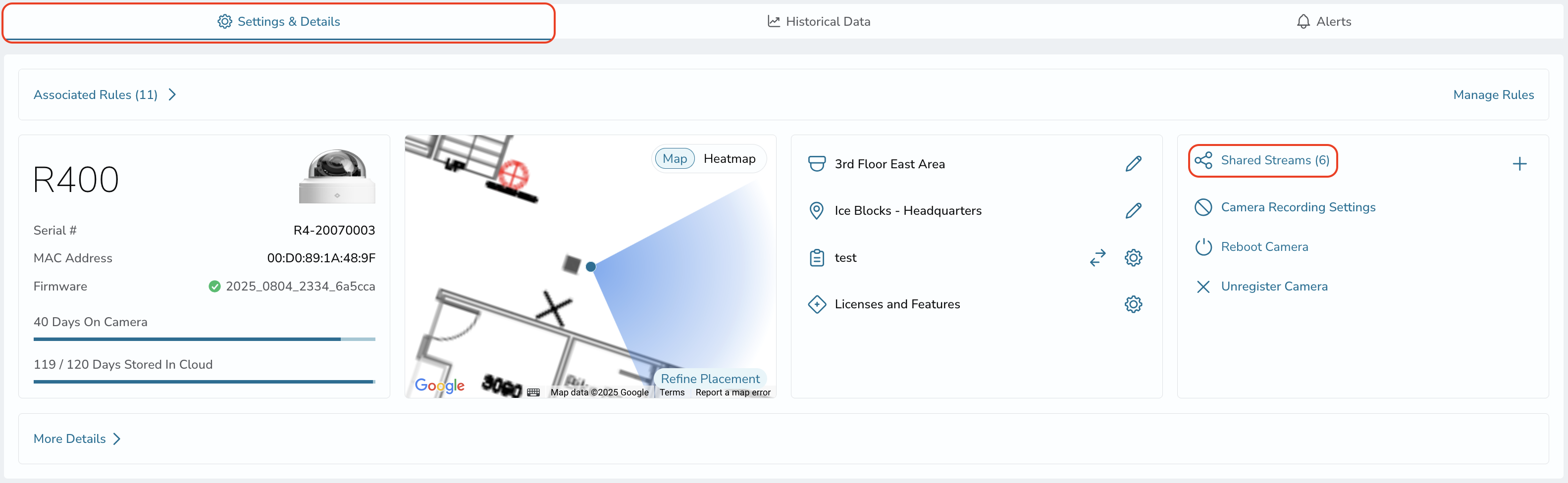

2. Scroll down to the "Camera Details & Settings" section and select "Shared Streams."

Screenshot 2024-12-09 at 12.38.37 PM.png

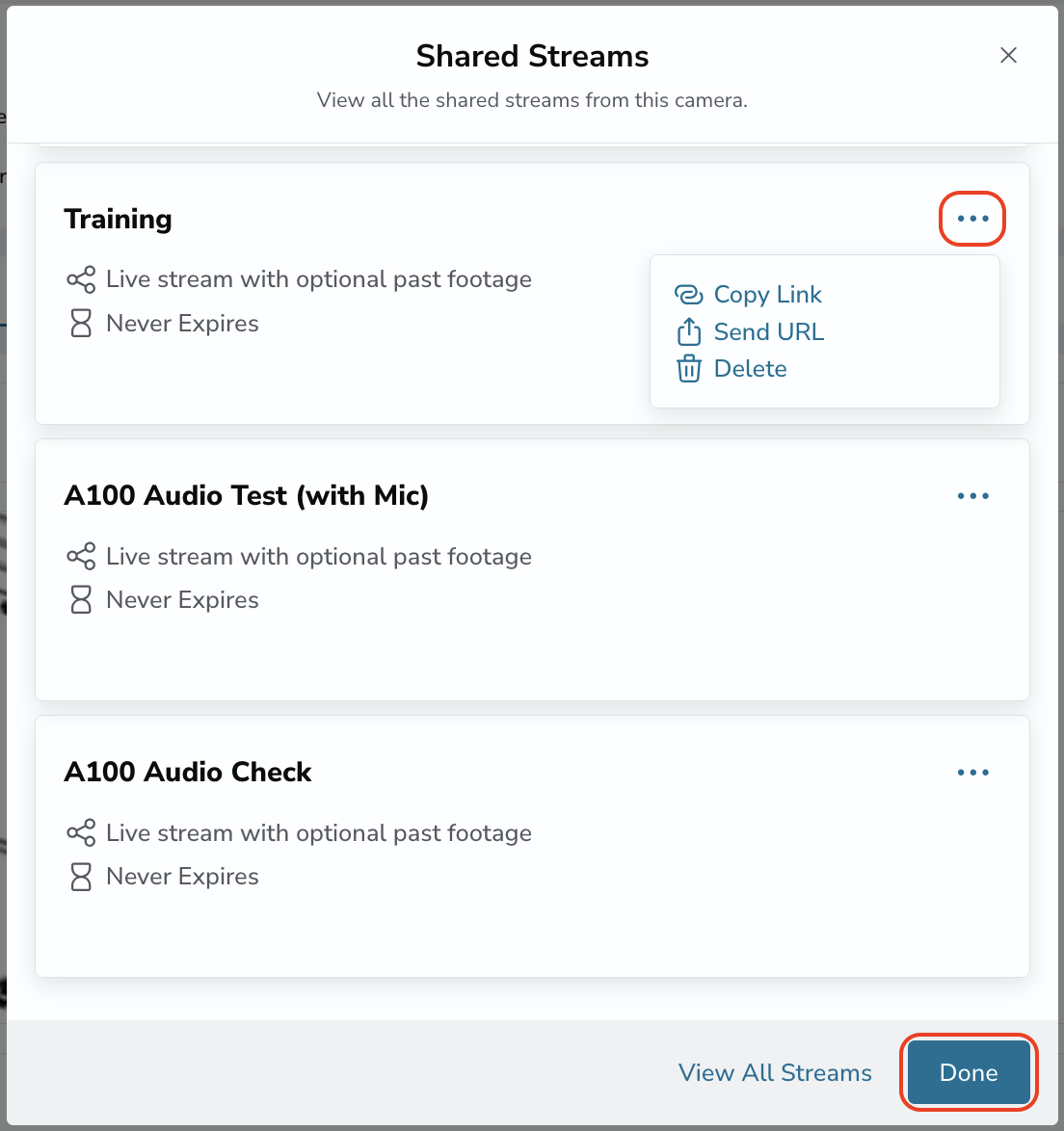

3. Here, you can view and manage any previously created "Shared Streams."

You can also click "Create" and go through the process outlined in Steps 4-6 of the Create a New Stream in the Timeline section.

Close out of the modal when you are finished.

Screenshot 2024-12-09 at 12.40.21 PM.png


4. To revoke access to a stream at any time, click "Delete Stream."



Multi-Camera Shared Stream

If you want to share a live stream for multiple cameras at once, you can use a Video Wall. Please refer to the Managing Video Walls article for a walkthrough on how to create and share a video wall.



Share Livestream via the Mobile App

Create a New Stream

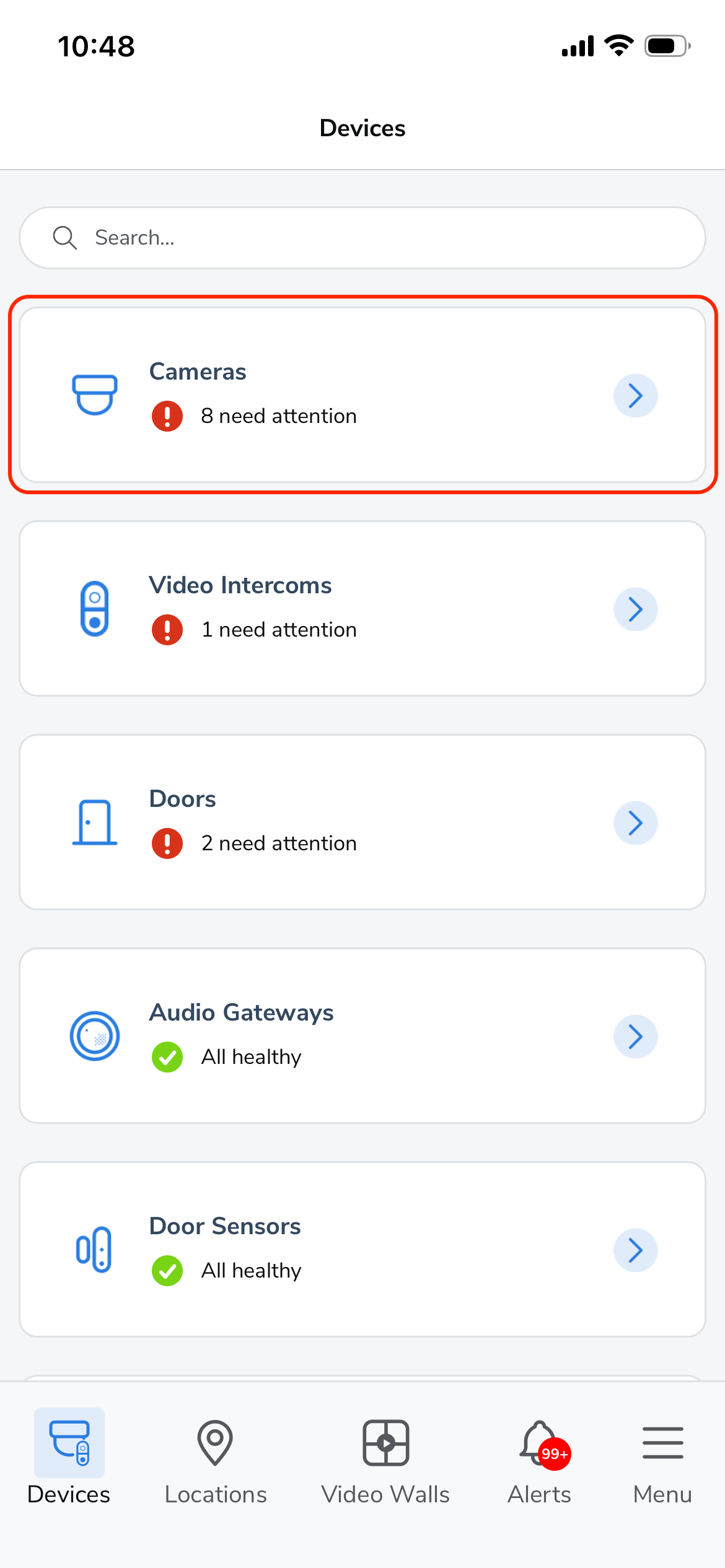

1. Click on "Devices" and then select "Cameras."

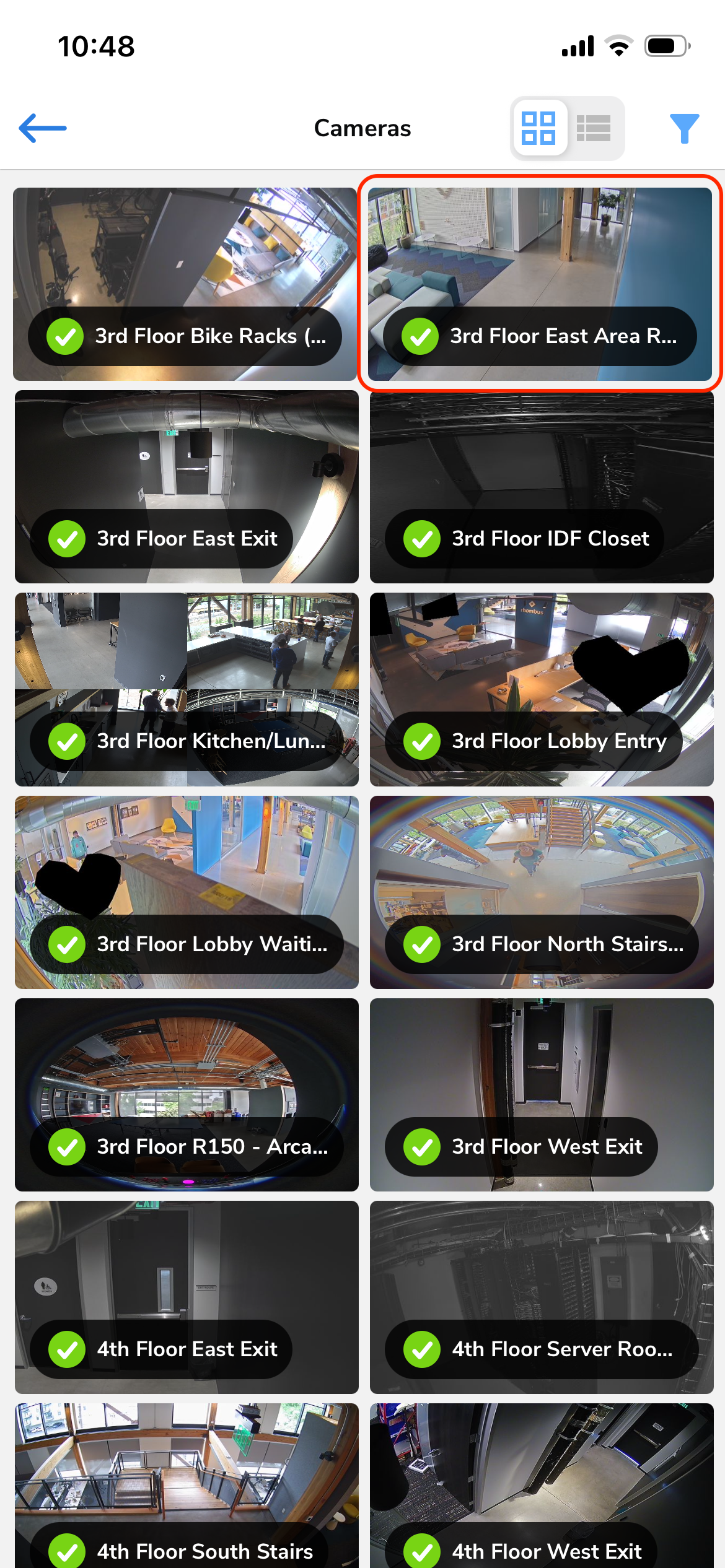

2. Click on the camera you wish to create a stream for.

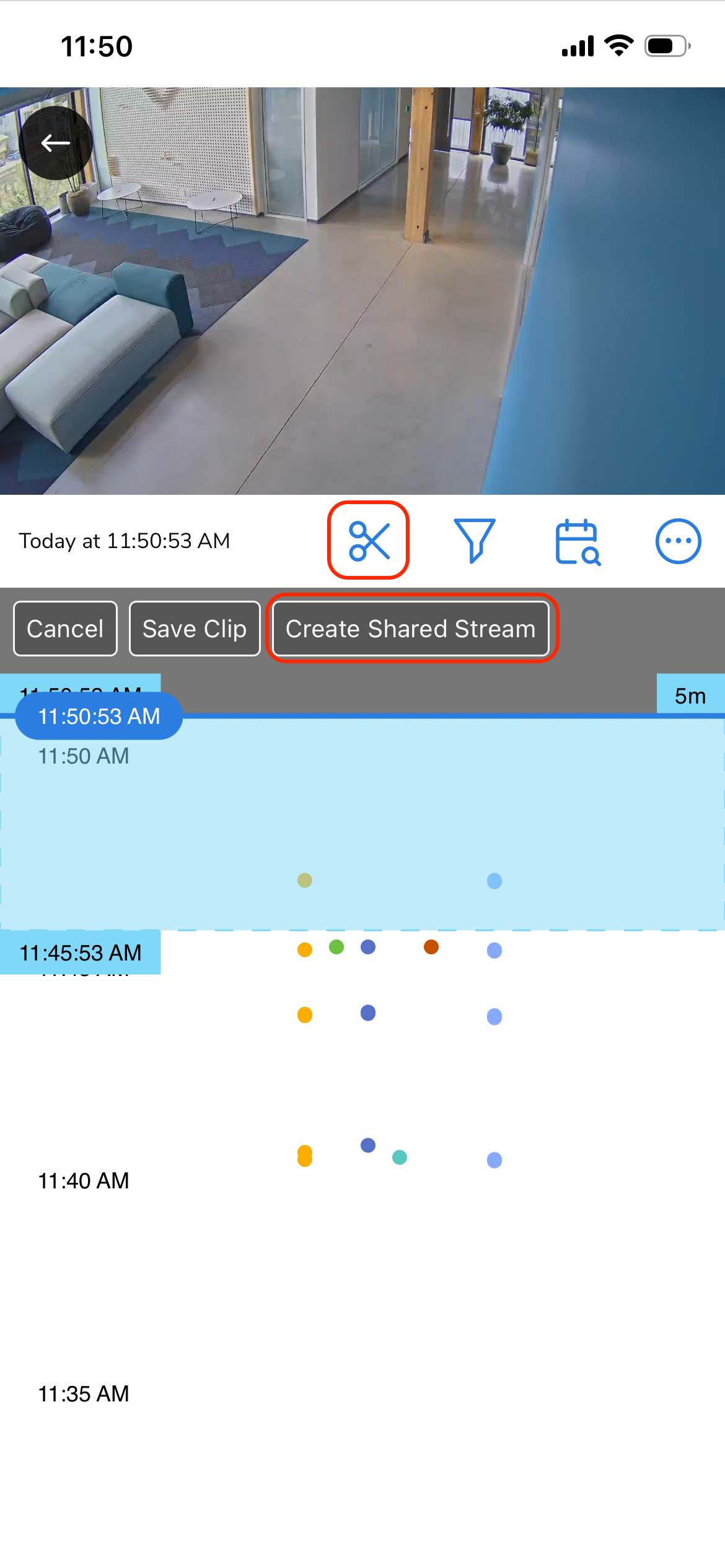

3. Click on the scissors icon and select "Create Shared Stream."

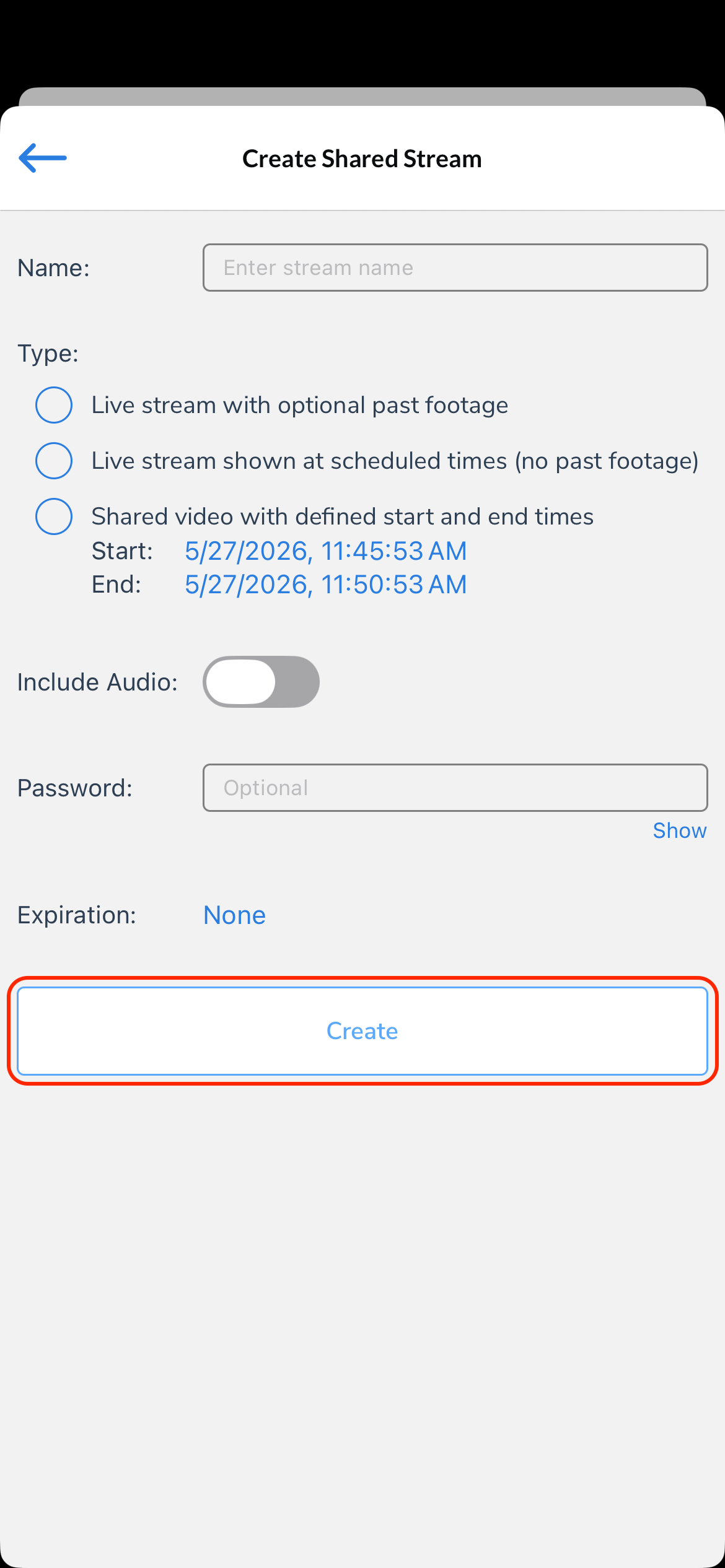

4. Fill in the desired options provided.
  • Name the stream.
  • Type of stream:
    • Live Stream with optional past footage - This option allows you to share all past footage, some past footage until a certain time, or no past footage at all.
    • Live Stream shown at scheduled times, (no past footage.)
    • Shared video where you define the Start and End of the stream.
  • Include Audio - This option will allow for shared audio of an A100 associated with the camera.
  • Password - This will allow for the use of a defined password for the shared stream. We recommend putting passwords on all shared streams.
  • Expiration - The shared stream can have an expiration tied to a specific date and time.

Click "Create" when finished.






Create or Use a Stream through the Settings

1. Click on "Devices" and then select "Cameras."



2. Click on the camera you wish to create a stream for.

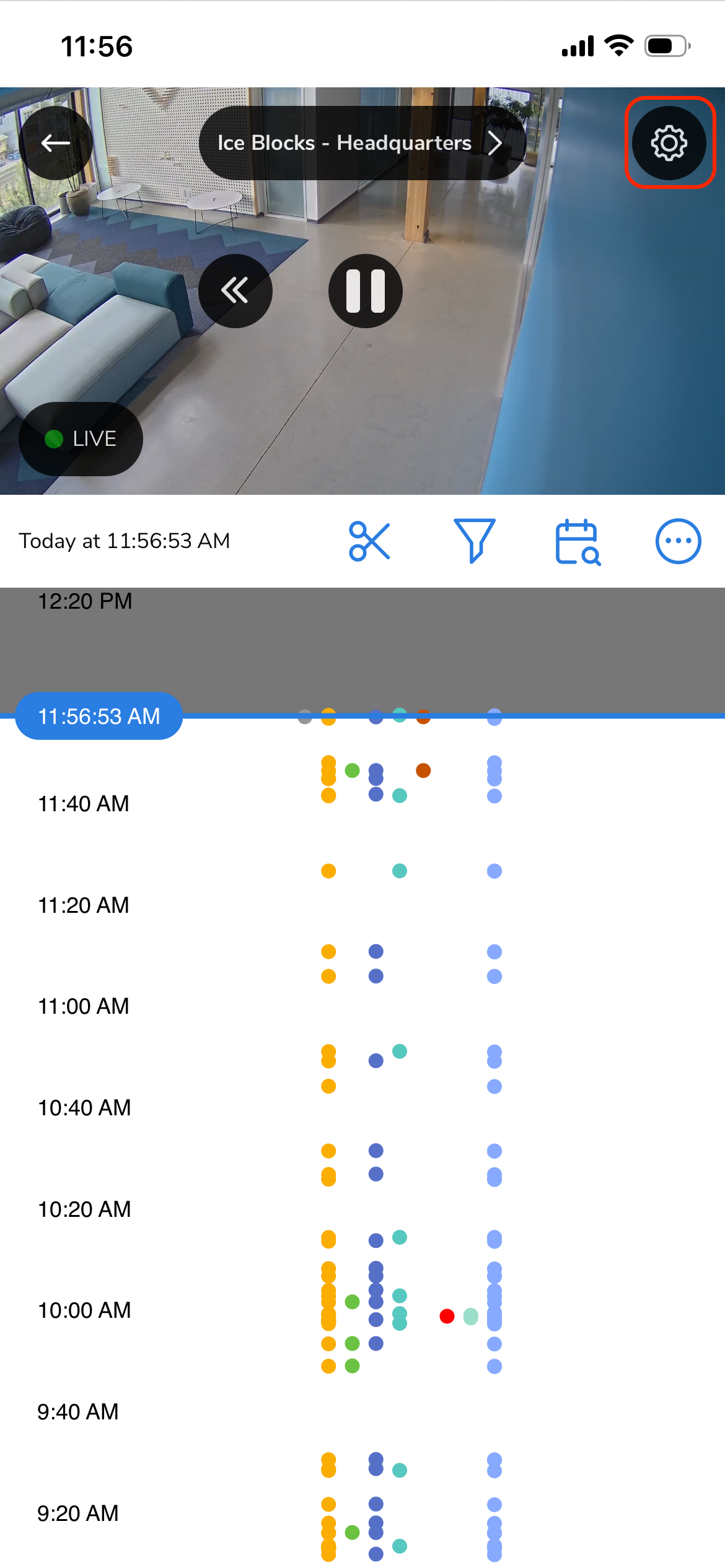

3. Tap on the main footage and select the settings icon.

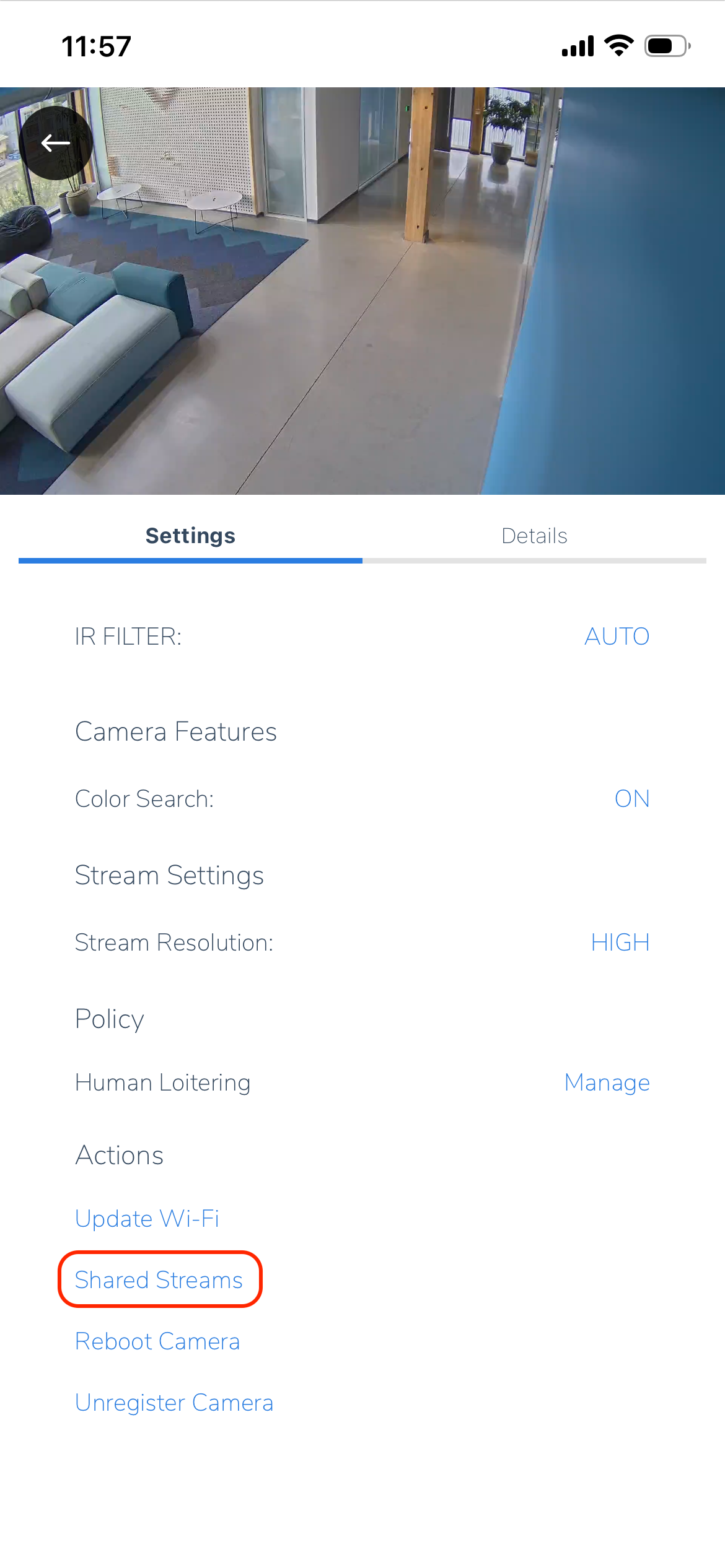

4. Scroll down and select "Shared Streams."

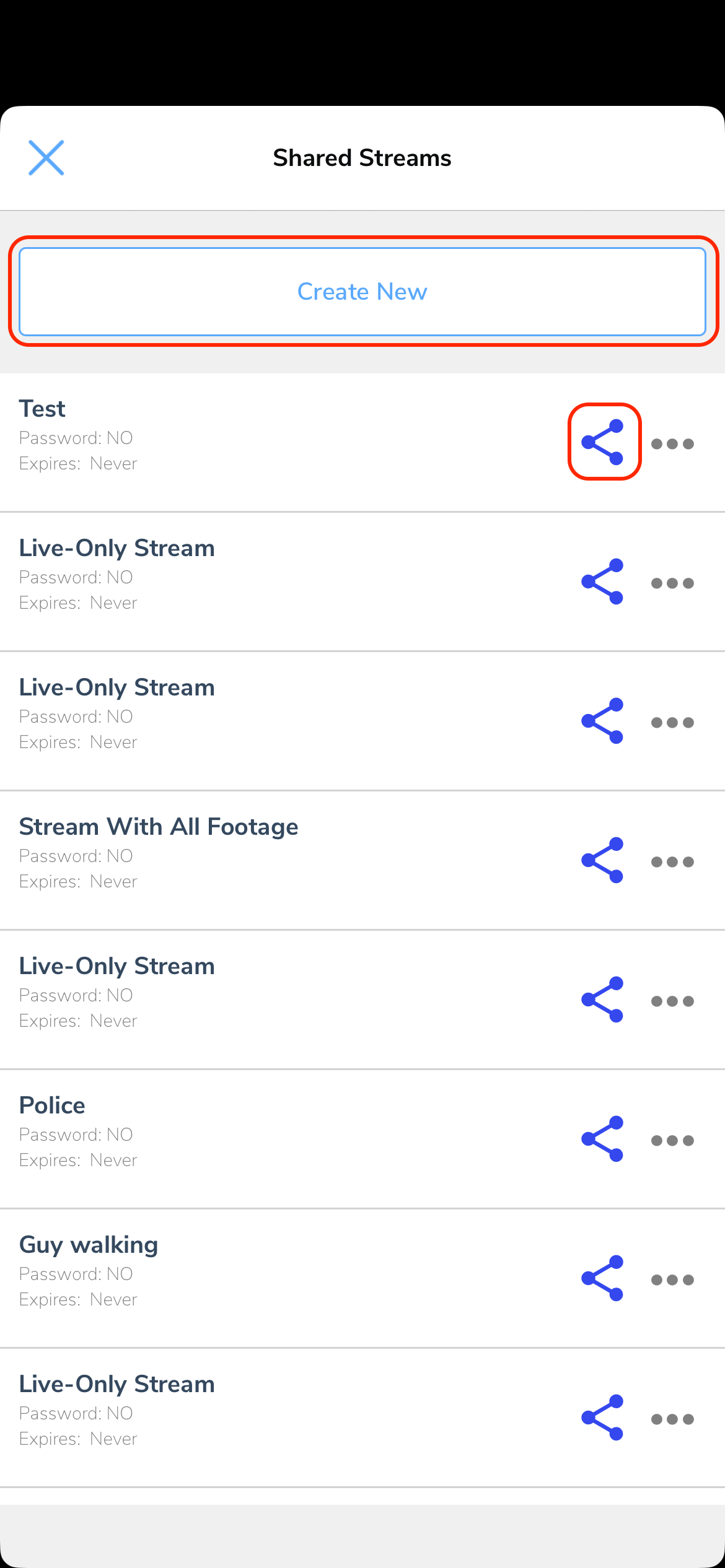

5. Click "Create New Stream" to make another stream, or click on the share icon to share an existing stream.






Delete a Shared Stream

1. Click on "Devices" and then select "Cameras."



2. Click on the camera you wish to create a stream for.



3. Tap on the main footage and select the settings icon.



4. Scroll down and select "Shared Streams."

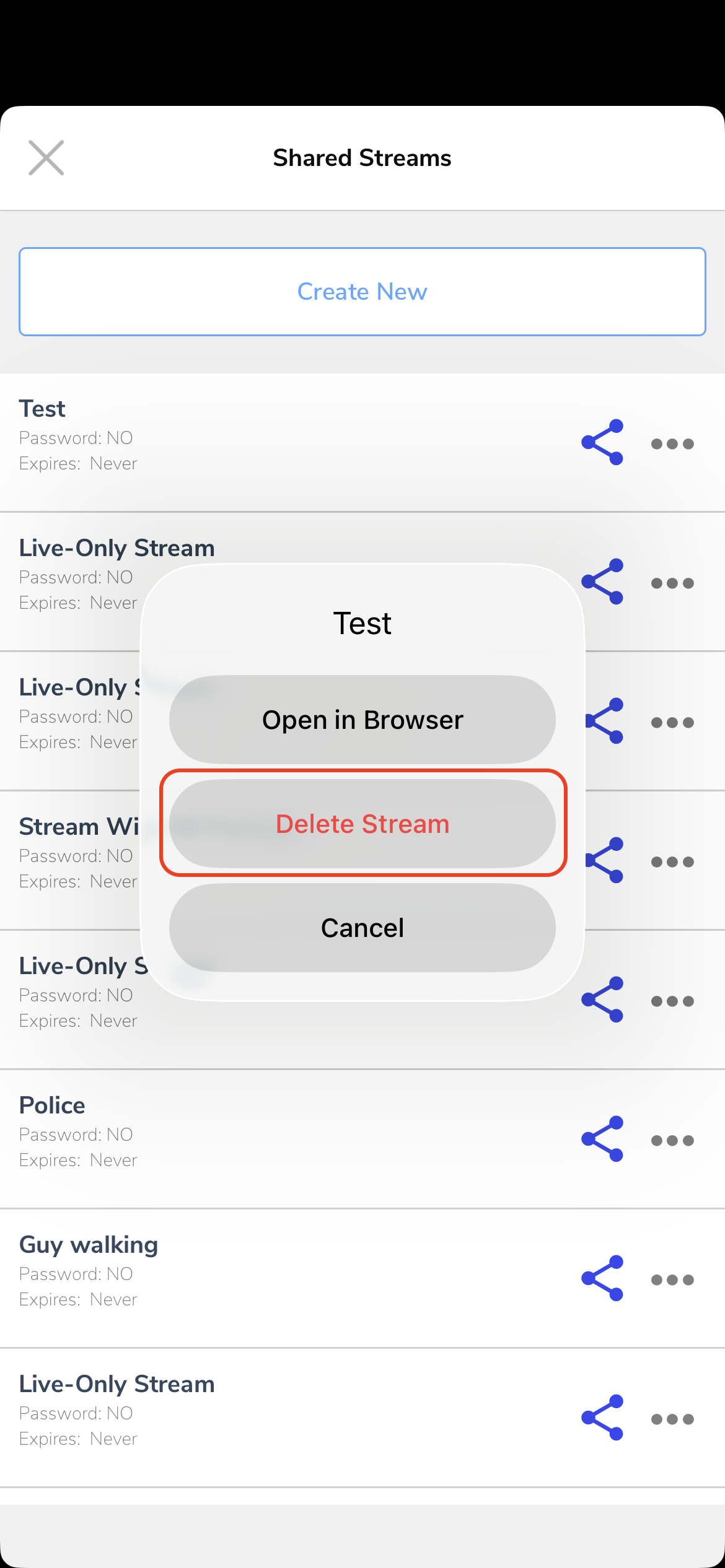

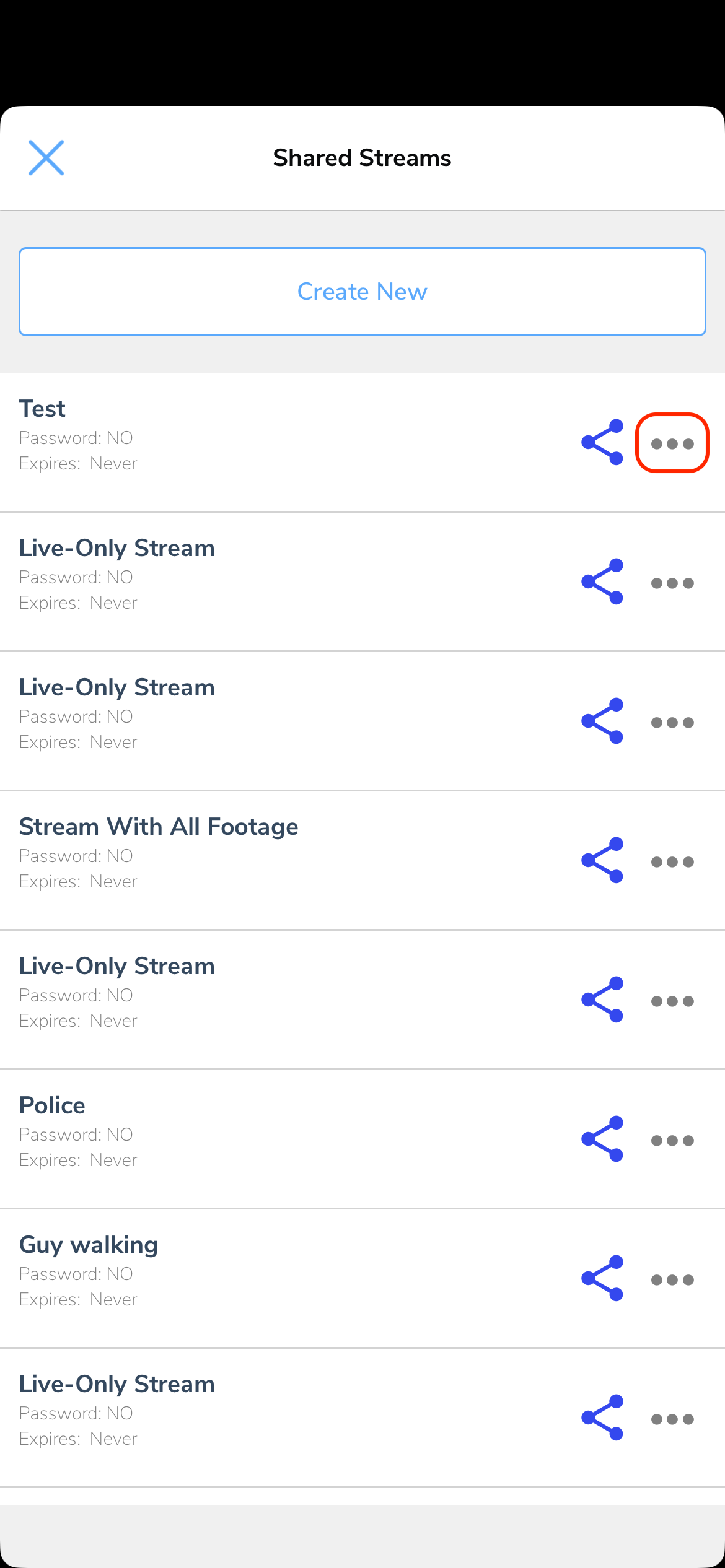

5. Click the three dots next to the stream you wish to delete.

Screenshot_20241216-160622 (1).png



6. Click "Delete Stream."

Note: There will not be an additional confirmation to delete the stream. Refresh the page to see if the stream has been deleted.






Embedding a Livestream

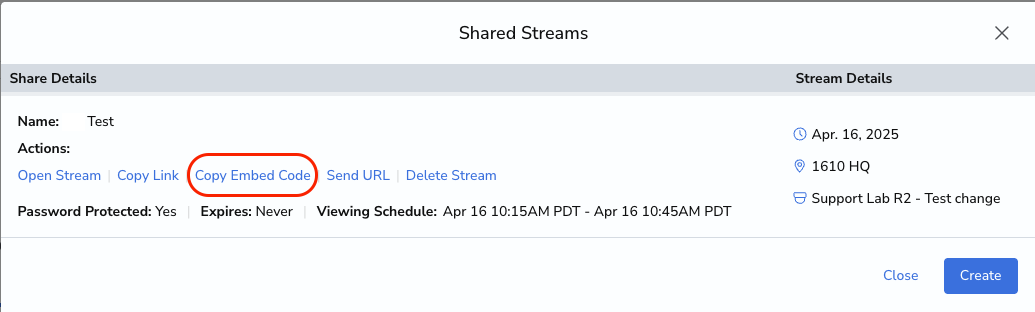

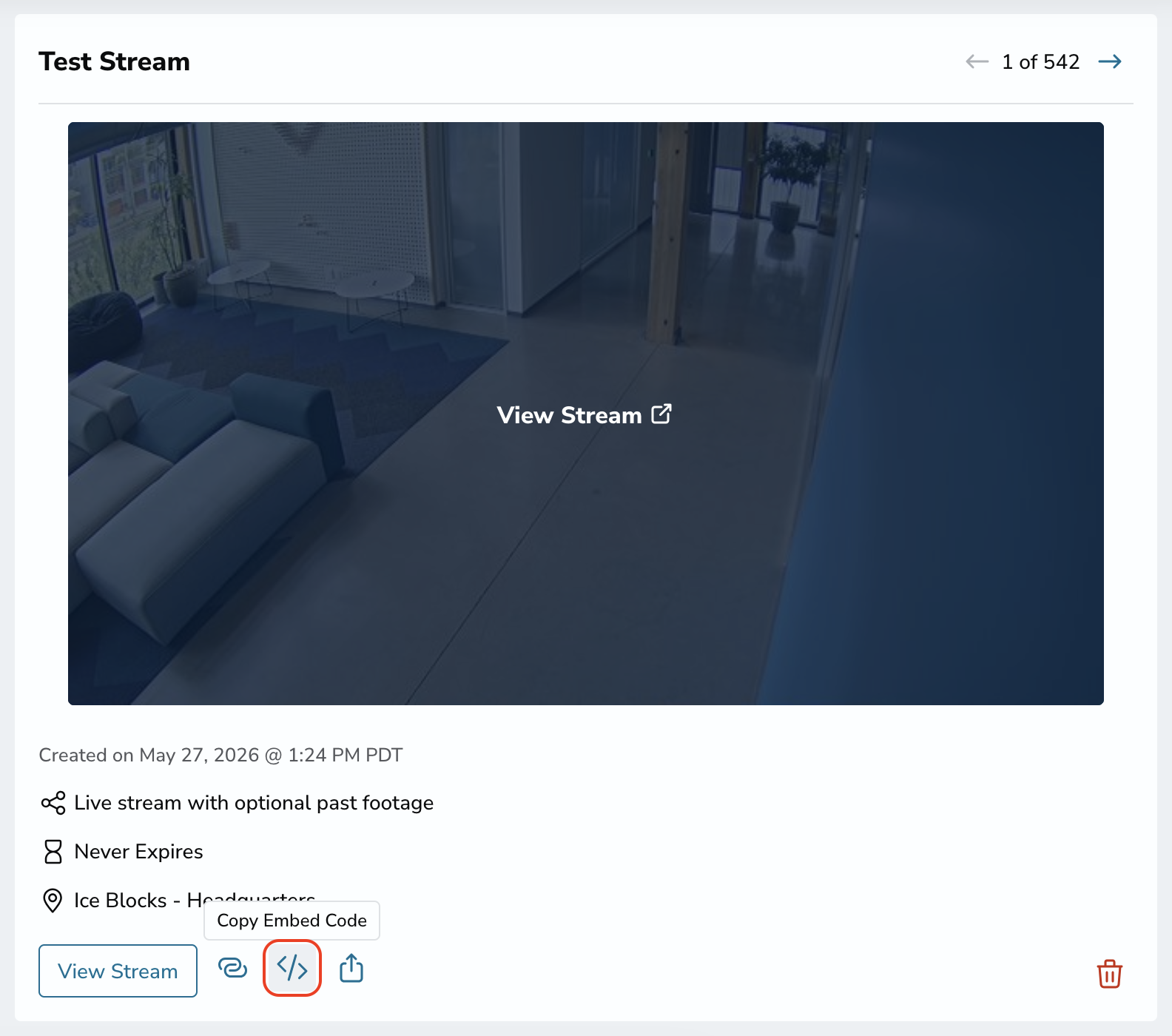

After creating the shared stream, you have an option to 'Copy Embed Code'. This would give you the ability to take the iframe inline code and customize it to any web page.

Example for iframe inline code

<iframe allow="fullscreen" frameborder="0" height="100%" width="100%" src="https://console.rhombussystems.com/share/live/ehrF58ABSj2VT8QzXh7GVA?disableautoplay=true&hideevents=true&realtime=true"></iframe>



Additional URL Parameters

We have enabled the use of parameters that can be in either the shared stream URL or the embedded iframe inline code. All can either be true/false depending on your intended implementation.

disableautoplay - Enable or disable the video to autoplay upon loading

hideevents - Enable or disable the timeline and related events to show

realtime - Enable or disable real-time streaming of video by default

showheader - Enable or disable the zoom & streaming buttons at the top of the video

showfooter - Enable or disable the camera name and timestamp at the bottom of the video



You will follow the structure of https://url/?variable=true&variable=false&variable=true



Example for Stream URL - Note: The parameters are at the end of the stream URL

https://console.rhombussystems.com/share/live/ehrF58ABSj2VT8QzXh7GVA?disableautoplay=true&hideevents=true&realtime=true



Learn more about embedded streams at our Developer Center
