Clone Camera Settings

In this article, we will discuss the feature of cloning the camera setting of the same model camera to another camera of the same model.

• What are camera clone settings?
• How to use the feature?
• List of camera settings that can be cloned
• Helpful Links

What are camera clone settings?

With Rhombus, you have granular control over camera settings. From video resolution to privacy regions to bitrate and beyond, you can customize camera settings according to your needs.

Now, you can adjust the settings of batches of cameras rather than making the adjustments one at a time.

When you change a camera’s configuration, you can clone those changes and apply them to any camera of the same model. For example, if you change the IR Filter setting of an R200 camera from ‘Auto’ to ‘On,’ you can also apply that setting to your other R200 cameras.

This makes customizing your camera settings fast, simple, and streamlined.

How to use the feature?

To get the feature, please follow the pathway below:

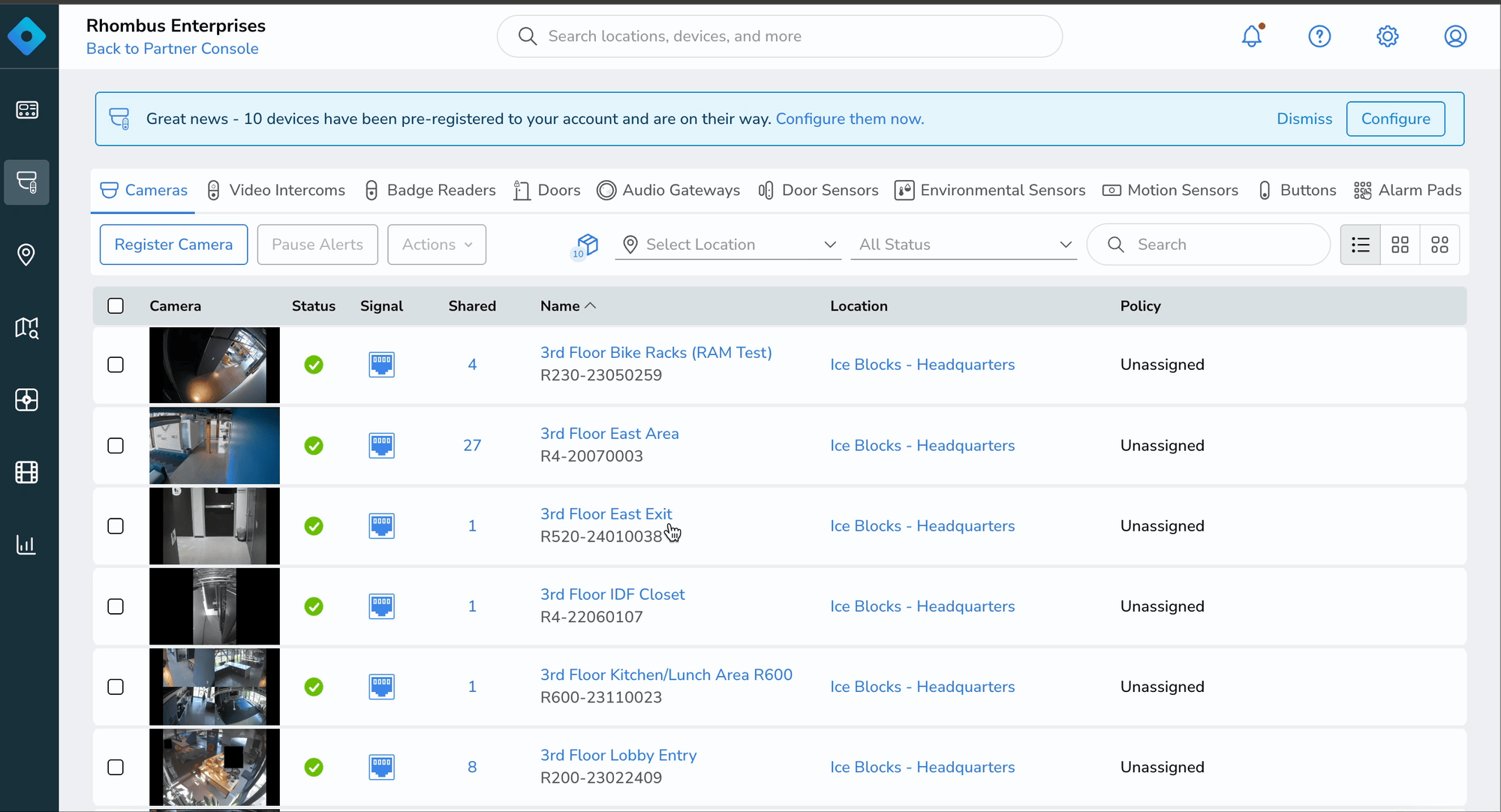

Rhombus Console > Devices > Camera > Camera Settings > Edit Multiple Cameras

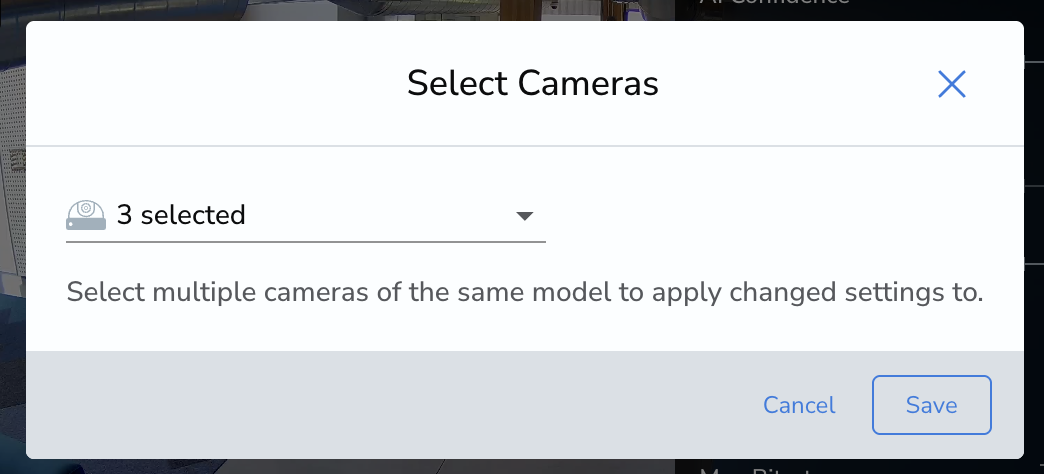

After pressing this option, you will be taken to the window below and can choose from cameras of the same model.

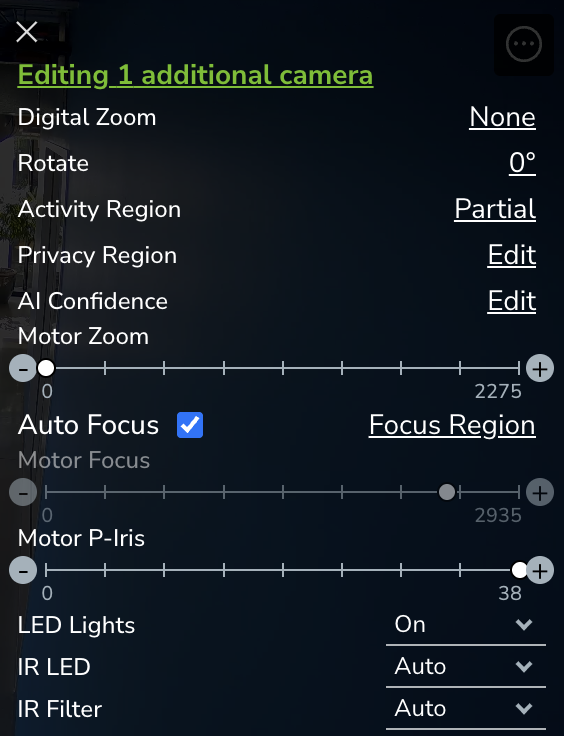

After selecting the cameras, press the save option, and now you will see an editing camera banner above the camera settings. The screenshot is below. Now you can edit all settings listed in the camera settings window.

List of camera settings that can be cloned

Below is the list of camera settings that can be cloned:

• Digital Zoom - All Models
• Rotate - All Models
• Activity Region - All Models
• Privacy Region - All Models
• LED lights - All Models
• IR LED - All Models
• IR Filter - All Models
• Resolution - All Models
• Max Bitrate - All Models
• Motor Zoom - R400, R500, & R510
• Auto Focus - R400, R500, & R510
• Focus Region - R400, R500, & R510
• Motor Focus - R400, R500, & R510
• Motor P-Iris - R400, R500, & R510

Helpful Links

• Camera & Image Settings
• Configuring Activity Regions
