Topics included in this article:

Steps to Configure Zoom and Pan
- Console
- Mobile App
Steps to Temporarily Adjust Zoom
Helpful Links
Contact Support or Sales

You can manually adjust the focus of an individual camera by zooming in or panning the view at any time. Keep in mind that these settings are permanent until changed again. Additionally, you can temporarily zoom in and out of footage while viewing.

Steps to Configure Zoom and Pan

Console

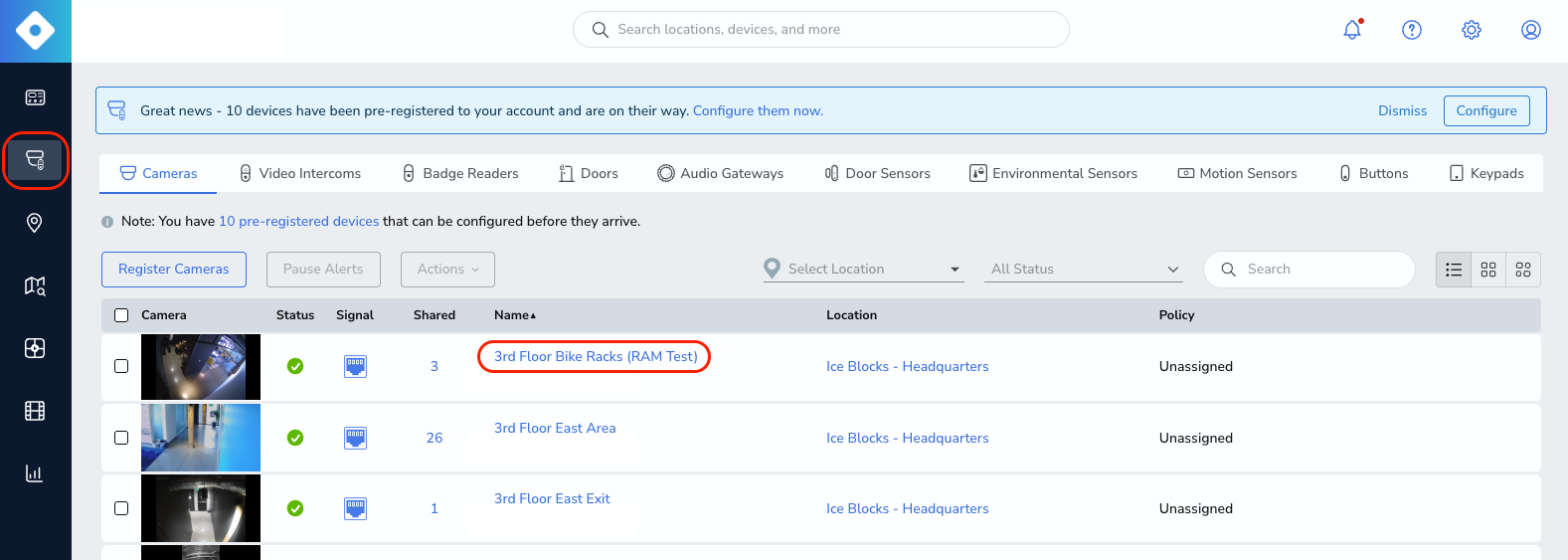

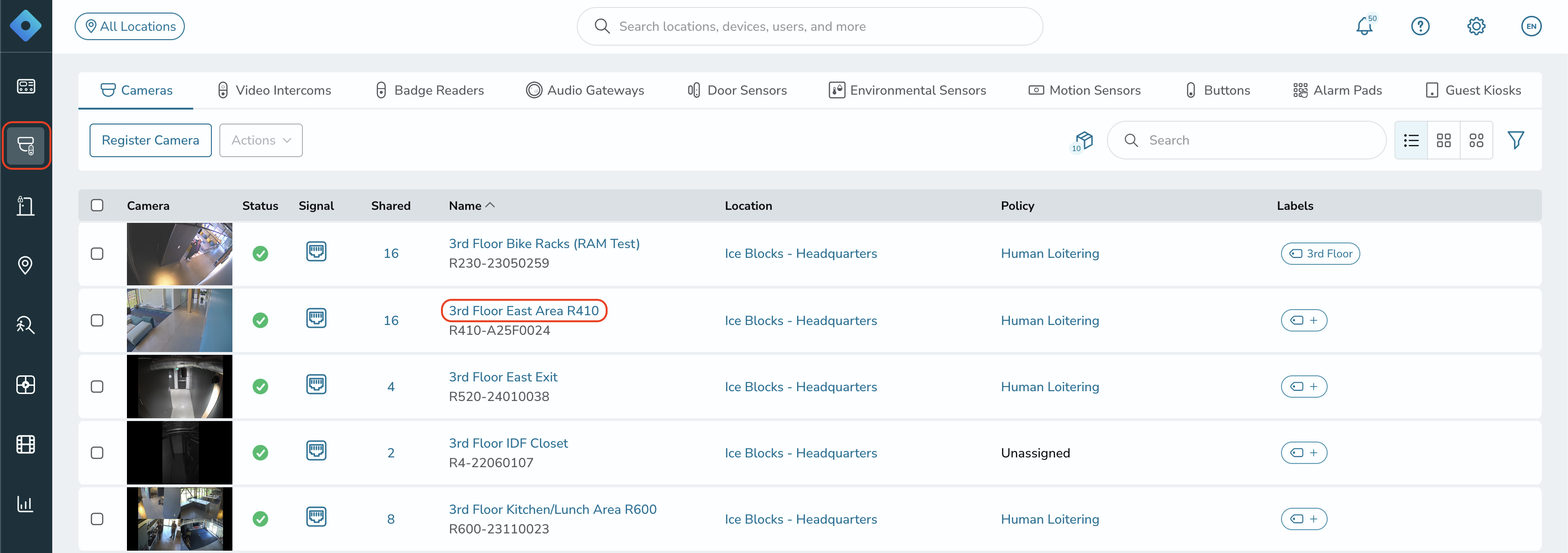

1. Navigate to the "Devices" page and click on the camera you want to configure.

Screenshot 2024-12-02 at 12.57.24 PM.png

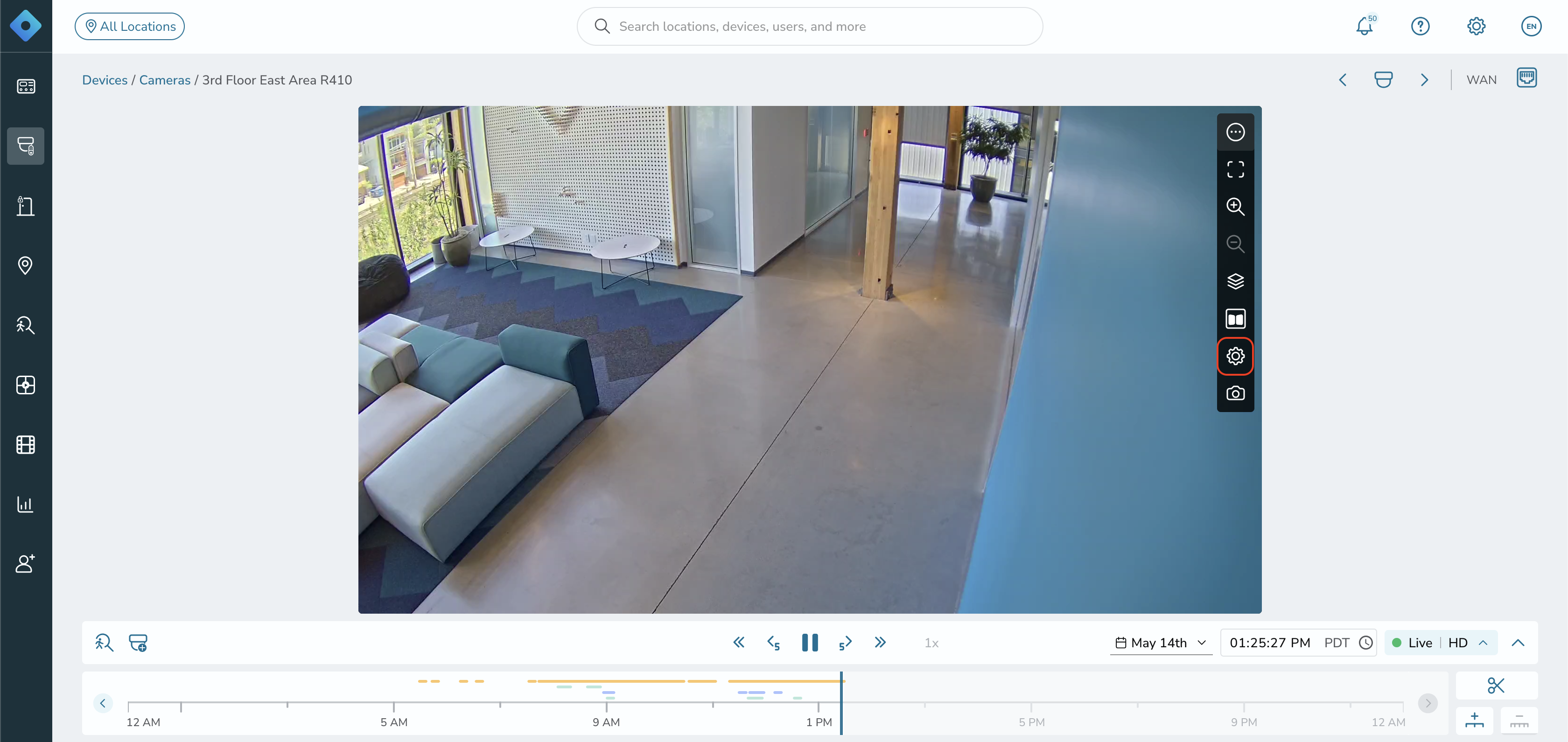

2. Hover over the three dots in the right-hand corner of the video feed and select the "Settings" icon. Then click the "Camera Settings" option.

Screenshot 2024-12-04 at 1.30.46 PM.png

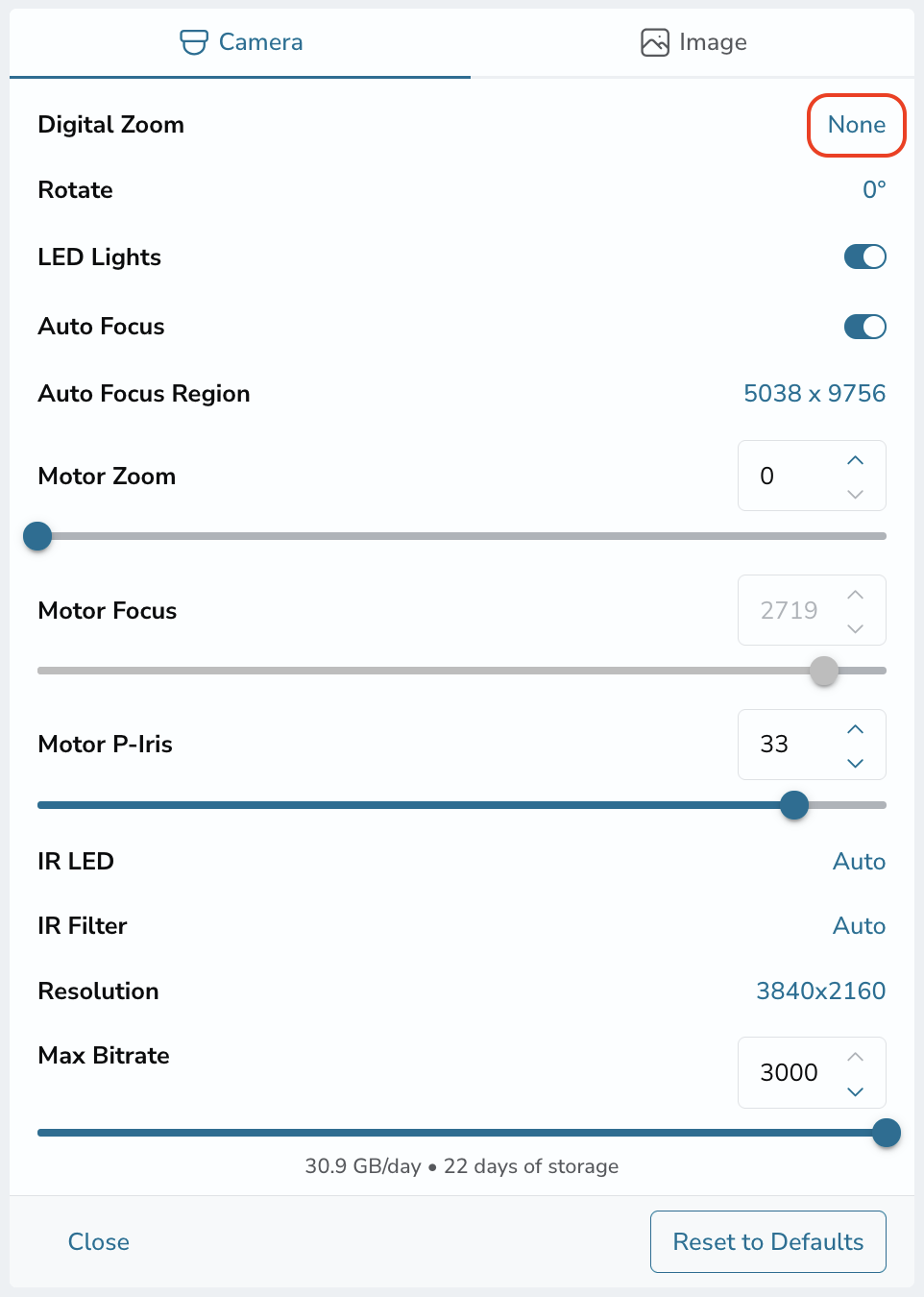

3. Click on the setting next to "Digital Zoom."

Screenshot 2024-12-04 at 1.33.19 PM.png

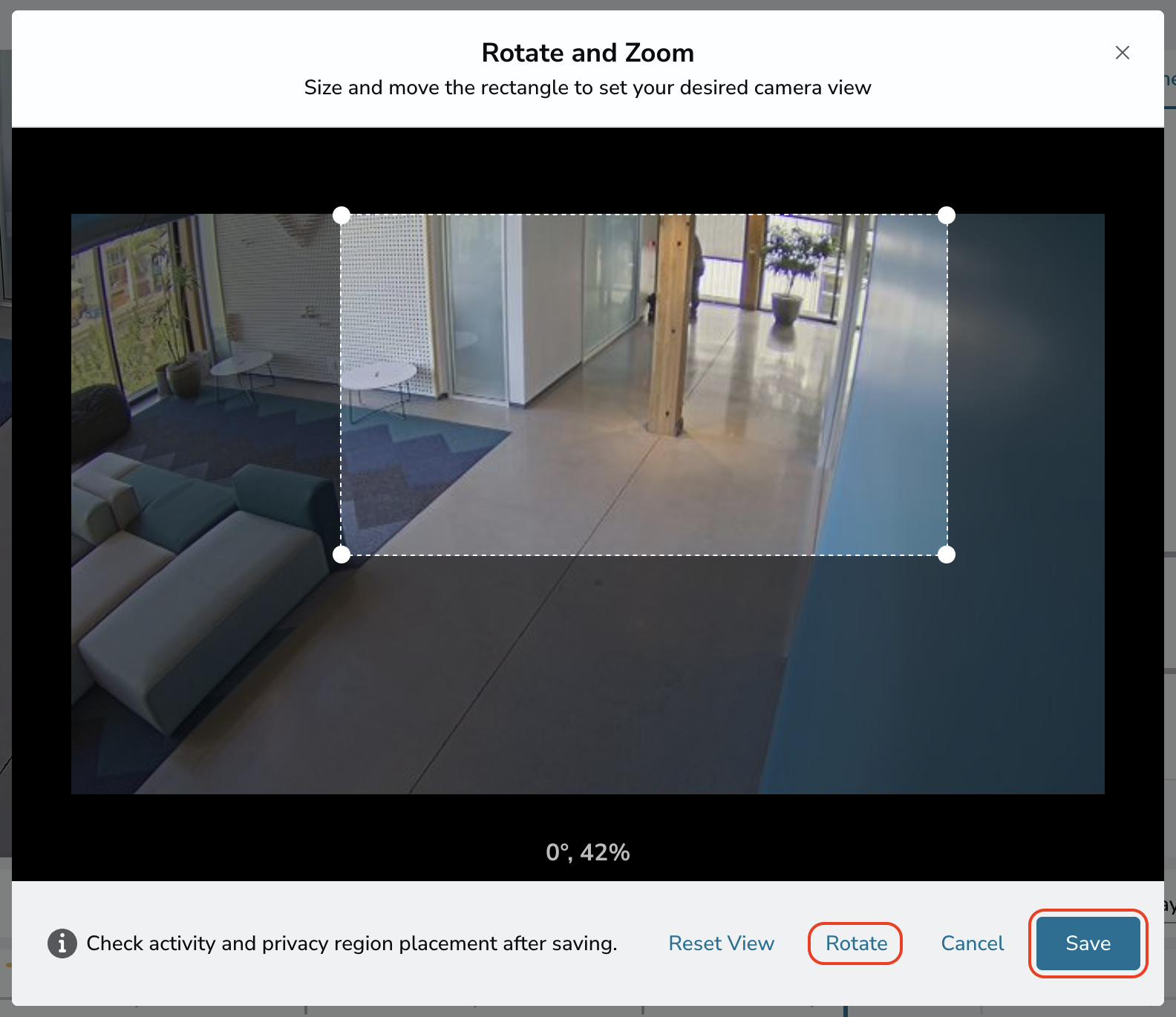

4. Adjust the region of the image to zoom in and move the focal point. Keep in mind the smaller you make the area, the more zoomed in the video will be.

Click "Rotate Image" if you also want to rotate the full image view.

Click "Save" when all settings have been configured.

Screenshot 2024-12-04 at 1.35.21 PM.png

5. Within 10-20 seconds, your player should automatically refresh with the updated focus.

You can go back to the default settings by opening up this dialog and choosing "Revert to Full View."

Mobile App

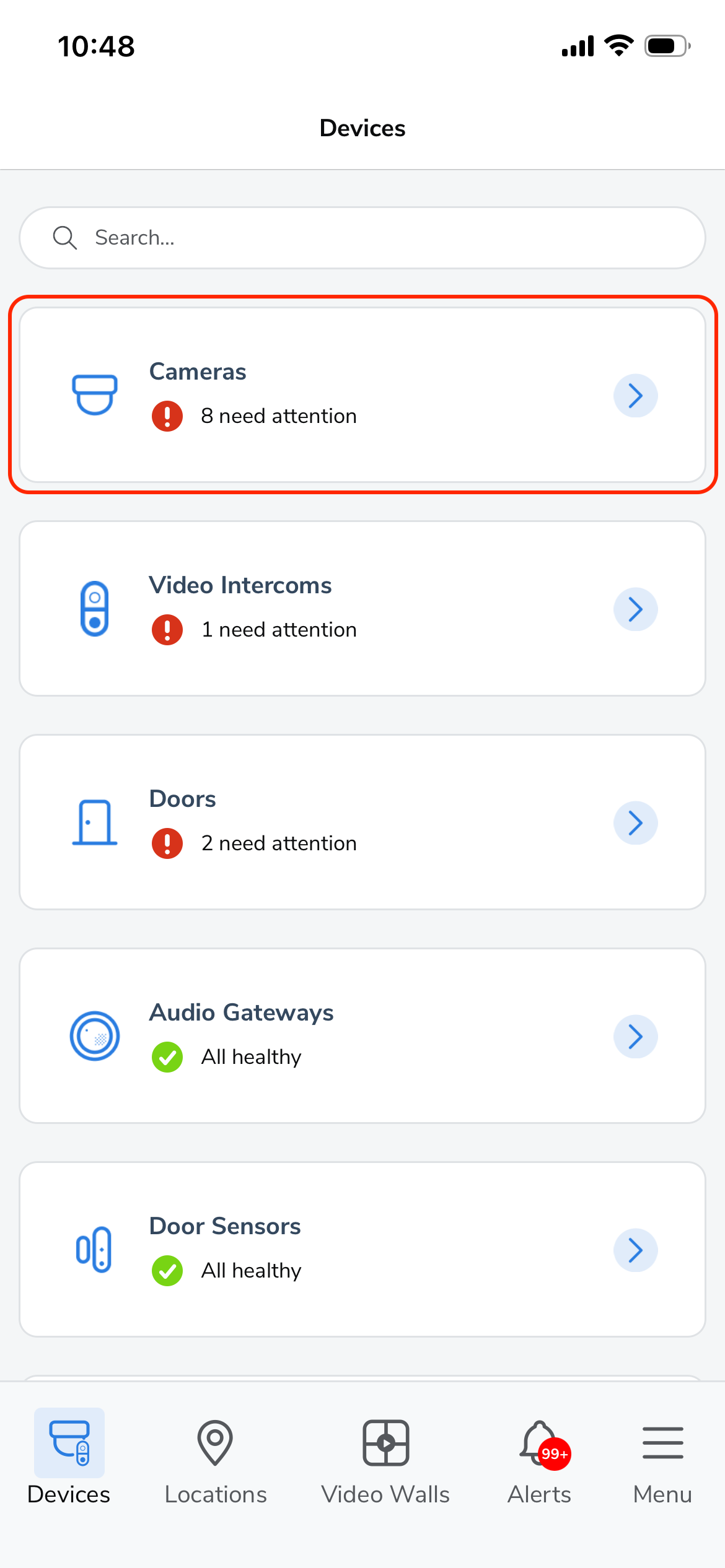

1. Select "Devices" and navigate to "Cameras."

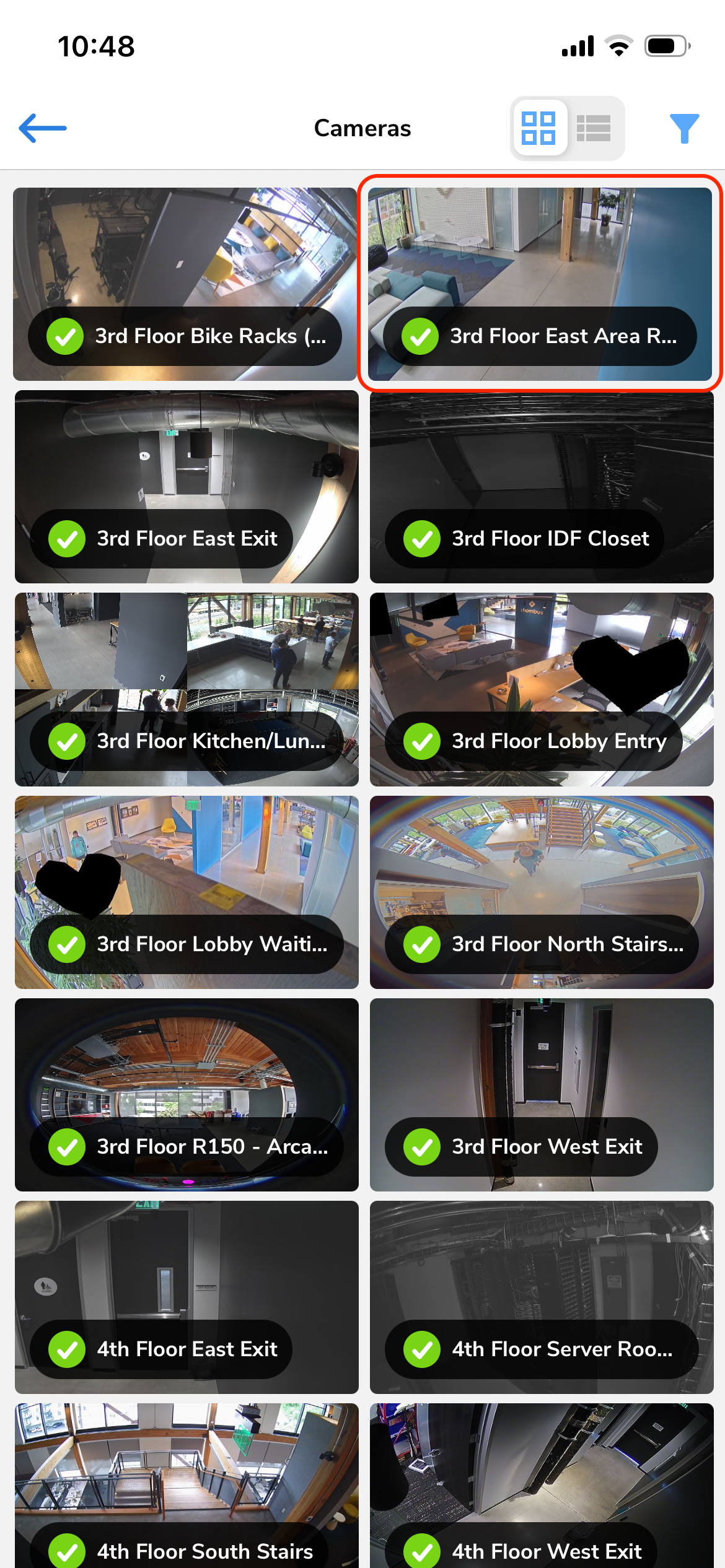

2. Select the camera you want to edit the zoom on.

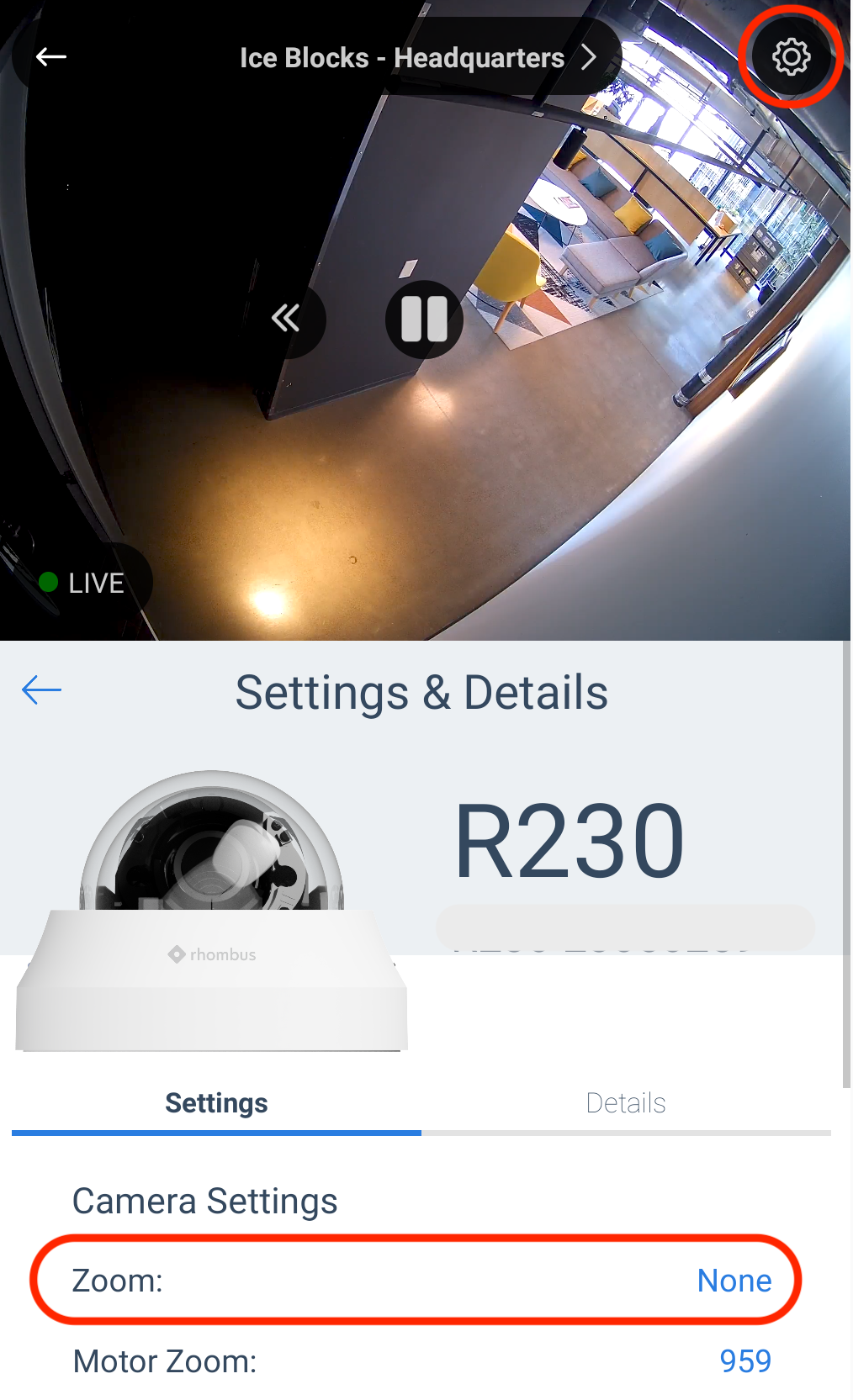

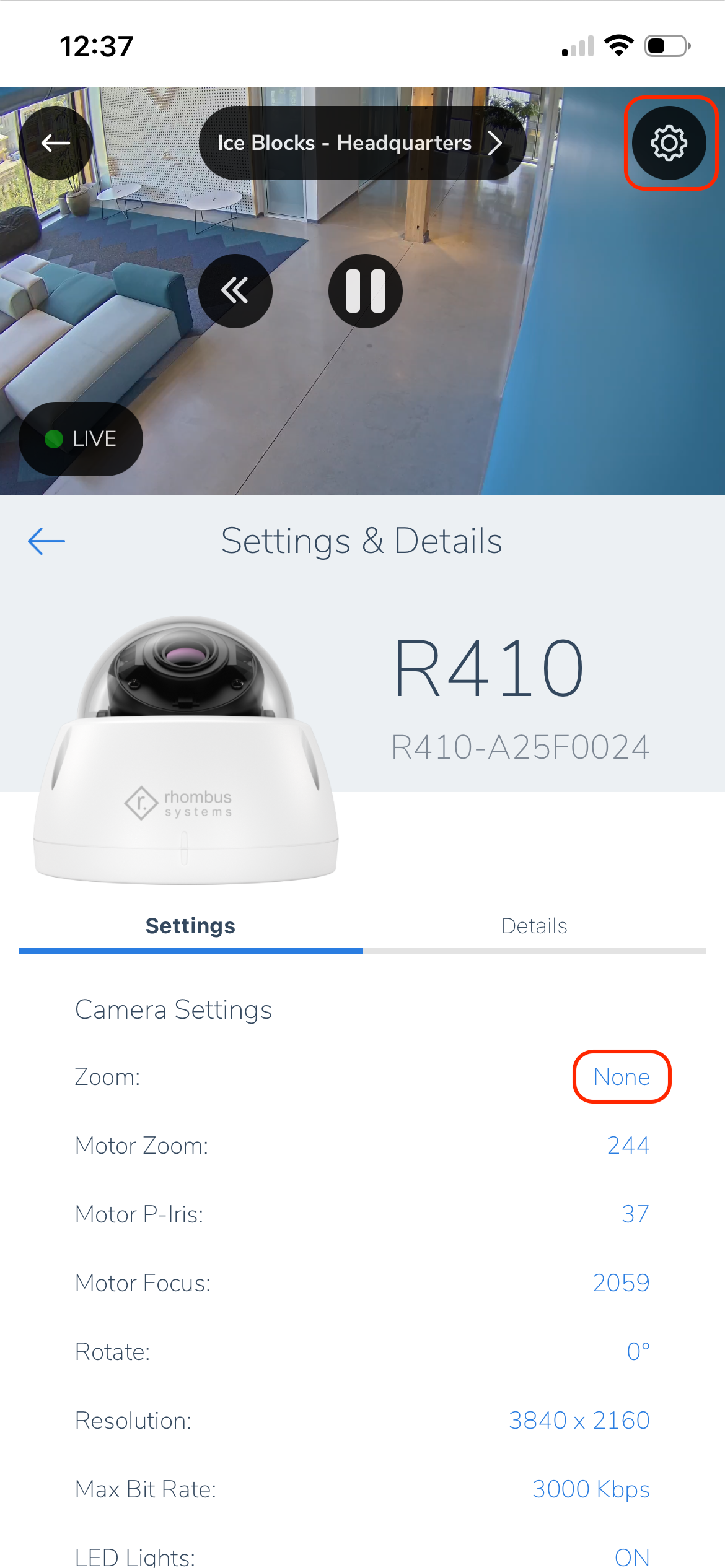

3. Click the "Settings" button and then select the setting next to the "Zoom" setting.

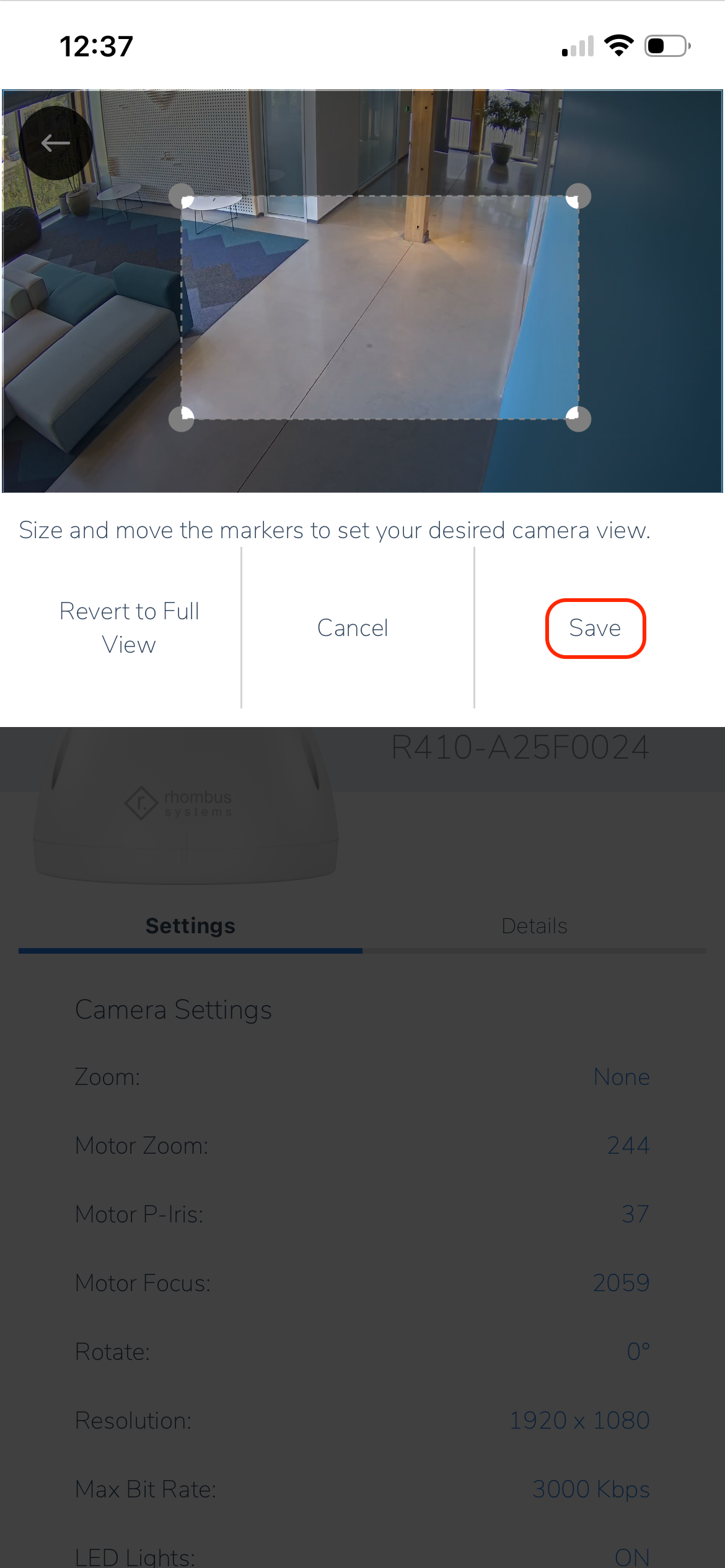

4. Use your fingers to resize the box and move it to where you want to focus the image. Then click "Save."

Steps to Temporarily Adjust Zoom

1. Navigate to the "Devices" page and click on the camera you want to configure.

Screenshot 2024-12-02 at 12.57.24 PM.png

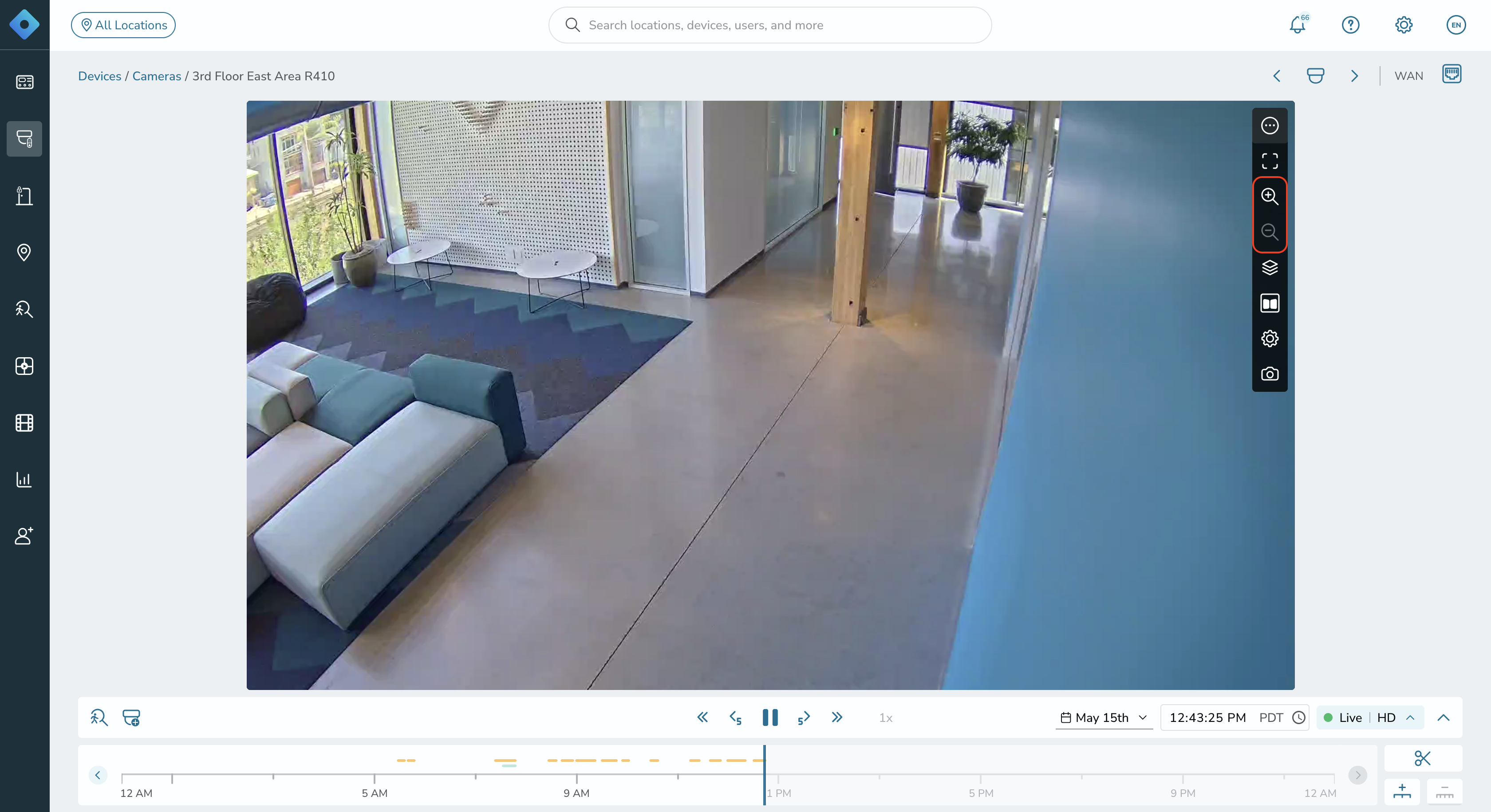

2. Hover over the three dots in the right-hand corner of the video feed and select the magnifying glass to zoom in or out.
