This article will cover the following:
Overview
- Device models that support Bluetooth:
- R120, R170, R2, R200, R230, R520, R600, DR40, A100, E50 and all sensors.
- Cameras will show up in the scan if they are:
- Registered to the account, powered on, and not connected to the internet.
- Unregistered.
Steps to Run Diagnostics

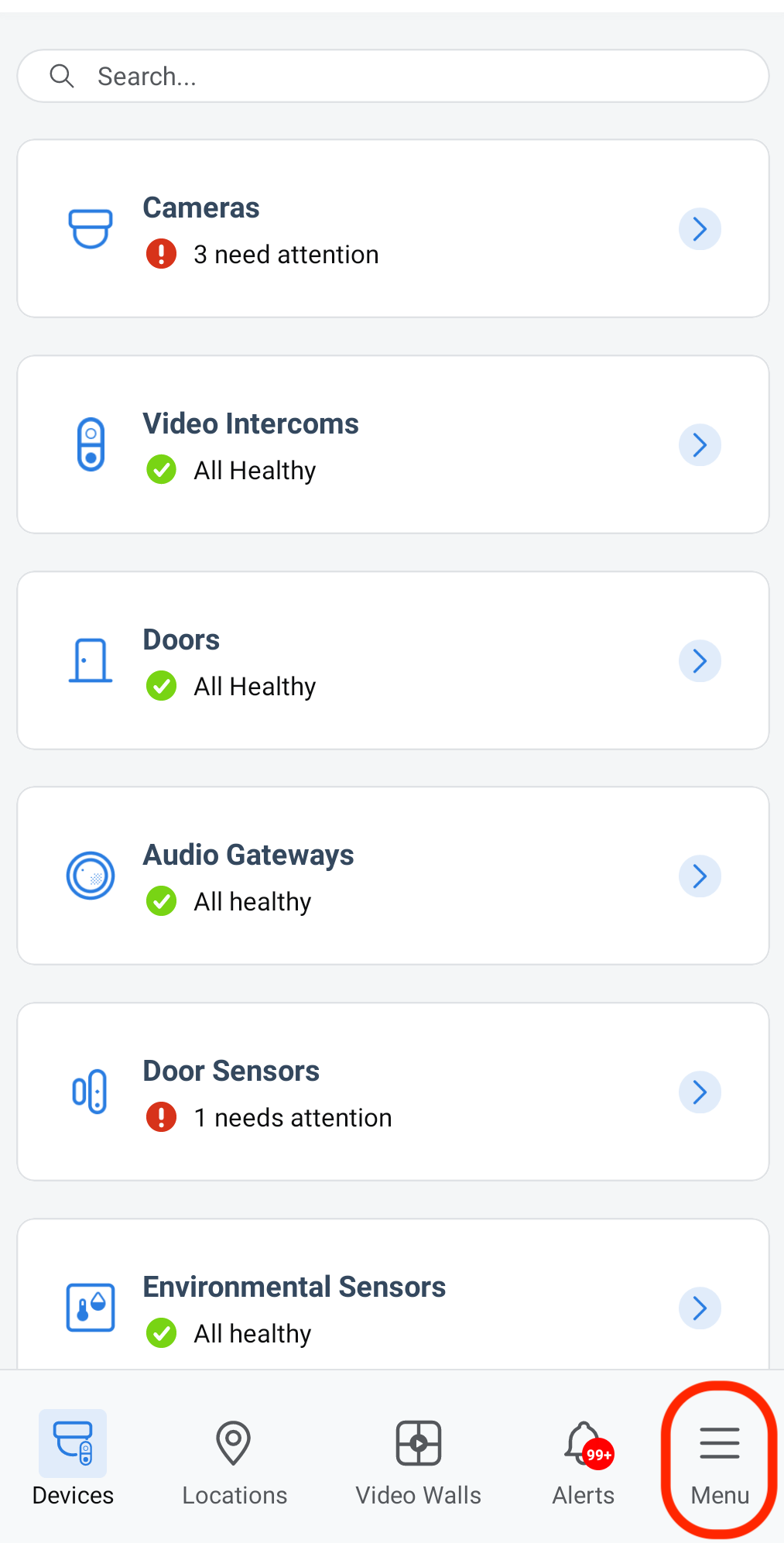

1. On the Rhombus mobile app, select "Menu."

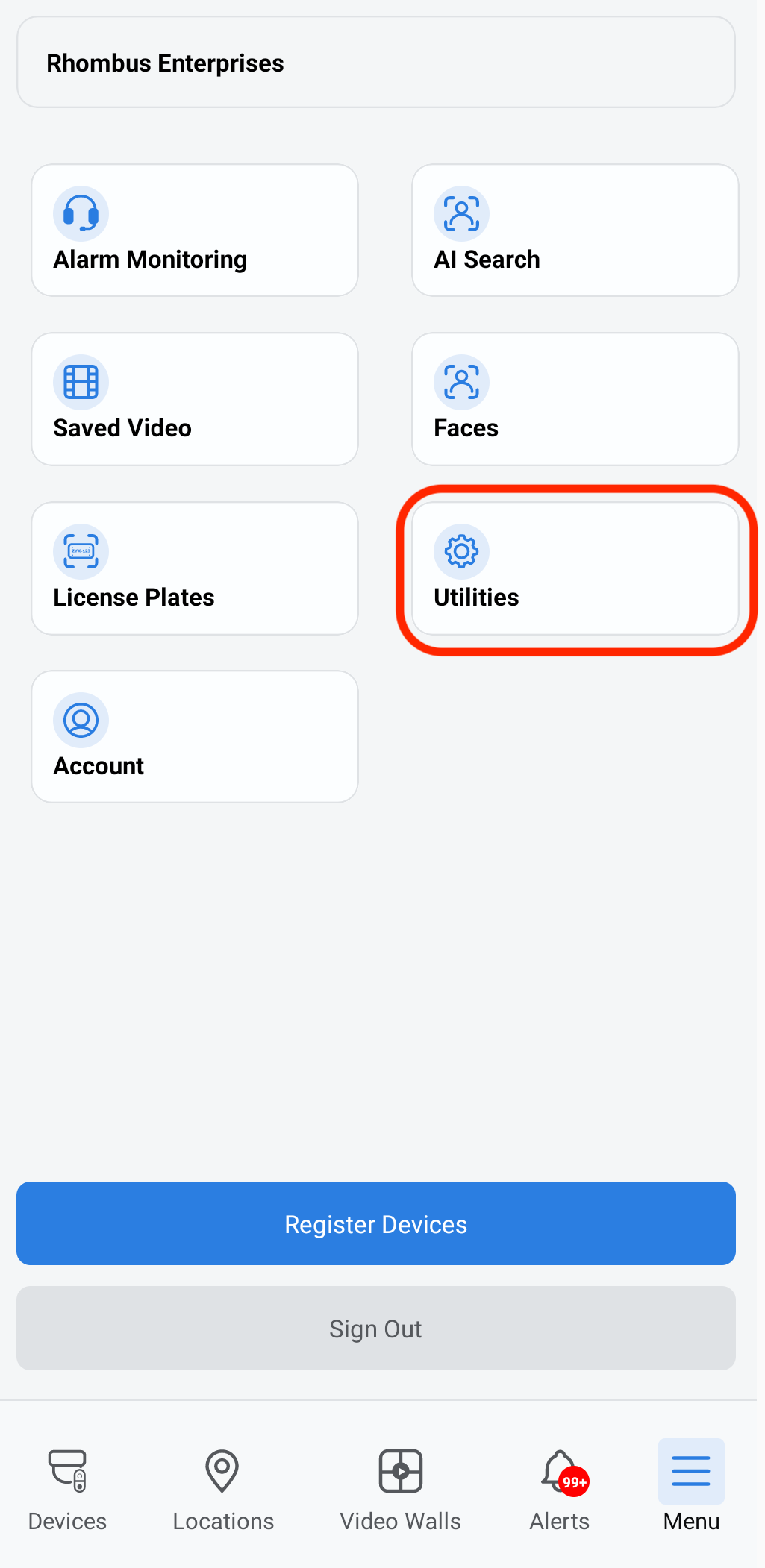

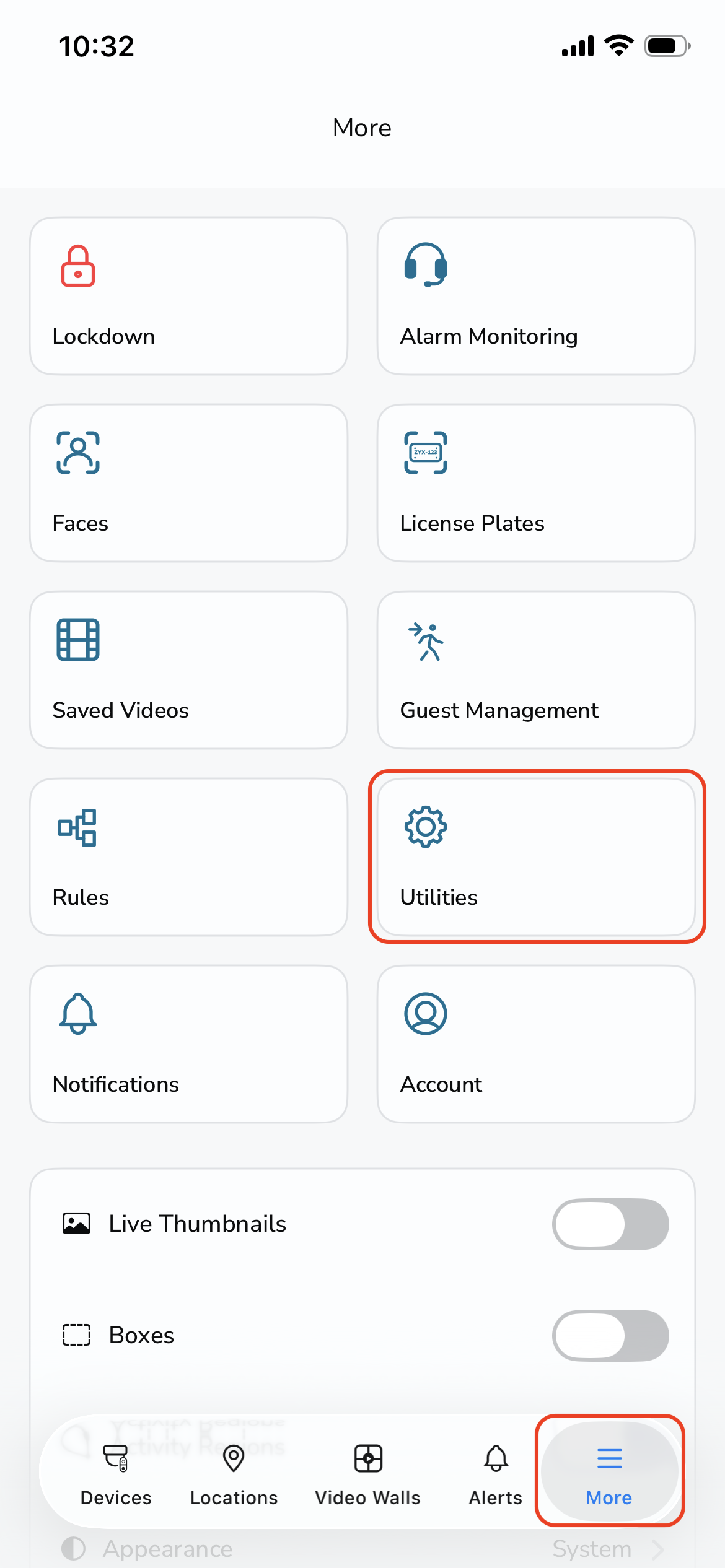

2. Click "Utilities."

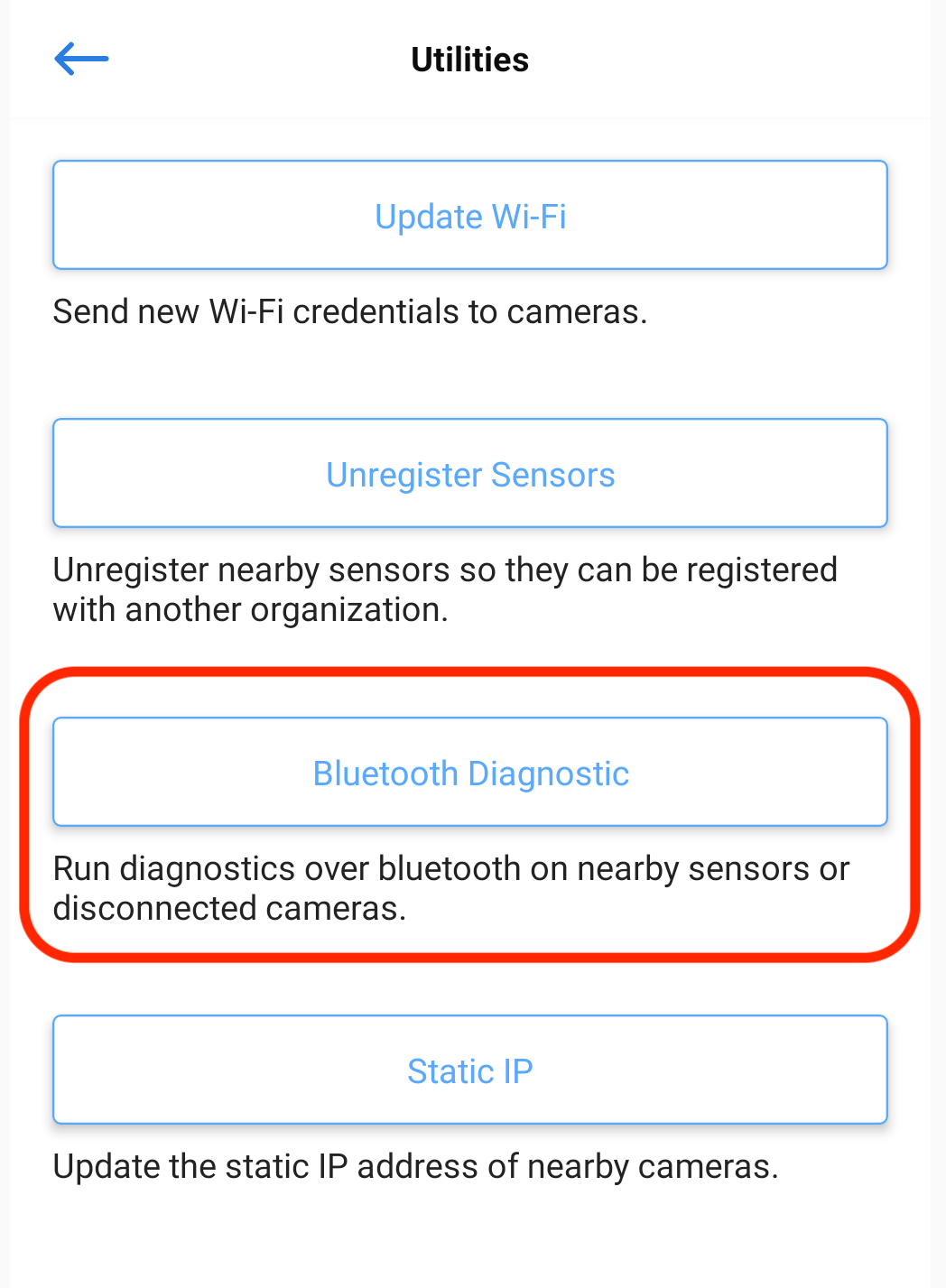

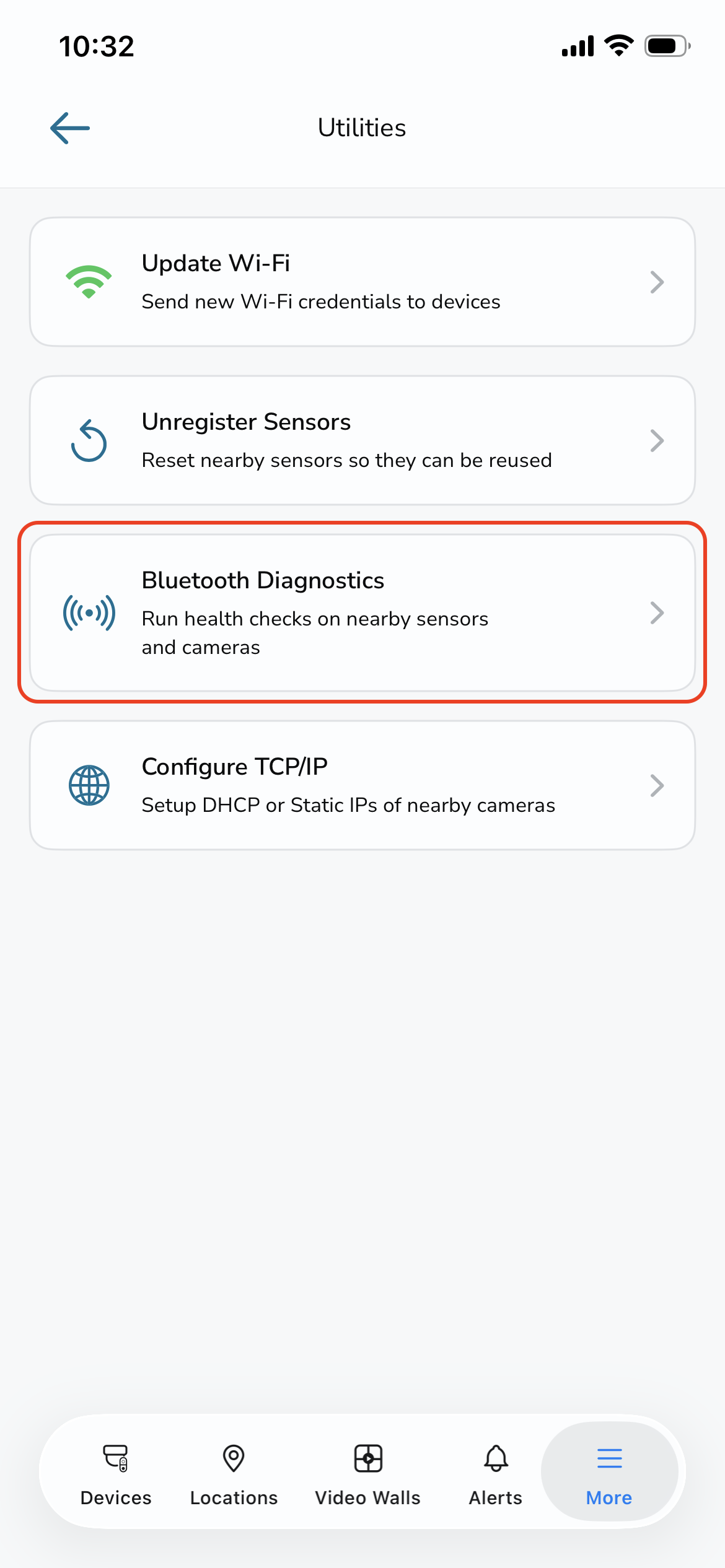

3. Select "Bluetooth Diagnostic."

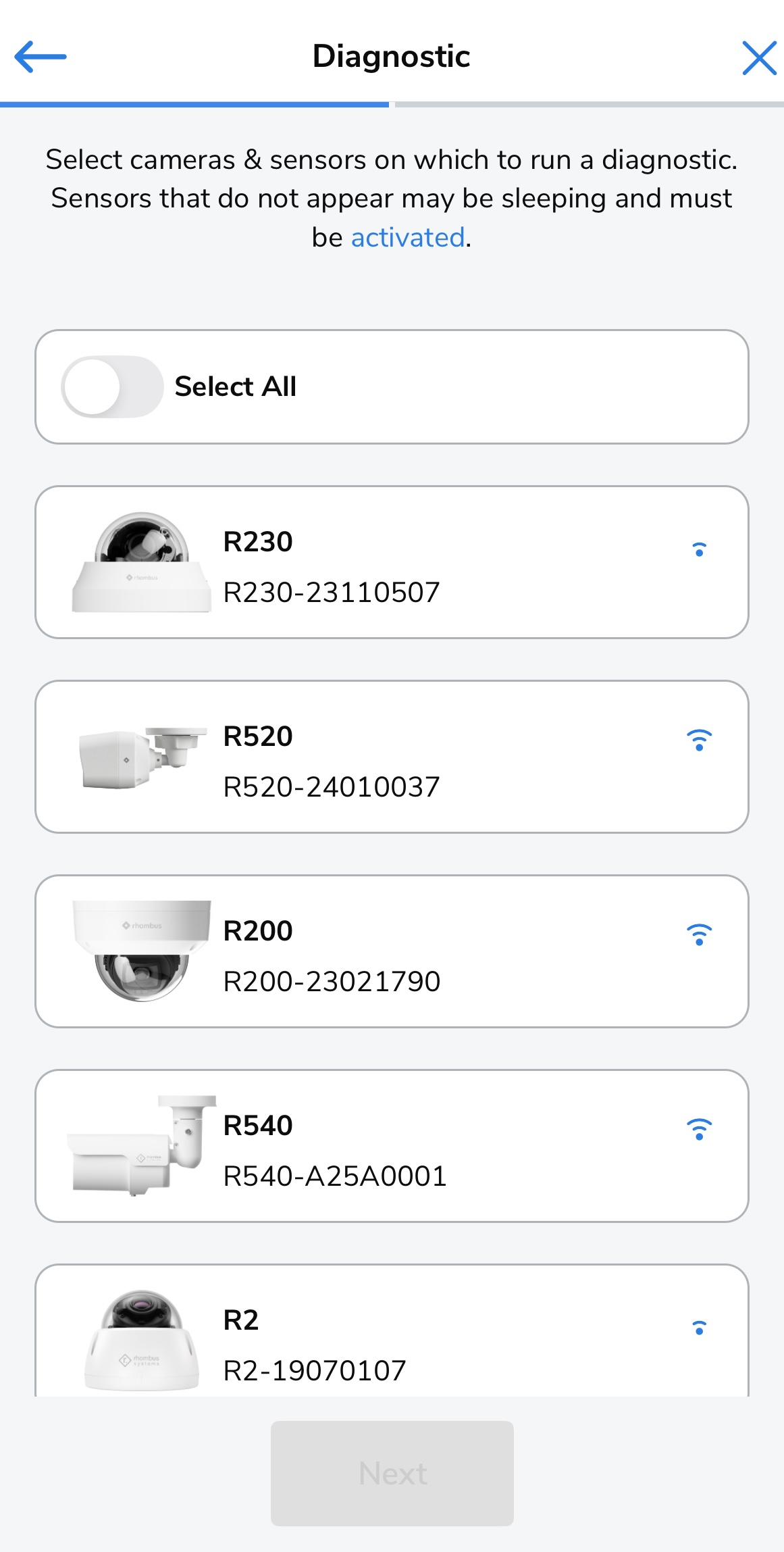

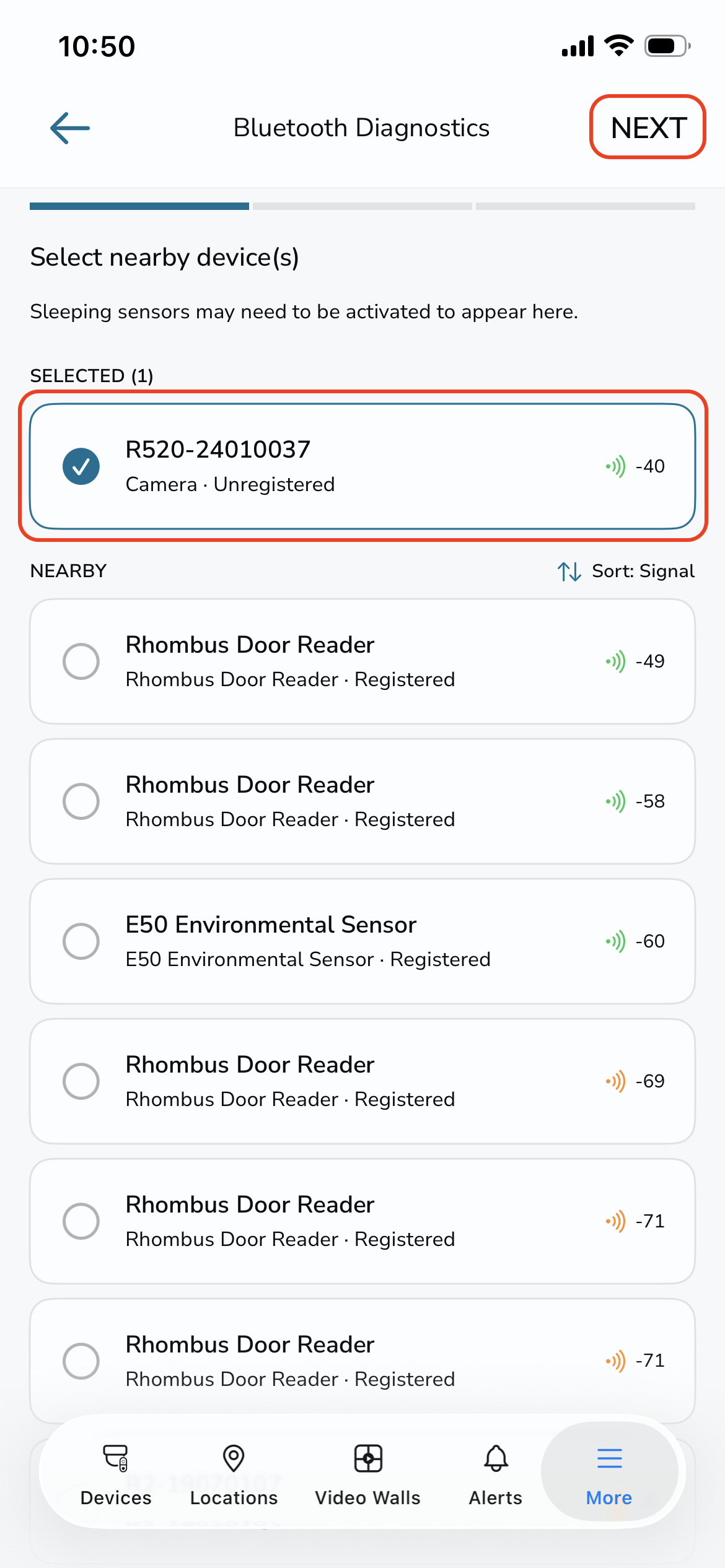

4. Select the devices you wish to run diagnostics for, or toggle on "Select All." Click "Next."

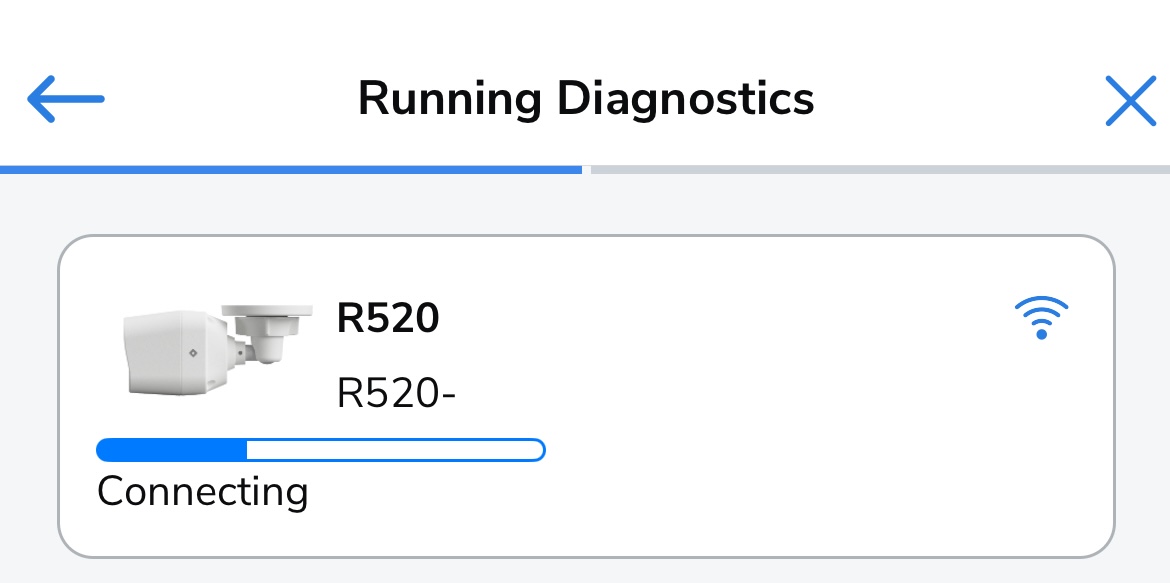

5. The 'Running Diagnostics' window will appear. This will show you the current run time status while we gather the Bluetooth diagnostic information.

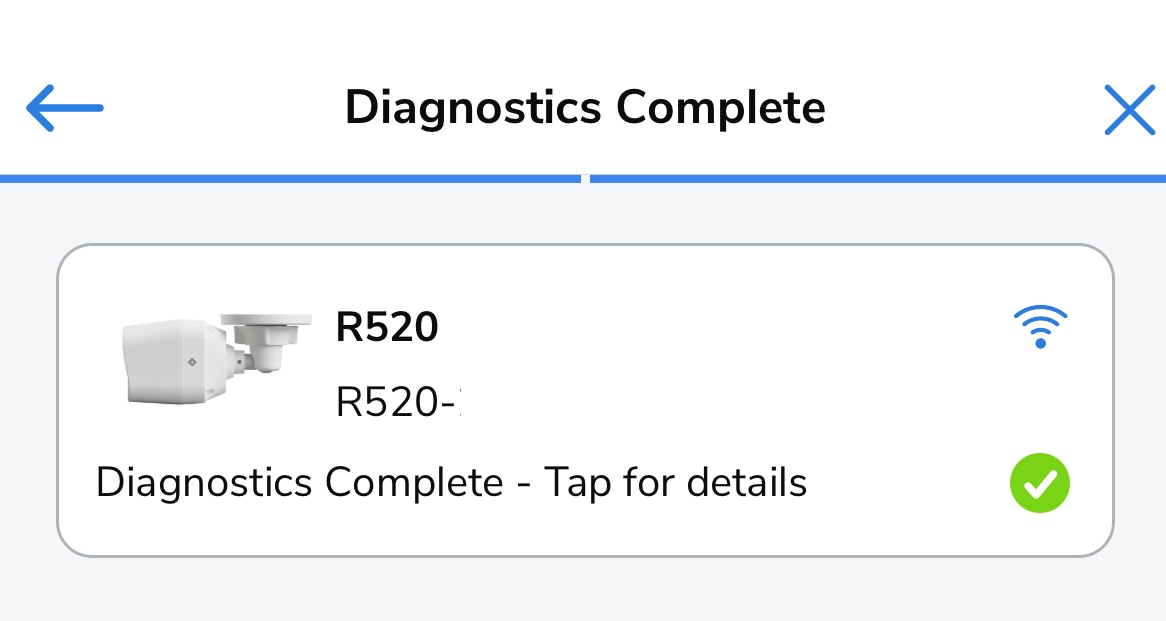

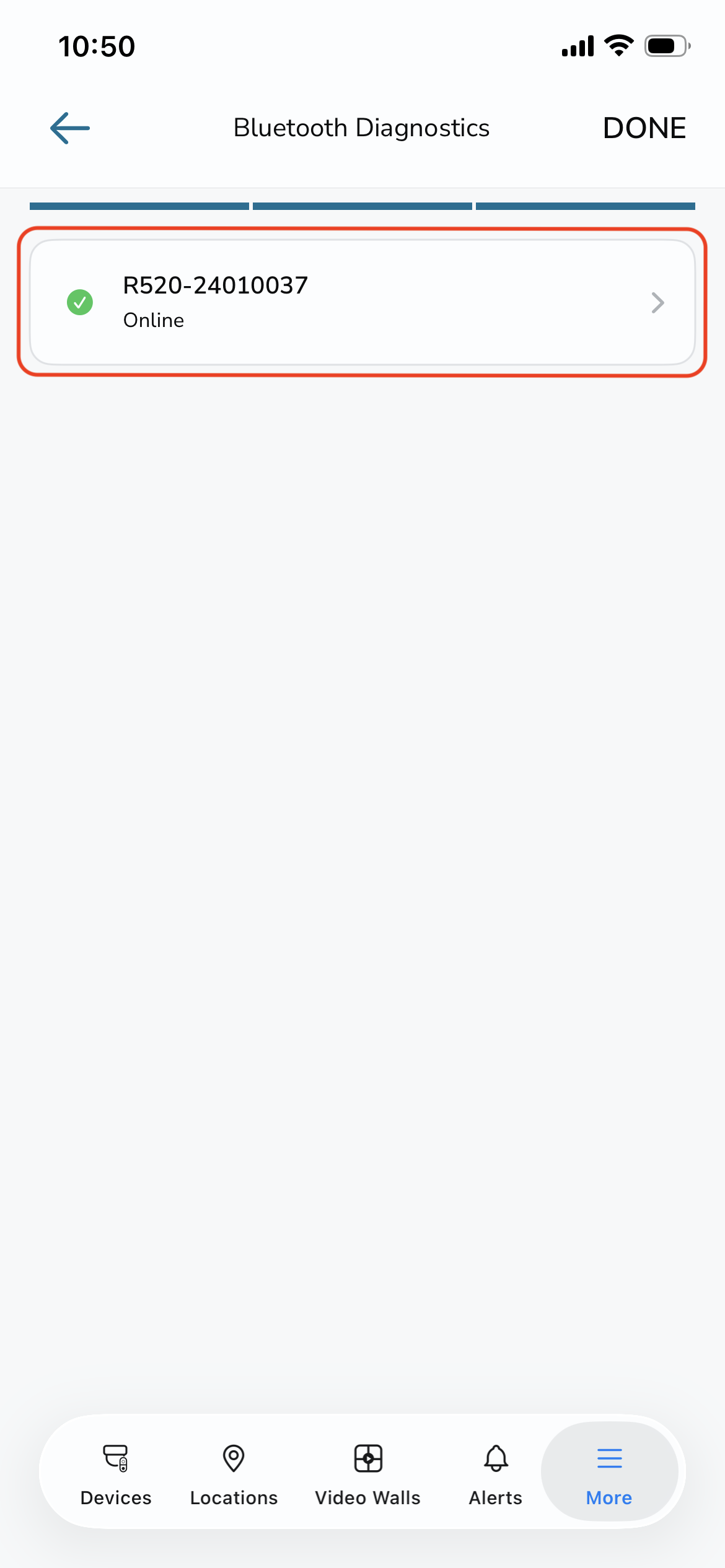

6. Tap the device box once the scan has completed for more information.

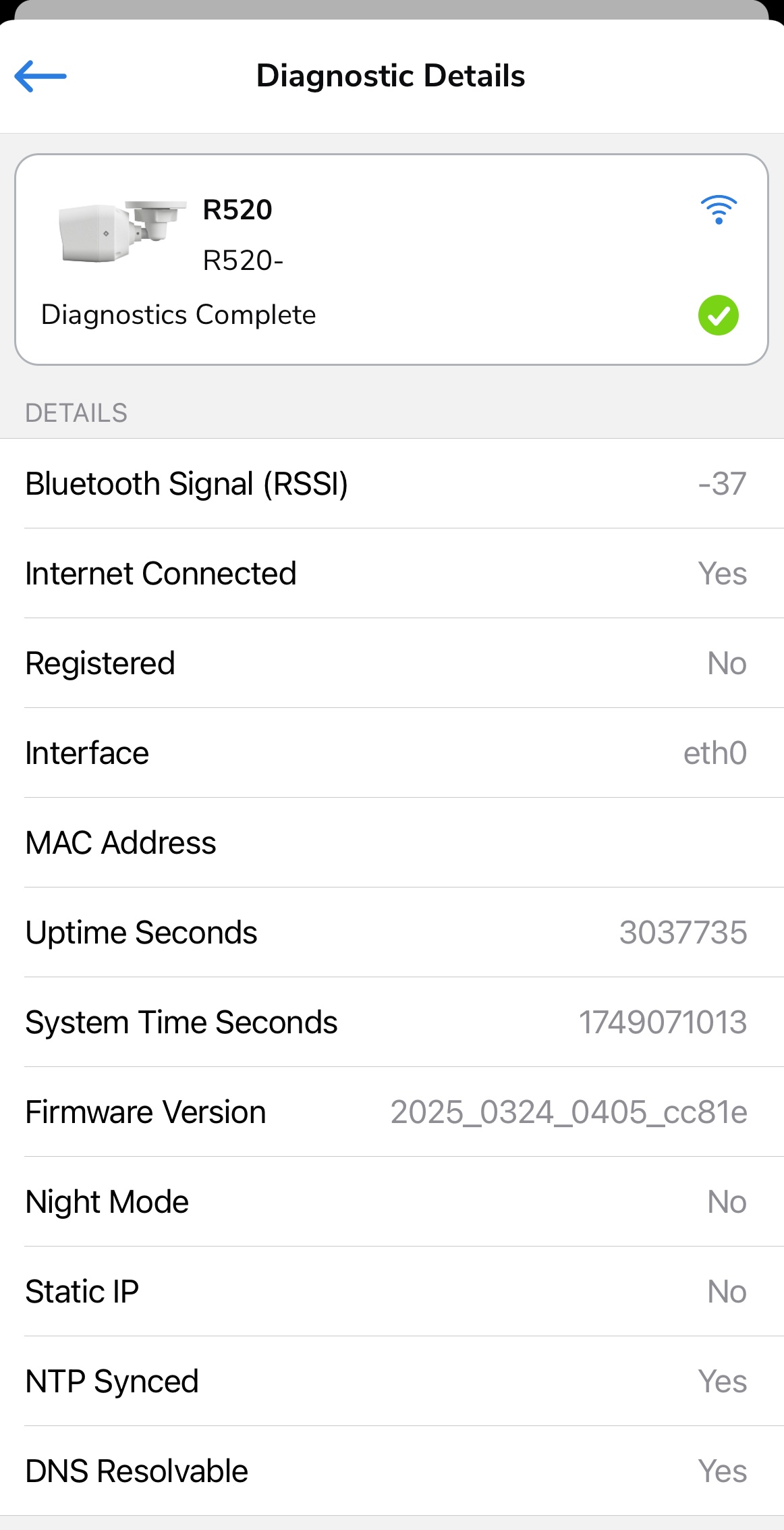

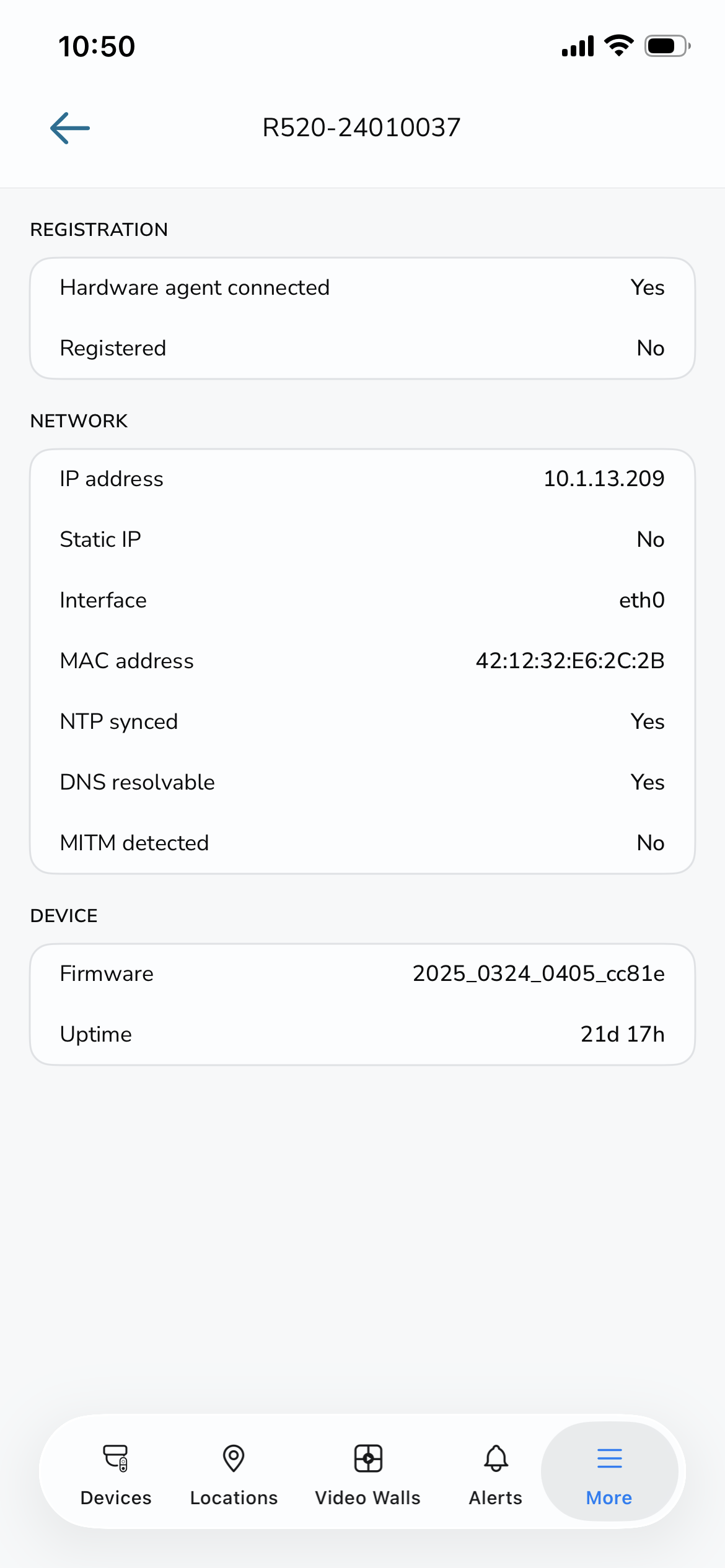

7. The full details will show.
Diagnostic Meanings

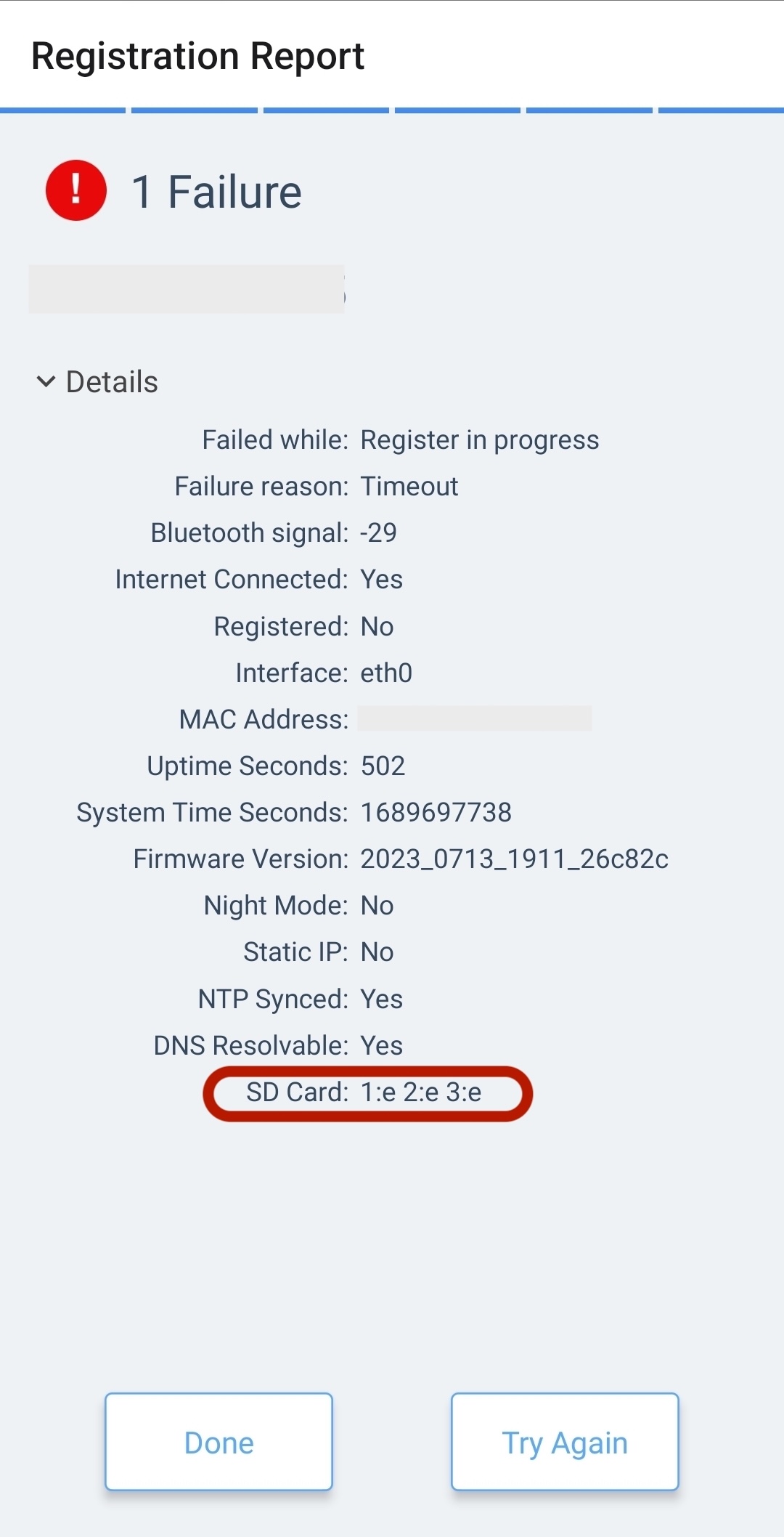

If there are issues registering, the SD Card section can help determine if there is an issue with the SD card. The numbers represent each partition, and the letter represents what state that partition is in.
- e - Partition exists.
- m - Partition is mounted.
Troubleshooting Bluetooth
- Check for LED lights to make sure the camera is on.
- Blinking blue means that the camera is in Bluetooth mode.
- Be within 20 feet of the device.
- Turn the phone's Bluetooth on and off.
- Restart the app.
- Unpair other Bluetooth devices from your phone.
- If the SD Card section of the diagnostic is missing an "e", the partition doesn't exist. If an "m" is missing, it isn't mounted.
- Force reboot the camera.
- Unplug from power, reinsert SD card (if the camera model permits) and re-power.
- Contact Support for further assistance. SD card may need to be reformatted.
Helpful Links
Contact Support or Sales
Have more questions? Contact Rhombus Support at +1 (877) 746-6797 option 2 or support@rhombus.com.
Interested in learning more? Contact Rhombus Sales at +1 (877) 746-6797 option 1 or sales@rhombus.com.
