Topics included in this article:
- Overview
- Prerequisites
- Activate the Rhombus TV App
- App Walkthrough
- Helpful Links
- Contact Support or Sales
Overview
The Rhombus TV app for Apple TV allows you to monitor live video walls from the comfort of a large-screen display, making it ideal for security operations centers, reception areas, and other continuous monitoring environments. After activating the app through the Rhombus Console, users can securely access video walls based on their assigned permissions and view live camera feeds directly from Apple TV. This article outlines the recommended hardware, activation process, video wall requirements, and available features of the Rhombus TV app.
Prerequisites
Recommended Apple TV Specifications
We recommend using the Apple TV 4K (3rd Generation) with an Ethernet port for a LAN connection.
Older Apple TV models can be used, but they are limited to displaying a maximum of 20 cameras simultaneously.
The Apple TV 4K (2nd Generation) can display up to 30 cameras simultaneously at a resolution of 640 × 480.
Note: If your Apple TV is connected to the HDMI ARC port on your TV or monitor, it will shut down when the TV or monitor is powered off. To ensure your Apple TV remains powered on when the TV or monitor is turned off, connect it to a different HDMI port or disable the HDMI-CEC setting on your TV or monitor.
Video Wall Setup

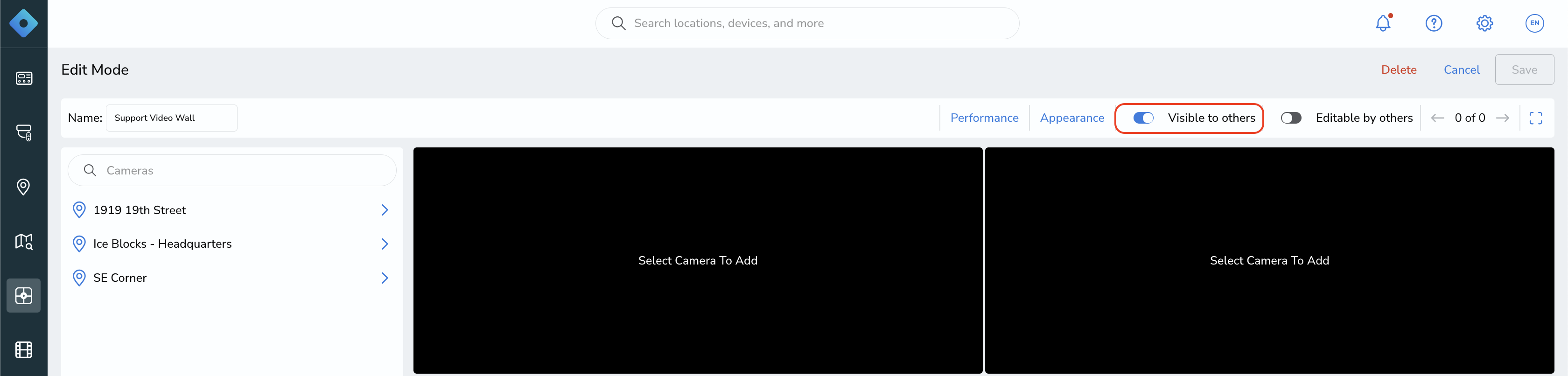

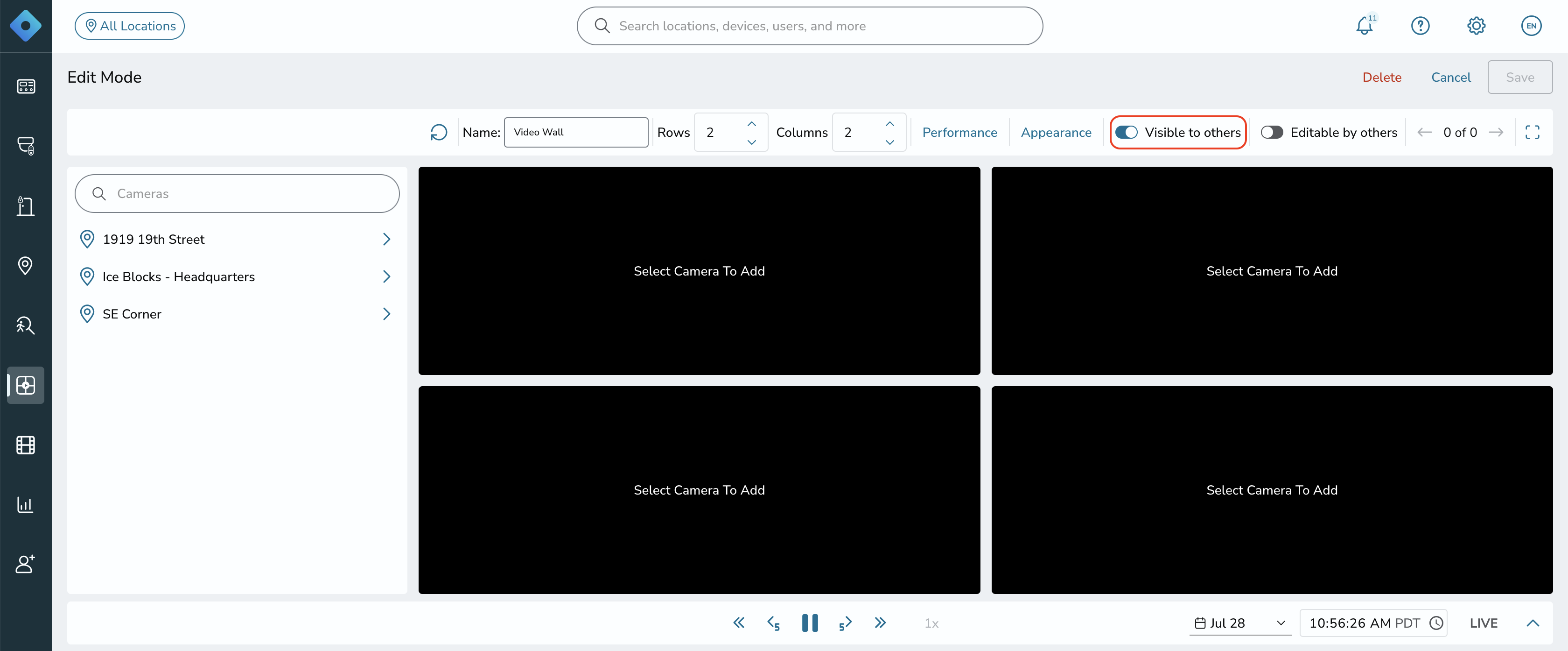

When creating a video wall, the "Visible to Others" toggle must be enabled. If this setting is not enabled, the video wall will not be visible on the Apple TV.
For more information, review our article on Managing Video Walls.
Activate the Rhombus TV App
| 1. Download the "Rhombus TV" app from the Apple TV App Store. |
|
|
| 2. Launch the "Rhombus TV" app from the Home Screen. |
| 3. When the "Rhombus TV" app is launched for the first time, an activation code will be displayed. Record this code, as it is required to activate your Apple TV. |

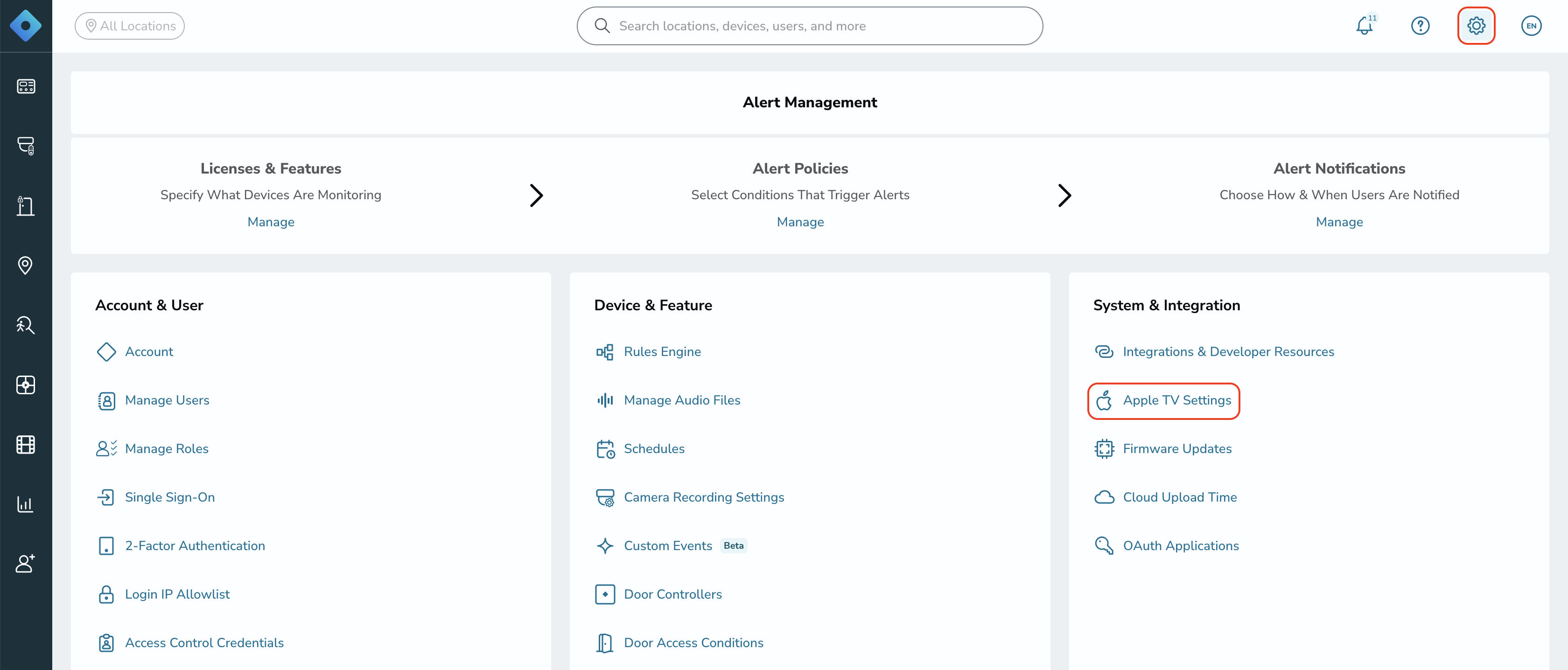

| 4. Log into the Rhombus Console, navigate to "Settings," and click "Apple TV Settings." |
|
|

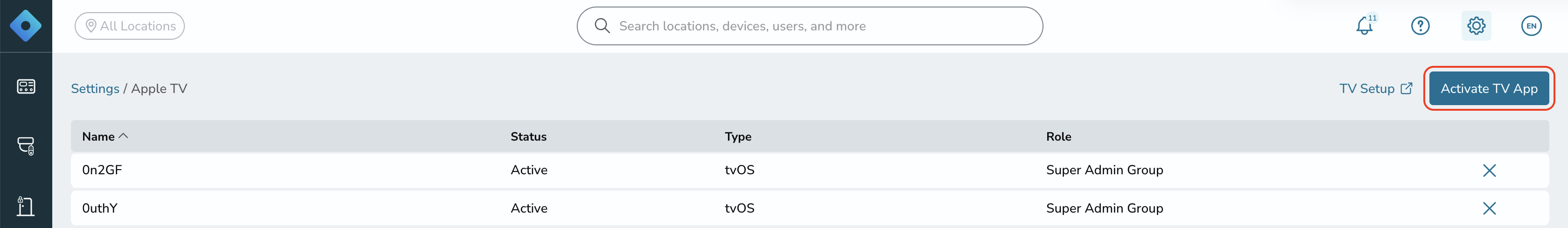

| 5. Click "Activate TV App" in the upper-right corner. |
|
|

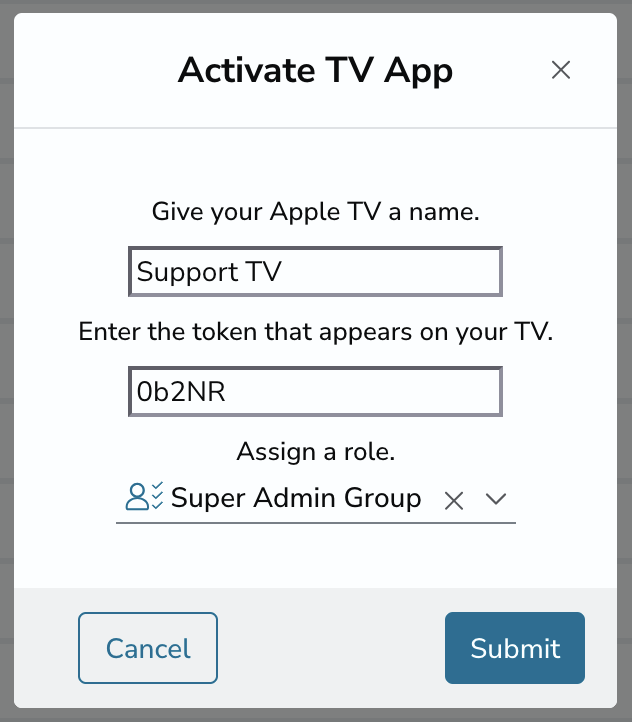

| 6. In the pop-up window, enter a name for your Apple TV, enter the activation code recorded in Step 3, assign a role to the Apple TV, and click "Submit." |
|
|
| Note: The assigned role determines which devices and video walls are accessible from the Apple TV. After a role has been assigned, it cannot be changed. To assign a different role, the Apple TV must be deleted and activated again. |
App Walkthrough
Home Screen

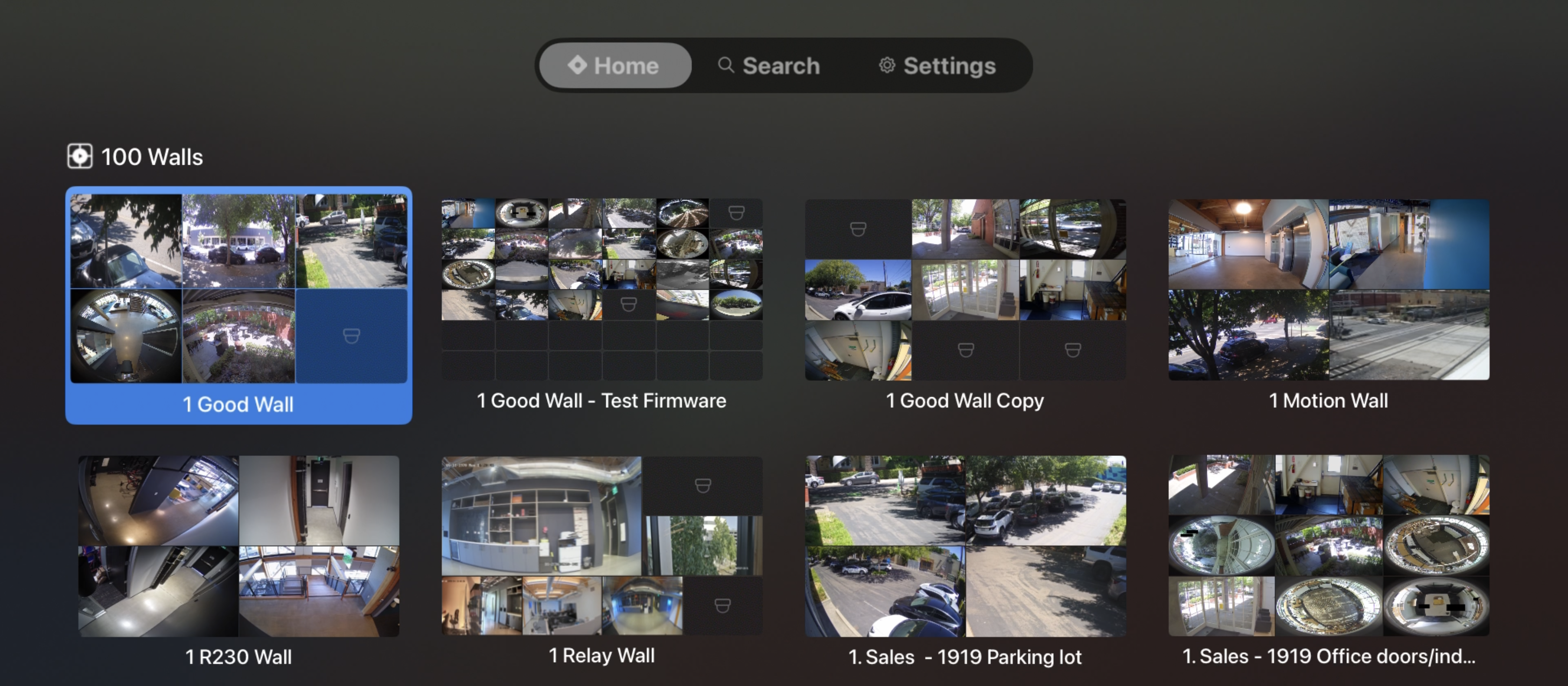

| The Home Screen displays all video walls that are visible from your Rhombus Console. Select a video wall to open it and view its live feed. |
|
|

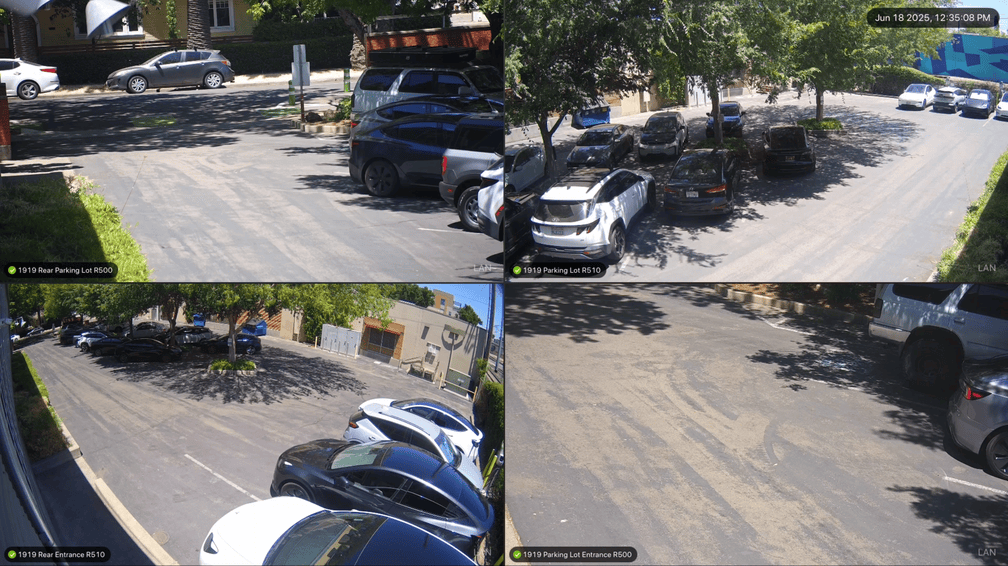

| When viewing a video wall in the "Rhombus TV" app, select an individual camera feed to view it in full-screen mode. |
|
|
| Note: For R360 fisheye cameras, you can pan and rotate the view when the camera is configured with a side-mounted or ceiling-mounted orientation and is set to the immersive view in the Rhombus Console. |

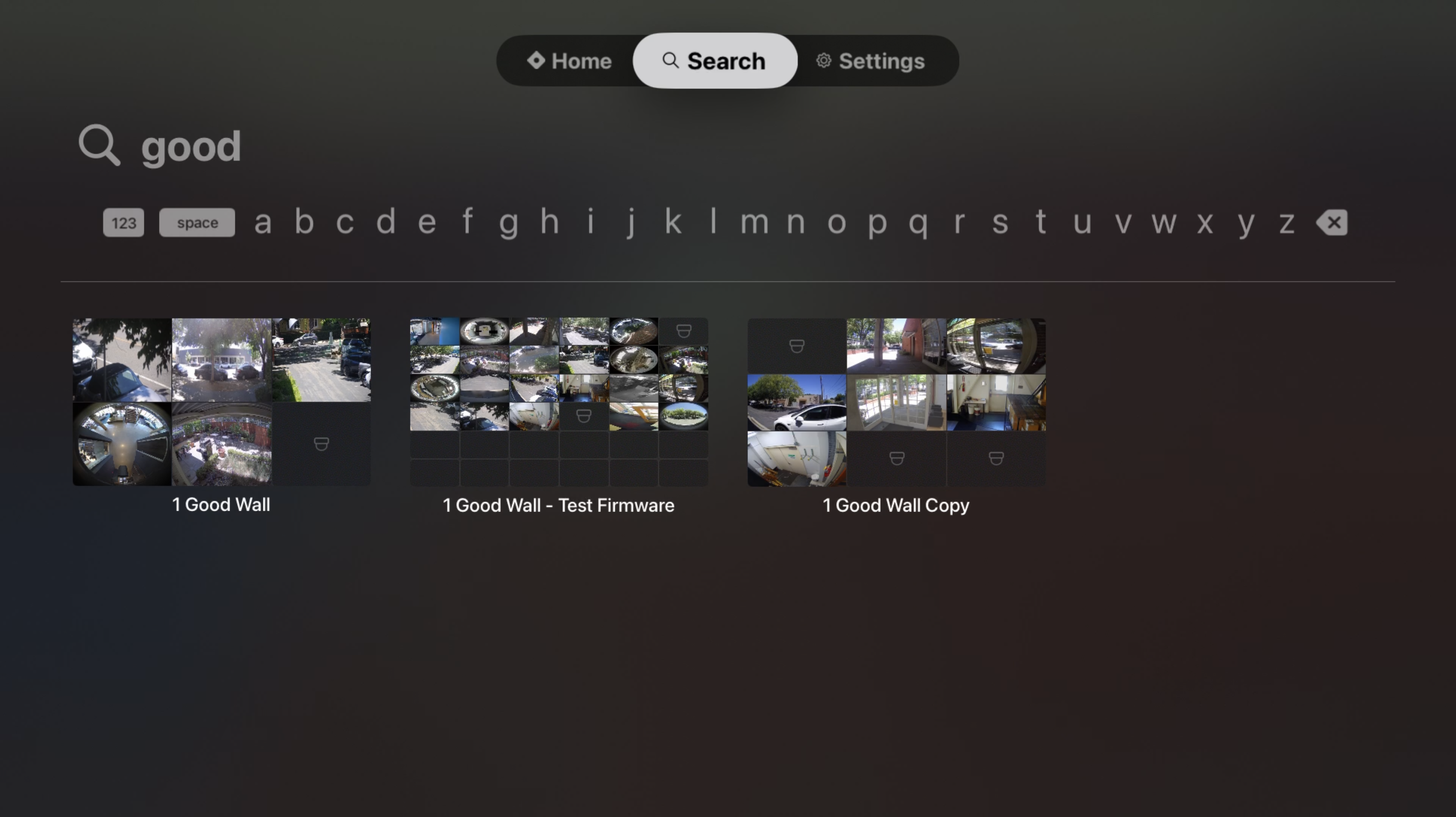

| If your organization has many video walls, use the "Search" tab to find a specific video wall. |
Settings

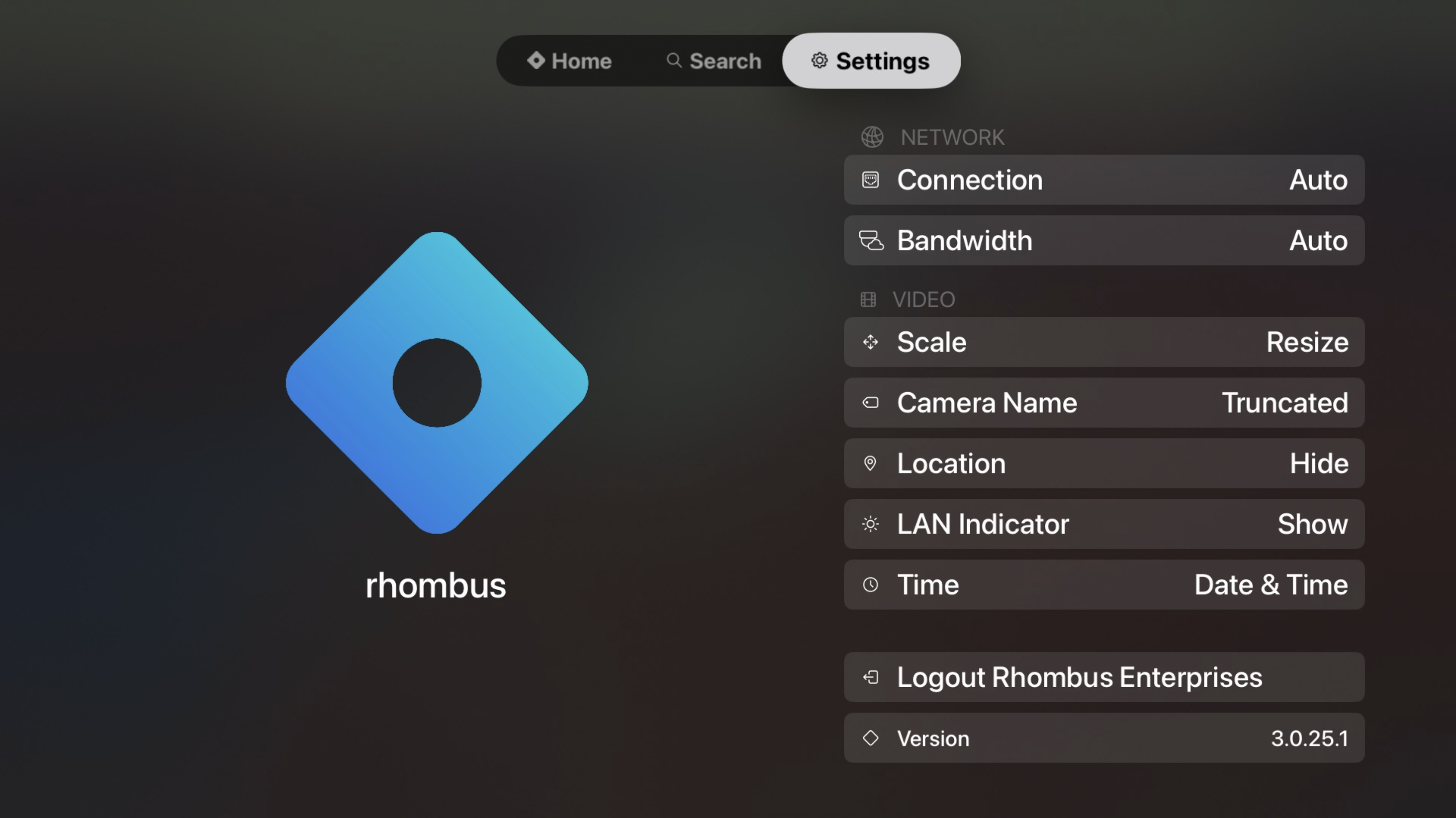

The "Settings" tab provides access to preferences that are applied to all video walls viewed from the Rhombus TV app.
Helpful Links
Contact Support or Sales
Have more questions? Contact Rhombus Support at +1 (877) 746-6797 option 2 or support@rhombus.com.
Interested in learning more? Contact Rhombus Sales at +1 (877) 746-6797 option 1 or sales@rhombus.com.
