Topics included in this article:
Prerequisites
Before registering a T1, you must to be signed into the Rhombus mobile app (Android or iOS), and in range of a BLE enabled device that is registered to your Rhombus Console.
Compatible Devices
Before registering a Rhombus sensor, must have a Rhombus device that supports the Rhombus Sensor Network. Confirm compatibility by visiting the device specs page on rhombus.com.
Below is a list of compatible BLE gateway devices:
- R120
- R2
- R170
- R200
- R230
- R360S
- R410
- R520
- R540
- R545
- R600
- A100
- DR40
- E50
Setup and Registration
1. To register the T1, turn the sensor over and press the black dot after the word "contains." This will put the sensor in registration mode. A green dot will begin pulsing to indicate the sensor is ready to be registered (as seen below). The sensor will remain in registration mode for 2 minutes before returning to sleep.

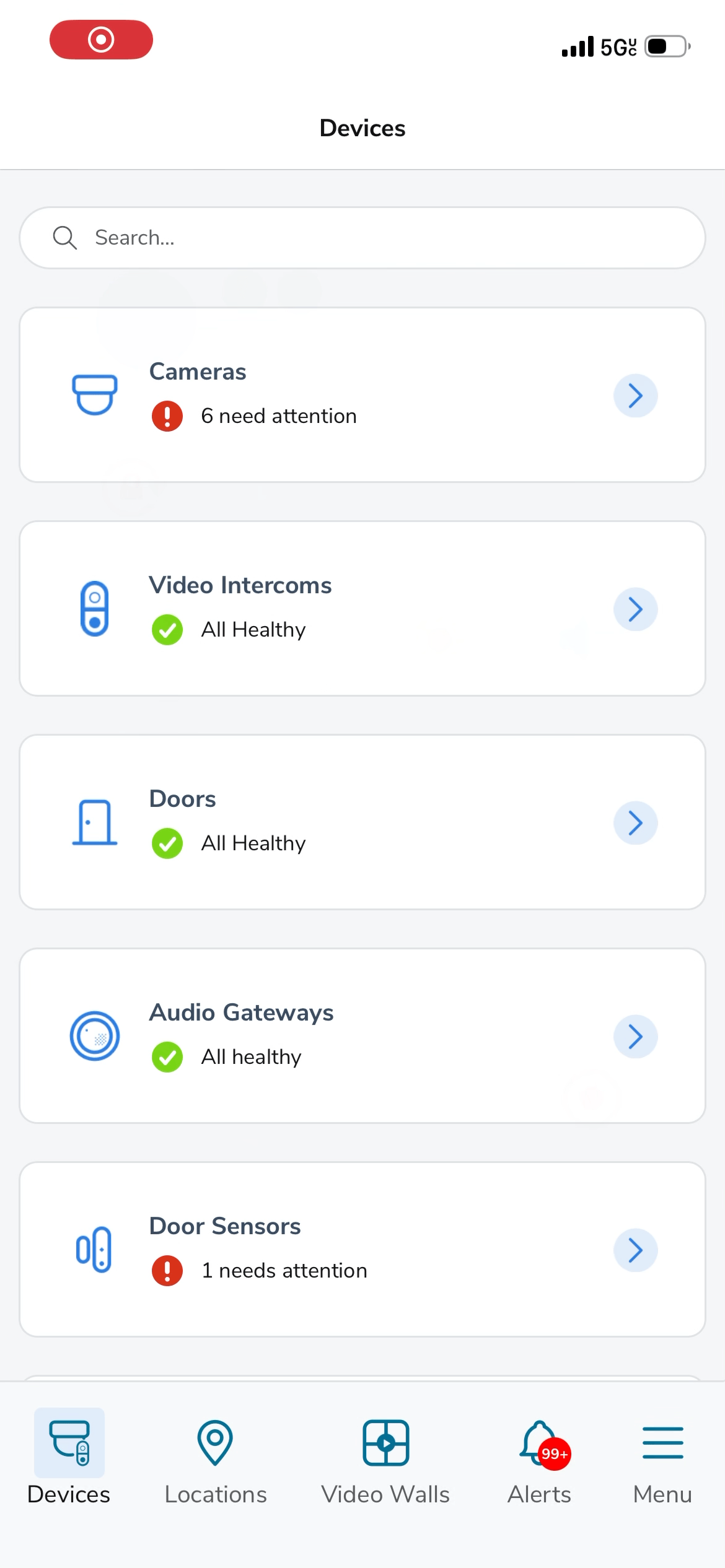

2. Open the Rhombus mobile app, tap "Menu" in the bottom right corner, then tap "Register Devices."
3. Tap "All Sensors," and select the location you'd like the device to be registered under.
4. Tap the sensors you'd like to register, then tap "Next."
Unregistering
Sensors can only be unregistered from the mobile app. You must be logged into the organization of the sensor(s) you want to unregister.
Note: To unregister a sensor, a BLE-compatible device must be connected to the network and be within range of the sensor. Sensors must be unregistered before the Rhombus gateway device is unregistered.
1. Open the Rhombus mobile app, tap "Menu" in the bottom right corner, then tap "Utilities."
2. Tap "Unregister Sensors."
3. Select the sensor(s) you want to unregister and complete the flow.
