Activating Apple TV

Rhombus Support
Updated

This article will cover the following:

Activation Steps

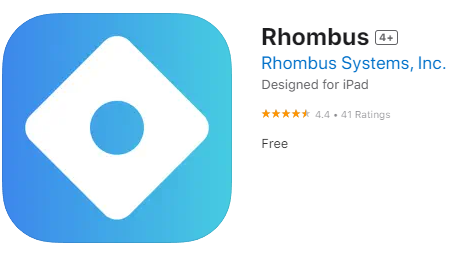

1. Download the Rhombus app from the App Store onto your Apple TV.
  • Search for the keyword "Rhombus" in the App Store to locate it.



2. Launch the Rhombus app from the Apple TV home screen.

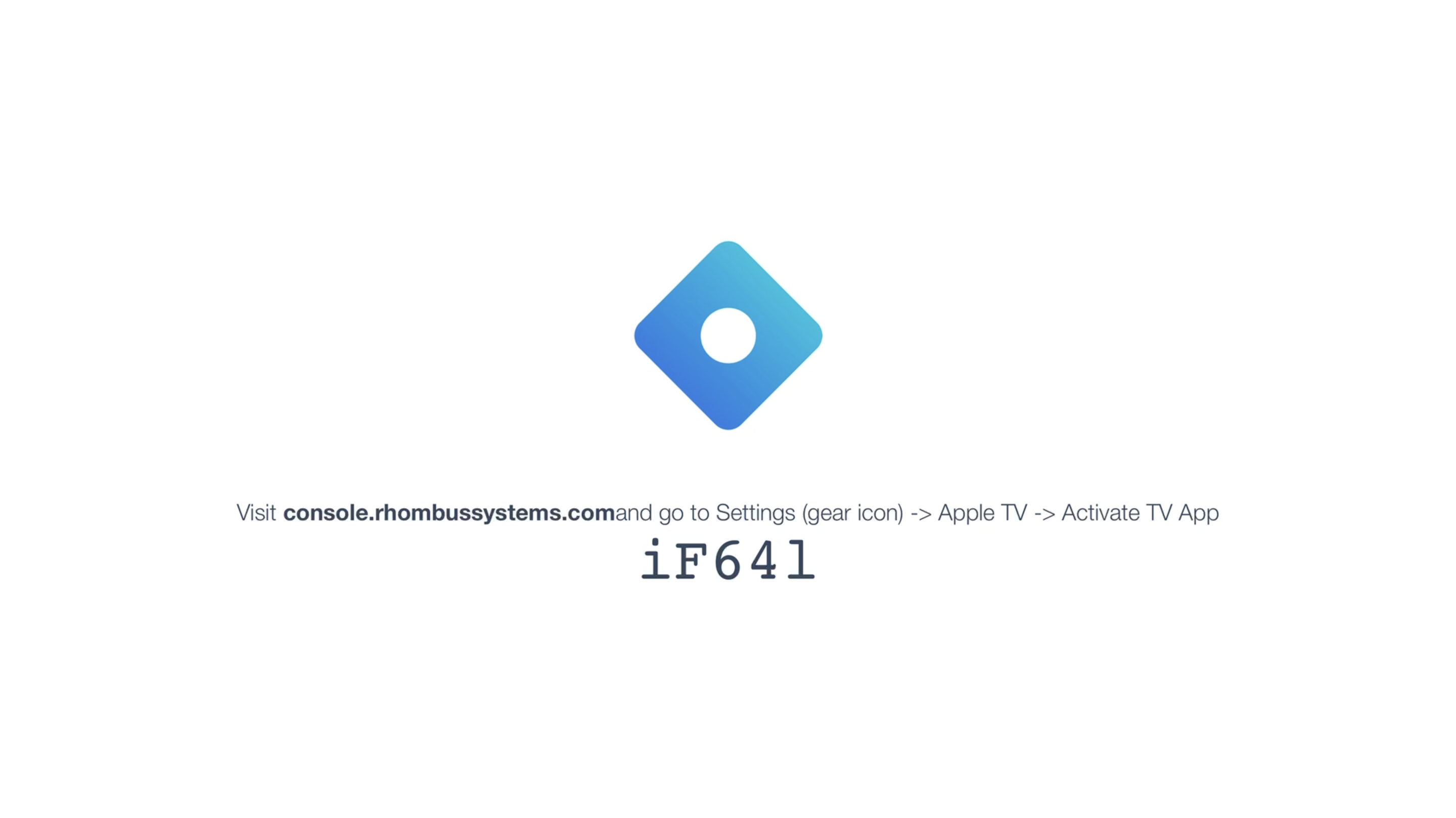

3. On the first launch, a code will be shown. Record this code as it will be used in the Rhombus console to activate the Apple TV. apple_tv_registration.png
4. Log into your Rhombus console.

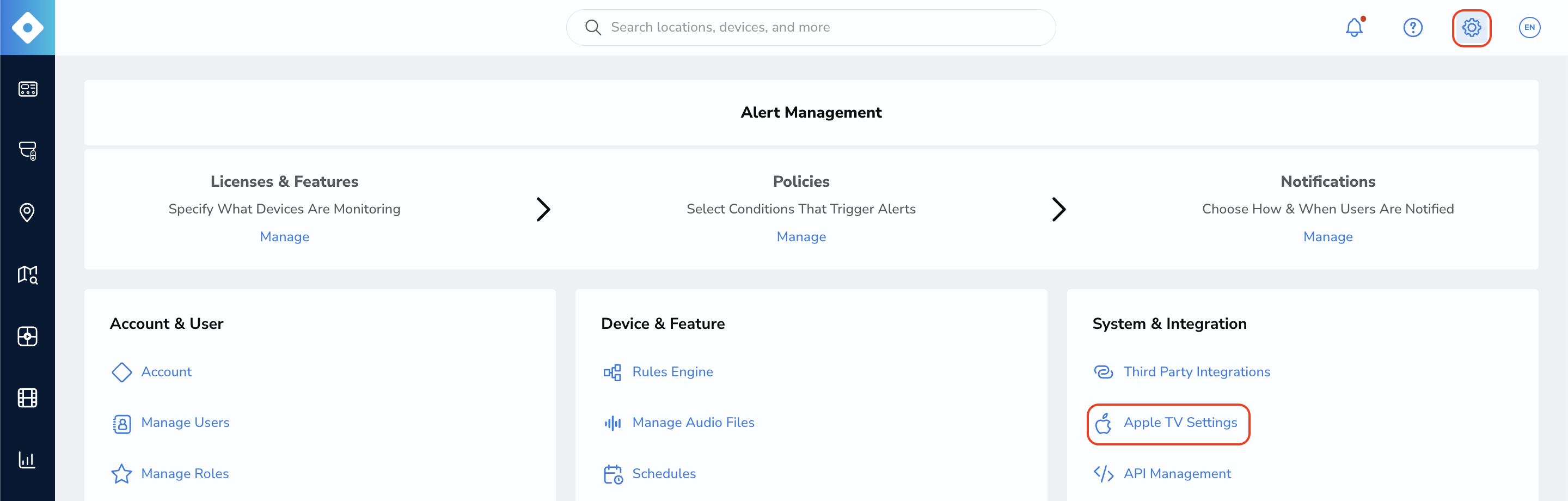

  • Navigate to Settings
  • Select Apple TV Settings

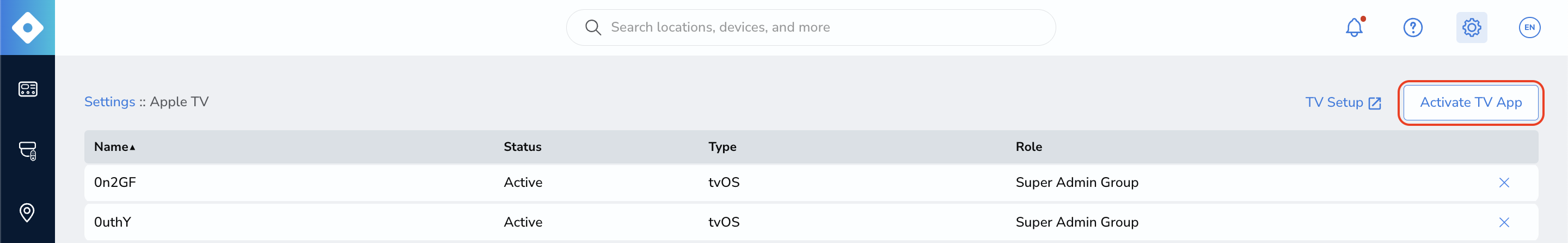

5. Select the "Activate TV App" button located in the upper right corner. AppleTV_Step2.png

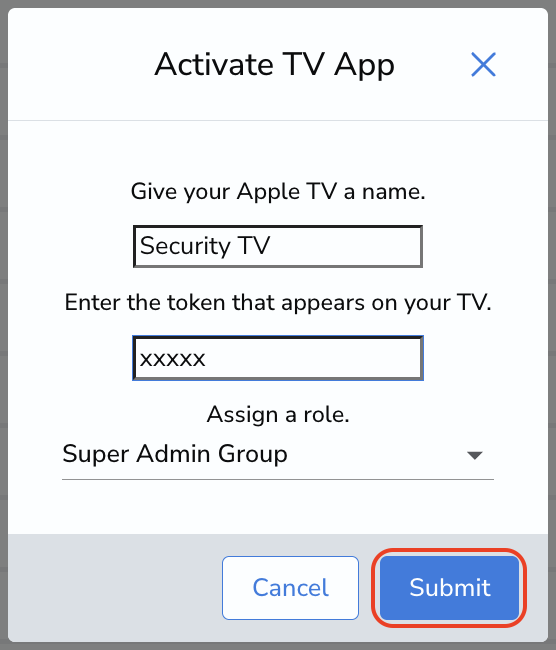

6. In the pop-up screen, provide a name for your Apple TV then supply the code recorded in step 3.

Finally, provide a console role for the Apple TV.

  • The role will define which cameras/video walls the Apple TV will have access to.
  • Once a role is assigned to an Apple TV is cannot be changed. If an incorrect role is assigned, the Apple TV will need to be deleted and re-activated.



Once registered, you'll see a table of all of the Apple TV tokens, names, and assigned roles. You can then launch the Apple TV app, and a list of video walls corresponding to the assigned role with be available for display.
